Model Whirlpool KGCP462KSS04 36`` Stainless Steel Professional Cooktop – Common Parts & Diagrams

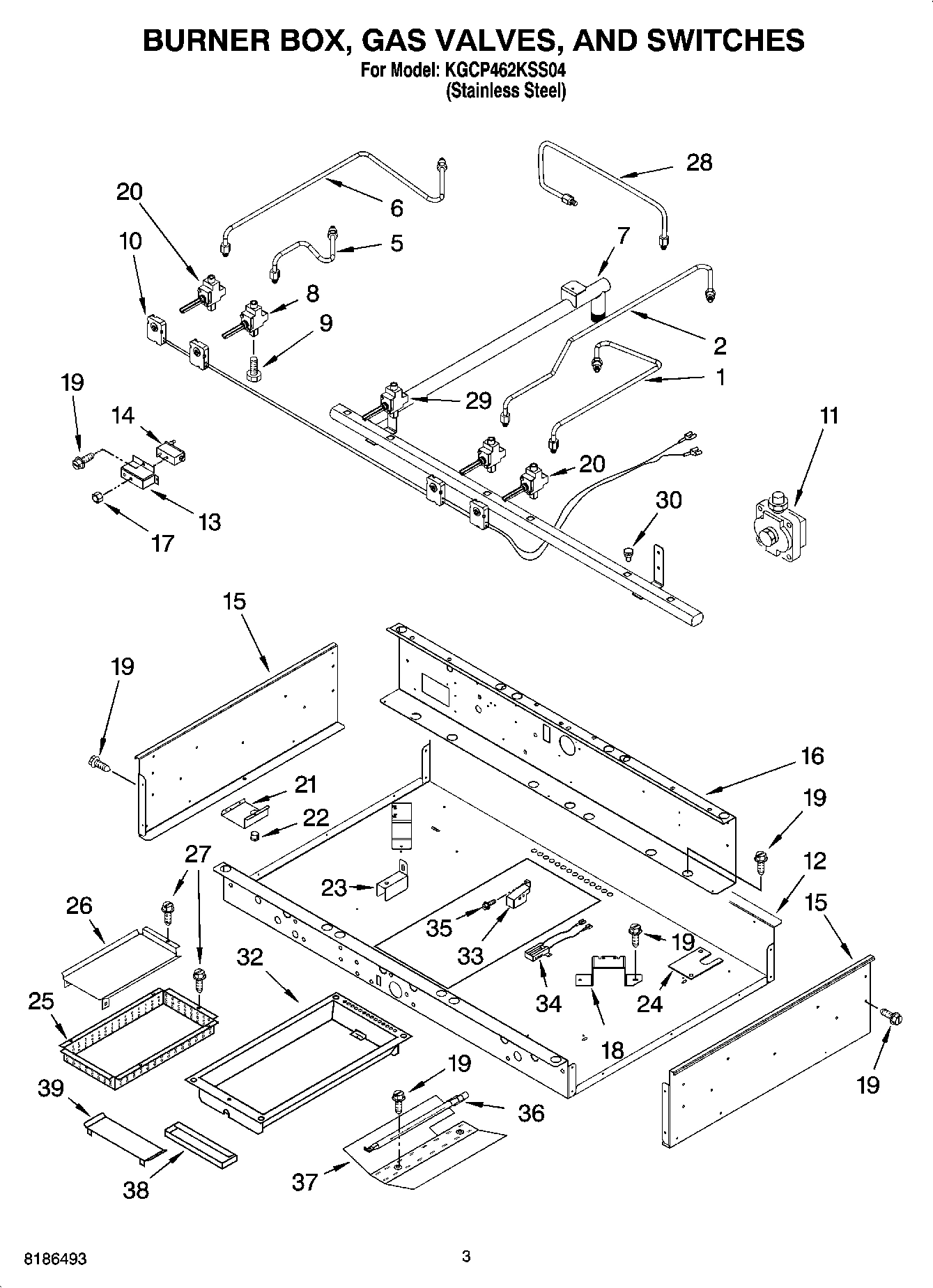

02 - BURNER BOX, GAS VALVES, AND SWITCHES, OPTIONAL PARTS

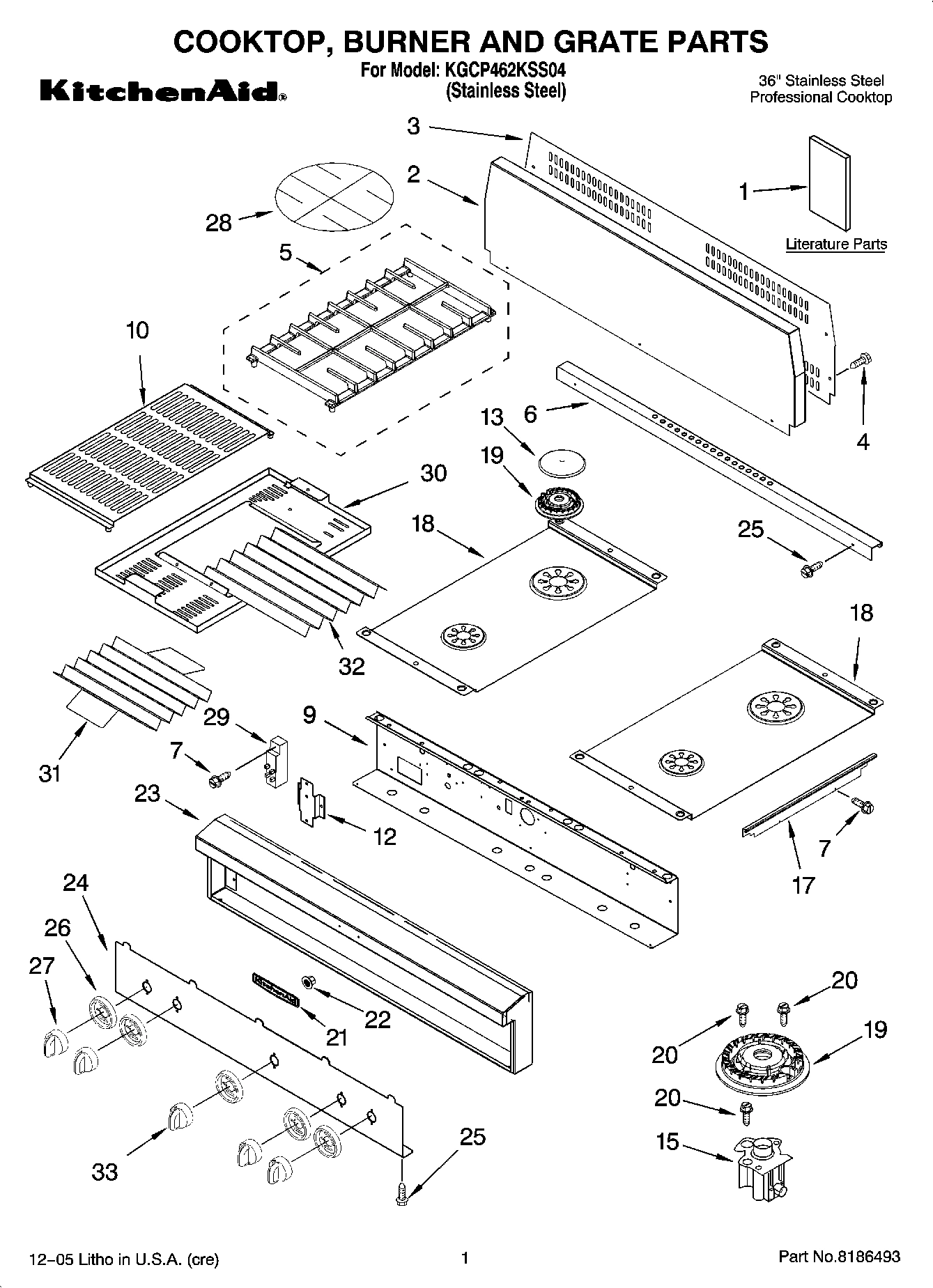

01 - COOKTOP, BURNER AND GRATE PARTS
Common parts from model Whirlpool KGCP462KSS04 36`` Stainless Steel Professional Cooktop
Harness, Wire Jumper WPL 4456628 Contact Us For Availability
1
Wiring Diagram WPL 8285586 Contact Us For Availability
1
Use & Care Guide WPL 8286611 Contact Us For Availability
1
Installation Instructions WPL 9759405 Contact Us For Availability
1
Instructions, LP Conversion WPL 9759442 Contact Us For Availability
2
Backsplash WPL 4454960 Contact Us For Availability
3
Support, Backsplash WPL 8284712 Contact Us For Availability
5
Grate, Burner WPL 4457331 Contact Us For Availability
6
Trim, Island WPL 8284851 Contact Us For Availability
8
Valve, Burner (Turbo) WPL 4456818 Contact Us For Availability
9
Support, Control Panel WPL 8285478 Contact Us For Availability
10
Burner Switch & Harness Assembly WPL 4456911 Contact Us For Availability
10
Grate, Grill WPL 4457151 Contact Us For Availability
12
Bracket, Spark WPL 4457260 Contact Us For Availability
13
Cap, Burner ((14K)) WPL 4455243 Contact Us For Availability
14
Valve, Grill WPL 8284858 Contact Us For Availability
15
Holder, Orifice (Auxillary (2) Includes Orifi WPL 4456920 Contact Us For Availability
17
Trim, Side (Right Hand) WPL 4457294 Contact Us For Availability
17
Trim, Side (Left Hand) WPL 4457295 Contact Us For Availability
18
Screw (2) WPL 4449040 Contact Us For Availability
18
Bracket, Burner WPL 3192811 Contact Us For Availability
18
Cooktop, Black WPL 9760863 Contact Us For Availability
19
Burner Head 14K (Turbo (2)) WPL 4455849 Contact Us For Availability
21
Cover, Shelf WPL 8284680 Contact Us For Availability
21
Nameplate WPL 2005292 Contact Us For Availability
22
Bushing, Cover Shelf WPL 8284722 Contact Us For Availability
23
BRACKET-SUPPORT WPL 4449845 Contact Us For Availability
23
Control Frame WPL 4455217 Contact Us For Availability
24
Cover, Panel WPL 8285361 Contact Us For Availability
24
Panel, Control WPL 4457159 Contact Us For Availability
25
Box, Burner Lower WPL 8285031 Contact Us For Availability
26
Guard, Rear Spill WPL 8284960 Contact Us For Availability
26
Bezel, Knob WPL 4455192 Contact Us For Availability
28
Plate, Simmer WPL 4455109 Contact Us For Availability
28
Tube, Grill WPL 8284790 Contact Us For Availability
29
Valve, Gas Grill WPL 4456819 Contact Us For Availability
30
Plug, Manifold WPL 8284796 Contact Us For Availability
30
Frame, Wave Tray WPL 8284918 Contact Us For Availability
31
Plate, Wave WPL 8284919 Contact Us For Availability
32
Module, Grill Grill WPL 8284787 Contact Us For Availability
32
Plate, Wave tray WPL 8284917 Contact Us For Availability
33
Bracket, Ignitor WPL 8284968 Contact Us For Availability
33
Knob, Grill WPL 8284742 Contact Us For Availability
34
Ignitor, Grill WPL 8284941 Contact Us For Availability
36
Log Burner, Grill WPL 8285052 Contact Us For Availability
37
Deflector WPL 8284900 Contact Us For Availability
38
Tray, Drip WPL 8284791 Contact Us For Availability
39
Guard, Spill WPL 8285030 Contact Us For Availability
× ![]()
