Model Whirlpool KGCP462KSS02 36`` Stainless Steel Professional Cooktop – Common Parts & Diagrams

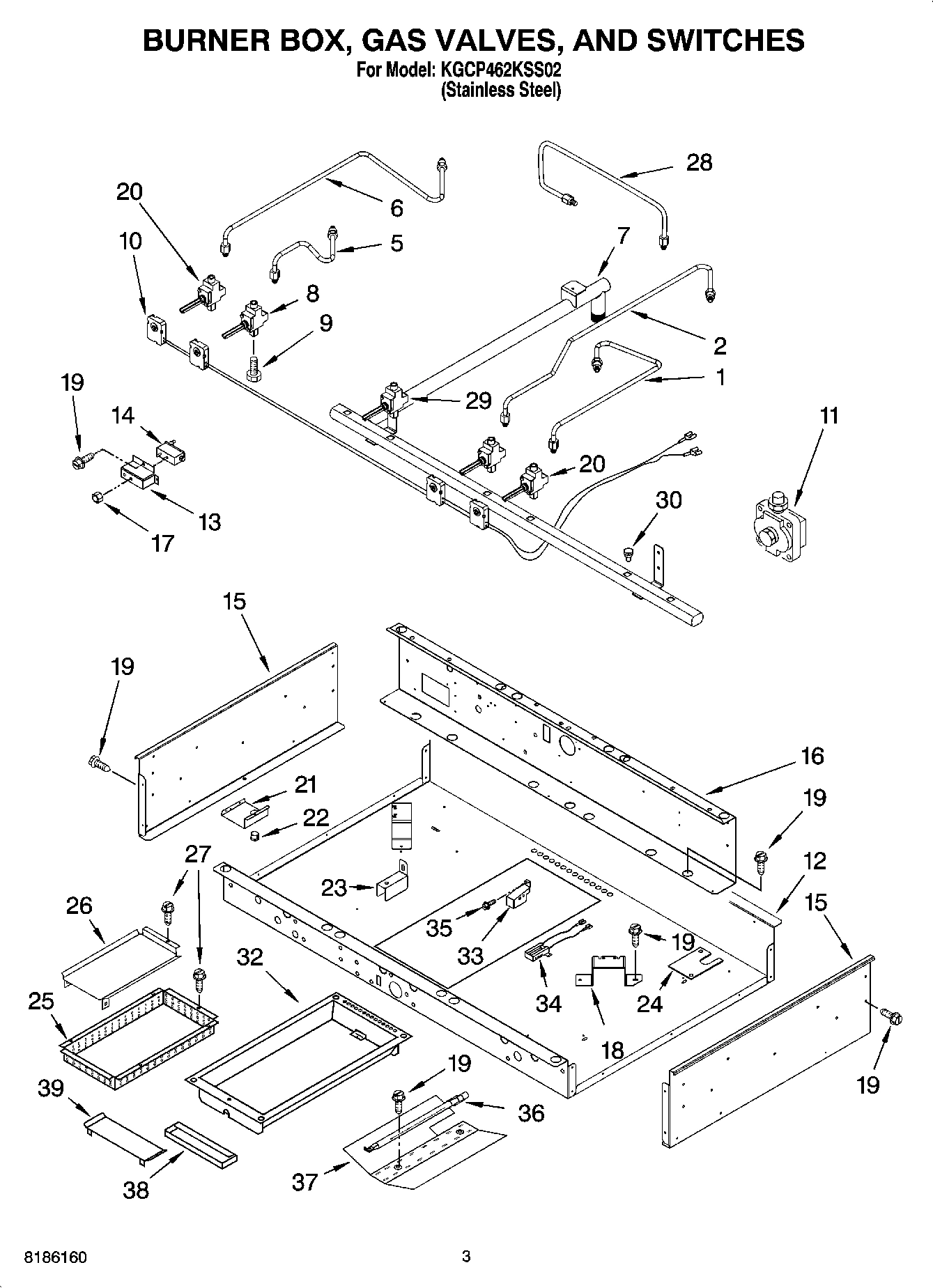

02 - BURNER BOX, GAS VALVES, AND SWITCHES

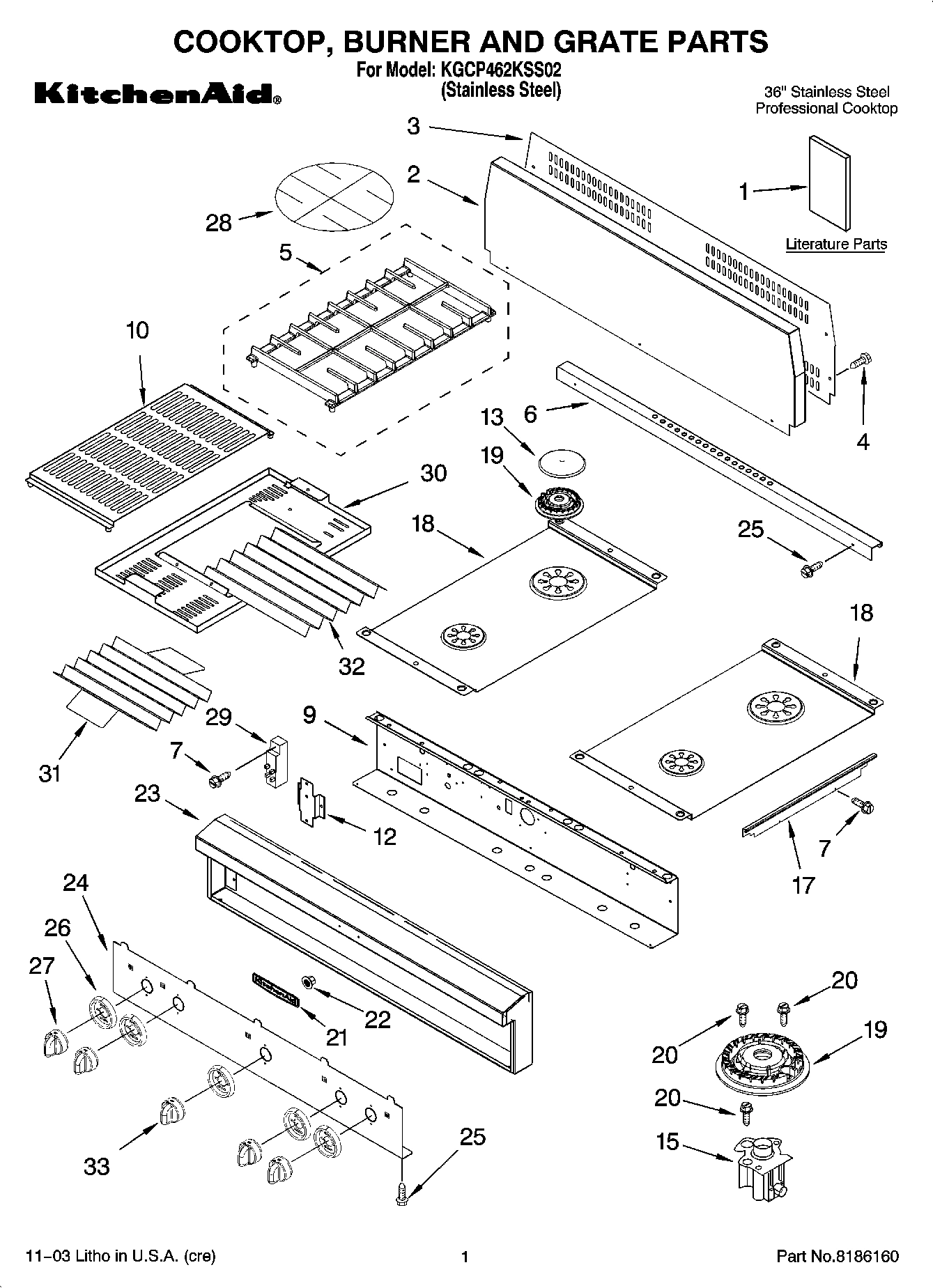

01 - COOKTOP, BURNER AND GRATE PARTS
Common parts from model Whirlpool KGCP462KSS02 36`` Stainless Steel Professional Cooktop
1
Literature Parts (Installation Instructions) WPL LIT8285479 Contact Us For Availability
1
Literature Parts (Wiring Diagram) WPL LIT8285586 Contact Us For Availability
1
Literature Parts (Use & Care Guide) WPL LIT8285588 Contact Us For Availability
1
Literature Parts (Instructions, LP Conversion WPL LIT8285589 Contact Us For Availability
2
Backsplash WPL 4454960 Contact Us For Availability
3
Support, Backsplash WPL 8284712 Contact Us For Availability
5
Grate, Burner WPL 4454963 Contact Us For Availability
6
Trim, Island WPL 8284851 Contact Us For Availability
8
Valve, Burner (Turbo) WPL 4456818 Contact Us For Availability
9
Support, Control Panel WPL 8285478 Contact Us For Availability
10
Burner Switch & Harness Assembly WPL 4456911 Contact Us For Availability
10
Grate, Grill WPL 8284741 Contact Us For Availability
12
14K (2) WPL 4455243 Contact Us For Availability
12
Bracket, Spark WPL 8285005 Contact Us For Availability
13
Cap, Burner WPL ARI87505A8 Contact Us For Availability
14
Valve, Grill WPL 8284858 Contact Us For Availability
15
Holder, Orifice (Auxillary (2) Includes Orifi WPL 4456920 Contact Us For Availability
17
Trim, Side (Right Hand) WPL 8285161 Contact Us For Availability
17
Trim, Side (Left Hand) WPL 8285162 Contact Us For Availability
18
Screw (4) WPL 4449040 Contact Us For Availability
18
Cooktop, Black WPL 8284812 Contact Us For Availability
19
Burner Head 14K (Turbo (2)) WPL 4455849 Contact Us For Availability
21
Nameplate WPL 2005292 Contact Us For Availability
23
Control Frame WPL 4455217 Contact Us For Availability
24
Panel, Control WPL 8284748 Contact Us For Availability
26
Guard, Rear Spill WPL 8284960 Contact Us For Availability
26
Bezel, Knob WPL 4455192 Contact Us For Availability
28
Plate, Simmer WPL 4455109 Contact Us For Availability
28
Tube, Grill WPL 8284790 Contact Us For Availability
29
Valve, Gas Grill WPL 8284922 Contact Us For Availability
30
Plug, Manifold WPL 8284796 Contact Us For Availability
30
Frame, Wave Tray WPL 8284918 Contact Us For Availability
31
Plate, Wave WPL 8284919 Contact Us For Availability
32
Module, Grill Grill WPL 8284787 Contact Us For Availability
32
Plate, Wave tray WPL 8284917 Contact Us For Availability
33
Bracket, Ignitor WPL 8284968 Contact Us For Availability
33
Knob, Grill WPL 8284742 Contact Us For Availability
34
Ignitor, Grill WPL 8284941 Contact Us For Availability
36
Log Burner, Grill WPL 8285052 Contact Us For Availability
37
Deflector WPL 8284900 Contact Us For Availability
38
Tray, Drip WPL 8284791 Contact Us For Availability
38
PARTS NOT ILLUSTRATED WPL ARI87506A2 Contact Us For Availability
39
Harness, Wire Jumper WPL 4456628 Contact Us For Availability
39
Bushing WPL 1129449 Contact Us For Availability
39
Harness, Grille Switch WPL 4456909 Contact Us For Availability
39
L.P. Orifice Spud WPL 8284663 Contact Us For Availability
39
L.P. Orifice Spud WPL 8284782 Contact Us For Availability
39
Guard, Spill WPL 8285030 Contact Us For Availability
39
WIRING HARNESS PARTS WPL ARI87507A1 Contact Us For Availability
39
Miscellaneous WPL ARI87508A2 Contact Us For Availability
39
Miscellaneous WPL ARI87509A3 Contact Us For Availability
NI
Support Rail WPL 4454974 Contact Us For Availability
× ![]()
