Model Whirlpool KGCK346BSS0 24`` GAS COOKTOP – Common Parts & Diagrams

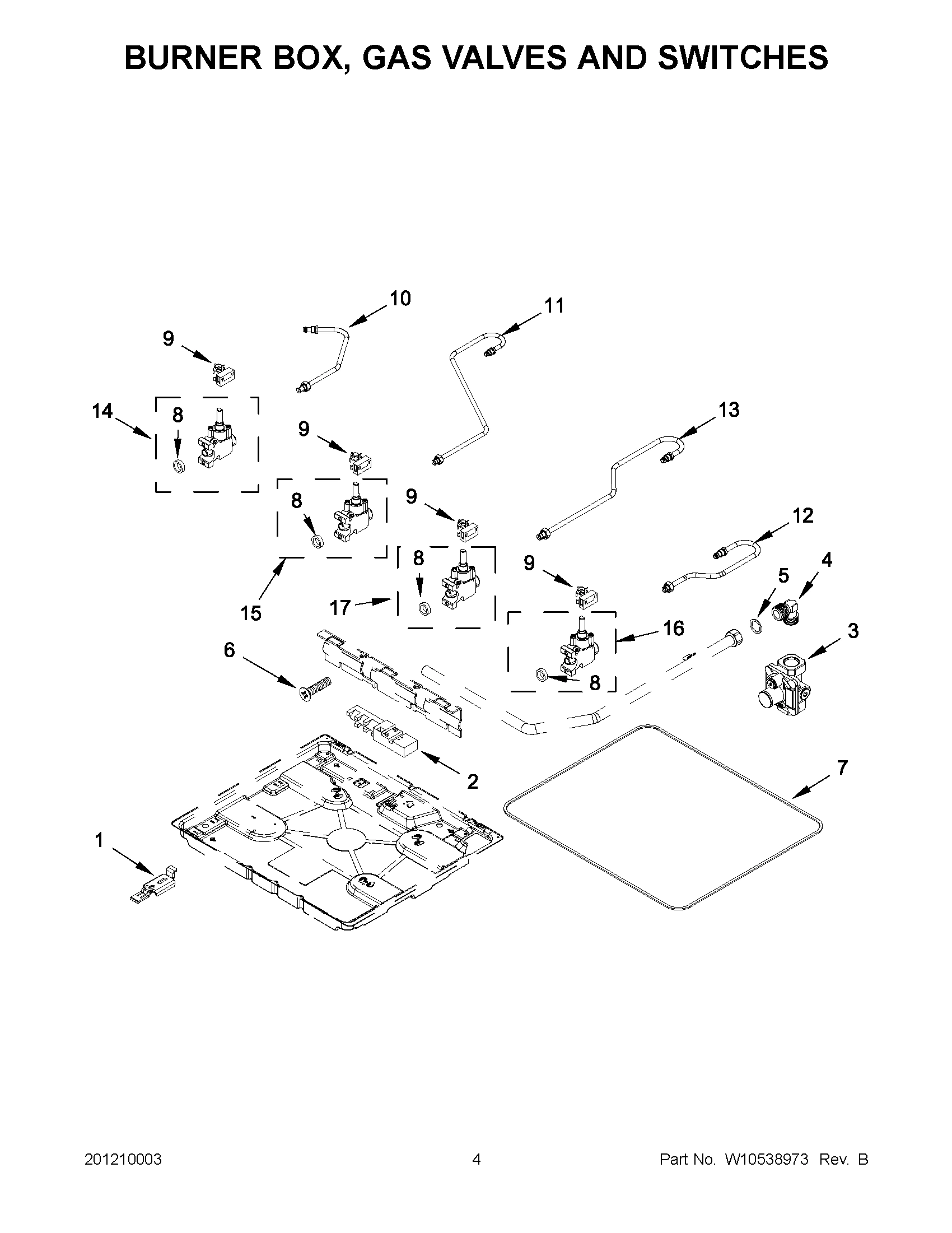

02 - BURNER BOX, GAS VALVES AND SWITCHES

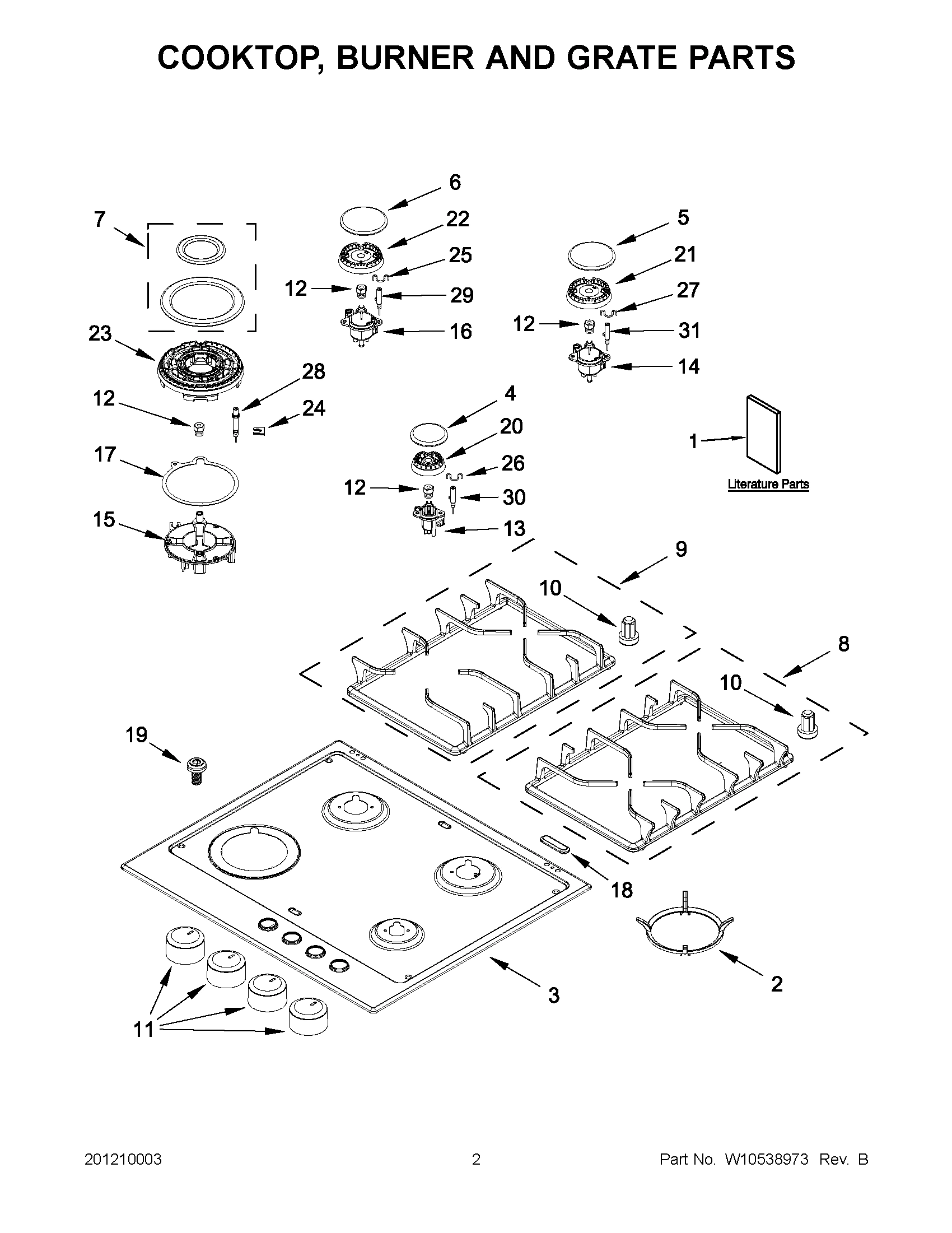

01 - COOKTOP, BURNER AND GRATE PARTS
Common parts from model Whirlpool KGCK346BSS0 24`` GAS COOKTOP
1
BRACKET, MOUNTING COOKTOP WPL W10484469 Contact Us For Availability
1
USE AND CARE GUIDE WPL W10539012 Contact Us For Availability
2
MODULE, SPARK AND TERMINAL BOARD WPL W10484366 Contact Us For Availability
2
GRATE, WOK WPL W10483910 Contact Us For Availability
3
24 `` STAINLESS COOKTOP WPL W10483898 Contact Us For Availability
4
ELBOW, MANIFOLD WPL 8186827 Contact Us For Availability
5
GASKET, MANIFOLD ELBOW WPL 8186829 Contact Us For Availability
6
SCREW, MANIFOLD 8-18X5/16 WPL W10517408 Contact Us For Availability
7
GASKET, COOKTOP WPL W10515438 Contact Us For Availability
7
BURNER CAP 4-CROWN OUTER WPL W10484283 Contact Us For Availability
7
BURNER CAP 4-CROWN INNER LEFT FRONT WPL W10484286 Contact Us For Availability
8
GASKET, VALVE WPL 8186828 Contact Us For Availability
8
GRATE, RIGHT SIDE WPL W10483909 Contact Us For Availability
9
SWITCH, IGNITION WPL W10484356 Contact Us For Availability
9
GRATE, LEFT SIDE WPL W10483907 Contact Us For Availability
10
TUBING, GAS 4-CROWN LEFT FRONT WPL W10484466 Contact Us For Availability
10
BUMPER, GRATE WPL W10483912 Contact Us For Availability
11
TUBING, GAS SR LEFT REAR WPL W10484465 Contact Us For Availability
11
KNOB, CONTROL (BLACK) WPL W10483913 Contact Us For Availability
12
TUBING, GAS AUX RIGHT FRONT WPL W10484463 Contact Us For Availability
12
KIT, LIQUID PROPANE ORIFICES WPL W10484296 Contact Us For Availability
12
KIT, NATURAL GAS ORIFICES WPL W10484298 Contact Us For Availability
13
HOLDER, ORIFICE AUX RIGHT FRONT WPL W10483915 Contact Us For Availability
14
VALVE, GAS 4-CROWN LEFT FRONT WPL 8186816 Contact Us For Availability
15
HOLDER, ORIFICE 4-CROWN LEFT FRONT WPL W10483918 Contact Us For Availability
16
VALVE, GAS AUX RIGHT FRONT WPL 8186818 Contact Us For Availability
16
HOLDER, ORIFICE SR LEFT REAR WPL W10483916 Contact Us For Availability
17
VALVE, GAS SR RIGHT REAR WPL 8186817 Contact Us For Availability
17
GASKET, BURNER 4-CROWN WPL W10483933 Contact Us For Availability
19
SCREW, COOKTOP WPL W10484471 Contact Us For Availability
23
HEAD, BURNER 4-CROWN LEFT FRONT WPL W10483938 Contact Us For Availability
24
CLIP, IGNITOR LEFT FRONT WPL W10236998 Contact Us For Availability
27
CLIP, IGNITOR RIGHT REAR WPL W10236996 Contact Us For Availability
28
IGNITOR, SURFACE LEFT FRONT WPL W10236997 Contact Us For Availability
× ![]()
