Model Whirlpool KGCC566RBL07 COOKTOP, GAS, 36 INCH – Common Parts & Diagrams
04 - OPTIONAL PARTS (NOT INCLUDED)

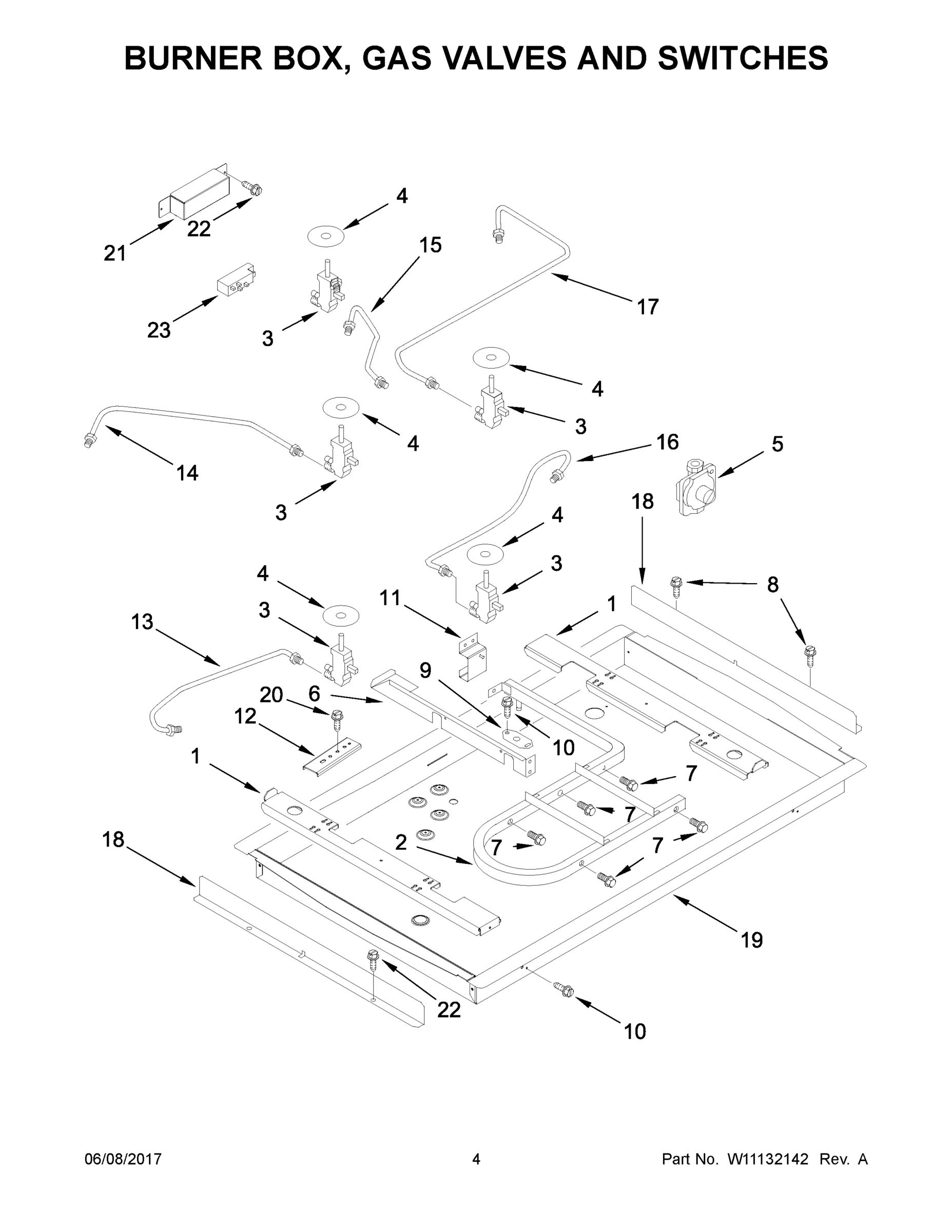

03 - BURNER BOX, GAS VALVES AND SWITCHES

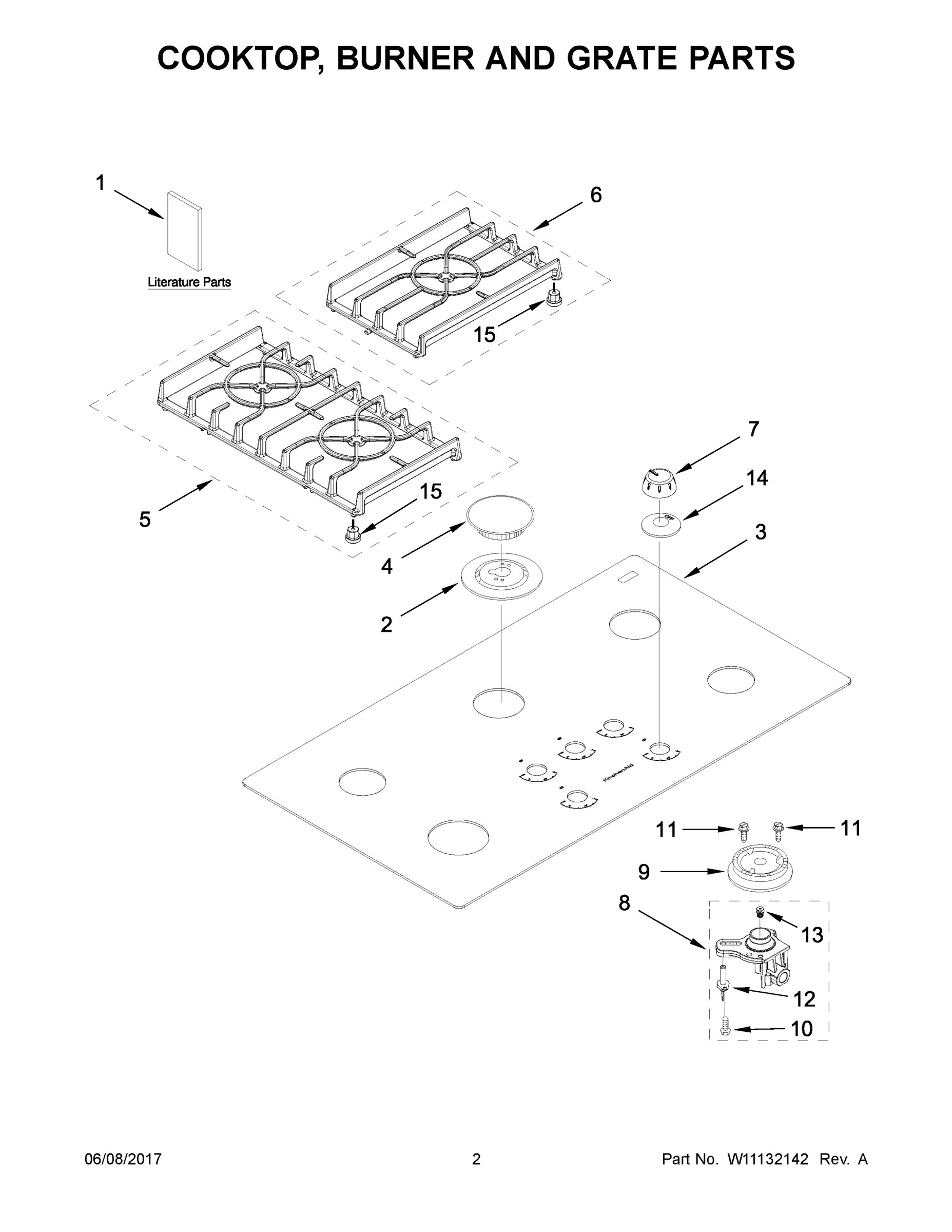

02 - COOKTOP, BURNER AND GRATE PARTS

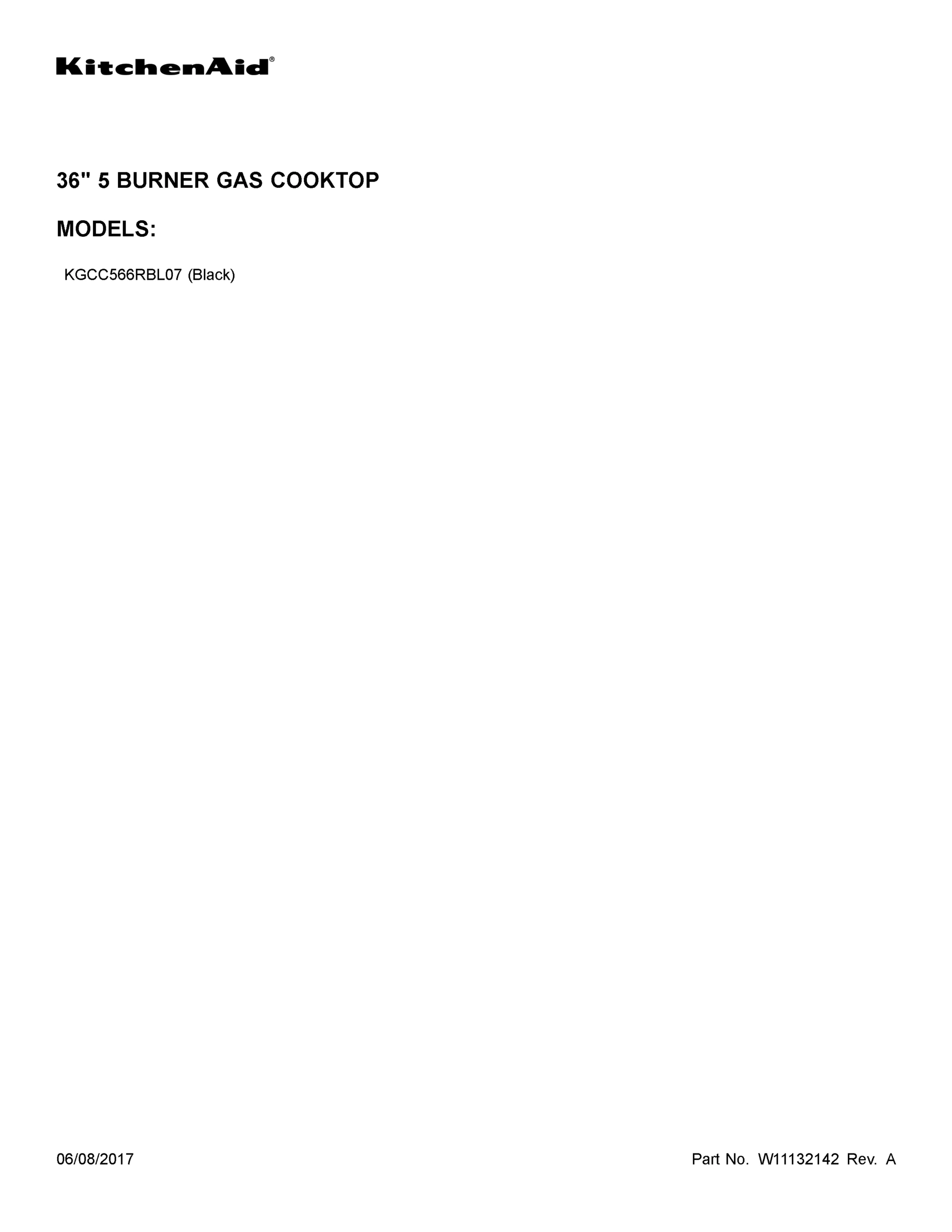

01 - COVER SHEET
Common parts from model Whirlpool KGCC566RBL07 COOKTOP, GAS, 36 INCH
2
BEZEL, COOKTOP (BLACK (17K) (LEFT FRONT)) WPL 8285779BL Contact Us For Availability
2A
BEZEL, COOKTOP (BLACK (6K) (LEFT REAR & RIGHT WPL 9753601BL Contact Us For Availability
2B
BEZEL, COOKTOP (BLACK (12K) (CENTER REAR & RI WPL 9753602BL Contact Us For Availability
3
VALVE, GAS BURNER (LEFT FRONT) WPL 8286561 Contact Us For Availability
3A
VALVE, GAS BURNER (LEFT REAR & RIGHT FRONT) WPL 8286559 Contact Us For Availability
3C
VALVE, GAS BURNER (RIGHT REAR) WPL 8286560 Contact Us For Availability
13
WPL 8286474 WPL 8286474 Contact Us For Availability
14
TUBE (LEFT REAR) WPL 8285769 Contact Us For Availability
16
TUBE (RIGHT FRONT) WPL 8285768 Contact Us For Availability
17
TUBE (RIGHT REAR) WPL 8285767 Contact Us For Availability
18
SHIELD, HEAT WPL 3191462 Contact Us For Availability
NI
ACCESSORIES, CLEANER, COOKTOP WPL W10355051 Contact Us For Availability
NI
ACCESSORIES, KIT, COOKTOP CARE WPL 31605 Contact Us For Availability
NI
ACCESSORIES, CLEANER, STAINLESS STEEL WPL W10355016 Contact Us For Availability
NI
ACCESSORIES, GRIDDLE WPL 4396096RB Contact Us For Availability
NI
ACCESSORIES, SCRAPER, COOKTOP WPL WA906B Contact Us For Availability
NI
ACCESSORIES, PROTECTANT, COOKTOP WPL 31463A Contact Us For Availability
NI
ACCESSORIES, CLEANER, KITCHEN & APPLIANCE WPL W10355010 Contact Us For Availability
NI
WPL 4456626 WPL 4456626 Contact Us For Availability
NI
ACCESSORIES, CLEANER, GRATE & DRIP PAN WPL 31617A Contact Us For Availability
NI
WPL W10268394 WPL W10268394 Contact Us For Availability
NI
WPL W10392007 WPL W10392007 Contact Us For Availability
× ![]()
