Model Whirlpool KGCC566HWH1 COOKTOP – Common Parts &amp; Diagrams

WP3192741 Whirlpool LP Conversion Kit Backorder WPL WP3192741 $21.74

Seal, Foam-Cooktop WPL 3191933 Contact Us For Availability

1

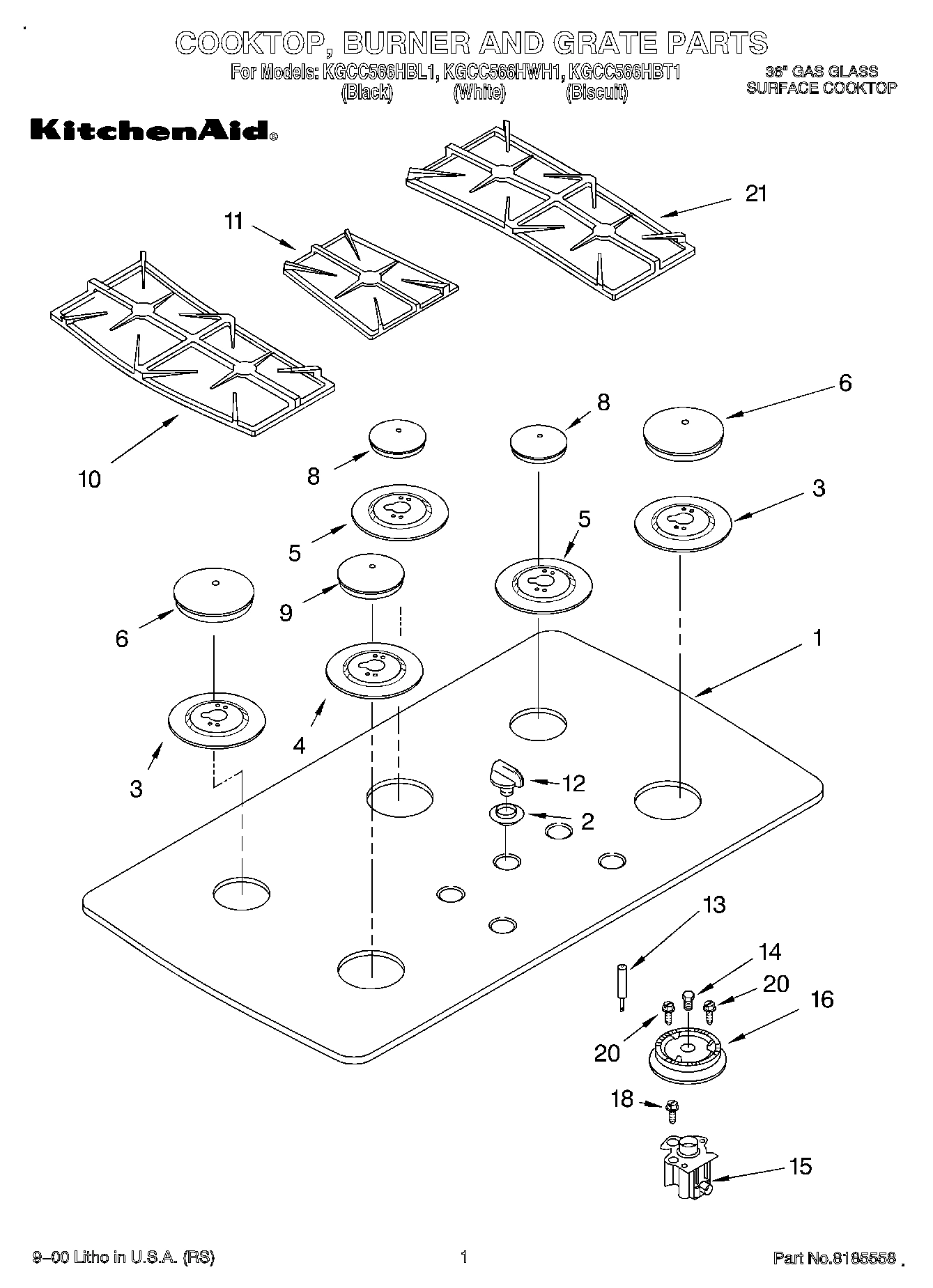

Cooktop, Glass (Black) WPL 4455573 Contact Us For Availability

1

Cooktop, Glass (White) WPL 4455575 Contact Us For Availability

1

Cooktop, Glass (Biscuit) WPL 4455576 Contact Us For Availability

2

W10854242 Whirlpool Grommet In Stock WPL W10854242 $3.73

2

WP3180081 Whirlpool Grommet In Stock WPL WP3180081 $3.79

2

Grommet, Glass (Biscuit) WPL 3191817 Contact Us For Availability

3

Valve, Gas Burner Burner, (RF) (LR) WPL 3191292 Contact Us For Availability

3

Bezel, Cooktop (RF) (LR) (Black) WPL 9753602GB Contact Us For Availability

3

Bezel, Cooktop (RF) (LR) (White) WPL 9753602GS Contact Us For Availability

4

Bezel, Cooktop (LF) (Black) WPL 9753600GB Contact Us For Availability

4

Bezel, Cooktop (LF) (White) WPL 9753600GS Contact Us For Availability

5

Valve, Gas Burner (RR) (Center) WPL 3191293 Contact Us For Availability

5

Bezel, Cooktop (RR) (Center) (Black) WPL 9753601GB Contact Us For Availability

5

Bezel, Cooktop (RR) (Center) (White) WPL 9753601GS Contact Us For Availability

6

Cap, (RF) (LR) (Black) WPL 3191728 Contact Us For Availability

6

Cap, (RF) (LR) (White) WPL 3191729 Contact Us For Availability

6

Cap, (RF) (LR) (Moleskin) WPL 3191730 Contact Us For Availability

8

Cap, (RR) (Center) (Black) WPL 3191734 Contact Us For Availability

8

Cap, (RR) (Center) (White) WPL 3191735 Contact Us For Availability

8

Cap, (RR) (Center) (Moleskin) WPL 3191736 Contact Us For Availability

9

Cap, (LF) (Black) WPL 3191737 Contact Us For Availability

9

Cap, (LF) (White) WPL 3191738 Contact Us For Availability

9

Cap, (LF) (Moleskin) WPL 3191739 Contact Us For Availability

10

Grate, Burner LH (Black) WPL 3193013 Contact Us For Availability

10

Grate, Burner LH (White) WPL 3193014 Contact Us For Availability

10

Grate, Burner LH (Moleskin) WPL 3193015 Contact Us For Availability

11

Grate, Filler (Black) WPL 3193022 Contact Us For Availability

11

Grate, Filler (White) WPL 3193023 Contact Us For Availability

11

Grate, Filler (Moleskin) WPL 3193024 Contact Us For Availability

WP3191922 Whirlpool Control Knob In Stock WPL WP3191922 $3.70

Knob, Control (4) (White) WPL 3191923 Contact Us For Availability

Knob, Control (4) (Biscuit) WPL 3191925 Contact Us For Availability

Harness & Switches WPL 3191336 Contact Us For Availability

13

WP9754215 Whirlpool Surface Igniter In Stock WPL WP9754215 $26.47

3191324 Whirlpool Oven Gas Tubing Backorder WPL 3191324 $43.68

WP3192523 Whirlpool Orifice Backorder WPL WP3192523 $32.30

WP9753930 Whirlpool Orifice Backorder WPL WP9753930 $34.72

Orifice (LF) WPL 3192525 Contact Us For Availability

Orifice (RF - LR) WPL 3192528 Contact Us For Availability

814513 Whirlpool Top Burner Backorder WPL 814513 $83.51

Holder, Orifice (LF) WPL 9754188 Contact Us For Availability

Holder, Orifice (RF - LR) WPL 9754182 Contact Us For Availability

Holder, Orifice (RR) WPL 9754187 Contact Us For Availability

WP4455979 Whirlpool Range Small Burner Head Backorder WPL WP4455979 $34.15

WP4455981 Whirlpool Burner Head Backorder WPL WP4455981 $52.72

Tubing, Gas Burner (RR) WPL 3191325 Contact Us For Availability

Head, Burner (LF) WPL 9754181 Contact Us For Availability

18

WP4449809 Whirlpool Screw In Stock WPL WP4449809 $2.51

20

3191462 Whirlpool Oven Heat Shield Backorder WPL 3191462 $10.91

20

WP3368921 Whirlpool Screw In Stock WPL WP3368921 $1.52

Regulator, Pressure WPL 3177120 Contact Us For Availability

Grat WPL 3193016 Contact Us For Availability

WPL 3193017 WPL 3193017 Contact Us For Availability

WPL 3193018 WPL 3193018 Contact Us For Availability

22

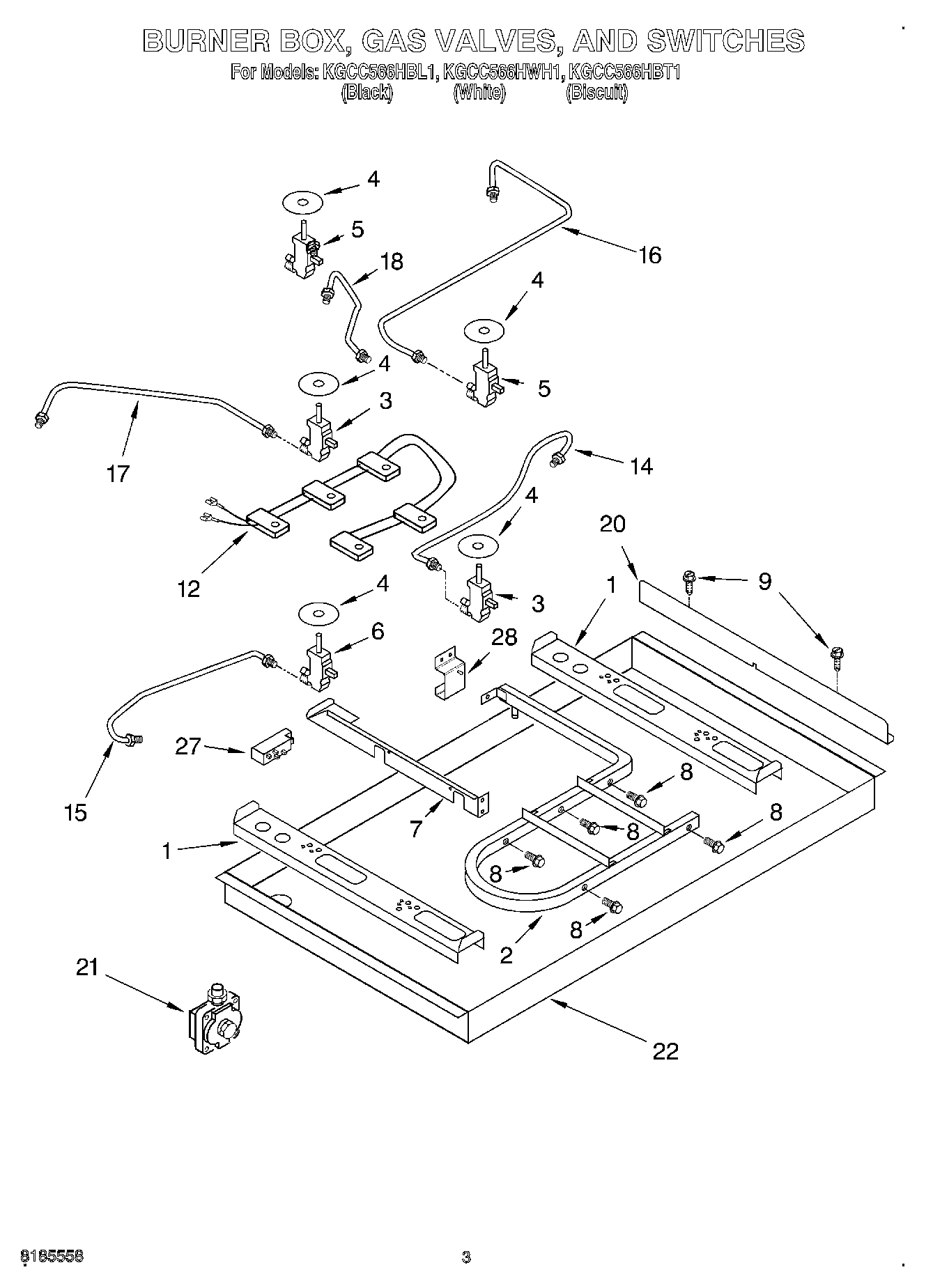

Burner Box WPL 3192603 Contact Us For Availability

27

WPW10110486 Whirlpool Spark Module In Stock WPL WPW10110486 $140.34

28

Bracket, Mounting WPL 3192613 Contact Us For Availability
