Model Whirlpool KGBS276XWH0 – Common Parts & Diagrams

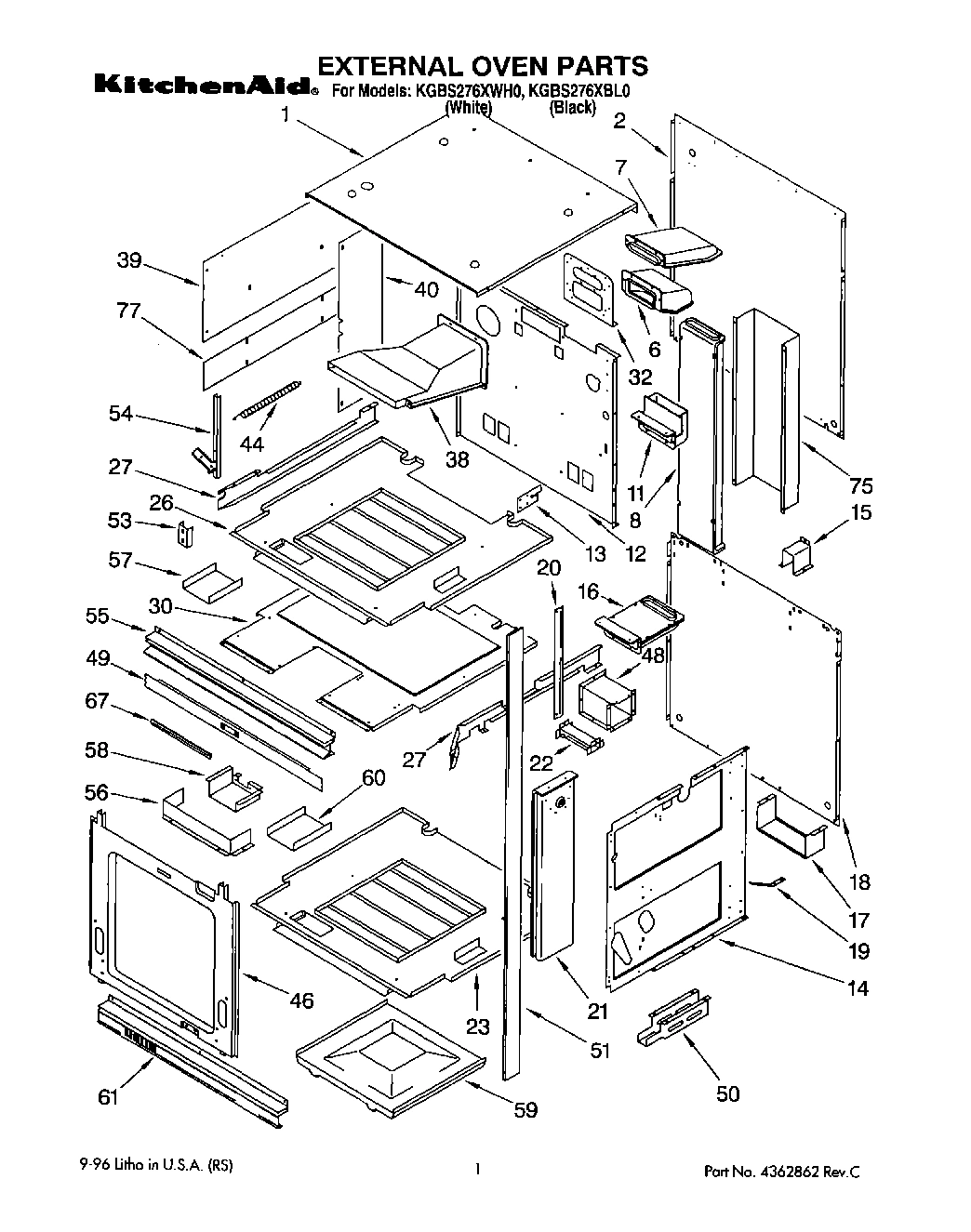

01 - EXTERNAL OVEN

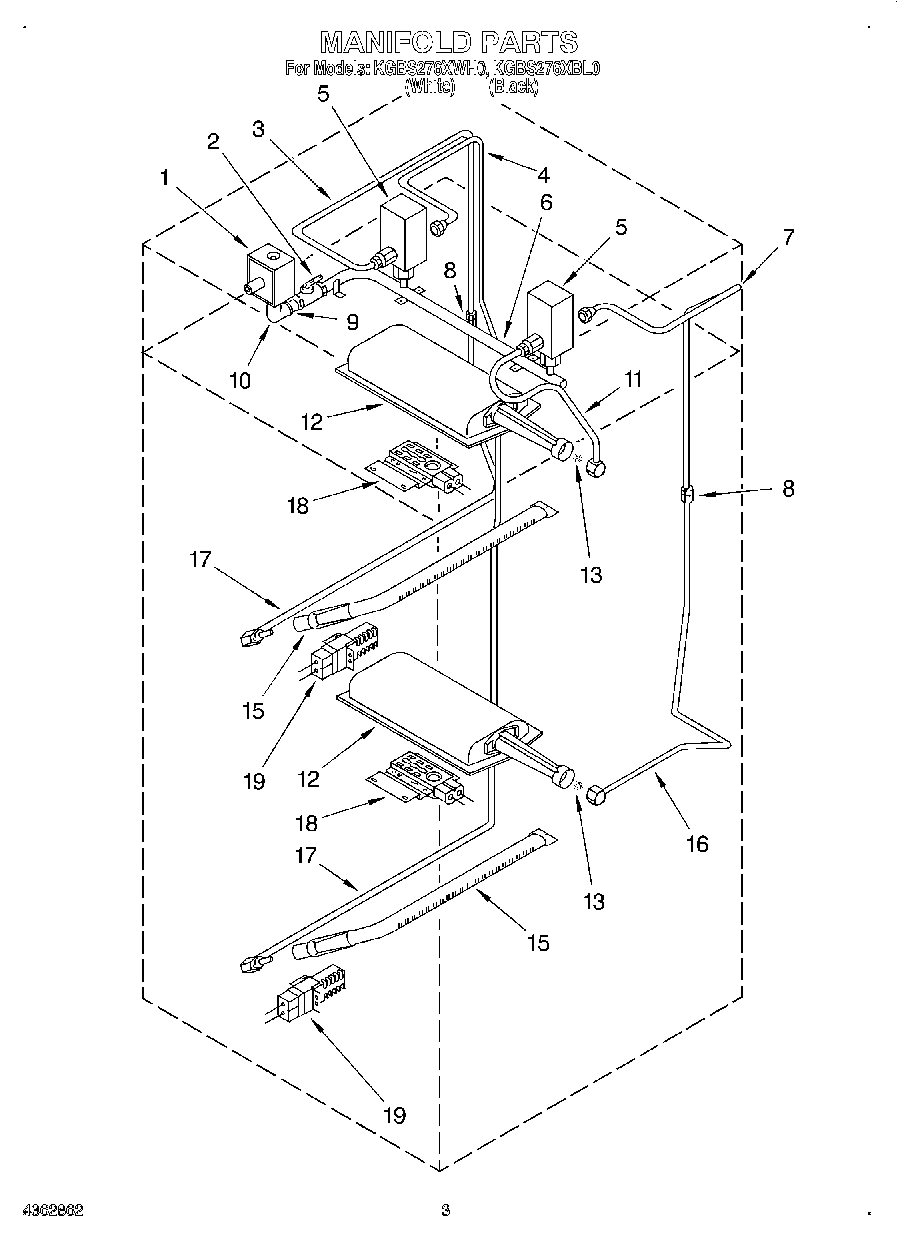

02 - MANIFOLD
04 - CONTROL PANEL
05 - DOOR LATCH AND CONTROL
06 - OVEN DOOR
07 - WIRING HARNESS, LITERATURE
03 - INTERNAL OVEN
Common parts from model Whirlpool KGBS276XWH0
Use & Care Guide WPL LIT4321123 Contact Us For Availability
Installation Instruction WPL LIT4321124 Contact Us For Availability
1
Top, Cabinet WPL 4362699 Contact Us For Availability
1
Regulator, Pressure WPL 786313 Contact Us For Availability
1
Bracket, Control Panel Mounting WPL 4362790 Contact Us For Availability
1
Switch, Lock WPL 786127 Contact Us For Availability
1
Handle, Door (Black Model) WPL 4362759 Contact Us For Availability
1
Handle, Door (White Model) WPL 4362837 Contact Us For Availability
1
Harness, Relay/ Fan Mounting WPL 4362873 Contact Us For Availability
2
Back, Upper Cabinet WPL 4362702 Contact Us For Availability
2
Valve, Shut Off WPL 4363763 Contact Us For Availability
2
Clock WPL 4364026 Contact Us For Availability
2
Switch, Momentary WPL 4363766 Contact Us For Availability
2
Frame, Door WPL 4362760 Contact Us For Availability
2
Harness, ClockTo Oven Harness WPL 4362875 Contact Us For Availability
3
Tubing, Upper Bake 3/8`` WPL 4362834 Contact Us For Availability
3
Bracket, Clock Mounting WPL 4362791 Contact Us For Availability
3
Glass, Door (White) WPL 4362838 Contact Us For Availability
3
Glass, Door (Black) WPL 4362848 Contact Us For Availability
3
Harness, Thermostat WPL 4362876 Contact Us For Availability
4
Tubing, Lower Bake 3/8`` WPL 4362833 Contact Us For Availability
4
Trim, Top Control Panel WPL 4362786 Contact Us For Availability
4
Harness, Door Latch WPL 4362877 Contact Us For Availability
5
Valve, Dual Thermal WPL 4362773 Contact Us For Availability
5
Vent, Grille (Black) WPL 4362780 Contact Us For Availability
5
Vent, Grille (White) WPL 4362858 Contact Us For Availability
5
Insulator, ESM WPL 786380 Contact Us For Availability
5
Baffle, Inner (Black) WPL 4362755 Contact Us For Availability
5
Baffle, Inner (White) WPL 4362860 Contact Us For Availability
5
Harness, Upper Oven to Latch WPL 4362878 Contact Us For Availability
6
Flue, Upper Oven WPL 4362713 Contact Us For Availability
6
Pipe, Manifold WPL 4362772 Contact Us For Availability
6
Knob, Selector (Black) WPL 4362788 Contact Us For Availability
6
Knob, Selector (White) WPL 4362844 Contact Us For Availability
6
Harness, Lower Oven Ignitor WPL 4362879 Contact Us For Availability
7
Flue, Lower Oven WPL 4362708 Contact Us For Availability
7
Tubing, Lower Broil 3/8`` WPL 4362832 Contact Us For Availability
7
Glass, Control Panel (Black) WPL 4362787 Contact Us For Availability
7
Glass, Control Panel (White) WPL 4362843 Contact Us For Availability
7
Handle, Latch (Black) WPL 4362809 Contact Us For Availability
7
Handle, Latch (White) WPL 4362846 Contact Us For Availability
7
Bracket, Window Mounting WPL 4362756 Contact Us For Availability
7
Harness, Lower WPL 4362880 Contact Us For Availability
8
Flue, Vertical Lower Oven WPL 4362707 Contact Us For Availability
8
Union, Compression WPL 4362722 Contact Us For Availability
8
Trim, Control (Black Model Panel Bottom) WPL 4362783 Contact Us For Availability
8
Trim, Control (White Model) WPL 4362842 Contact Us For Availability
8
Arm, Latch (Black) WPL 4362796 Contact Us For Availability
8
Window WPL 786429 Contact Us For Availability
9
Nipple WPL 4362774 Contact Us For Availability
9
Knob, Thermostat (Black) WPL 4362789 Contact Us For Availability
9
Knob, Thermostat (White) WPL 4362845 Contact Us For Availability
9
Socket, Oven Lamp WPL 786591 Contact Us For Availability
10
Elbow WPL 4362775 Contact Us For Availability
10
Timer, Set Button (Black) WPL 4315497 Contact Us For Availability
10
Timer, Set Button (White) WPL 4362857 Contact Us For Availability
10
Liner, Door WPL 4363762 Contact Us For Availability
10
Cup, Lamp WPL 4315257 Contact Us For Availability
11
Flue, Vertical Upper Oven WPL 4362709 Contact Us For Availability
11
Tubing, Upper Broil 3/8`` WPL 4362824 Contact Us For Availability
11
Knob, Bit Generator WPL 4314999 Contact Us For Availability
12
Retainer, Rear Insulation WPL 4362730 Contact Us For Availability
12
Burner, Broil WPL 4362744 Contact Us For Availability
12
Gasket WPL 4362745 Contact Us For Availability
12
Knob, Oven Light WPL 4362835 Contact Us For Availability
12
Lever, Solenoid WPL 4362762 Contact Us For Availability
12
Plate, Latch WPL 786671 Contact Us For Availability
13
Bracket, Oven Mounting WPL 4362741 Contact Us For Availability
13
Orifice L.P. Gas WPL 4362776 Contact Us For Availability
13
Orfice Nat. Gas WPL 4362836 Contact Us For Availability
13
Switch, Bushing WPL 4157369 Contact Us For Availability
13
Lock, Door WPL 4362798 Contact Us For Availability
14
Switch, Oven Light Lower WPL 4362792 Contact Us For Availability
14
Insulation, Pad WPL 4362757 Contact Us For Availability
15
Support, Oven WPL 4362743 Contact Us For Availability
15
Burner, Bake WPL 4362749 Contact Us For Availability
15
Light, Indicator WPL 786195 Contact Us For Availability
15
Gasket, Door WPL 4362758 Contact Us For Availability
16
Flue, Horizontal WPL 4362706 Contact Us For Availability
16
Tubing, Lower Broil 3/8`` WPL 4362823 Contact Us For Availability
16
Solenoid WPL 4362761 Contact Us For Availability
16
Pad, Door WPL 4362753 Contact Us For Availability
17
Retainer, Flue Horizontal WPL 4362729 Contact Us For Availability
17
Tubing, Lower Bake 3/8`` WPL 4362721 Contact Us For Availability
17
Switch, Oven Light Upper WPL 4363678 Contact Us For Availability
17
Bracket, Door Latch WPL 4362797 Contact Us For Availability
18
Back, Cabinet Lower WPL 4362703 Contact Us For Availability
18
Ignitor, Bake & Broil WPL 4363761 Contact Us For Availability
18
Switch, Selector WPL 4362794 Contact Us For Availability
18
Trim, Door- Top (White) WPL 4362839 Contact Us For Availability
18
Trim, Door- Top (Black) WPL 4362953 Contact Us For Availability
18
Bumper, Rubber (4) WPL 786526 Contact Us For Availability
19
Retainer, Hinge Spring WPL 4362739 Contact Us For Availability
19
Ignitor, Bake WPL 4363760 Contact Us For Availability
19
Thermostat (2) WPL 4363246 Contact Us For Availability
20
Cover, Capillary WPL 4362738 Contact Us For Availability
20
Guide, Latch Handle WPL 4362795 Contact Us For Availability
21
Duct, Vertical Air WPL 4362727 Contact Us For Availability
21
Inlay, Top Trim (Black) WPL 4362830 Contact Us For Availability
21
Inlay, Top Trim (White) WPL 4362847 Contact Us For Availability
21
Bracket, Solenoid Lever WPL 4362763 Contact Us For Availability
22
Protector, Wire WPL 4362728 Contact Us For Availability
22
Bracket, Solenoid WPL 4362764 Contact Us For Availability
23
Bottom, Lower Oven WPL 4362715 Contact Us For Availability
23
Bracket, Motor Mounting WPL 4362861 Contact Us For Availability
24
Motor, Fan WPL 786643 Contact Us For Availability
24
Shield, Bulb Thermostat WPL 4362768 Contact Us For Availability
25
Blade, Fan WPL 4363765 Contact Us For Availability
25
Bracket, Orfice Bake WPL 4362717 Contact Us For Availability
26
Bottom, Upper Oven WPL 4362816 Contact Us For Availability
26
Switch, Sail WPL 4362811 Contact Us For Availability
27
Channel, Air (Right) WPL 4362735 Contact Us For Availability
27
Channel, Air (Left) WPL 4362736 Contact Us For Availability
27
Bracket, Relay Mounting WPL 4362779 Contact Us For Availability
28
Relay WPL 4362822 Contact Us For Availability
29
Block, Terminal WPL 4315647 Contact Us For Availability
29
Cover, Capillary Hole WPL 4362714 Contact Us For Availability
30
Switch, Fan WPL 4362859 Contact Us For Availability
31
Receptacle WPL 786661 Contact Us For Availability
32
Bracket, Flueway Support WPL 4362712 Contact Us For Availability
32
Cord, Supply WPL 4362826 Contact Us For Availability
33
Top, Upper Oven WPL 4362750 Contact Us For Availability
34
Side, (Right) WPL 4362733 Contact Us For Availability
34
Side, (Left) WPL 4362734 Contact Us For Availability
35
Back WPL 4362731 Contact Us For Availability
36
Shield WPL 4362737 Contact Us For Availability
38
Panel, Control Flueway WPL 4362711 Contact Us For Availability
39
Side, Upper Cabinet WPL 4362700 Contact Us For Availability
40
Side, Panel WPL 4362821 Contact Us For Availability
42
Cavity, Oven WPL 4362698 Contact Us For Availability
43
Chamber, Broil WPL 4362725 Contact Us For Availability
44
Spring, Oven Door WPL 4362813 Contact Us For Availability
45
Cover, Chip WPL 4362704 Contact Us For Availability
46
Frame, Front (2) WPL 4362697 Contact Us For Availability
47
Box, Burner Bake WPL 4362724 Contact Us For Availability
48
Duct, Air WPL 4362726 Contact Us For Availability
49
Cover, Chip WPL 4362705 Contact Us For Availability
50
Runner, Base WPL 4362716 Contact Us For Availability
51
Trim, Side (Right) WPL 4362784 Contact Us For Availability
51
Trim, Side (Left) WPL 4362785 Contact Us For Availability
53
Support, Front Ovent WPL 4362742 Contact Us For Availability
54
Hinge Assembly WPL 4363147 Contact Us For Availability
55
Trim, Center (Black) WPL 4362782 Contact Us For Availability
55
Trim, Center (White) WPL 4362841 Contact Us For Availability
56
Retainer, Insulation Orifice WPL 4362718 Contact Us For Availability
57
Channel, Air Burner Bake Bake WPL 4362814 Contact Us For Availability
58
Shield, Bake Orifice WPL 4362720 Contact Us For Availability
59
Assmebly, Oven Bottom/Baffle WPL 4363741 Contact Us For Availability
60
Channel, Air Burner Lower Bake WPL 4362815 Contact Us For Availability
61
Trim, Bottom (Black) WPL 4362781 Contact Us For Availability
61
Trim, Bottom (White) WPL 4362840 Contact Us For Availability
62
Bracket, Burner Oven WPL 4362767 Contact Us For Availability
63
Retainer, Lens WPL 4362740 Contact Us For Availability
64
Gasket, Oven Light WPL 4362808 Contact Us For Availability
65
Lens, Oven Light WPL 4362807 Contact Us For Availability
67
Guide, Latch Handle WPL 4362810 Contact Us For Availability
69
Bracket, Burner Broil Mounting WPL 4362748 Contact Us For Availability
72
Grid, Broiler WPL 4362695 Contact Us For Availability
73
Pan, Broiler WPL 4363750 Contact Us For Availability
75
Retainer, Flue Vertical Insulation WPL 4362818 Contact Us For Availability
76
Rack, Wire (4) WPL 4362696 Contact Us For Availability
77
Panel, Side-Center WPL 4362819 Contact Us For Availability
77
Insulation, Air Duct Vertical WPL 4362825 Contact Us For Availability
77
Insulation, Flue Vertical Ba WPL 4362827 Contact Us For Availability
77
WPL 4362828 WPL 4362828 Contact Us For Availability
77
WPL 4362829 WPL 4362829 Contact Us For Availability
77
WPL 4362831 WPL 4362831 Contact Us For Availability
× ![]()
