Model Whirlpool KGBS246SBL0 – Common Parts & Diagrams

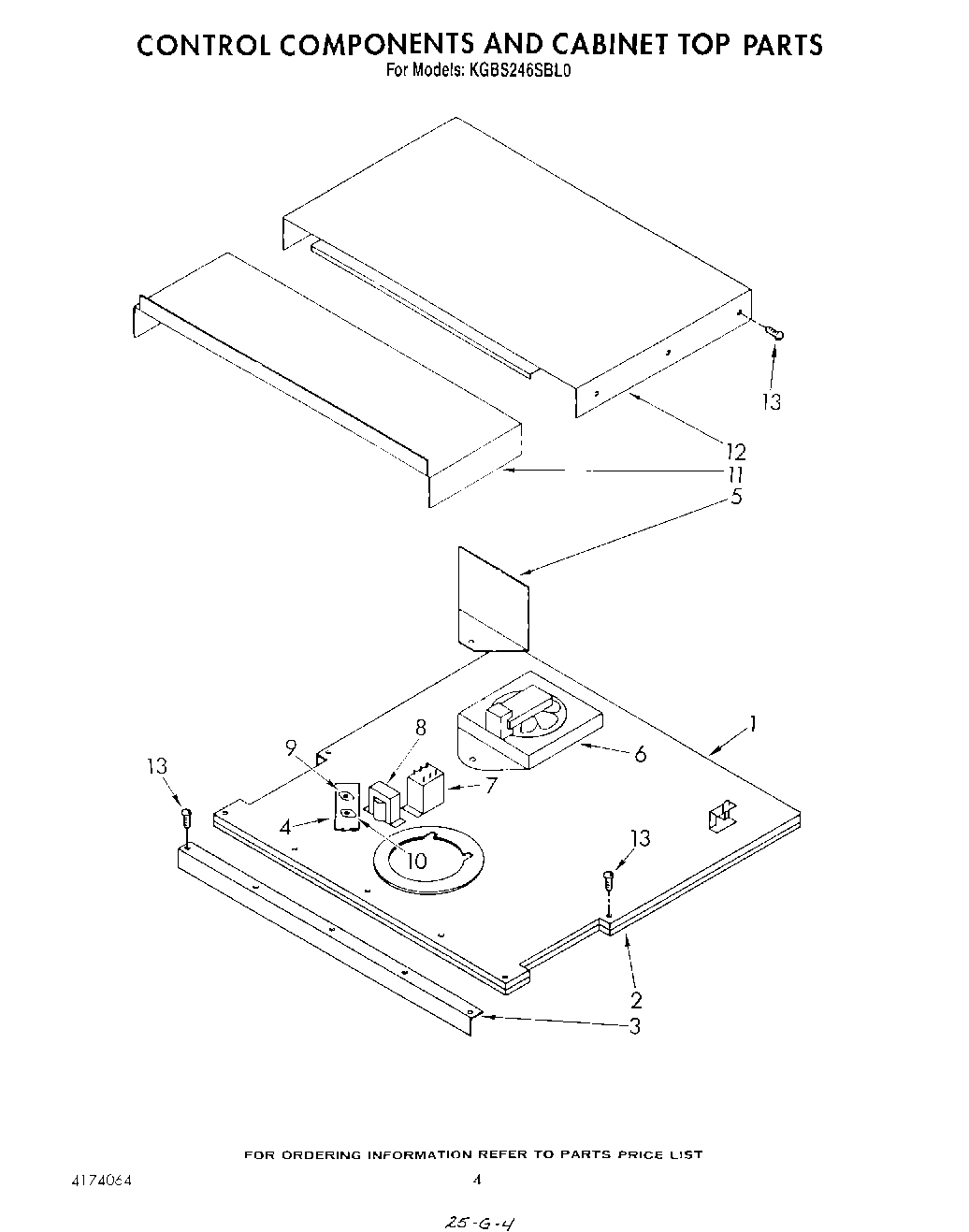

04 - CONTROL COMPONENTS AND CABINET TOP

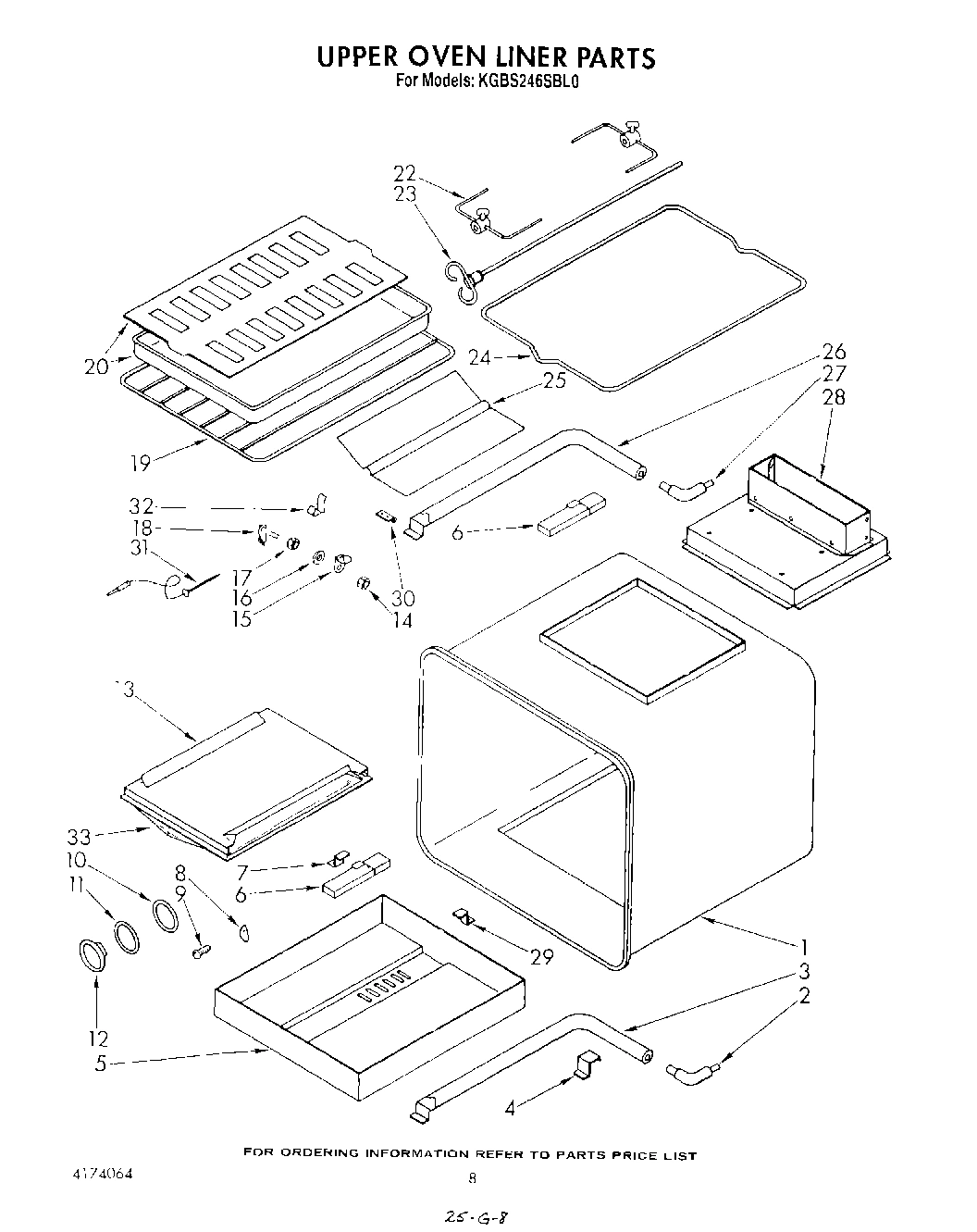

07 - UPPER OVEN LINER
08 - VENT BOX
06 - LOWER OVEN LINER
09 - OVEN DOOR , LIT/OPTIONAL
02 - CONTROL PANEL
03 - MANIFOLD
05 - CONTROL FRAME AND KNOB
10 - CABINET
Common parts from model Whirlpool KGBS246SBL0
Use & Care Guide WPL LIT3177318 Contact Us For Availability
Installation Instructions WPL LIT3177319 Contact Us For Availability
List, Repair Parts WPL LIT4174064 Contact Us For Availability
1
Liner, Oven WPL 3178747 Contact Us For Availability
1
Top, Exhaust Box WPL 3177021 Contact Us For Availability
1
Oven Liner WPL 4173094 Contact Us For Availability
1
Door Frame WPL 4169519 Contact Us For Availability
1
Thermostat Disc WPL 4163804 Contact Us For Availability
1
Valve, Manifold WPL 4163789 Contact Us For Availability
1
Insert, Vent WPL 4163811 Contact Us For Availability
1
Main Bottom WPL 4163973 Contact Us For Availability
2
Orfice Fitting, Bake WPL 4163875 Contact Us For Availability
2
Orifice Fitting, Bake WPL 4163874 Contact Us For Availability
2
Insert WPL 3177022 Contact Us For Availability
2
Door Handle WPL 4173020 Contact Us For Availability
2
Disc, Selector Switch WPL 4163798 Contact Us For Availability
2
Valve, Bake (Single Or Upper Oven) WPL 4163783 Contact Us For Availability
2
Knob, Center Position WPL 3177122 Contact Us For Availability
2
Insulation, Bottom WPL 4163820 Contact Us For Availability
3
Restrictor-Z Angle WPL 3177337 Contact Us For Availability
3
Burner, Bake WPL 4163815 Contact Us For Availability
3
Front, Exhaust Box WPL 3177023 Contact Us For Availability
3
Screw, 8-32 X 3/8`` PFHMS WPL 4159330 Contact Us For Availability
3
Thermostat Disc WPL 4173424 Contact Us For Availability
3
Valve, Broil WPL 4163784 Contact Us For Availability
3
Bezel (1) WPL 4169372 Contact Us For Availability
3
Door Gasket (2) WPL 3178581 Contact Us For Availability
4
Bracket, Mounting (Fan Switch) WPL 3177027 Contact Us For Availability
4
Burner Clamp WPL 4173322 Contact Us For Availability
4
Back, Exhaust Box WPL 3177024 Contact Us For Availability
4
Insert WPL 4164131 Contact Us For Availability
4
Disc, Selector Switch WPL 4163801 Contact Us For Availability
4
Valve, Bake (Lower Oven) WPL 4163785 Contact Us For Availability
4
Front Frame, Lower Door WPL 4164203 Contact Us For Availability
5
Bracket, Support WPL 3177336 Contact Us For Availability
5
Burner Box WPL 4163918 Contact Us For Availability
5
Bracket, Spacer WPL 3177428 Contact Us For Availability
5
Door Glass WPL 4164240 Contact Us For Availability
5
Clock Electronic WPL 4173071 Contact Us For Availability
5
Tube, L/O Bake Valve WPL 4163788 Contact Us For Availability
5
Knob, Meat Probe WPL 4163840 Contact Us For Availability
5
Bottom Trim WPL 4164198 Contact Us For Availability
6
Blower Assembly WPL 4173004 Contact Us For Availability
6
Screw, Drive (2) WPL 4159448 Contact Us For Availability
6
Rubber Bumper (8) WPL 4168826 Contact Us For Availability
6
Plate, Control Mounting WPL 4173426 Contact Us For Availability
6
Tubing, Broil Valve WPL 4163786 Contact Us For Availability
7
Meat Probe Relay WPL 4163731 Contact Us For Availability
7
Bracket, Ignitor Mounting WPL 4163773 Contact Us For Availability
7
Top-Vent Connector WPL 4173428 Contact Us For Availability
7
Retainer, Insulation WPL 4163850 Contact Us For Availability
7
Nut, Washer Type (4) WPL 4164360 Contact Us For Availability
7
Tubing, Bake Valve WPL 4163787 Contact Us For Availability
7
Retainer, Seal (2) WPL 3177549 Contact Us For Availability
8
Transformer, Meat Probe WPL 4166561 Contact Us For Availability
8
Rotisserie Cover Plate WPL 4167518 Contact Us For Availability
8
Light Lens Gasket WPL 4166868 Contact Us For Availability
8
Bottom-Vent Connector WPL 4173429 Contact Us For Availability
8
Window Pack WPL 4169572 Contact Us For Availability
8
Screw (1) WPL 4168414 Contact Us For Availability
8
Pressure Regulator WPL 3177120 Contact Us For Availability
9
Fan Switch, High Limit WPL 4163901 Contact Us For Availability
9
Shoulder Screw WPL 4168874 Contact Us For Availability
9
Light Lens WPL 4166866 Contact Us For Availability
9
Insulation WPL 4163986 Contact Us For Availability
9
Reducing Connector WPL 3177334 Contact Us For Availability
9
Insulation, Top & Sides WPL 4163905 Contact Us For Availability
10
Fan Switch WPL 4163900 Contact Us For Availability
10
Light Lens Retainer WPL 4167938 Contact Us For Availability
10
Door Liner WPL 4164238 Contact Us For Availability
10
Exhaust Vent Extension WPL 4163970 Contact Us For Availability
10
Regulator Tube WPL 4163777 Contact Us For Availability
10
Knob, Clock (2) WPL 3177121 Contact Us For Availability
10
Front Frame Ass`y WPL 4169312 Contact Us For Availability
11
Cabinet Top, Front WPL 4163751 Contact Us For Availability
11
Oven Bottom WPL 4163972 Contact Us For Availability
11
Screw, 8A X 3/8`` PKESMS WPL 4168863 Contact Us For Availability
11
Thermostat, Upper Oven WPL 3177025 Contact Us For Availability
11
Control Frame WPL 4163982 Contact Us For Availability
11
Air Baffle WPL 4167514 Contact Us For Availability
12
Cabinet Top, Rear WPL 3177332 Contact Us For Availability
12
Oven Rack (2) WPL 4168882 Contact Us For Availability
12
Bracket, Lock WPL 4163852 Contact Us For Availability
12
Thermostat, Lower Oven WPL 4163872 Contact Us For Availability
12
Inlet Manifold WPL 4173331 Contact Us For Availability
12
Vent Cover WPL 3177034 Contact Us For Availability
12
Rear Support WPL 4167617 Contact Us For Availability
13
Screw, Drive (2) For Mounting No.9 & No.10 to WPL 4159445 Contact Us For Availability
13
Lower Vent WPL 4169322 Contact Us For Availability
13
Indicator, Meat Probe WPL 4163730 Contact Us For Availability
13
Valve, Shut Off WPL 4164137 Contact Us For Availability
13
Front Support WPL 4173323 Contact Us For Availability
14
Cover Nut WPL 4167277 Contact Us For Availability
14
Bracket, Ignitor WPL 4173321 Contact Us For Availability
14
Selector Switch, Lower Oven WPL 4168457 Contact Us For Availability
14
Shaft, Valve WPL 3179029 Contact Us For Availability
14
Control Panel Glass WPL 3177031 Contact Us For Availability
14
Oven Liner (For Further Breakdown See Pages 7 WPL ARI87403A3 Contact Us For Availability
15
Jack Cover WPL 4167266 Contact Us For Availability
15
Clip, Thermostat (2) WPL 4173275 Contact Us For Availability
15
Selector Switch, Upper Oven WPL 3177239 Contact Us For Availability
15
Washer WPL 4173320 Contact Us For Availability
15
Retainer WPL 4167590 Contact Us For Availability
15
Control Frame Support WPL 4169335 Contact Us For Availability
16
Screw, Drive (2) WPL 4159465 Contact Us For Availability
16
Gasket WPL 4163975 Contact Us For Availability
16
Coupling, Shaft WPL 4173318 Contact Us For Availability
16
Insulation, Top & Sides WPL 4163906 Contact Us For Availability
17
Nut, Hex Jam WPL 4173084 Contact Us For Availability
17
Indicator Light, (3) WPL 4163868 Contact Us For Availability
17
Cotter Pin WPL 4173319 Contact Us For Availability
17
Cabinet Side WPL 4173009 Contact Us For Availability
18
Jack, Meat Probe WPL 4164293 Contact Us For Availability
18
Wire Harness, Meat Probe WPL 3177322 Contact Us For Availability
18
Wire Harness, Controls WPL 3177323 Contact Us For Availability
18
Wire Harness, Main Power WPL 3177324 Contact Us For Availability
18
Switch, Oven Light WPL 4167332 Contact Us For Availability
18
Roll Pin WPL 4173317 Contact Us For Availability
18
Air Duct (Left Hand) WPL 4163756 Contact Us For Availability
18
Air Duct (Right Hand) WPL 4163757 Contact Us For Availability
19
Pipe, Inlet WPL 4173315 Contact Us For Availability
19
Insulation, Back (Single Or Upper Oven) WPL 4163903 Contact Us For Availability
20
Support, Valve Shaft WPL 4173314 Contact Us For Availability
20
Rear Anchor (2) WPL 4167526 Contact Us For Availability
21
Coupling, Pipe WPL 4173334 Contact Us For Availability
21
Air Duct (Right Hand) WPL 4163754 Contact Us For Availability
21
Air Duct (Left Hand) WPL 4163755 Contact Us For Availability
22
Skewer WPL 4166352 Contact Us For Availability
22
Screw, Drive (2) WPL 4159186 Contact Us For Availability
22
Insulation, Back WPL 4163904 Contact Us For Availability
23
Rotisserie Spear WPL 4168724 Contact Us For Availability
24
Rotisserie Rack WPL 4168722 Contact Us For Availability
24
Cam Plate (Right Hand (2)) WPL 4167597 Contact Us For Availability
24
Cam Plate (Left Hand (2)) WPL 4167598 Contact Us For Availability
25
Broil Baffle WPL 4163810 Contact Us For Availability
25
Hinge Assm`y (4) WPL 4167596 Contact Us For Availability
26
Door Spring (4) WPL 4173267 Contact Us For Availability
26
Burner, Broiler WPL 4163814 Contact Us For Availability
27
Spring Anchor (2) WPL 4167599 Contact Us For Availability
28
Oven Liner Top WPL 3177419 Contact Us For Availability
28
Cabinet Side WPL 4163723 Contact Us For Availability
30
Bracket, Alignment WPL 4173324 Contact Us For Availability
30
Support, Cabinet (Right Hand) WPL 4163765 Contact Us For Availability
30
Support, Cabinet (Left Hand) WPL 4163766 Contact Us For Availability
31
Meat Probe WPL 4167267 Contact Us For Availability
31
spacer (6) WPL 4168590 Contact Us For Availability
32
Mounting Plate, Rotisserie Motor WPL 4167469 Contact Us For Availability
33
Nut WPL 4159101 Contact Us For Availability
33
Flame Spreader WPL 4173427 Contact Us For Availability
33
Rotisserie Motor WPL 4163836 Contact Us For Availability
34
Light Shield WPL 4167579 Contact Us For Availability
35
Socket, Lamp WPL 4168755 Contact Us For Availability
37
Vent Duct, Vertical WPL 4173330 Contact Us For Availability
38
Cabinet Back WPL 4164296 Contact Us For Availability
39
Strain Relief Bushing WPL 4159036 Contact Us For Availability
39
Service Cord WPL 4163871 Contact Us For Availability
39
Probe Cover WPL 4163883 Contact Us For Availability
× ![]()
