Model Whirlpool KGBS146SBL0 – Common Parts & Diagrams

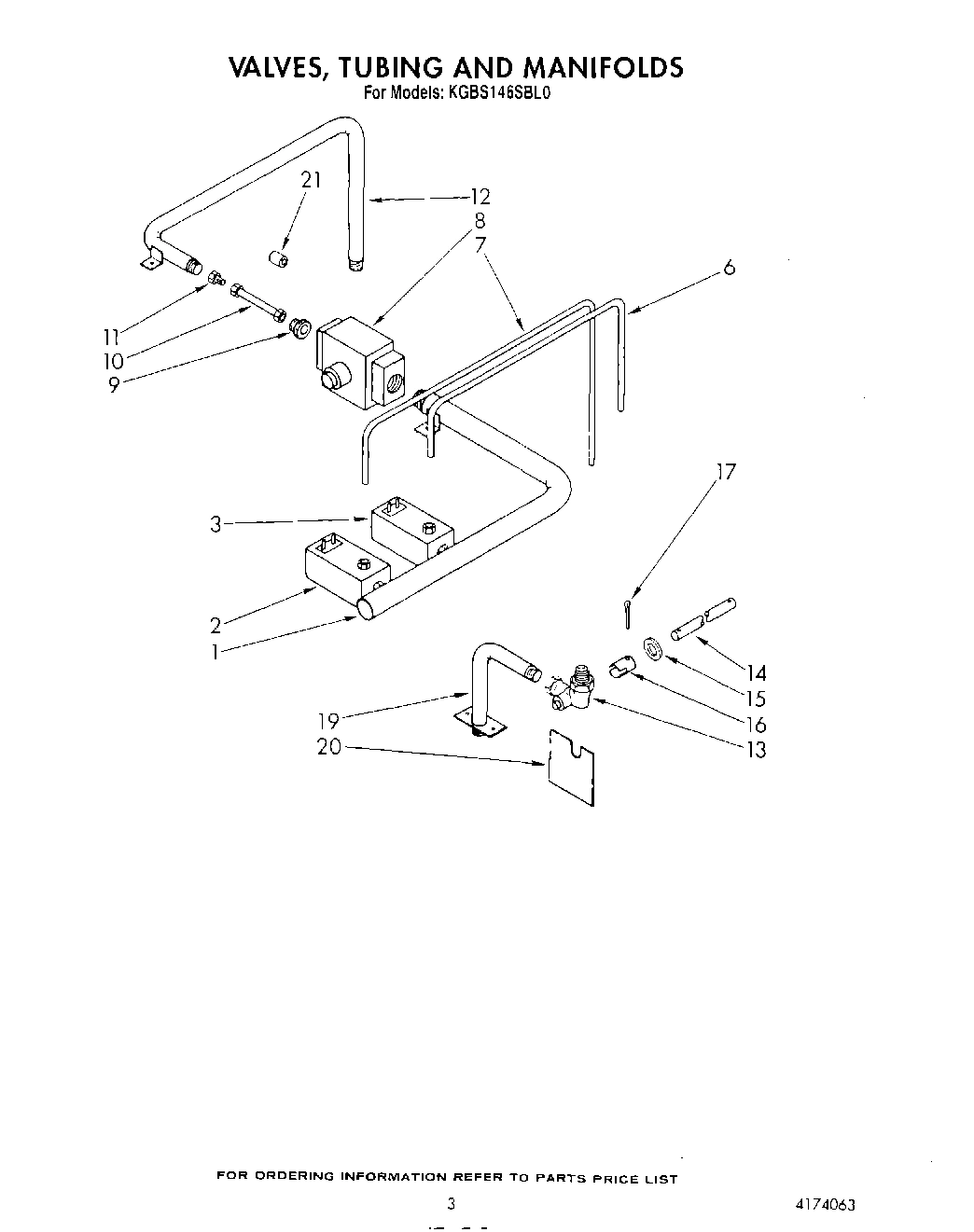

03 - VALVES, TUBING AND MANIFOLDS

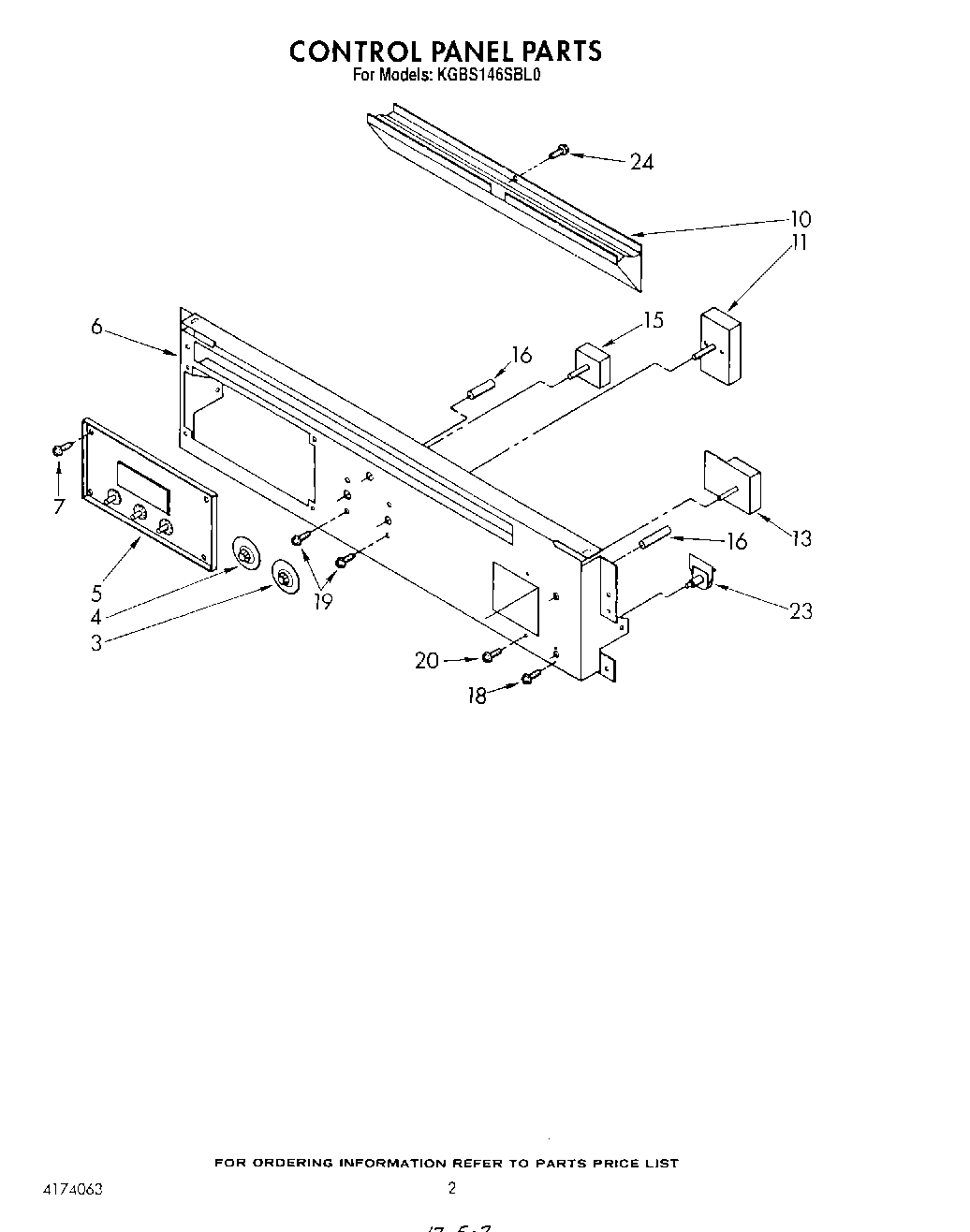

02 - CONTROL PANEL
04 - CONTROL COMPONENTS AND CABINET TOP
06 - OVEN DOOR , LIT/OPTIONAL
07 - OVEN LINER
08 - EXHAUST VENT
09 - CABINET
05 - CONTROL FRAME AND KNOBS
Common parts from model Whirlpool KGBS146SBL0
Use & Care Guide WPL LIT3177318 Contact Us For Availability
Installation Instructions WPL LIT3177319 Contact Us For Availability
List, Repair Parts WPL LIT4174063 Contact Us For Availability
1
Sandwich Panel, Top WPL 3177018 Contact Us For Availability
1
Door Frame WPL 4169519 Contact Us For Availability
1
Liner, Oven WPL 3178747 Contact Us For Availability
1
Top, Exhaust Box WPL 3177021 Contact Us For Availability
1
Main Bottom WPL 4163973 Contact Us For Availability
1
Insert, Vent WPL 4163811 Contact Us For Availability
2
Sandwich Panel, Bottom WPL 3177019 Contact Us For Availability
2
Door Handle WPL 4173020 Contact Us For Availability
2
Orfice Fitting, Bake WPL 4163875 Contact Us For Availability
2
Insert WPL 3177022 Contact Us For Availability
2
Insulation, Bottom WPL 4163820 Contact Us For Availability
3
Thermostat Disc WPL 4173424 Contact Us For Availability
3
Angle, Restrictor WPL 3177337 Contact Us For Availability
3
Screw, No.8-32 X 3/8`` PFHMS (4) WPL 4159330 Contact Us For Availability
3
Burner, Bake WPL 4163815 Contact Us For Availability
3
Front, Exhaust Box WPL 3177023 Contact Us For Availability
3
Door Gasket WPL 3178581 Contact Us For Availability
3
Bezel, Switch (2) WPL 4169372 Contact Us For Availability
4
Disc, Selector Switch WPL 4163801 Contact Us For Availability
4
Blower Assembly WPL 4173004 Contact Us For Availability
4
Insert WPL 4164131 Contact Us For Availability
4
Burner Clamp WPL 4173322 Contact Us For Availability
4
Back, Exhaust Box WPL 3177024 Contact Us For Availability
5
Clock Electronic WPL 4173071 Contact Us For Availability
5
Meat Probe Relay WPL 4163731 Contact Us For Availability
5
Door Glass WPL 4164240 Contact Us For Availability
5
Burner Box WPL 4163918 Contact Us For Availability
5
Bracket, Spacer WPL 3177428 Contact Us For Availability
5
Bottom Trim WPL 4164198 Contact Us For Availability
5
Knob, Meat Probe WPL 4163840 Contact Us For Availability
6
Tubing, Broil Valve WPL 4163786 Contact Us For Availability
6
Plate, Control Mounting WPL 4173426 Contact Us For Availability
6
Transformer, Meat Probe WPL 4166561 Contact Us For Availability
6
Rubber Bumper (8) WPL 4168826 Contact Us For Availability
6
Screw, Drive (2) WPL 4159448 Contact Us For Availability
7
Tubing, Bake Valve WPL 4163787 Contact Us For Availability
7
Nut, Washer Type (4) WPL 4164360 Contact Us For Availability
7
Mounting Bracket WPL 3177027 Contact Us For Availability
7
Retainer, Insulation WPL 4163850 Contact Us For Availability
7
Bracket, Ignitor Mounting WPL 4163773 Contact Us For Availability
7
Cover, Vent Connector WPL 3177746 Contact Us For Availability
7
Retainer-Gasket WPL 3177549 Contact Us For Availability
8
Pressure Regulator WPL 3177120 Contact Us For Availability
8
Screw, Drive (19) WPL 4159465 Contact Us For Availability
8
Fan Switch, High Limit WPL 4163901 Contact Us For Availability
8
Window Pack WPL 4169572 Contact Us For Availability
8
Cover Plate (Rotisserie) WPL 4167518 Contact Us For Availability
9
Connector WPL 3177333 Contact Us For Availability
9
Fan Switch WPL 4163900 Contact Us For Availability
9
Insulation WPL 4163986 Contact Us For Availability
9
Shoulder Screw WPL 4168874 Contact Us For Availability
9
Insulation, Top & Sides WPL 4163905 Contact Us For Availability
9
Knob, Center Clock WPL 3177122 Contact Us For Availability
10
Regulator Tube WPL 4163777 Contact Us For Availability
10
Extension, Vent WPL 4163970 Contact Us For Availability
10
Cabinet Top, Front WPL 4163751 Contact Us For Availability
10
Door Liner WPL 4164238 Contact Us For Availability
10
Gasket, Light Lens WPL 4166868 Contact Us For Availability
10
Frame, Front WPL 3178720 Contact Us For Availability
10
Knob, Clock (2) WPL 3177121 Contact Us For Availability
11
Connector WPL 3177334 Contact Us For Availability
11
Thermostat WPL 3177025 Contact Us For Availability
11
Cabinet Top, Rear WPL 3177332 Contact Us For Availability
11
Light Lens WPL 4166866 Contact Us For Availability
11
Control Frame WPL 4163982 Contact Us For Availability
12
Inlet Manifold WPL 4173333 Contact Us For Availability
12
Bracket, Lock WPL 4163852 Contact Us For Availability
12
Retainer, Light Lens WPL 4167938 Contact Us For Availability
12
Vent Cover WPL 3177034 Contact Us For Availability
13
Valve, Shut Off WPL 4164137 Contact Us For Availability
13
Indicator, Meat Probe WPL 4163730 Contact Us For Availability
13
Bracket, Support WPL 3177336 Contact Us For Availability
13
Screws, Mounting Fan Switches to Mounting Bra WPL 4159445 Contact Us For Availability
13
Oven Bottom WPL 4163972 Contact Us For Availability
13
Glass, Control Panel WPL 3177032 Contact Us For Availability
14
Shaft, Valve WPL 3179029 Contact Us For Availability
14
Cover Nut WPL 4167277 Contact Us For Availability
14
Oven Liner (See Page 8) WPL 4163860 Contact Us For Availability
15
Washer WPL 4173320 Contact Us For Availability
15
Selector Switch WPL 3177239 Contact Us For Availability
15
Jack Cover WPL 4167266 Contact Us For Availability
15
Support, Control Frame WPL 4169335 Contact Us For Availability
15
Retainer WPL 4167590 Contact Us For Availability
16
Coupling, Shaft WPL 4173318 Contact Us For Availability
16
Indicator Light (2) WPL 4163868 Contact Us For Availability
16
Gasket WPL 4163975 Contact Us For Availability
17
Cotter Pin WPL 4173319 Contact Us For Availability
17
Nut, Hex Jam WPL 4173084 Contact Us For Availability
17
Cabinet Side WPL 4173009 Contact Us For Availability
18
screw (2) WPL 254225 Contact Us For Availability
18
Jack, Meat Probe WPL 4164293 Contact Us For Availability
18
Air Duct, Left WPL 4163756 Contact Us For Availability
18
Air Duct, Right WPL 4163757 Contact Us For Availability
19
Pipe, Inlet WPL 4173315 Contact Us For Availability
19
Oven Rack WPL 4168882 Contact Us For Availability
19
Insulation, Back WPL 4163903 Contact Us For Availability
20
Support, Valve Shaft WPL 4173314 Contact Us For Availability
20
Rear Anchor (2) WPL 4167526 Contact Us For Availability
21
Coupling, Pipe WPL 4173334 Contact Us For Availability
22
Skewer WPL 4166352 Contact Us For Availability
23
Switch, Oven Light WPL 4167332 Contact Us For Availability
23
Rotisserie Spear WPL 4168724 Contact Us For Availability
23
Screw No.8-1/4 WPL 4173423 Contact Us For Availability
24
Wire Harness, Control Panel WPL 3177179 Contact Us For Availability
24
Wire Harness, Main Power WPL 3177180 Contact Us For Availability
24
Wire Harness, Meat Probe Jack WPL 3177322 Contact Us For Availability
24
Screw (1) WPL 4168414 Contact Us For Availability
24
Rotisserie Rack WPL 4168722 Contact Us For Availability
24
Cam Plate, R.H. WPL 4167597 Contact Us For Availability
24
Cam Plate (L.H.) WPL 4167598 Contact Us For Availability
25
Broil Baffle WPL 4163810 Contact Us For Availability
25
Hinge Assembly WPL 4167596 Contact Us For Availability
26
Door Spring WPL 4173267 Contact Us For Availability
26
Burner, Broiler WPL 4163814 Contact Us For Availability
27
Orifice Fitting, Broil WPL 4163874 Contact Us For Availability
27
Spring, Anchor WPL 4167599 Contact Us For Availability
28
Oven Liner Top Assy W/ Baffle and Vent Box WPL 3177419 Contact Us For Availability
29
Bracket, Ignitor WPL 41773321 Contact Us For Availability
29
Cabinet Support (Right) WPL 4163761 Contact Us For Availability
29
Cabinet Support (Left) WPL 4163762 Contact Us For Availability
30
Bracket, Alignment WPL 4173324 Contact Us For Availability
31
Probe, Meat WPL 4167267 Contact Us For Availability
31
Spacer WPL 4168590 Contact Us For Availability
32
Clip, Thermostat Bulb WPL 4173275 Contact Us For Availability
32
Mounting Plate, Rotisserie Motor WPL 4167469 Contact Us For Availability
33
Screw No.8-32 (6) WPL 4168863 Contact Us For Availability
33
Nut, Orifice Fitting WPL 4159101 Contact Us For Availability
33
Flame Spreader WPL 4173427 Contact Us For Availability
33
Rotisserie Motor WPL 4163836 Contact Us For Availability
34
Light Shield WPL 4167579 Contact Us For Availability
35
Socket, Lamp WPL 4168755 Contact Us For Availability
38
Cabinet, Back WPL 4173064 Contact Us For Availability
40
Service Cord WPL 4163871 Contact Us For Availability
40
Probe Cover WPL 4163883 Contact Us For Availability
× ![]()
