Model Whirlpool KGBS145SBL0 – Common Parts & Diagrams
04 - CONTROL COMPONENTS AND CABINET TOP
05 - CONTROL FRAME AND KNOB

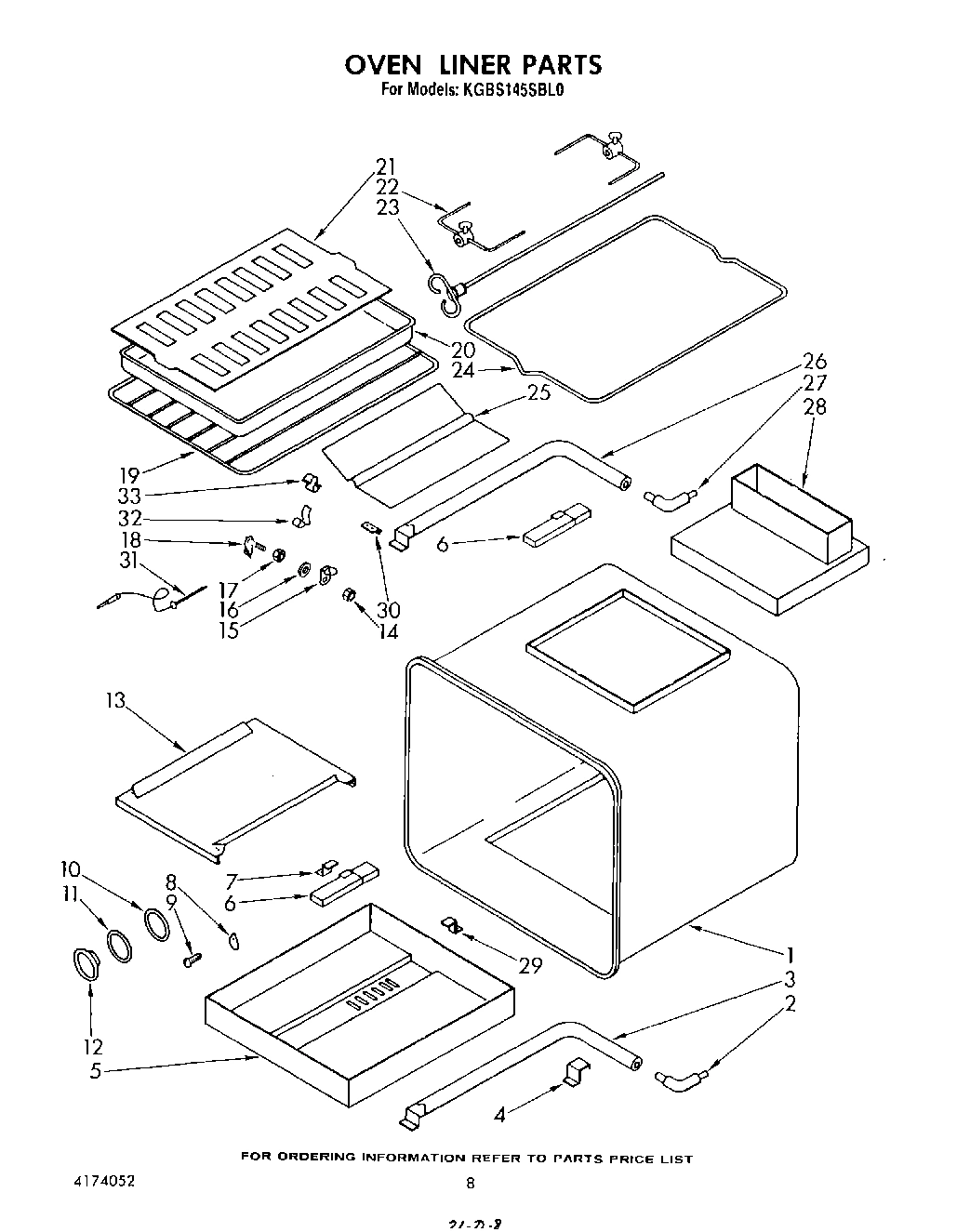

07 - OVEN LINER

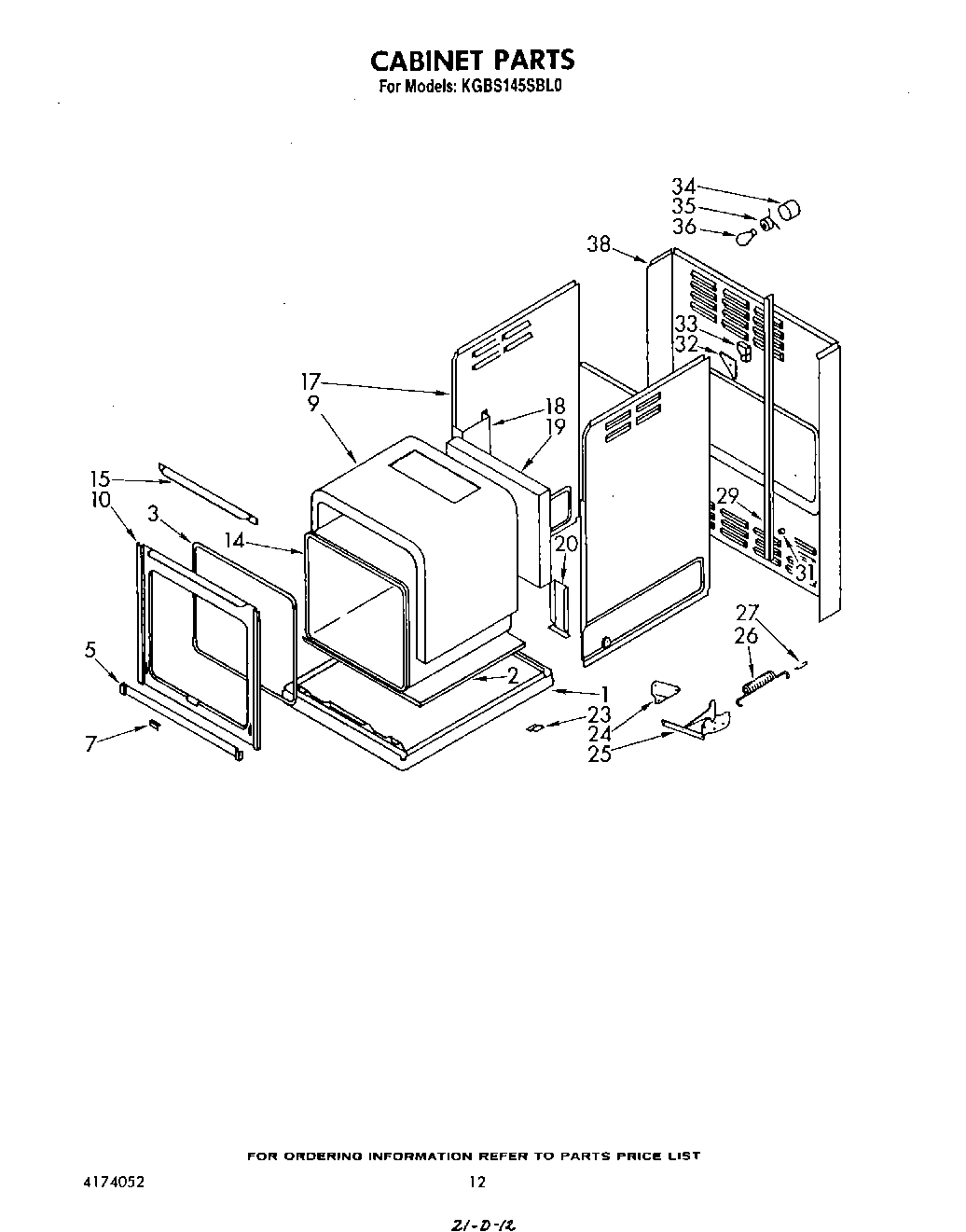

09 - CABINET, LIT/OPTIONAL

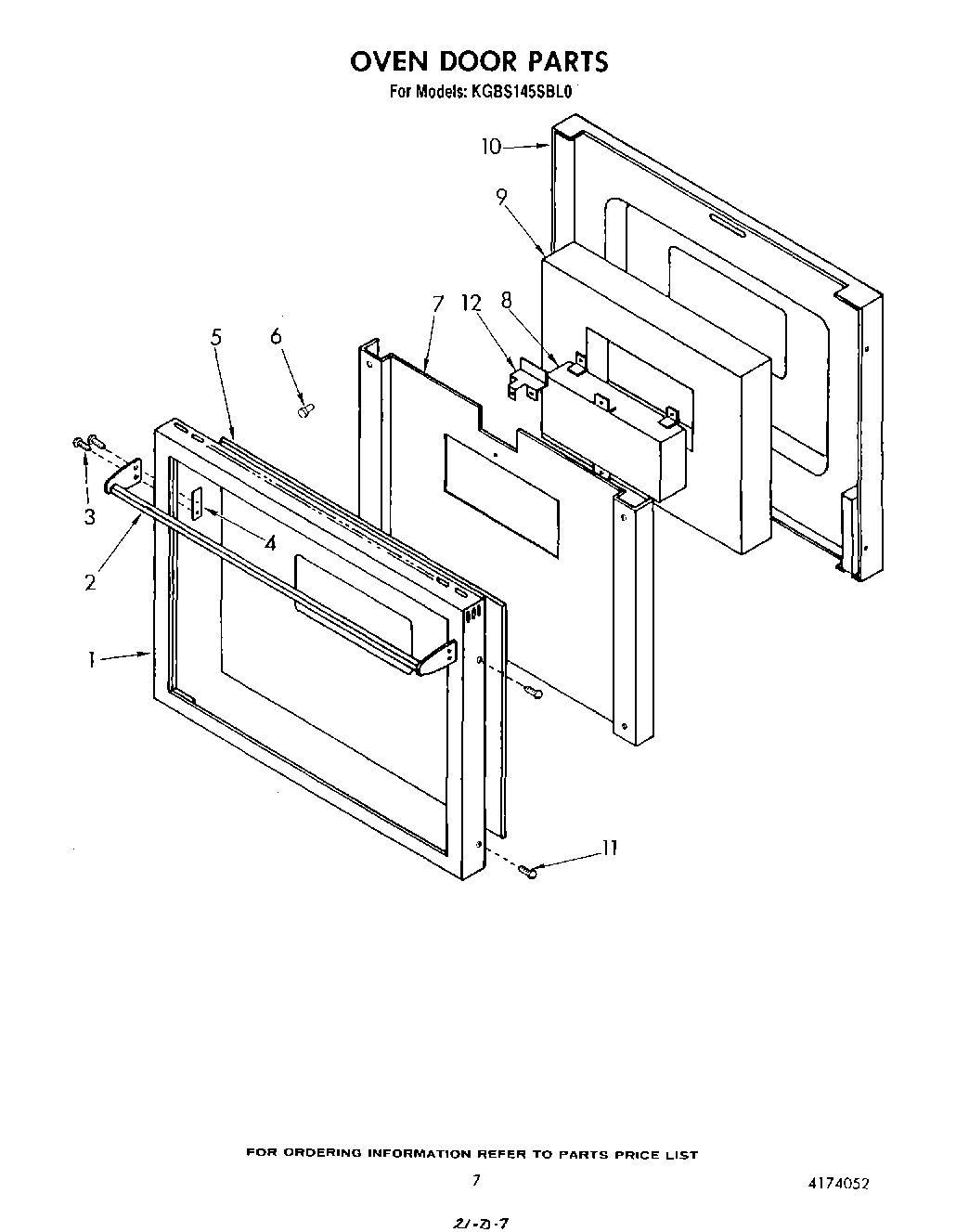

06 - OVEN DOOR

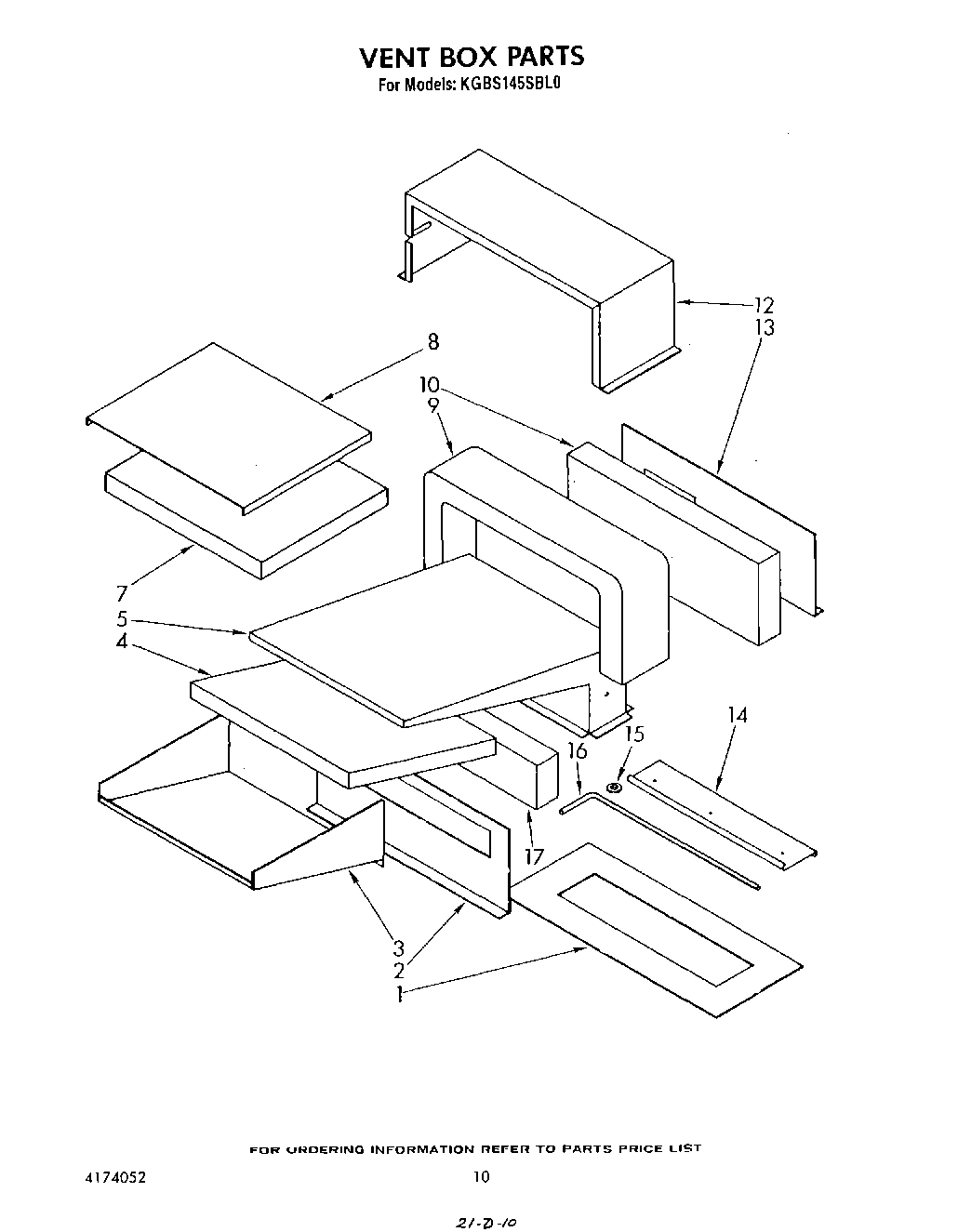

08 - VENT BOX

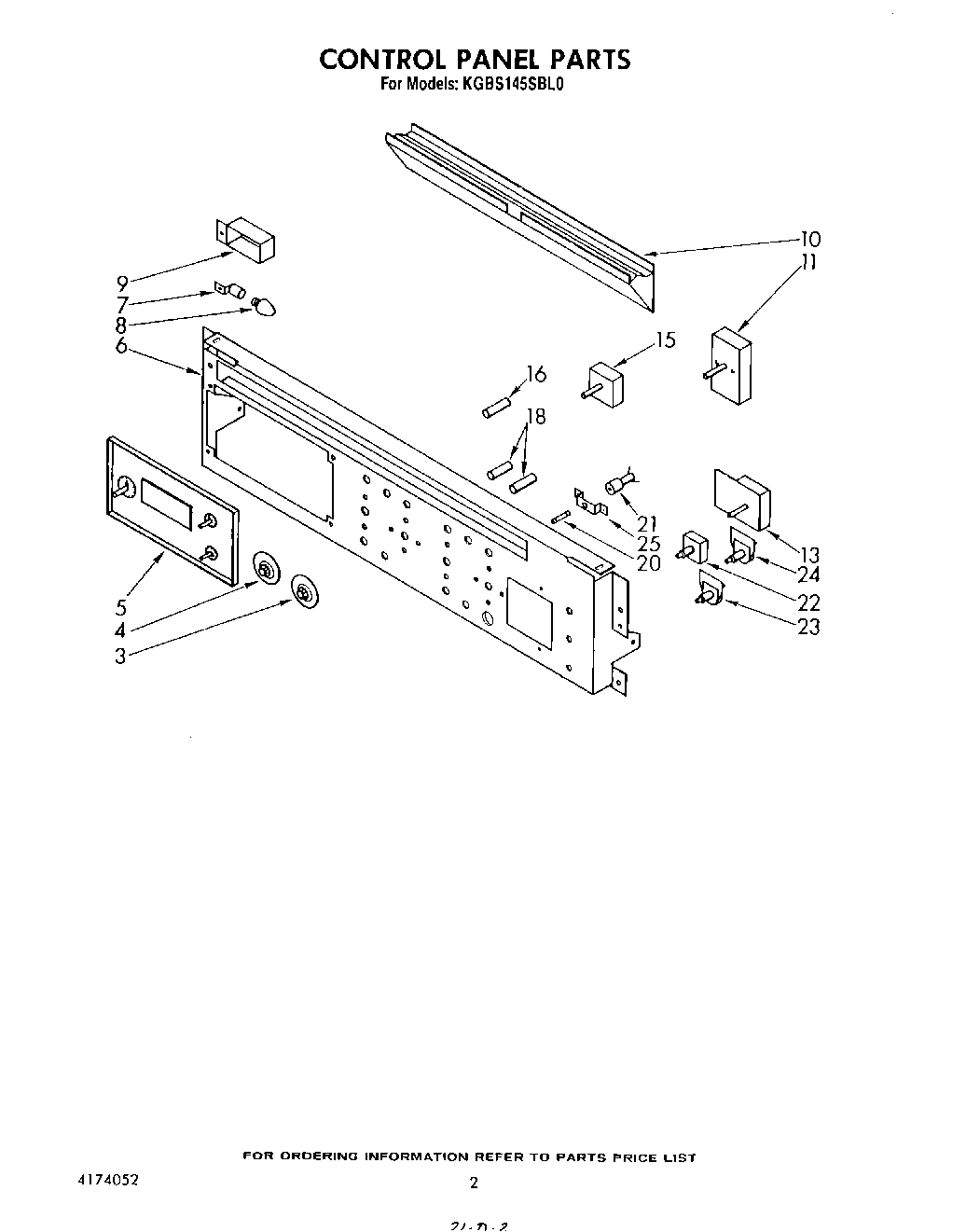

02 - CONTROL PANEL

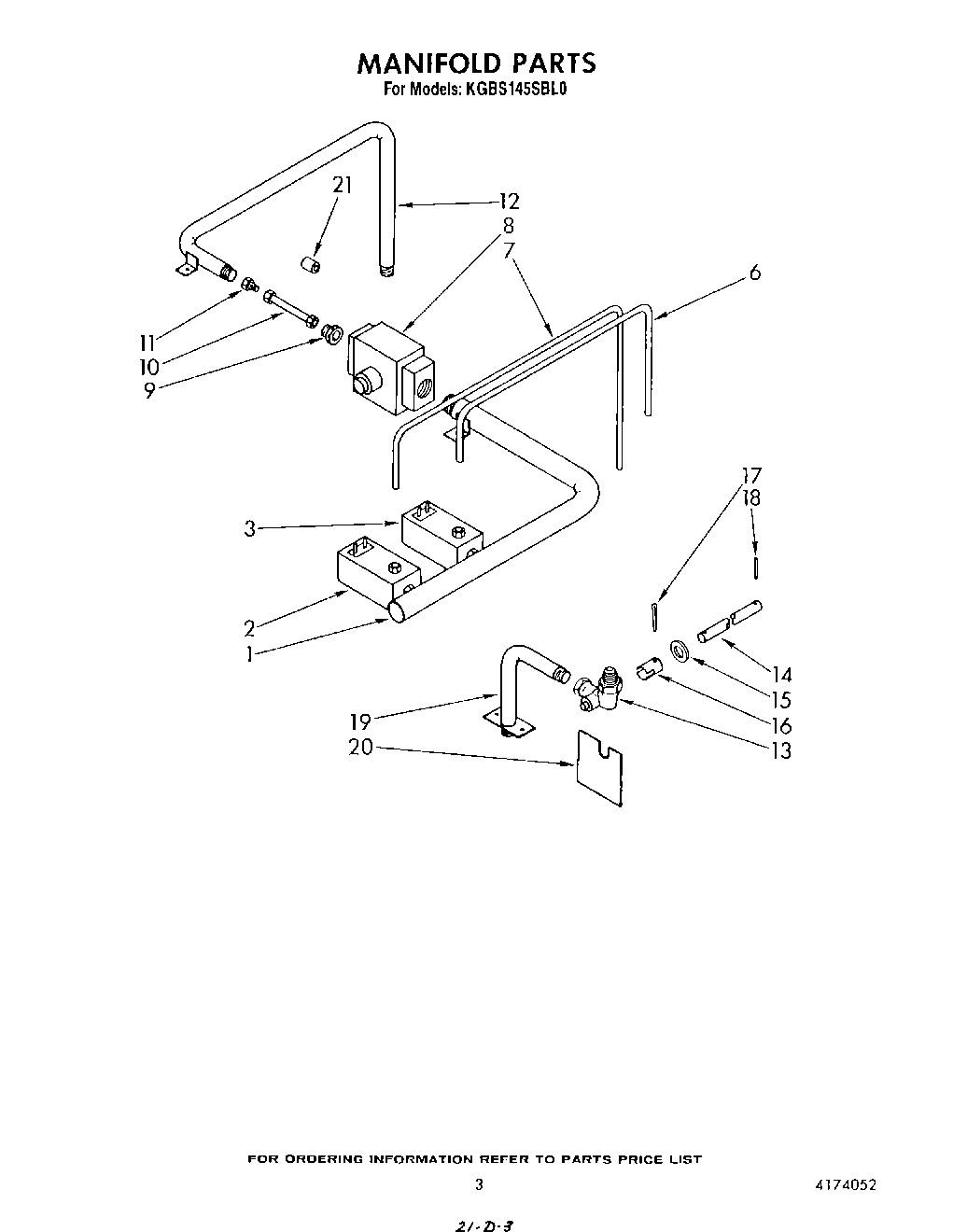

03 - MANIFOLD
Common parts from model Whirlpool KGBS145SBL0
List, Repair Parts WPL LIT4174052 Contact Us For Availability
Cookbook, Retained Heat WPL LIT417708 Contact Us For Availability
Use & Care Guide WPL LIT4177633 Contact Us For Availability
Installation Instructions WPL LIT4177843 Contact Us For Availability
1
Insert, Vent WPL 4163811 Contact Us For Availability
1
Liner, Oven WPL 4163864 Contact Us For Availability
1
Main Bottom WPL 4163473 Contact Us For Availability
1
Door Frame WPL 4169519 Contact Us For Availability
1
Insulation, Box Bottom WPL 4163795 Contact Us For Availability
1
Valve, Manifold WPL 4163789 Contact Us For Availability
2
Knob, Retained Heat WPL 4168571 Contact Us For Availability
2
Orfice Fitting, Bake WPL 4163875 Contact Us For Availability
2
Insulation, Bottom WPL 4163820 Contact Us For Availability
2
Door Handle WPL 4173020 Contact Us For Availability
2
Insulation, Box Front WPL 4163794 Contact Us For Availability
2
Valve, Bake WPL 4163783 Contact Us For Availability
3
Resistor Block WPL 4168614 Contact Us For Availability
3
Bezel, Switch (2) WPL 4169372 Contact Us For Availability
3
Burner, Bake WPL 4163815 Contact Us For Availability
3
Door Gasket WPL 4168828 Contact Us For Availability
3
Screw, No.8-32 X 3/8`` PFHMS WPL 4159330 Contact Us For Availability
3
Retainer, Exhaust Insulation WPL 4163778 Contact Us For Availability
3
Thermostat Disc WPL 4163808 Contact Us For Availability
3
Valve, Broil WPL 4163784 Contact Us For Availability
4
Mounting Bracket (Fan Switch) WPL 4163775 Contact Us For Availability
4
Burner Clamp WPL 4173322 Contact Us For Availability
4
Insert WPL 4164131 Contact Us For Availability
4
Disc, Selector Switch WPL 4163801 Contact Us For Availability
5
Terminal Block WPL 4168561 Contact Us For Availability
5
Knob, Meat Probe WPL 4163840 Contact Us For Availability
5
Burner Box WPL 4163918 Contact Us For Availability
5
Bottom Trim WPL 4164198 Contact Us For Availability
5
Door Glass WPL 4164240 Contact Us For Availability
5
Vent Box WPL 4163949 Contact Us For Availability
5
Clock WPL 4163729 Contact Us For Availability
6
Bracket, (Disconnect Block) WPL 4163812 Contact Us For Availability
6
Rubber Bumper WPL 4168826 Contact Us For Availability
6
Plate, Control Mounting WPL 4163750 Contact Us For Availability
6
Tubing, Broil Valve WPL 4163786 Contact Us For Availability
7
Cap (Disconnect Block) WPL 4159041 Contact Us For Availability
7
Bracket, Ignitor Mounting WPL 4163773 Contact Us For Availability
7
Cover, Seal End WPL 4167588 Contact Us For Availability
7
Retainer, Insulation WPL 4163850 Contact Us For Availability
7
Socket, Lamp WPL 4168756 Contact Us For Availability
7
Tubing, Bake Valve WPL 4163837 Contact Us For Availability
8
Plug (Disconnect Block) WPL 4159040 Contact Us For Availability
8
Cover Plate (Rotisserie) WPL 4167518 Contact Us For Availability
8
Window Pack WPL 4169572 Contact Us For Availability
8
Exhaust Insulation, Retainer Top WPL 4163813 Contact Us For Availability
8
Pressure Regulator WPL 4163881 Contact Us For Availability
9
Shoulder Screw WPL 4168874 Contact Us For Availability
9
Insulation, Top & Sides WPL 4163905 Contact Us For Availability
9
Insulation WPL 4163986 Contact Us For Availability
9
Insulation, Top and Sides WPL 4163819 Contact Us For Availability
9
Cover, Light WPL 4167553 Contact Us For Availability
9
Nipple, Reducing WPL 4168819 Contact Us For Availability
10
Knob, Clock (3) WPL 4168844 Contact Us For Availability
10
Gasket, Light Lens WPL 4166868 Contact Us For Availability
10
Frame, Front WPL 4163825 Contact Us For Availability
10
Door Liner WPL 4164238 Contact Us For Availability
10
Insulation, Back WPL 4163817 Contact Us For Availability
10
Extension, Vent WPL 4163970 Contact Us For Availability
10
Regulator Tube WPL 4163777 Contact Us For Availability
11
Solenoid WPL 4168769 Contact Us For Availability
11
Control Frame WPL 4163982 Contact Us For Availability
11
Light Lens WPL 4166866 Contact Us For Availability
11
Screw, 8A x 3/8`` WPL 4168863 Contact Us For Availability
11
Thermostat WPL 4164190 Contact Us For Availability
11
Connector WPL 4163968 Contact Us For Availability
12
Vent Cover WPL 4163745 Contact Us For Availability
12
Retainer, Light Lens WPL 4167938 Contact Us For Availability
12
Bracket, Lock WPL 4163852 Contact Us For Availability
12
Insulation Box WPL 4163796 Contact Us For Availability
12
Inlet Manifold WPL 4173333 Contact Us For Availability
13
Solenoid Stop WPL 4167799 Contact Us For Availability
13
Glass, Control Panel WPL 4163895 Contact Us For Availability
13
Oven Bottom WPL 4163972 Contact Us For Availability
13
Insulation, Box Back WPL 4163793 Contact Us For Availability
13
Indicator, Meat Probe WPL 4163730 Contact Us For Availability
13
Valve, Shut Off WPL 4164137 Contact Us For Availability
14
Damper, Safety Switch WPL 4163984 Contact Us For Availability
14
Cover Nut WPL 4167277 Contact Us For Availability
14
Oven Liner (See Page 8) WPL ARI87401A2 Contact Us For Availability
14
Damper WPL 4163792 Contact Us For Availability
14
Shaft, Valve WPL 4173316 Contact Us For Availability
15
Wire Shield WPL 4163909 Contact Us For Availability
15
Retainer WPL 4167590 Contact Us For Availability
15
Jack Cover WPL 4167266 Contact Us For Availability
15
Support, Control Frame WPL 4169335 Contact Us For Availability
15
Washer WPL 4159599 Contact Us For Availability
15
Selector Switch WPL 4163728 Contact Us For Availability
15
Washer WPL 4173320 Contact Us For Availability
16
Blower Assembly WPL 4168290 Contact Us For Availability
16
Gasket WPL 4163975 Contact Us For Availability
16
Damper Rod WPL 4163780 Contact Us For Availability
16
Indicator Light WPL 4163868 Contact Us For Availability
16
Coupling, Shaft WPL 4173318 Contact Us For Availability
17
Nut, Hex Jam WPL 4173084 Contact Us For Availability
17
Cabinet Side WPL 4163722 Contact Us For Availability
17
Screw, 6-32 X 1/4`` WPL 4159192 Contact Us For Availability
17
Insulation, Front WPL 4173361 Contact Us For Availability
17
Cotter Pin WPL 4173319 Contact Us For Availability
18
Jack, Meat Probe WPL 4164293 Contact Us For Availability
18
Air Duct, Right WPL 4163756 Contact Us For Availability
18
Air Duct, Left WPL 4163757 Contact Us For Availability
18
Indicator Light (Retained Heat and Keep Warm) WPL 4168754 Contact Us For Availability
18
Roll Pin WPL 4173317 Contact Us For Availability
19
Thermostat WPL 4163870 Contact Us For Availability
19
Oven Rack WPL 4168882 Contact Us For Availability
19
Insulation, Back WPL 4163903 Contact Us For Availability
19
Pipe, Inlet WPL 4173315 Contact Us For Availability
20
Mounting Bracket (Thermostat) WPL 4173327 Contact Us For Availability
20
Rear Anchor WPL 4157526 Contact Us For Availability
20
Fuse (5 Amp) WPL 4159029 Contact Us For Availability
20
Support, Valve Shaft WPL 4173314 Contact Us For Availability
21
Meat Probe Relay WPL 4163731 Contact Us For Availability
21
Fuse Holder WPL 4159038 Contact Us For Availability
21
Coupling, Pipe WPL 4173334 Contact Us For Availability
22
Transformer, Meat Probe WPL 4166561 Contact Us For Availability
22
Skewer WPL 4166352 Contact Us For Availability
22
Switch, Retained Heat WPL 4168533 Contact Us For Availability
23
Mounting Bracket (Solenoid) WPL 4173326 Contact Us For Availability
23
Rotisserie Spear WPL 4168724 Contact Us For Availability
23
Orifice Mounting Bracket WPL 4163774 Contact Us For Availability
24
Fan Switch, High Limit WPL 4163901 Contact Us For Availability
24
Rotisserie Rack WPL 4168722 Contact Us For Availability
24
Cam Plate, R.H. WPL 4167597 Contact Us For Availability
24
Cam Plate (L.H.) WPL 4167598 Contact Us For Availability
24
Switch, Panel Light WPL 4167332 Contact Us For Availability
25
Fan Switch WPL 4163900 Contact Us For Availability
25
Broil Baffle WPL 4163810 Contact Us For Availability
25
Hinge Assembly WPL 4167596 Contact Us For Availability
25
Wire Harness, Meat Probe Jack WPL 4163902 Contact Us For Availability
25
Wire Harness, Meat Probe Relay WPL 4163907 Contact Us For Availability
25
Wire Harness, Controls WPL 4163908 Contact Us For Availability
25
Bracket, Fuse Holder WPL 4173329 Contact Us For Availability
26
Door Spring WPL 4173267 Contact Us For Availability
26
Cabinet Top, Front WPL 4163751 Contact Us For Availability
26
Burner, Broiler WPL 4163814 Contact Us For Availability
27
Cabinet Top, Rear WPL 4163974 Contact Us For Availability
27
Orfice Fitting, Broil WPL 4163874 Contact Us For Availability
27
Spring, Anchor WPL 4167599 Contact Us For Availability
28
Insulator, Switch WPL 4163746 Contact Us For Availability
28
Oven Liner Top WPL 4163969 Contact Us For Availability
29
Bracket, Ignitor WPL 4173321 Contact Us For Availability
29
Cabinet Support (Right) WPL 4163761 Contact Us For Availability
29
Cabinet Support (Left) WPL 4163762 Contact Us For Availability
30
Rivet (2) WPL 4159167 Contact Us For Availability
30
Bracket, Alignment WPL 4173324 Contact Us For Availability
31
Probe, Meat WPL 4167267 Contact Us For Availability
31
Spacer WPL 4168590 Contact Us For Availability
32
Clip, Thermostat Bulb WPL 4173275 Contact Us For Availability
32
Mounting Plate (Rotisserie Motor) WPL 4173278 Contact Us For Availability
33
Nut, Orifice Fitting WPL 4159101 Contact Us For Availability
33
Wire Harness, Ignitor WPL 4163866 Contact Us For Availability
33
Clip, Thermostat Bulb WPL 4170427 Contact Us For Availability
33
Rotisserie Motor WPL 4173277 Contact Us For Availability
34
Light Shield WPL 4167519 Contact Us For Availability
35
Socket, Lamp WPL 4168755 Contact Us For Availability
38
Service Cord WPL 4163871 Contact Us For Availability
38
Probe Cover WPL 4163883 Contact Us For Availability
38
Cabinet, Back WPL 4173064 Contact Us For Availability
× ![]()
