Model Whirlpool KFRU361VSS00 36`` CARTED GRILL – Common Parts & Diagrams
02 - BASE PARTS
03 - OPTIONAL PARTS

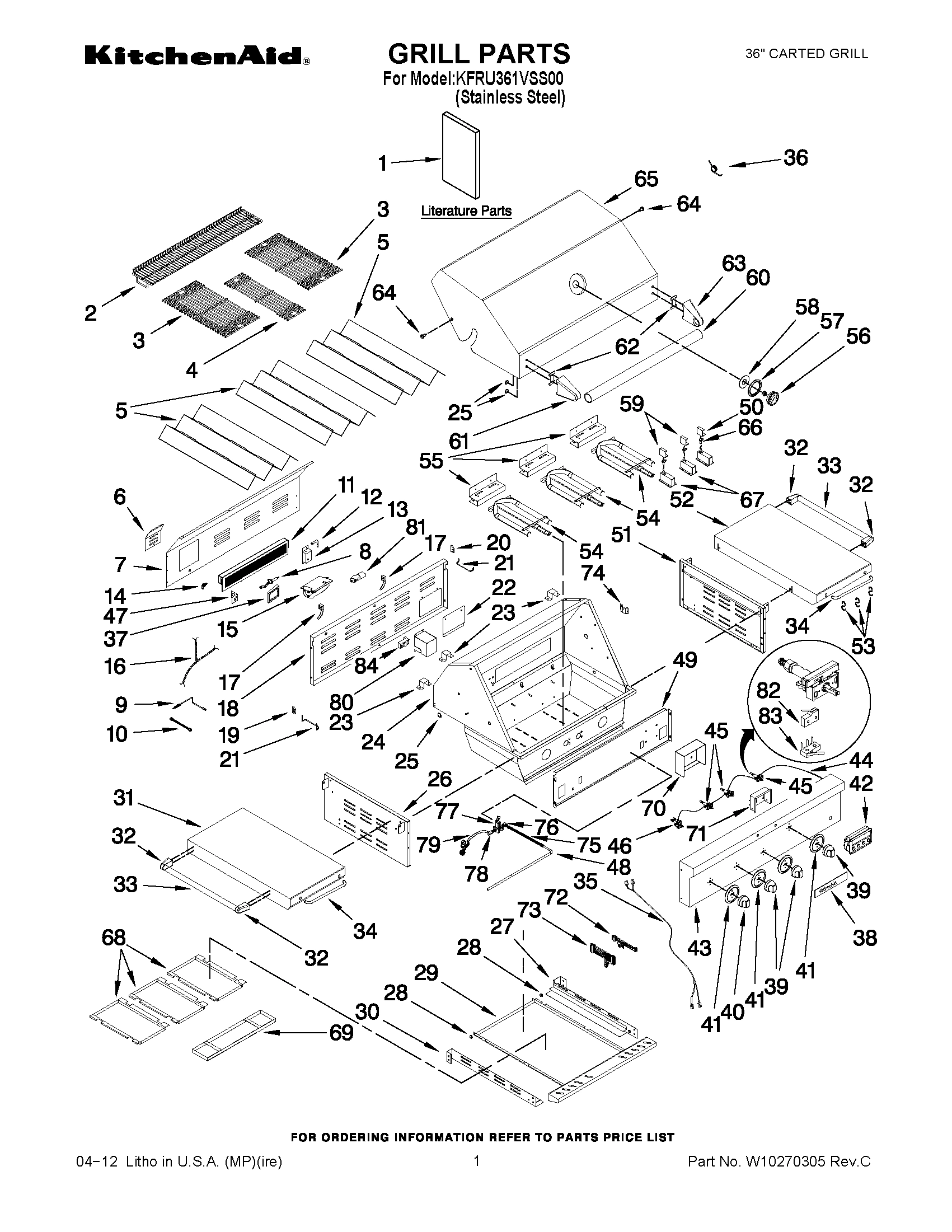

01 - GRILL PARTS
Common parts from model Whirlpool KFRU361VSS00 36`` CARTED GRILL
1
USE & CARE GUIDE WPL W10175731 Contact Us For Availability
2
Rack, Warming WPL W10133859 Contact Us For Availability
3
GRATE, LARGE WPL W10244174 Contact Us For Availability
4
GRATE, SMALL WPL W10244176 Contact Us For Availability
5
PLATE, SEAR WPL W10244180 Contact Us For Availability
6
Cover, Rear WPL W10128619 Contact Us For Availability
7
Panel, Rear WPL W10133863 Contact Us For Availability
8
IGNITER, HOT REAR BURNER WPL W10298673 Contact Us For Availability
9
Thermocouple, Rear Burner WPL W10128622 Contact Us For Availability
10
Flex Tube, Rear Burner WPL W10128623 Contact Us For Availability
11
Burner, Rear WPL W10133864 Contact Us For Availability
12
BRACKET, REAR THERMOCOUPLE WPL W10244186 Contact Us For Availability
13
COVER, REAR THERMOCOUPLE WPL W10244184 Contact Us For Availability
14
ORIFICE, REAR BURNER WPL W10246966 Contact Us For Availability
15
Light, Grill WPL W10140242 Contact Us For Availability
16
HARNESS, WIRE LIGHTS WPL W10128630 Contact Us For Availability
17
Socket, Light WPL W10128631 Contact Us For Availability
18
PANEL, ACCESS WPL W10246967 Contact Us For Availability
19
BRACKET, PANEL (LEFT) WPL W10247108 Contact Us For Availability
20
BRACKET, PANEL (RIGHT) WPL W10247107 Contact Us For Availability
21
BRACKET, WARMING RACK WPL W10247109 Contact Us For Availability
22
Cover, Access Panel WPL W10128637 Contact Us For Availability
23
CLIP, WIRE WPL W10244338 Contact Us For Availability
25
HOLE, PLUG WPL W10247110 Contact Us For Availability
26
Panel, Side Left WPL W10128642 Contact Us For Availability
27
COVER, STOP BOX WPL W10246882 Contact Us For Availability
27
BRACKET, GREASE TRAY (RIGHT) WPL W10246970 Contact Us For Availability
28
BOX, BATTERY WPL W10246880 Contact Us For Availability
28
Roller, Drip Tray WPL W10128655 Contact Us For Availability
29
CASE, BATTERY BOX WPL W10246879 Contact Us For Availability
29
DRIP TRAY ASSY (INCLUDES ROLLERS) WPL W10244966 Contact Us For Availability
30
BRACKET, GREASE TRAY (LEFT) WPL W10246971 Contact Us For Availability
31
WASHER, BOX WPL W10246982 Contact Us For Availability
31
Shelf, Side (Lf) WPL W10128658 Contact Us For Availability
32
Bracket, Handle WPL W10128659 Contact Us For Availability
33
Handle, Shelf WPL W10128660 Contact Us For Availability
34
Bar, Tool WPL W10128662 Contact Us For Availability
35
Handle, Door WPL W10128661 Contact Us For Availability
35
Harness, Wire Light WPL W10140245 Contact Us For Availability
36
SPRING, HOOD WPL W10246962 Contact Us For Availability
37
Rack, Storage WPL W10136427 Contact Us For Availability
37
HOUSING, LAMP WPL W10134808 Contact Us For Availability
38
Nameplate WPL W10128751 Contact Us For Availability
41
CONNECTOR, NG WPL W10246809 Contact Us For Availability
41
Bezel, Knob WPL W10128759 Contact Us For Availability
42
KIT, ORIFICE NG WPL W10246988 Contact Us For Availability
43
BOX, SMOKER WPL W10244190 Contact Us For Availability
43
PANEL, CONTROL WPL W10246974 Contact Us For Availability
44
HANDLE, SMOKER WPL W10134791 Contact Us For Availability
44
HARNESS, WIRE CONTROL WPL W10246980 Contact Us For Availability
45
GRATE, SMOKER WPL W10134790 Contact Us For Availability
46
INSULATOR, BOX WPL W10246883 Contact Us For Availability
47
WASHER, BOX WPL W10246885 Contact Us For Availability
47
BRACKET, IGNITER REAR BURNER WPL W10244185 Contact Us For Availability
48
Fork, Spit WPL W10134981 Contact Us For Availability
48
MANIFOLD WPL W10246973 Contact Us For Availability
49
ROD, SPIT WPL W10247180 Contact Us For Availability
49
BAFFLE, FRONT WPL W10246972 Contact Us For Availability
50
COLLECTOR, GAS RIGHT WPL W10244196 Contact Us For Availability
51
BRACKET, MOTOR WPL W10134986 Contact Us For Availability
51
SIDE PANEL, RIGHT WPL W10246969 Contact Us For Availability
52
SHELF, SIDE (RT) WPL W10128773 Contact Us For Availability
53
Hook WPL W10128774 Contact Us For Availability
54
Burner, Main WPL W10128775 Contact Us For Availability
55
BRACKET,MAIN BRNR WPL W10244202 Contact Us For Availability
56
Thermometer WPL W10128777 Contact Us For Availability
57
Bezel, Thermometer WPL W10128779 Contact Us For Availability
57
BREAKER, CIRCUIT WPL W10246628 Contact Us For Availability
58
WASHER, FLAT WPL W10140257 Contact Us For Availability
59
WASHER, OUTLET WPL W10246627 Contact Us For Availability
59
COLLECTOR, GAS LEFT WPL W10244198 Contact Us For Availability
60
HINGE, DOOR WPL W10246759 Contact Us For Availability
60
Handle, WPL W10133877 Contact Us For Availability
61
RING, RUBBER WPL W10246877 Contact Us For Availability
61
WPL W10128785 WPL W10128785 Contact Us For Availability
62
WIRE, LOAD CELL WPL W10246874 Contact Us For Availability
62
WPL W10128786 WPL W10128786 Contact Us For Availability
63
WIRE, DC SUPPLY WPL W10246873 Contact Us For Availability
63
WPL W10128787 WPL W10128787 Contact Us For Availability
64
WASHER, SHELF WPL W10244192 Contact Us For Availability
64
WPL W10128788 WPL W10128788 Contact Us For Availability
65
COVER, BOX WPL W10246878 Contact Us For Availability
65
WPL W10246964 WPL W10246964 Contact Us For Availability
66
WPL W10247024 WPL W10247024 Contact Us For Availability
66
BRACKET, BOX WPL W10246886 Contact Us For Availability
67
WPL W10244197 WPL W10244197 Contact Us For Availability
68
WPL W10244963 WPL W10244963 Contact Us For Availability
69
WPL W10244964 WPL W10244964 Contact Us For Availability
70
WPL W10244956 WPL W10244956 Contact Us For Availability
71
WPL W10244955 WPL W10244955 Contact Us For Availability
72
WPL W10246978 WPL W10246978 Contact Us For Availability
73
WPL W10246979 WPL W10246979 Contact Us For Availability
74
WPL W10247106 WPL W10247106 Contact Us For Availability
75
WPL W10244195 WPL W10244195 Contact Us For Availability
76
WPL W10244337 WPL W10244337 Contact Us For Availability
78
WPL W10244333 WPL W10244333 Contact Us For Availability
79
WPL W10247196 WPL W10247196 Contact Us For Availability
80
WPL W10244336 WPL W10244336 Contact Us For Availability
82
WPL W10246888 WPL W10246888 Contact Us For Availability
83
WPL W10303682 WPL W10303682 Contact Us For Availability
84
WPL NP WPL NP Contact Us For Availability
NI
Conv. Kit (NG-LP) WPL W10118099 Contact Us For Availability
NI
CONV.KIT(LP-NG) WPL W10118098 Contact Us For Availability
NI
COVER, GRILL WPL 8212700 Contact Us For Availability
NI
Smoker Box WPL KBDU271TSS Contact Us For Availability
NI
ALTITUDE 2K-5K LP WPL W10118101 Contact Us For Availability
NI
ALTITUDE 5K-8K LP WPL W10118102 Contact Us For Availability
NI
ALTITUDE 8K-10K LP WPL W10118104 Contact Us For Availability
NI
ALTITUDE 2K-5K NG WPL W10118105 Contact Us For Availability
NI
ALTITUDE 5K-8K NG WPL W10118106 Contact Us For Availability
NI
ALTITUDE 8K-10K NG WPL W10118107 Contact Us For Availability
× ![]()
