Model Whirlpool KFRS361TSS00 36`` CARTED GRILL – Common Parts & Diagrams

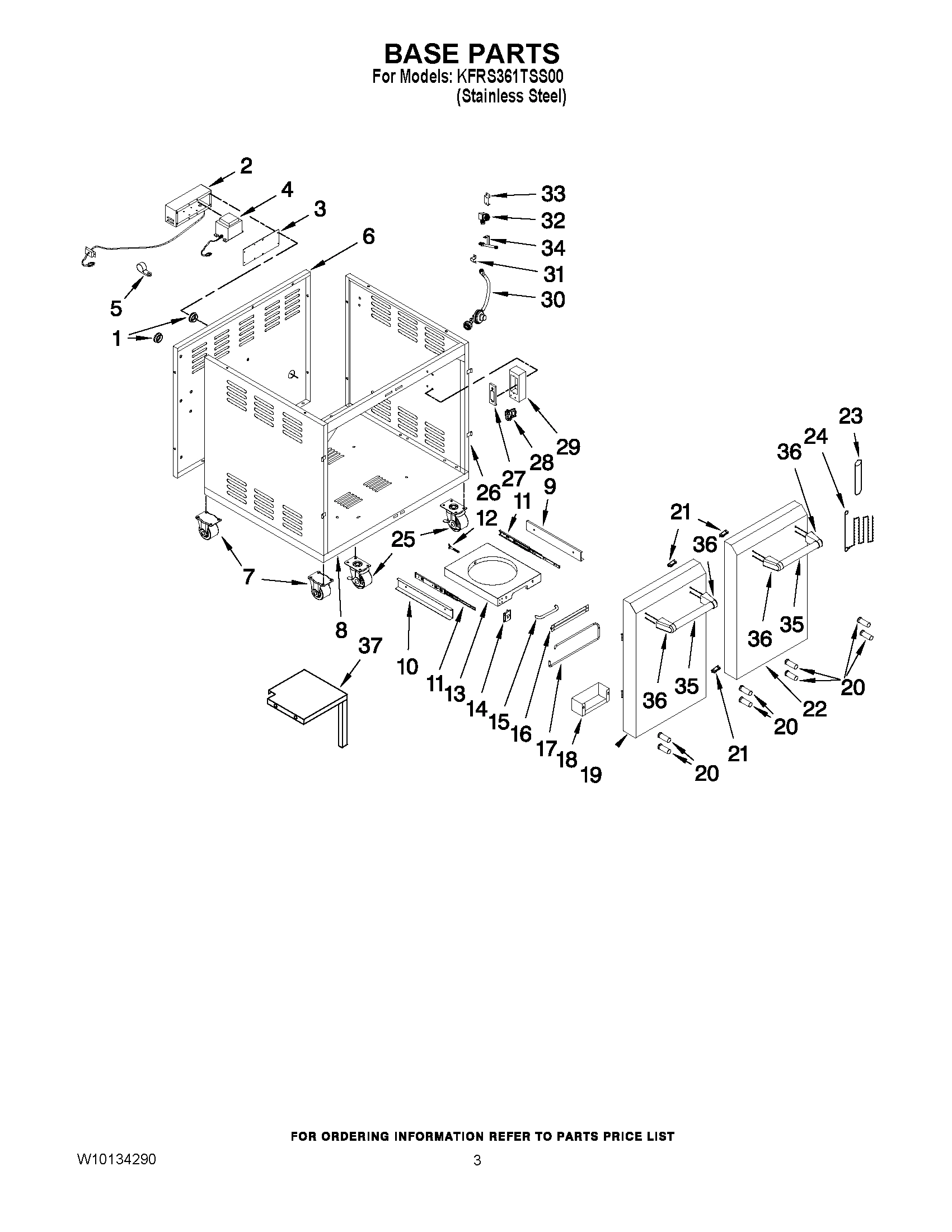

01 - GRILL PARTS
03 - OPTIONAL PARTS
02 - BASE PARTS
Common parts from model Whirlpool KFRS361TSS00 36`` CARTED GRILL
1
Ring, Rubber WPL W10128666 Contact Us For Availability
2
Box, Transformer WPL W10128667 Contact Us For Availability
3
Cover, Transformr Box WPL W10128668 Contact Us For Availability
6
Panel, Rear WPL W10136421 Contact Us For Availability
7
CASTER WPL W10128672 Contact Us For Availability
8
Electrode, Rear Burner WPL W10128621 Contact Us For Availability
8
Panel, Bottom WPL W10136424 Contact Us For Availability
9
Thermocouple, Rear Burner WPL W10128622 Contact Us For Availability
9
Bracket, Tank Tray (Right) WPL W10128674 Contact Us For Availability
10
Bracket, Tank Tray (Left) WPL W10128675 Contact Us For Availability
11
Burner, Rear WPL W10128624 Contact Us For Availability
11
Slide, Tank Tray WPL W10128676 Contact Us For Availability
12
Bolt, Tank WPL W10128677 Contact Us For Availability
13
Tray, Tank WPL W10128678 Contact Us For Availability
14
Lock, Tank Tray WPL W10128679 Contact Us For Availability
15
Light, Grill WPL W10128628 Contact Us For Availability
15
Handle, Tank Tray WPL W10128680 Contact Us For Availability
16
Bracket, Towel Rack WPL W10128681 Contact Us For Availability
17
Socket, Light WPL W10128631 Contact Us For Availability
17
Rack, Towel WPL W10128686 Contact Us For Availability
18
Tray, Condiment WPL W10136429 Contact Us For Availability
19
Door, Left WPL W10136430 Contact Us For Availability
20
Hole Plug WPL W10128696 Contact Us For Availability
21
Magnet, Door WPL W10128697 Contact Us For Availability
22
Cover, Access Panel WPL W10128637 Contact Us For Availability
22
Door, Right WPL W10136431 Contact Us For Availability
23
Clip, Wire WPL W10128638 Contact Us For Availability
23
Bag, Lighting Rod WPL W10128703 Contact Us For Availability
24
Hood Assy WPL W10136420 Contact Us For Availability
24
Rod, Lighting WPL W10128704 Contact Us For Availability
25
Hole Plug WPL W10128640 Contact Us For Availability
25
Caster, W/Brake WPL W10128705 Contact Us For Availability
26
Panel, Side Left WPL W10128642 Contact Us For Availability
26
Panel, Side Assy WPL W10136432 Contact Us For Availability
27
Bracket, Grease Tray (Right) WPL W10128644 Contact Us For Availability
27
Cover, Battery Box WPL W10128711 Contact Us For Availability
28
Roller, Drip Tray WPL W10128655 Contact Us For Availability
28
Box, Battery WPL W10128715 Contact Us For Availability
29
Drip Tray Assy (Includes Rollers) WPL W10128656 Contact Us For Availability
29
Case, Battery Box WPL W10128719 Contact Us For Availability
30
Regulator WPL W10128746 Contact Us For Availability
30
Bracket, Grease Tray (Left) WPL W11286570 Contact Us For Availability
31
Shelf, Side (Lf) WPL W10128658 Contact Us For Availability
31
Fixture, Manifold WPL W10128747 Contact Us For Availability
32
Connector (Brass) WPL W10128748 Contact Us For Availability
33
Handle, Shelf WPL W10128660 Contact Us For Availability
33
Base, Manifold Fixture WPL W10128749 Contact Us For Availability
34
Bar, Tool WPL W10128662 Contact Us For Availability
34
Commutator, Manifold WPL W10128750 Contact Us For Availability
35
Handle, Door WPL W10128661 Contact Us For Availability
36
Bracket, Handle WPL W10128659 Contact Us For Availability
36
Cover, Igniter WPL W10128664 Contact Us For Availability
37
Igniter WPL W10281246 Contact Us For Availability
37
Rack, Storage WPL W10136427 Contact Us For Availability
38
Nameplate WPL W10128751 Contact Us For Availability
41
Bezel, Knob WPL W10128759 Contact Us For Availability
42
Switch, Light WPL W10128761 Contact Us For Availability
43
Panel, Control WPL W10136433 Contact Us For Availability
44
Harness, Wire Control WPL W10134817 Contact Us For Availability
47
Igniter, Main Gas WPL W10128767 Contact Us For Availability
48
Manifold WPL W10133871 Contact Us For Availability
49
Baffle, Front WPL W10137063 Contact Us For Availability
50
Electrode (Main Burner) WPL W10136434 Contact Us For Availability
51
Side Panel, Right WPL W10128771 Contact Us For Availability
53
Hook WPL W10128774 Contact Us For Availability
54
Burner, Main WPL W10128775 Contact Us For Availability
55
Bracket, Main Brnr WPL W10128776 Contact Us For Availability
56
Thermometer WPL W10128777 Contact Us For Availability
57
Bezel, Thermometer WPL W10128779 Contact Us For Availability
58
Ins WPL W10128780 Contact Us For Availability
59
WPL W10128782 WPL W10128782 Contact Us For Availability
60
WPL W10128783 WPL W10128783 Contact Us For Availability
61
WPL W10128785 WPL W10128785 Contact Us For Availability
62
WPL W10128786 WPL W10128786 Contact Us For Availability
63
WPL W10128787 WPL W10128787 Contact Us For Availability
64
WPL W10128788 WPL W10128788 Contact Us For Availability
65
WPL W10128789 WPL W10128789 Contact Us For Availability
NI
Conv. Kit (NG-LP) WPL W10118099 Contact Us For Availability
NI
CONV.KIT(LP-NG) WPL W10118098 Contact Us For Availability
NI
COVER, GRILL WPL 8212700 Contact Us For Availability
NI
Smoker Box WPL KBDU271TSS Contact Us For Availability
NI
36`` Rotiss. Kit WPL KFKU361TSS Contact Us For Availability
NI
ALTITUDE 2K-5K LP WPL W10118101 Contact Us For Availability
NI
ALTITUDE 5K-8K LP WPL W10118102 Contact Us For Availability
NI
ALTITUDE 8K-10K LP WPL W10118104 Contact Us For Availability
NI
ALTITUDE 2K-5K NG WPL W10118105 Contact Us For Availability
NI
ALTITUDE 5K-8K NG WPL W10118106 Contact Us For Availability
NI
ALTITUDE 8K-10K NG WPL W10118107 Contact Us For Availability
× ![]()
