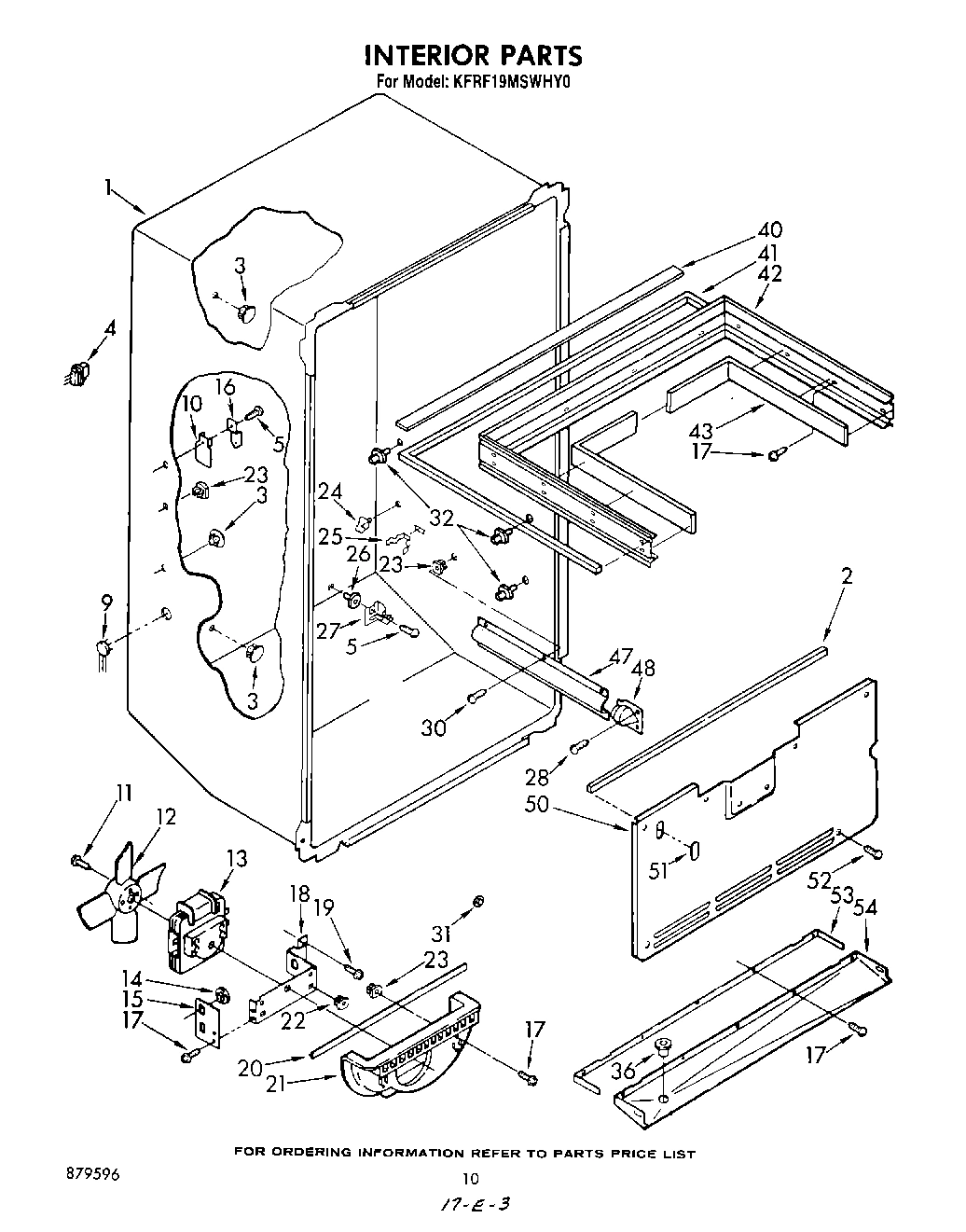

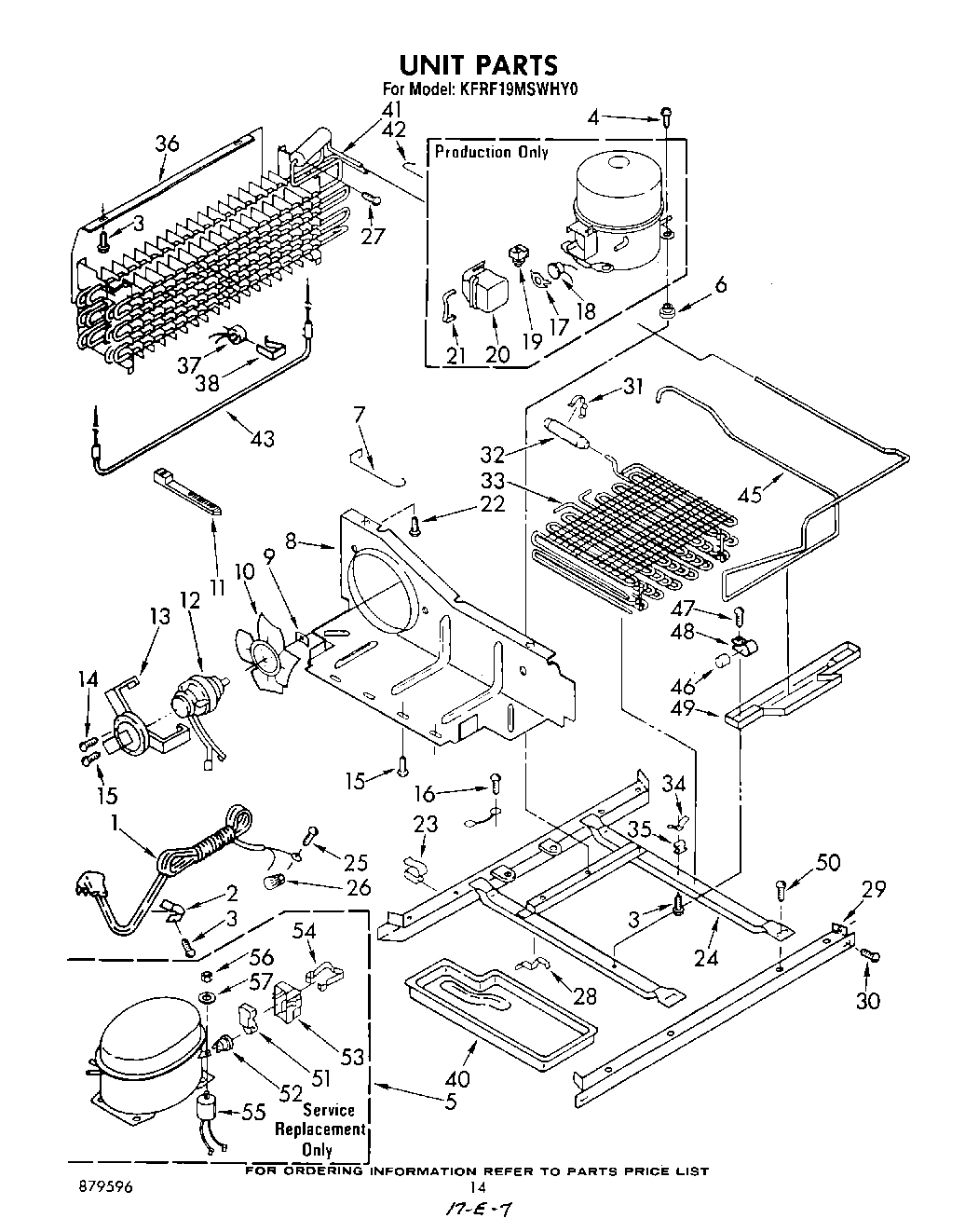

Model Whirlpool KFRF19MSWHY0 – Common Parts & Diagrams
Common parts from model Whirlpool KFRF19MSWHY0
1
Support, Center Ladder (2) WPL 520959 Contact Us For Availability
1
Damper, Air WPL 984658 Contact Us For Availability
1
Lever & Plate Assembly WPL 627248 Contact Us For Availability
1
Door, Freezer (Also Order Item 13) (White) WPL 1110337 Contact Us For Availability
1
Door, Freezer (Also Order Item 13) (Almond) WPL 1110339 Contact Us For Availability
1
Door, Freezer (Also Order Item 13) (Toast) WPL 1110340 Contact Us For Availability
1
Door, Freezer (Also Order Item 13) (Platinum) WPL 1110341 Contact Us For Availability
1
Door, Refrigerator (R.H.) (Also Order Item 15 WPL 1107102 Contact Us For Availability
1
Door, Refrigerator (R.H.) (Also Order Item 15 WPL 1107103 Contact Us For Availability
1
Door, Refrigerator (R.H.) (Also Order Item 15 WPL 1107104 Contact Us For Availability
1
Door, Refrigerator (R.H.) (Also Order Item 15 WPL 1107211 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI87324A2 Contact Us For Availability
2
Ladder (Center) WPL 1107301 Contact Us For Availability
2
Grommet WPL 842339 Contact Us For Availability
2
Screw, 10-12 x 3/8 WPL 487562 Contact Us For Availability
2
Gasket, Freezer Door WPL 986016 Contact Us For Availability
2
Gasket, Refrigerator Door (2) WPL 992582 Contact Us For Availability
3
Shelf, Cantilever (3) WPL 1107060 Contact Us For Availability
3
Retainer, Air Damper WPL 836493 Contact Us For Availability
3
Ice Maker Cabinet Harness (6 In. Lead) WPL 481658 Contact Us For Availability
3
Retainer, Gasket Top & Bottom WPL 836118 Contact Us For Availability
3
Retainer Gasket, Top & Bottom (2) WPL 992580 Contact Us For Availability
3
Extension, Drain Fitting WPL 841646 Contact Us For Availability
4
Interior Door Panel (R.H.) WPL 1101508 Contact Us For Availability
4
Screw, (Repair) 10 x 1 1/4 WPL 488623 Contact Us For Availability
4
Panel, Interior Door WPL 1107362 Contact Us For Availability
4
Clip, Drain Extension WPL 841648 Contact Us For Availability
5
Front Cover, Meat Pan WPL 1107179 Contact Us For Availability
5
Trim, Door Shelf (2) WPL 1107367 Contact Us For Availability
6
Meat Pan, Shelf WPL 1107080 Contact Us For Availability
6
Cover, Unit Compartment WPL 850459 Contact Us For Availability
7
Guard, Fan WPL 850156 Contact Us For Availability
7
Screw, 1/4-28 x 1/2 (4) WPL 488454 Contact Us For Availability
7
Reflector, Glass Shelf WPL 1107545 Contact Us For Availability
7
Plug, Hole (2) WPL 534927 Contact Us For Availability
7
Trim, Handle Door WPL 936666 Contact Us For Availability
8
Baffle, Air WPL 850764 Contact Us For Availability
8
Bracket, Thermostat Mounting WPL 848446 Contact Us For Availability
8
Clamp, Tube WPL 836472 Contact Us For Availability
9
Screw, 8-15 x 1 WPL 487547 Contact Us For Availability
9
Screw, 8.18 x 3/4 WPL 489145 Contact Us For Availability
9
Seal, Strip Center Rail WPL 987506 Contact Us For Availability
10
Blade, Fan WPL 989524 Contact Us For Availability
10
Container, Defrost Timer WPL 983079 Contact Us For Availability
10
Screw, 4-40 x 1/4 WPL 488622 Contact Us For Availability
10
Cap, Hinge Sleeve WPL 509929 Contact Us For Availability
10
Handle, Door WPL 936664 Contact Us For Availability
10
Drain Fitting Liner WPL 839861 Contact Us For Availability
11
Strap WPL 851095 Contact Us For Availability
11
Grommet, Screw WPL 538449 Contact Us For Availability
11
Insert, Trim Handle WPL 1107324 Contact Us For Availability
11
Screw Anchor WPL 941242 Contact Us For Availability
12
Blade, Fan WPL 992920 Contact Us For Availability
12
Screw, 8-32 x 1/2 WPL 489050 Contact Us For Availability
12
Shelf, Freezer WPL 1107097 Contact Us For Availability
12
Clip, Breaker Liner (3) WPL 848478 Contact Us For Availability
12
Stripper, Ice WPL 625840 Contact Us For Availability
12
Hole Plug (Toast) WPL 1100188 Contact Us For Availability
12
Hole Plug (Platinum) WPL 1100189 Contact Us For Availability
12
Plug, Hole (Almond) WPL 989196 Contact Us For Availability
12
Door Closer (2) WPL 991877 Contact Us For Availability
13
Bracket, Fan Motor WPL 548695 Contact Us For Availability
13
Screw, 8 x 1-1/4 (2) WPL 488357 Contact Us For Availability
13
Egg Container, Top WPL 1107388 Contact Us For Availability
13
Mold & Heater Assembly (Includes Illus. 15) WPL 625856 Contact Us For Availability
13
Door, Butter WPL 1107288 Contact Us For Availability
14
Basket, Freezer WPL 1107125 Contact Us For Availability
14
Roller, Front (2) WPL 981127 Contact Us For Availability
15
Kit, Foam Slab (Required When Replacing Exter WPL 876029 Contact Us For Availability
15
Ladder, Shelf (Side) (2) WPL 1107112 Contact Us For Availability
15
Timer, Defrost WPL 943428 Contact Us For Availability
15
Heater, Mold WPL 625843 Contact Us For Availability
15
Retainer, Gasket (Side) (2) WPL 986015 Contact Us For Availability
15
Pin, Hinge WPL 992547 Contact Us For Availability
16
Screw, 8 x 1-3/8 (2) WPL 488678 Contact Us For Availability
16
Heater, Stile WPL 1114265 Contact Us For Availability
17
Overload Spring WPL 943494 Contact Us For Availability
17
Harness, Wiring WPL 627357 Contact Us For Availability
17
Clip, Heater (2) WPL 935663 Contact Us For Availability
18
Protector, Overload WPL 943492 Contact Us For Availability
18
Anchor (3) WPL 983604 Contact Us For Availability
18
Grommet WPL 510723 Contact Us For Availability
18
Retainer, Gasket (Side) WPL 986008 Contact Us For Availability
19
Relay, Starting WPL 945431 Contact Us For Availability
19
Pan Crisper (2) WPL 1107873 Contact Us For Availability
19
Screw, 8 x 3/8 (4) WPL 488624 Contact Us For Availability
19
Eyelet, Spacer WPL 510906 Contact Us For Availability
19
Screw (Repair) (4) WPL 487470 Contact Us For Availability
20
Case, Relay WPL 943496 Contact Us For Availability
20
Bracket, Door Stop WPL 1107202 Contact Us For Availability
20
Retainer, Gasket Mullion (2) WPL 992581 Contact Us For Availability
20
Hinge, Center (L.H.) WPL 992542 Contact Us For Availability
21
Spring, Relay Case WPL 943497 Contact Us For Availability
21
Screw (Repair) WPL 488132 Contact Us For Availability
21
Screw (Repair) WPL 488930 Contact Us For Availability
21
Door Gasket, Mullion (2) WPL 1101510 Contact Us For Availability
22
Trim, Shelf Front WPL 1107072 Contact Us For Availability
22
Grid, Insert WPL 987018 Contact Us For Availability
22
Insert, Handle Door WPL 1107196 Contact Us For Availability
22
Insert, Handle Door (Black) WPL 1111962 Contact Us For Availability
22
Cap, Handle WPL 1107227 Contact Us For Availability
23
Clip, Wire (2) WPL 548745 Contact Us For Availability
23
Front Cover, Crisper (2) WPL 1107155 Contact Us For Availability
23
Insert, Air Return WPL 987019 Contact Us For Availability
23
Handle Center WPL 1107215 Contact Us For Availability
23
Wire Assembly (Water Valve) WPL 548734 Contact Us For Availability
24
Frame, Unit Mounting WPL 945457 Contact Us For Availability
24
Separator, Compartment WPL 1107779 Contact Us For Availability
24
Tap Plate, Hinge WPL 836162 Contact Us For Availability
25
Screw, 8-32 x 3/8 WPL 488474 Contact Us For Availability
25
Reflector, Wire Shelf WPL 1107257 Contact Us For Availability
25
Panel, Control WPL 1107484 Contact Us For Availability
25
Shim, Handle WPL 1107325 Contact Us For Availability
26
Connector Wire WPL 227991 Contact Us For Availability
26
Trim, Ice Pan WPL 837122 Contact Us For Availability
26
Gasket WPL 991223 Contact Us For Availability
26
Insert, Nameplate WPL 1107915 Contact Us For Availability
26
Box, Junction WPL 549947 Contact Us For Availability
27
Clip, Reflector WPL 1107246 Contact Us For Availability
27
Clamp, Thermostat WPL 625829 Contact Us For Availability
27
Insert, Handle WPL 1107233 Contact Us For Availability
27
Insert, Handle WPL 1107929 Contact Us For Availability
27
Grille, End Cap (R.S) WPL 1107443 Contact Us For Availability
28
Clip, Unit Cover (2) WPL 548744 Contact Us For Availability
28
Pan, Meat WPL 1107874 Contact Us For Availability
28
Shield, Light WPL 983910 Contact Us For Availability
28
Screw, 8-32 x 1 WPL 488372 Contact Us For Availability
28
Filler, Corner WPL 839178 Contact Us For Availability
29
Rail, Unit Mounting WPL 548662 Contact Us For Availability
29
Reflector, Cantilever Shelf WPL 1107068 Contact Us For Availability
29
Knob, Thermostat WPL 836482 Contact Us For Availability
29
Bumper, Grille (2) WPL 1107614 Contact Us For Availability
30
Egg Container, Bottom WPL 1107384 Contact Us For Availability
30
Knob, Retainer WPL 837444 Contact Us For Availability
30
Switch, S.P.D.T. WPL 625851 Contact Us For Availability
30
Retainer, Insert WPL 1107240 Contact Us For Availability
30
Grille WPL 1107194 Contact Us For Availability
31
Spacer, Holding Switch WPL 625834 Contact Us For Availability
31
Clamp, Drier WPL 548508 Contact Us For Availability
31
Crisper Gasket, Rear WPL 1107480 Contact Us For Availability
31
Knob, Air Diffuser (Includes Illus. 30) WPL 837445 Contact Us For Availability
31
End Cap, Insert Retainer WPL 1107341 Contact Us For Availability
31
Insert, Air Baffle Grille WPL 1107271 Contact Us For Availability
32
Crisper Gasket, Front WPL 1107304 Contact Us For Availability
32
Thermostat WPL 625844 Contact Us For Availability
32
Grille, End Cap (L.S.) WPL 1107444 Contact Us For Availability
33
Condenser & Precooler Assembly WPL 943480 Contact Us For Availability
33
Glass, Cantilever Shelf (3) WPL 1107064 Contact Us For Availability
33
Cam WPL 625913 Contact Us For Availability
33
Screw (Repair) WPL 488923 Contact Us For Availability
33
Hinge Cover (Toast) WPL 1100172 Contact Us For Availability
34
Clamp, Mounting (4) WPL 548738 Contact Us For Availability
34
Stud, Shelf WPL 1107770 Contact Us For Availability
34
Motor WPL 625846 Contact Us For Availability
34
Spacer, Handle WPL 1107651 Contact Us For Availability
34
Screw, 12-14 x 3/4 (Repair) WPL 488949 Contact Us For Availability
35
Grommet, Mounting (4) WPL 943447 Contact Us For Availability
35
Cover, Crisper Frame WPL 1107293 Contact Us For Availability
35
Gear WPL 625914 Contact Us For Availability
35
Hinge, Top (2) WPL 842035 Contact Us For Availability
36
Baffle, Air Evaporator WPL 851763 Contact Us For Availability
36
Stud, Shelf WPL 528864 Contact Us For Availability
36
Screw WPL 488957 Contact Us For Availability
36
Screw, 10-32 x 5/8 WPL 489075 Contact Us For Availability
36
Clip, Grille (2) WPL 989068 Contact Us For Availability
37
Screw, 8-32 x 1-1/4 (3) WPL 488960 Contact Us For Availability
37
Screw (Repair) WPL 488980 Contact Us For Availability
37
Screw, Shoulder WPL 627199 Contact Us For Availability
37
Trim, Door Shelf WPL 1107299 Contact Us For Availability
37
Shim, Top Hinge (.030) WPL 836151 Contact Us For Availability
38
Clamp WPL 513584 Contact Us For Availability
38
Support, Cover WPL 1107730 Contact Us For Availability
38
Shield, Light (Freezer Compartment) WPL 848158 Contact Us For Availability
38
Tube, Water Inlet WPL 836491 Contact Us For Availability
38
Retainer, Door Trim (2) WPL 1107300 Contact Us For Availability
38
Heater, Mullion WPL 989256 Contact Us For Availability
39
Post, Support Cover WPL 937340 Contact Us For Availability
39
Beraing & Inlet WPL 544304 Contact Us For Availability
39
Clip, Expansion (4) WPL 537095 Contact Us For Availability
39
Center Rail (Toast) WPL 1100303 Contact Us For Availability
39
Center Rail (Platinum) WPL 1100304 Contact Us For Availability
39
Center Rail & Bracket Assembly (White) WPL 836067 Contact Us For Availability
39
Center Rail & Bracket Assembly (Almond) WPL 989911 Contact Us For Availability
40
Front, Basket WPL 1107343 Contact Us For Availability
40
Diffuser Assembly, Air WPL 986021 Contact Us For Availability
40
Ejector WPL 627375 Contact Us For Availability
40
Ladder, Door Shelf (2) WPL 839430 Contact Us For Availability
40
Shim, Center Hinge WPL 836155 Contact Us For Availability
41
Evaporator WPL 945542 Contact Us For Availability
41
Arm, Shut-Off WPL 627003 Contact Us For Availability
42
Clip, Heater (2) WPL 989306 Contact Us For Availability
42
Breaker Clip Wrap WPL 939139 Contact Us For Availability
42
Spring, Shut-Off Arm WPL 625832 Contact Us For Availability
42
Door Shelf, Cantilever (2) WPL 1107309 Contact Us For Availability
42
Hinge, Center (R.H.) WPL 992544 Contact Us For Availability
43
Heater, Defrost WPL 851765 Contact Us For Availability
43
Clip, Breaker Retainer WPL 836090 Contact Us For Availability
43
Support WPL 625827 Contact Us For Availability
43
Door, Refrigerator (L.H.) (Also Order Item 15 WPL 1107212 Contact Us For Availability
43
Door, Refrigerator (L.H.) (Also Or WPL 1107705 Contact Us For Availability
43
WPL 1107706 WPL 1107706 Contact Us For Availability
43
WPL 1107707 WPL 1107707 Contact Us For Availability
43
Screw, 5/16-24 x 1-1/4 WPL 488681 Contact Us For Availability
44
Shelf Gasket, Glass WPL 1107265 Contact Us For Availability
44
Breaker, Refrigerator Trim (Top) WPL 940920 Contact Us For Availability
44
Screw (Use W/Motor 625846) WPL 488361 Contact Us For Availability
44
WPL 1101512 WPL 1101512 Contact Us For Availability
45
Exchanger, Heat WPL 945545 Contact Us For Availability
45
Glass, Meat Pan WPL 1107088 Contact Us For Availability
45
Lever, Arm WPL 625830 Contact Us For Availability
46
Dampener (2) WPL 510769 Contact Us For Availability
46
Trim, Frame WPL 1107136 Contact Us For Availability
46
Refrigerator Trim (L.S.) WPL 986001 Contact Us For Availability
46
Screw, 4-24 x 3/4 (2) WPL 488360 Contact Us For Availability
47
Breaker, Refrigerator Trim (R.S.) WPL 986000 Contact Us For Availability
47
Screw, 4-40 X 3/4 (2) WPL 488362 Contact Us For Availability
47
H WPL 836159 Contact Us For Availability
48
Trim, Frame WPL 1107294 Contact Us For Availability
48
Clip, Breaker Mullion (8) WPL 534365 Contact Us For Availability
48
Switch, S.P.S.T. WPL 625947 Contact Us For Availability
49
WPL 654366 WPL 654366 Contact Us For Availability
49
Pan, Drip WPL 945572 Contact Us For Availability
49
Glass, Crisper Cover WPL 1107353 Contact Us For Availability
49
Insulator, Switch WPL 627680 Contact Us For Availability
50
WPL 488714 WPL 488714 Contact Us For Availability
50
Reflector, Glass Shelf WPL 1107248 Contact Us For Availability
50
Breaker, Mullion Trim (Refrigerator) WPL 992534 Contact Us For Availability
50
Plate, Valve Switch WPL 627024 Contact Us For Availability
51
Relay WPL 1100806 Contact Us For Availability
51
Shelf Gasket, Glass WPL 1107580 Contact Us For Availability
51
Plate, Mounting WPL 627740 Contact Us For Availability
51
WPL 836196 WPL 836196 Contact Us For Availability
52
Overload WPL 1105077 Contact Us For Availability
52
Breaker, Mullion Trim (Freezer) WPL 841643 Contact Us For Availability
53
Cover, Terminal WPL 1105015 Contact Us For Availability
53
Breaker, Freezer Trim (L.S.) WPL 985998 Contact Us For Availability
53
Spring WPL 627163 Contact Us For Availability
54
Strap WPL 938384 Contact Us For Availability
54
Breaker, Freezer Trim (R.S.) WPL 985997 Contact Us For Availability
54
Cover WPL 1107613 Contact Us For Availability
55
Capacitor WPL 482996 Contact Us For Availability
55
Breaker, Freezer Trim (Bottom) WPL 839829 Contact Us For Availability
55
Union, 1/4`` x 3/16`` WPL 512503 Contact Us For Availability
56
Nut WPL 489142 Contact Us For Availability
56
Valve, Shut-Off WPL 541157 Contact Us For Availability
57
WPL 978029 WPL 978029 Contact Us For Availability
57
Washer WPL 489143 Contact Us For Availability
57
WPL 978028 WPL 978028 Contact Us For Availability
57
Filter Kit WPL 978488 Contact Us For Availability
60
Tube, Inlet Valve WPL 836200 Contact Us For Availability
63
Screw, 8-32 x 1/4 (Ground) WPL 488542 Contact Us For Availability
65
Clamp Tube WPL 510716 Contact Us For Availability
66
Nut, Valve WPL 537588 Contact Us For Availability
68
TAPE, VIN WPL 479502 Contact Us For Availability
68
Enamal, Toast (1 Qt. Uncut) WPL 285367 Contact Us For Availability
68
Enamel, Platinum (1 Qt. Uncut) WPL 285368 Contact Us For Availability
68
WPL 542639 WPL 542639 Contact Us For Availability
68
WPL 627848 WPL 627848 Contact Us For Availability
68
WPL 72112 WPL 72112 Contact Us For Availability
68
WPL 799340 WPL 799340 Contact Us For Availability
68
WPL 799832 WPL 799832 Contact Us For Availability
68
WPL 799833 WPL 799833 Contact Us For Availability
68
WPL 978883 WPL 978883 Contact Us For Availability
× ![]()
