Model Whirlpool KFPW761OB0 MIDLINE FOOD PROCESSOR 12 CUP - WIDE MOUTH – Common Parts & Diagrams

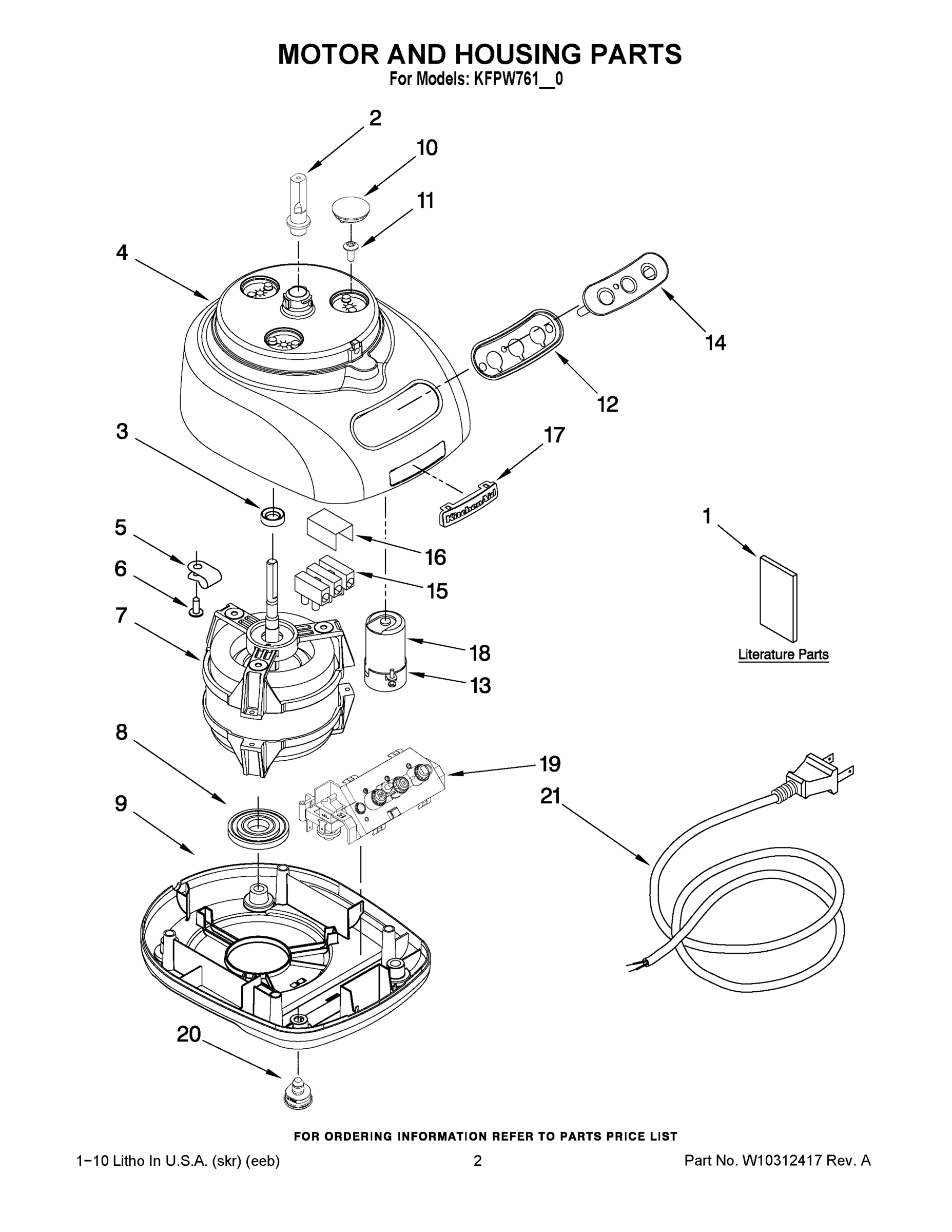

01 - MOTOR AND HOUSING PARTS

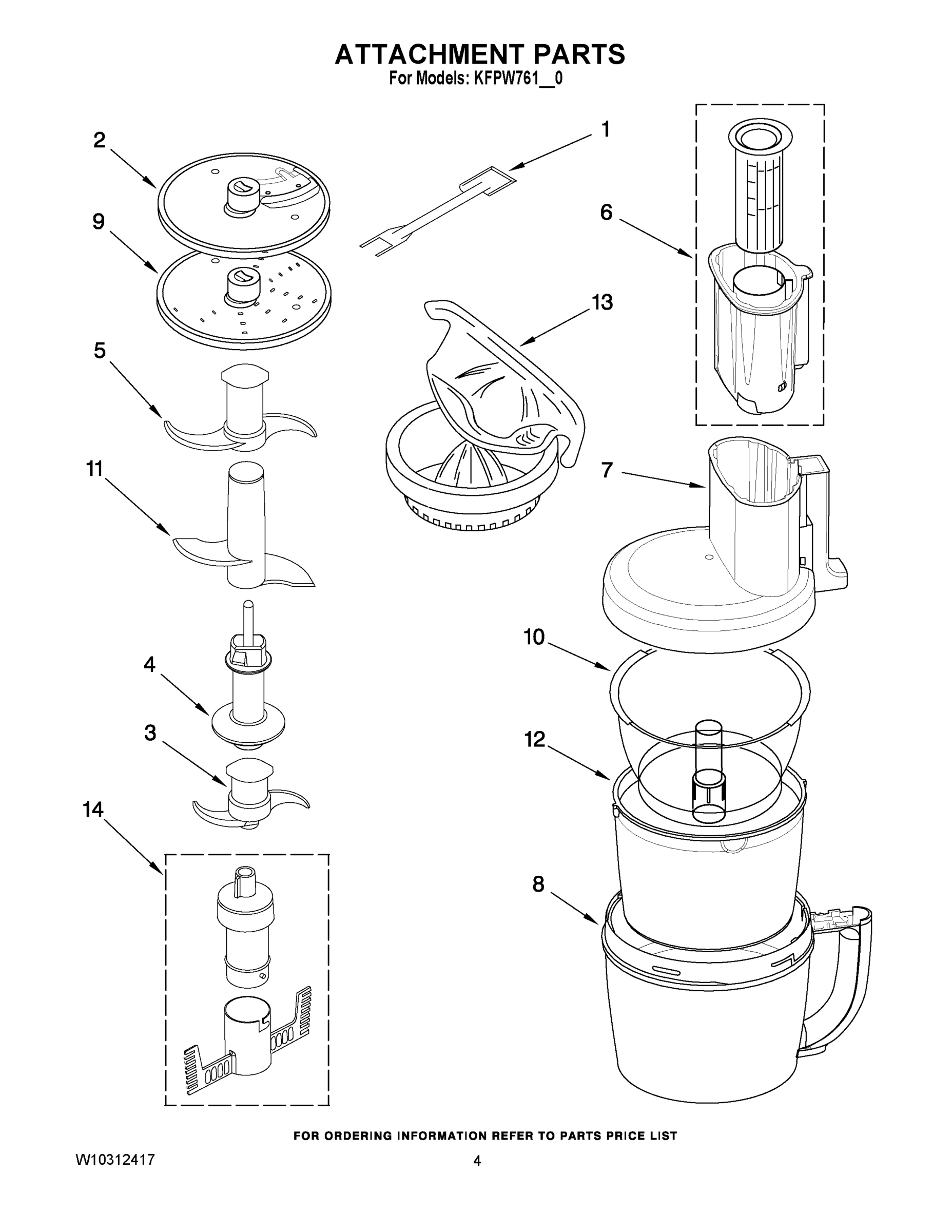

02 - ATTACHMENT PARTS
Common parts from model Whirlpool KFPW761OB0 MIDLINE FOOD PROCESSOR 12 CUP - WIDE MOUTH
2
Sleeve, Motor Shaft WPL W10187053 Contact Us For Availability
2
DISC,SLICING (2 MM) WPL W10274086 Contact Us For Availability
2
DISC,SLICING (4 MM) WPL W10274087 Contact Us For Availability
3
Seal, Oil WPL 8211828 Contact Us For Availability
3
Blade, Mini WPL 8212012 Contact Us For Availability
4
Housing, Motor (White) WPL 8212184 Contact Us For Availability
4
Housing, Motor (Empire Red) WPL 8212236 Contact Us For Availability
4
Housing, Motor (Onyx Black) WPL 8212238 Contact Us For Availability
4
Housing, Motor (Blue Willow) WPL 8212284 Contact Us For Availability
4
Housing, Motor (Gloss Cinnamon) WPL 8212285 Contact Us For Availability
4
Housing, Motor (Buttercup) WPL W10159620 Contact Us For Availability
4
ADAPTER, SHAFT & DISC WPL W10281249 Contact Us For Availability
5
Blade, Multipurpose WPL W10187050 Contact Us For Availability
6
Screw, Clamp WPL 8211731 Contact Us For Availability
6
PUSHER, DOUBLE WPL W10281251 Contact Us For Availability
7
Cover, Work Bowl (Gloss Cinnamon) WPL 8212408 Contact Us For Availability
7
Motor WPL W10163676 Contact Us For Availability
7
Cover, Work Bowl (Blue Willow) WPL 8212407 Contact Us For Availability
7
COVER, WORK BOWL (WHITE) WPL W10280898 Contact Us For Availability
7
COVER, WORK BOWL (ONYX BLACK) WPL W10280900 Contact Us For Availability
7
COVER, WORK BOWL (EMPIRE RED) WPL W10280909 Contact Us For Availability
7
COVER, WORK BOWL (BUTTERCUP) WPL W10315336 Contact Us For Availability
8
Bowl, Work (Onyx Black) WPL 8212249 Contact Us For Availability
8
Grommet, Motor WPL 8212188 Contact Us For Availability
8
Bowl, Work (White) WPL 8212246 Contact Us For Availability
8
Bowl, Work (Empire Red) WPL 8212247 Contact Us For Availability
8
Bowl, Work (Blue Willow) WPL 8212288 Contact Us For Availability
8
Bowl, Work (Gloss Cinnamon) WPL 8212289 Contact Us For Availability
8
BOWL, WORK (BUTTERCUP) WPL W10315337 Contact Us For Availability
9
Base, Housing (White) WPL 8212183 Contact Us For Availability
9
Base, Housing (Empire Red) WPL 8212187 Contact Us For Availability
9
Base, Housing (Onyx Black) WPL 8212190 Contact Us For Availability
9
Base, Housing (Blue Willow) WPL 8212282 Contact Us For Availability
9
Base, Housing (Gloss Cinnamon) WPL 8212283 Contact Us For Availability
9
Base, Housing (Buttercup) WPL W10159621 Contact Us For Availability
9
DISC, SHREDDING (4MM) WPL W10274088 Contact Us For Availability
10
Cover, Screw (White) WPL 8212185 Contact Us For Availability
10
Cover, Screw (Red) WPL 8212191 Contact Us For Availability
10
Cover, Screw (Onyx Black) WPL 8212193 Contact Us For Availability
10
Cover, Screw (Blue Willow) WPL 8212286 Contact Us For Availability
10
Cover, Screw (Gloss Cinnamon) WPL 8212287 Contact Us For Availability
10
Cover, Screw (Buttercup) WPL W10159622 Contact Us For Availability
10
Bowl, Mini WPL 8211926 Contact Us For Availability
11
Screw, Motor Locking WPL 8211829 Contact Us For Availability
11
Blade, Dough WPL W10187052 Contact Us For Availability
12
Bezel, Switch Panel WPL 8211848 Contact Us For Availability
12
Bowl, Chef`s WPL 8211928 Contact Us For Availability
13
Clip, Capacitor WPL 8211607 Contact Us For Availability
13
Extractor, Citrus WPL 8212025 Contact Us For Availability
14
Overlay, Switch Assembly (Silver) WPL 8211847 Contact Us For Availability
14
WHIP, EGG-12 CUP WPL W10187049 Contact Us For Availability
15
Terminal Block WPL 8211605 Contact Us For Availability
16
Cover, Terminal WPL 8211852 Contact Us For Availability
17
Nameplate WPL 8211842 Contact Us For Availability
18
Capacitor WPL 8211608 Contact Us For Availability
19
Relay & Switch Assembly WPL 8212011 Contact Us For Availability
20
Foot (White) WPL 8211844 Contact Us For Availability
20
Foot (Black) WPL 8211845 Contact Us For Availability
NI
Lid, Mini Bowl WPL 8211927 Contact Us For Availability
NI
Accessory Box WPL W10186743 Contact Us For Availability
NI
DISC, SLICING (6 MM) WPL W10280887 Contact Us For Availability
NI
DISC, SHREDDING (2 MM) WPL W10280889 Contact Us For Availability
NI
DISC, SHREDDING (6 MM) WPL W10280891 Contact Us For Availability
NI
DISC, GRATING PARMESAN/ICE WPL W10280892 Contact Us For Availability
NI
DISC, JULIENNE WPL W10280893 Contact Us For Availability
NI
DISC, CUTTING FRENCH FRY WPL W10280896 Contact Us For Availability
× ![]()
