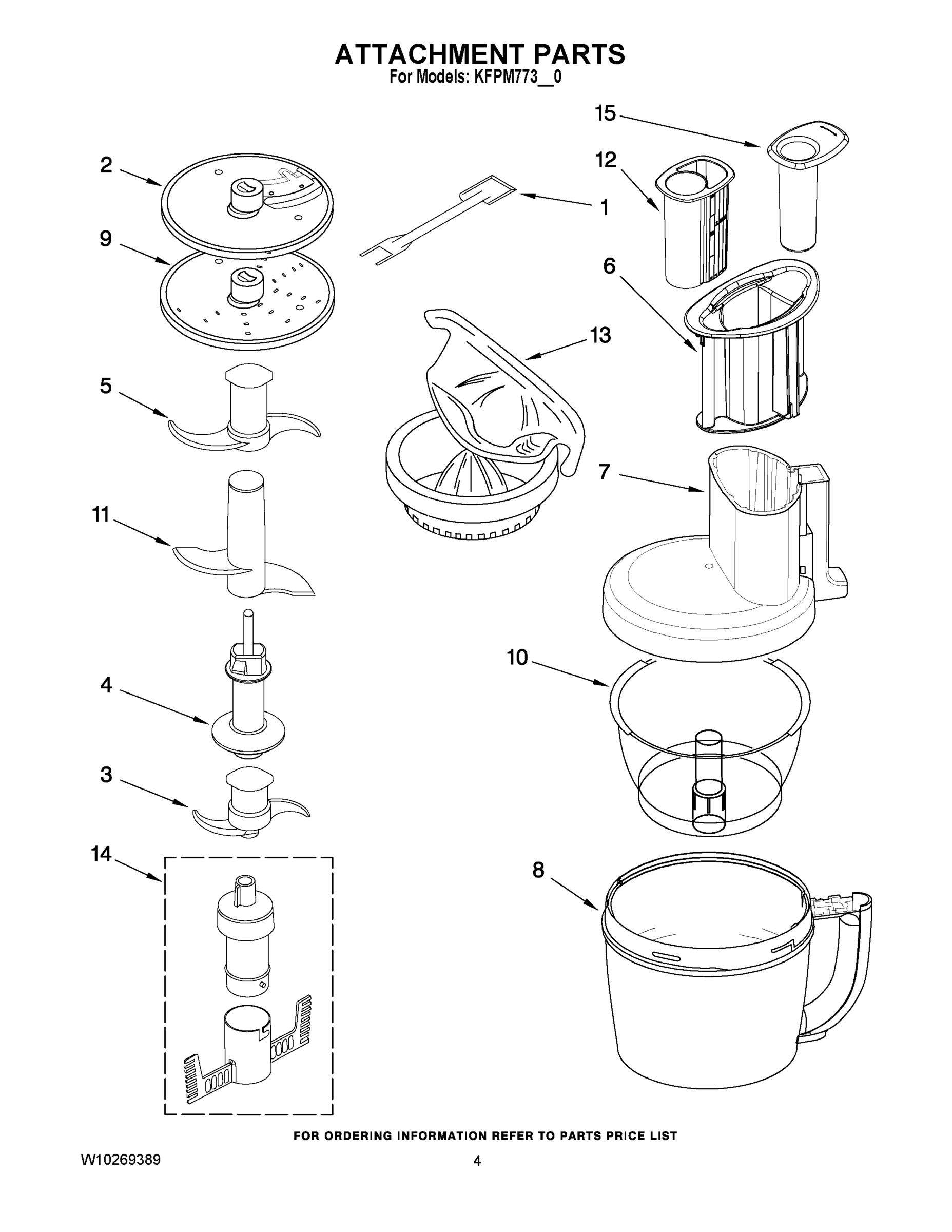

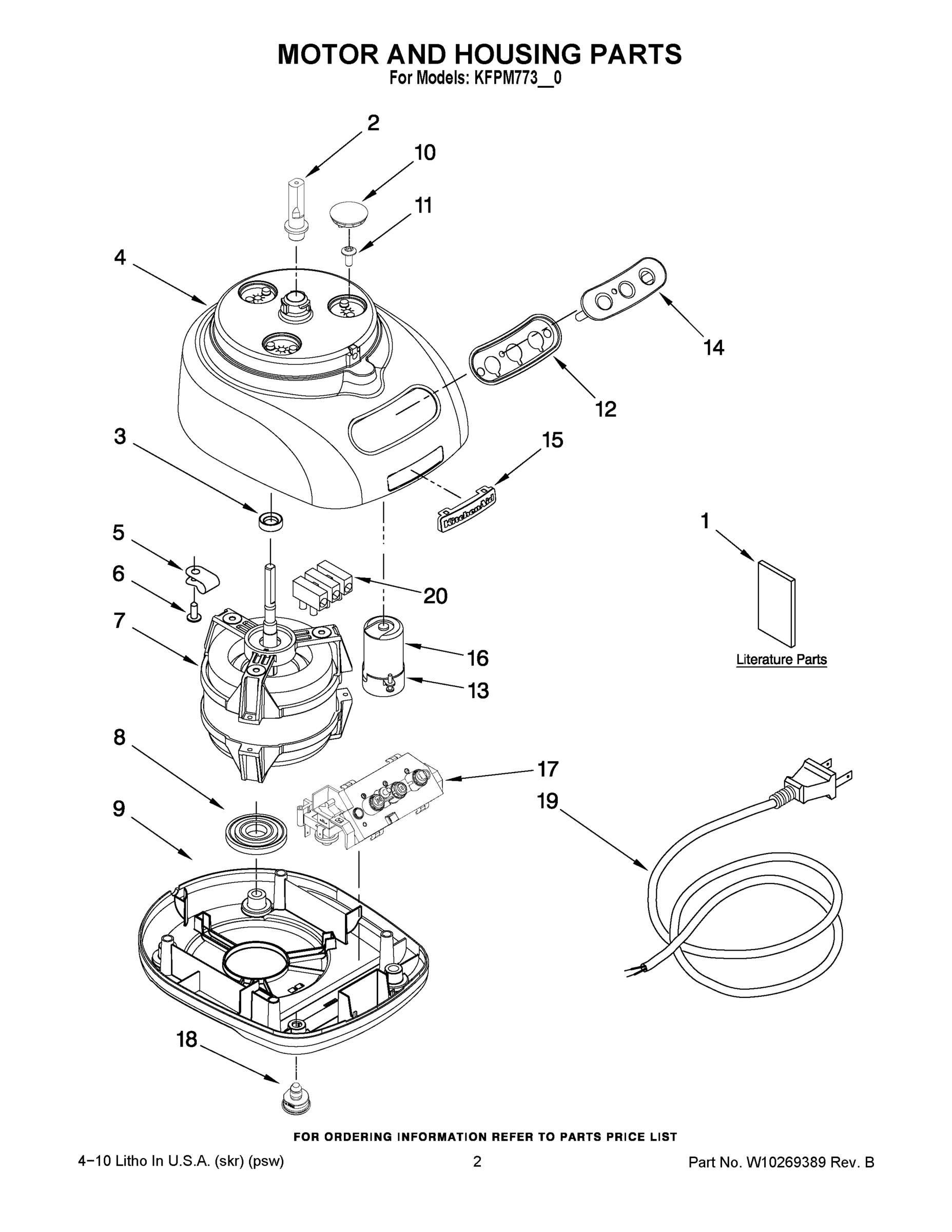

Model Whirlpool KFPM773CA0 ARCHITECT - FOOD PROCESSOR – Common Parts & Diagrams

1
REPAIR PARTS LIST
REPAIR PARTS LIST WPL W10269389 Contact Us For Availability
View on Model
1
USE & CARE GUIDE
USE & CARE GUIDE WPL W10290862 Contact Us For Availability
View on Model
2
DISC,SLICING (2 MM)
DISC,SLICING (2 MM) WPL W10274086 Contact Us For Availability
View on Model
2
DISC,SLICING (4 MM)
DISC,SLICING (4 MM) WPL W10274087 Contact Us For Availability
View on Model
2
Sleeve, Motor Shaft
Sleeve, Motor Shaft WPL W10187053 Contact Us For Availability
View on Model
3
Blade, Mini
Blade, Mini WPL 8212012 Contact Us For Availability
View on Model
3
Seal, Oil
Seal, Oil WPL 8211828 Contact Us For Availability
View on Model
4
ADAPTER, SHAFT & DISC
ADAPTER, SHAFT & DISC WPL W10281249 Contact Us For Availability
View on Model
4
HOUSING, MOTOR (COCOA SILVER)
HOUSING, MOTOR (COCOA SILVER) WPL W10291015 Contact Us For Availability
View on Model
4
HOUSING, MOTOR (CANDY APPLE)
HOUSING, MOTOR (CANDY APPLE) WPL W10328854 Contact Us For Availability
View on Model
5
Blade, Multipurpose
Blade, Multipurpose WPL W10187050 Contact Us For Availability
View on Model
6
PUSHER, FOOD
PUSHER, FOOD WPL W10290859 Contact Us For Availability
View on Model
6
SCREW, CLAMP
SCREW, CLAMP WPL W10291016 Contact Us For Availability
View on Model
7
COVER, WORK BOWL
COVER, WORK BOWL WPL W10280900 Contact Us For Availability
View on Model
7
Motor
Motor WPL 8211837 Contact Us For Availability
View on Model
8
BOWL, WORK
BOWL, WORK WPL 8212249 Contact Us For Availability
View on Model
8
Grommet, Motor
Grommet, Motor WPL 8211843 Contact Us For Availability
View on Model
9
DISC, SHREDDING (4MM)
DISC, SHREDDING (4MM) WPL W10274088 Contact Us For Availability
View on Model
9
BASE, HOUSING
BASE, HOUSING WPL W10275585 Contact Us For Availability
View on Model
10
Bowl, Mini
Bowl, Mini WPL 8211926 Contact Us For Availability
View on Model
10
COVER, SCREW
COVER, SCREW WPL W10290865 Contact Us For Availability
View on Model
11
Blade, Dough
Blade, Dough WPL W10187052 Contact Us For Availability
View on Model
11
Screw, Motor Locking
Screw, Motor Locking WPL 8211829 Contact Us For Availability
View on Model
12
PUSHER, OUTER
PUSHER, OUTER WPL W10290860 Contact Us For Availability
View on Model
12
Bezel, Switch Panel
Bezel, Switch Panel WPL W10249232 Contact Us For Availability
View on Model
13
EXTRACTOR, CITRUS
EXTRACTOR, CITRUS WPL W10186748 Contact Us For Availability
View on Model
13
Clip, Capacitor
Clip, Capacitor WPL 8211607 Contact Us For Availability
View on Model
14
Whip, Egg
Whip, Egg WPL W10187049 Contact Us For Availability
View on Model
14
OVERLAY W/COVER
OVERLAY W/COVER WPL W10290866 Contact Us For Availability
View on Model
15
PUSHER, INNER
PUSHER, INNER WPL W10290861 Contact Us For Availability
View on Model
15
NAMEPLATE
NAMEPLATE WPL W10290867 Contact Us For Availability
View on Model
16
Capacitor
Capacitor WPL 8211608 Contact Us For Availability
View on Model
17
Relay/Switch Assy
Relay/Switch Assy WPL 8212090 Contact Us For Availability
View on Model
18
Foot
Foot WPL 8211845 Contact Us For Availability
View on Model
19
Cord, Power
Cord, Power WPL 8211857 Contact Us For Availability
View on Model
20
Block, Terminal
Block, Terminal WPL 8211605 Contact Us For Availability
View on Model
NI
Lid, Mini Bowl
Lid, Mini Bowl WPL 8211927 Contact Us For Availability
View on Model
NI
ACCESSORY BOX
ACCESSORY BOX WPL W10275584 Contact Us For Availability
View on Model
NI
DISC, SLICING (6 MM)
DISC, SLICING (6 MM) WPL W10280887 Contact Us For Availability
View on Model
NI
DISC, SHREDDING (2 MM)
DISC, SHREDDING (2 MM) WPL W10280889 Contact Us For Availability
View on Model
NI
DISC, SHREDDING (6 MM)
DISC, SHREDDING (6 MM) WPL W10280891 Contact Us For Availability
View on Model
NI
DISC, GRATING PARMESAN/ICE
DISC, GRATING PARMESAN/ICE WPL W10280892 Contact Us For Availability
View on Model
NI
DISC, JULIENNE
DISC, JULIENNE WPL W10280893 Contact Us For Availability
View on Model
NI
DISC, CUTTING FRENCH FRY
DISC, CUTTING FRENCH FRY WPL W10280896 Contact Us For Availability
View on Model
