  • Whirlpool KFPM770NK1 Parts List

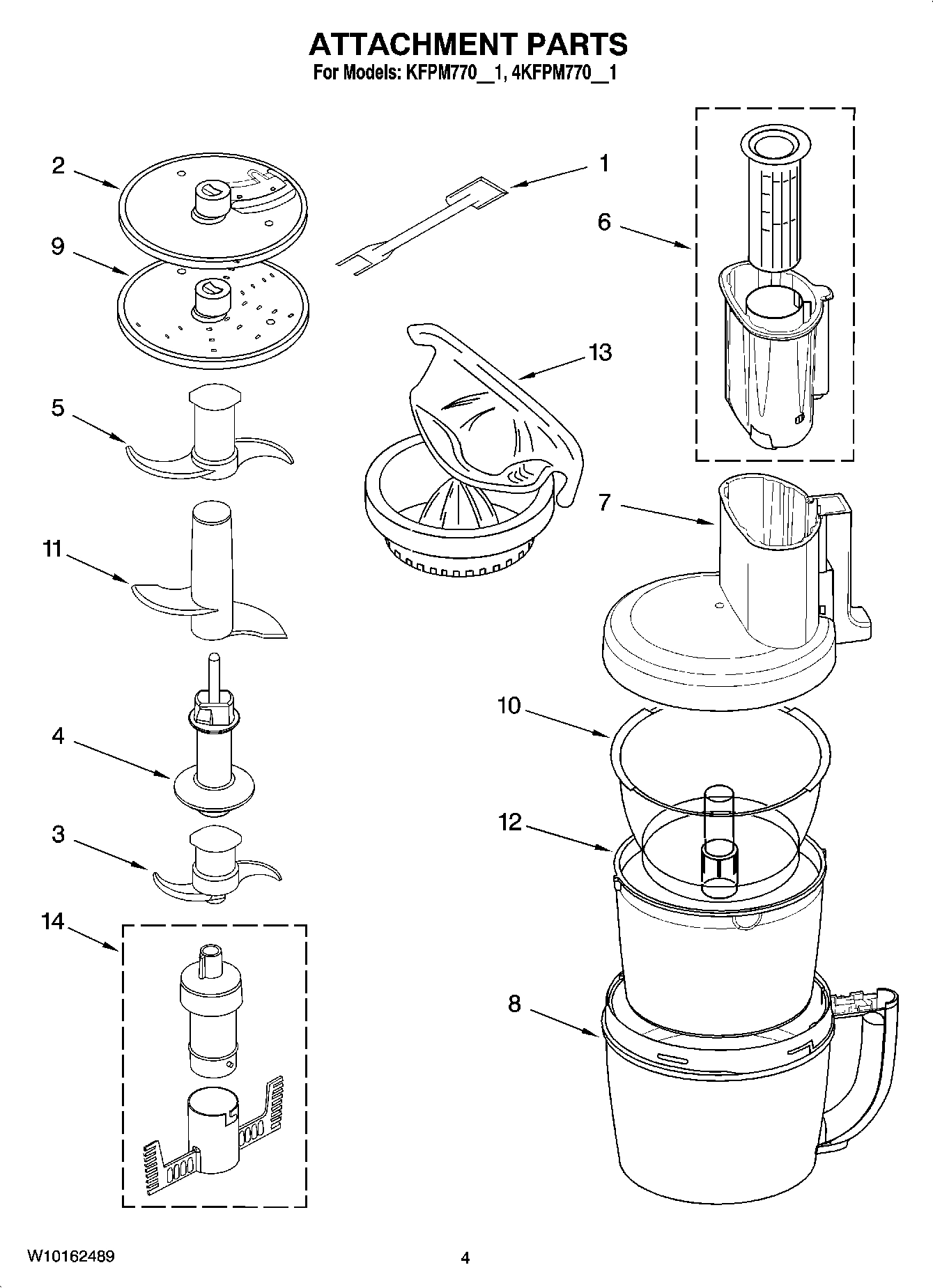

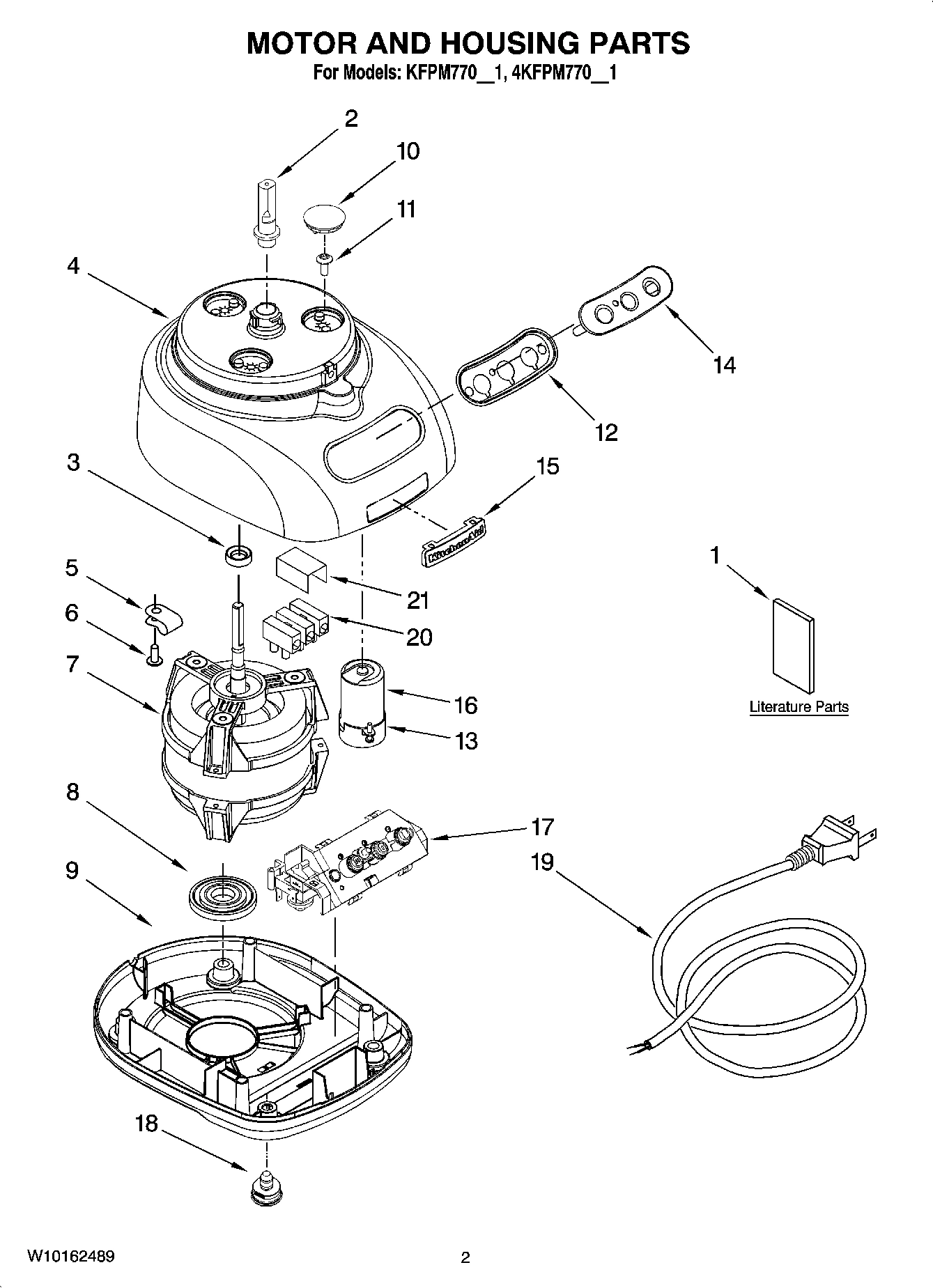

Model Whirlpool KFPM770NK1 MIDLINE FOOD PROCESSOR – Common Parts & Diagrams

Disc, Shredding (6 mm)
Disc, Shredding (6 mm) WPL 8211934 Contact Us For Availability
View on Model
Disc, Julienne
Disc, Julienne WPL 8211935 Contact Us For Availability
View on Model
Disc, Grating Parmesan/Ice
Disc, Grating Parmesan/Ice WPL 8211936 Contact Us For Availability
View on Model
Disc, Cutting French Fry
Disc, Cutting French Fry WPL 8211937 Contact Us For Availability
View on Model
Rack, Disc
Rack, Disc WPL 8211938 Contact Us For Availability
View on Model
Accessory Box
Accessory Box WPL 8212034 Contact Us For Availability
View on Model
OPTIONAL PARTS NOT ILLUSTRATED
OPTIONAL PARTS NOT ILLUSTRATED WPL ARI87285A7 Contact Us For Availability
View on Model
1
Use & Care Guide
Use & Care Guide WPL 8211864 Contact Us For Availability
View on Model
1
Repair Parts List
Repair Parts List WPL W10162489 Contact Us For Availability
View on Model
2
Sleeve, Motor Shaft
Sleeve, Motor Shaft WPL 8211849 Contact Us For Availability
View on Model
2
Disc, Slicing (2 mm)
Disc, Slicing (2 mm) WPL 8211929 Contact Us For Availability
View on Model
2
Disc, Slicing (4 mm)
Disc, Slicing (4 mm) WPL 8211930 Contact Us For Availability
View on Model
3
Blade, Mini
Blade, Mini WPL 8212012 Contact Us For Availability
View on Model
3
Seal, Oil
Seal, Oil WPL 8211828 Contact Us For Availability
View on Model
4
Adapter, Shaft & Disc
Adapter, Shaft & Disc WPL 8211858 Contact Us For Availability
View on Model
4
Housing, Motor
Housing, Motor WPL 8211823 Contact Us For Availability
View on Model
5
Blade, Multipurpose
Blade, Multipurpose WPL 8212014 Contact Us For Availability
View on Model
6
Pusher, Food
Pusher, Food WPL 8212020 Contact Us For Availability
View on Model
6
Screw, Clamp
Screw, Clamp WPL 8211731 Contact Us For Availability
View on Model
7
Cover, Work Bowl
Cover, Work Bowl WPL 8212024 Contact Us For Availability
View on Model
7
Motor
Motor WPL W10163676 Contact Us For Availability
View on Model
8
Bowl, Work
Bowl, Work WPL 8212019 Contact Us For Availability
View on Model
8
Grommet, Motor
Grommet, Motor WPL 8211843 Contact Us For Availability
View on Model
9
Disc, Shredding (4 mm)
Disc, Shredding (4 mm) WPL 8211933 Contact Us For Availability
View on Model
9
Base, Housing
Base, Housing WPL 8212190 Contact Us For Availability
View on Model
10
Bowl, Mini
Bowl, Mini WPL 8211926 Contact Us For Availability
View on Model
10
Cover, Screw
Cover, Screw WPL 8211827 Contact Us For Availability
View on Model
11
Blade, Dough
Blade, Dough WPL 8212016 Contact Us For Availability
View on Model
11
Screw, Motor Locking
Screw, Motor Locking WPL 8211586 Contact Us For Availability
View on Model
12
Bowl, Chef`s
Bowl, Chef`s WPL 8211928 Contact Us For Availability
View on Model
12
Bezel, Switch Panel
Bezel, Switch Panel WPL 8211848 Contact Us For Availability
View on Model
13
Extractor, Citrus
Extractor, Citrus WPL 8212025 Contact Us For Availability
View on Model
13
Clip, Capacitor
Clip, Capacitor WPL 8211607 Contact Us For Availability
View on Model
14
Overlay w/Cover
Overlay w/Cover WPL 8211846 Contact Us For Availability
View on Model
14
Whip, Egg
Whip, Egg WPL 8212033 Contact Us For Availability
View on Model
15
Nameplate
Nameplate WPL 8211842 Contact Us For Availability
View on Model
16
Capacitor
Capacitor WPL 8211608 Contact Us For Availability
View on Model
17
Relay/Switch Assy
Relay/Switch Assy WPL 8212011 Contact Us For Availability
View on Model
18
Foot
Foot WPL 8211845 Contact Us For Availability
View on Model
19
Cord, Power
Cord, Power WPL 8211857 Contact Us For Availability
View on Model
20
Block, Terminal
Block, Terminal WPL 8211605 Contact Us For Availability
View on Model
21
Cover, Terminal
Cover, Terminal WPL 8211852 Contact Us For Availability
View on Model
