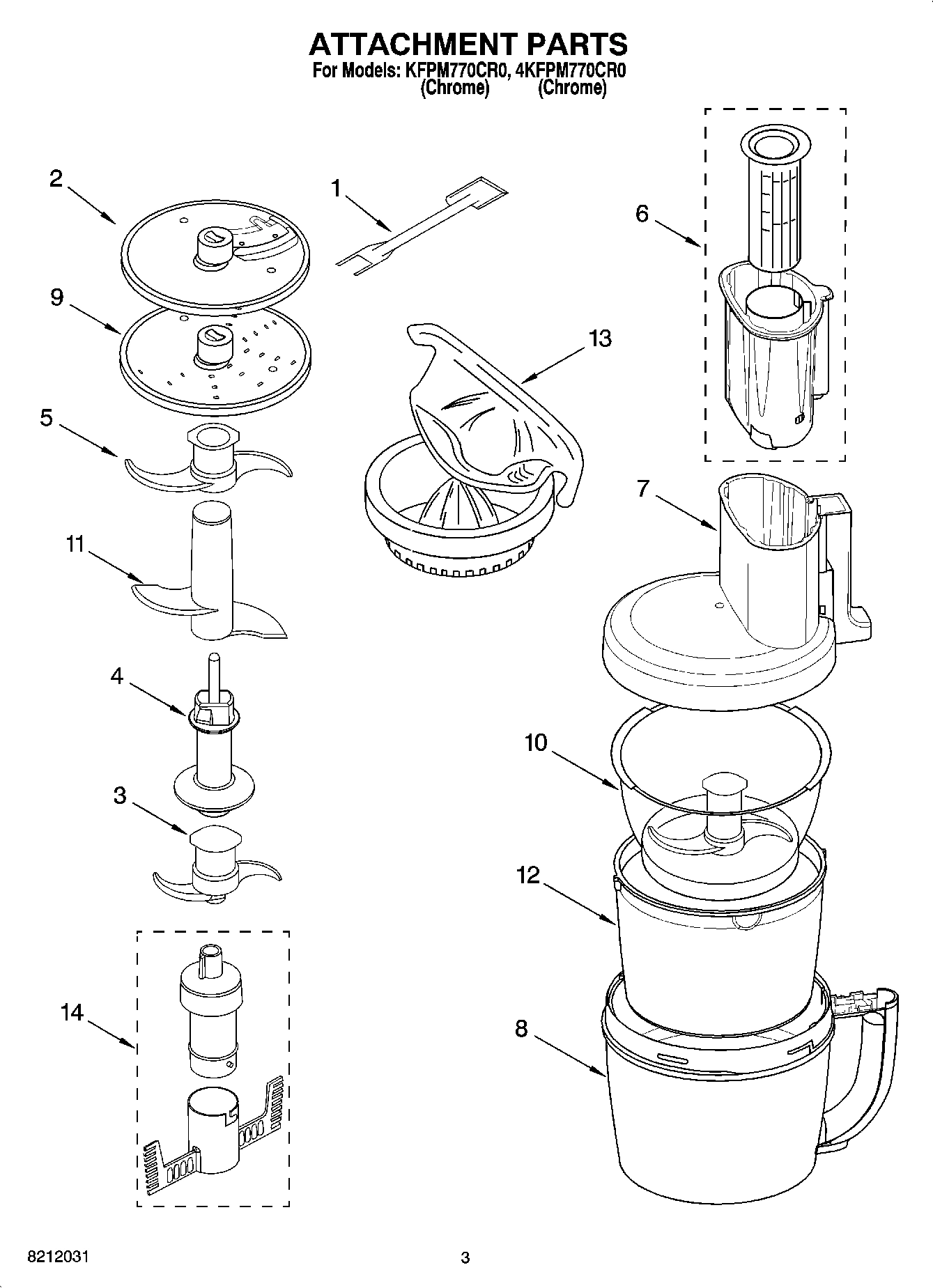

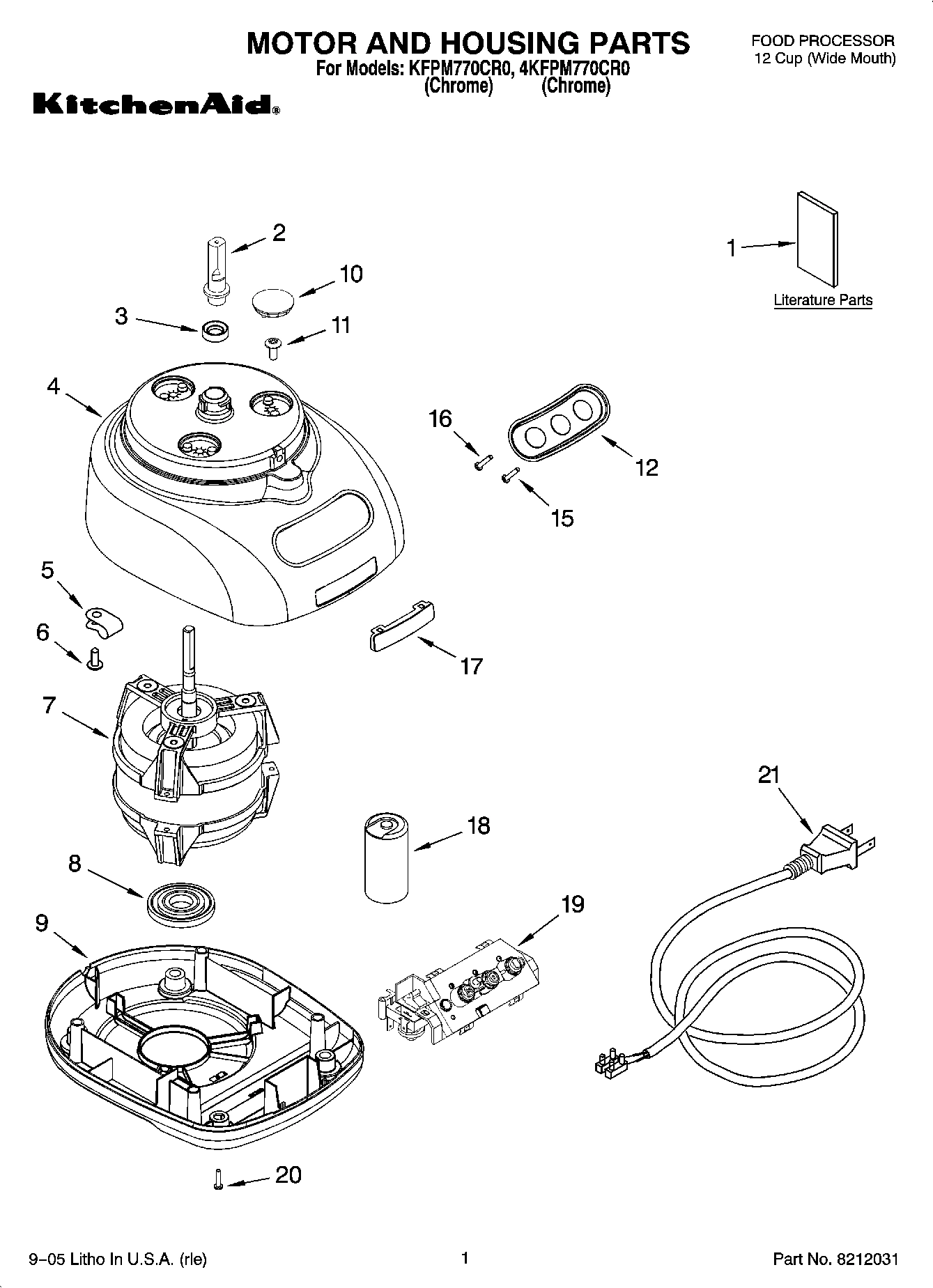

Model Whirlpool KFPM770CR0 FOOD PROCESSOR 12 Cup (Wide Mouth) – Common Parts & Diagrams

1
Use & Care Guide
Use & Care Guide WPL 8211864 Contact Us For Availability
View on Model
2
Sleeve, Motor Shaft
Sleeve, Motor Shaft WPL 8211849 Contact Us For Availability
View on Model
3
Mini Blade
Mini Blade WPL 8212012 Contact Us For Availability
View on Model
3
Seal, Oil
Seal, Oil WPL 8211828 Contact Us For Availability
View on Model
4
Adapter, Shaft & Disc
Adapter, Shaft & Disc WPL ARI87282A4 Contact Us For Availability
View on Model
4
Housing, Motor
Housing, Motor WPL 8211822 Contact Us For Availability
View on Model
5
Blade, Multipurpose
Blade, Multipurpose WPL 8212014 Contact Us For Availability
View on Model
6
Pusher, Food
Pusher, Food WPL 8212020 Contact Us For Availability
View on Model
6
Screw, Clamp
Screw, Clamp WPL 8211731 Contact Us For Availability
View on Model
7
Cover, Work Bowl
Cover, Work Bowl WPL 8212024 Contact Us For Availability
View on Model
7
Motor
Motor WPL 8211837 Contact Us For Availability
View on Model
8
Bowl, Work
Bowl, Work WPL 8212019 Contact Us For Availability
View on Model
8
Grommet, Motor
Grommet, Motor WPL 8211843 Contact Us For Availability
View on Model
9
Base, Housing
Base, Housing WPL 8211804 Contact Us For Availability
View on Model
10
Bowl, Mini
Bowl, Mini WPL 8211926 Contact Us For Availability
View on Model
10
Cover, Screw
Cover, Screw WPL 8211827 Contact Us For Availability
View on Model
11
Blade, Dough
Blade, Dough WPL 8212016 Contact Us For Availability
View on Model
11
Screw, Motor Locking
Screw, Motor Locking WPL 8211586 Contact Us For Availability
View on Model
12
Overlay, Switch
Overlay, Switch WPL 8211846 Contact Us For Availability
View on Model
12
Bowl, Chef`s
Bowl, Chef`s WPL 8211928 Contact Us For Availability
View on Model
13
Extractor, Citrus
Extractor, Citrus WPL 8212025 Contact Us For Availability
View on Model
14
Disc, Shredding (6 mm)
Disc, Shredding (6 mm) WPL 8211933 Contact Us For Availability
View on Model
14
Lid, Mini Bowl
Lid, Mini Bowl WPL 8211927 Contact Us For Availability
View on Model
14
Disc, Slicing 6 mm
Disc, Slicing 6 mm WPL 8211931 Contact Us For Availability
View on Model
14
Disc, Shredding 2 mm
Disc, Shredding 2 mm WPL 8211932 Contact Us For Availability
View on Model
14
Disc, Shredding (Disc, Julienne)
Disc, Shredding (Disc, Julienne) WPL 8211935 Contact Us For Availability
View on Model
14
Disc, Shredding (Disc, Cutting French Fry)
Disc, Shredding (Disc, Cutting French Fry) WPL 8211937 Contact Us For Availability
View on Model
14
Disc, Shredding (Rack, Disc)
Disc, Shredding (Rack, Disc) WPL 8211938 Contact Us For Availability
View on Model
14
Whip, Egg
Whip, Egg WPL 8212033 Contact Us For Availability
View on Model
14
Accessory Box
Accessory Box WPL 8212034 Contact Us For Availability
View on Model
14
Disc, Shredding (Disc, Grating Parmesan/Ice)
Disc, Shredding (Disc, Grating Parmesan/Ice) WPL 8511936 Contact Us For Availability
View on Model
14
OPTIONAL PARTS NOT ILLUSTRATED
OPTIONAL PARTS NOT ILLUSTRATED WPL ARI87283A9 Contact Us For Availability
View on Model
15
Screw, Torx
Screw, Torx WPL 8211870 Contact Us For Availability
View on Model
16
Screw, Switch Panel
Screw, Switch Panel WPL 8211812 Contact Us For Availability
View on Model
17
Nameplate
Nameplate WPL 8211842 Contact Us For Availability
View on Model
18
Capacitor
Capacitor WPL 8211608 Contact Us For Availability
View on Model
19
Relay & Switch Assembly
Relay & Switch Assembly WPL 8212011 Contact Us For Availability
View on Model
20
Foot
Foot WPL 8211845 Contact Us For Availability
View on Model
21
Cord, Power
Cord, Power WPL 8211857 Contact Us For Availability
View on Model
