Model Whirlpool KFP750WH1 12 CUP FOOD PROCESSOR – Common Parts & Diagrams

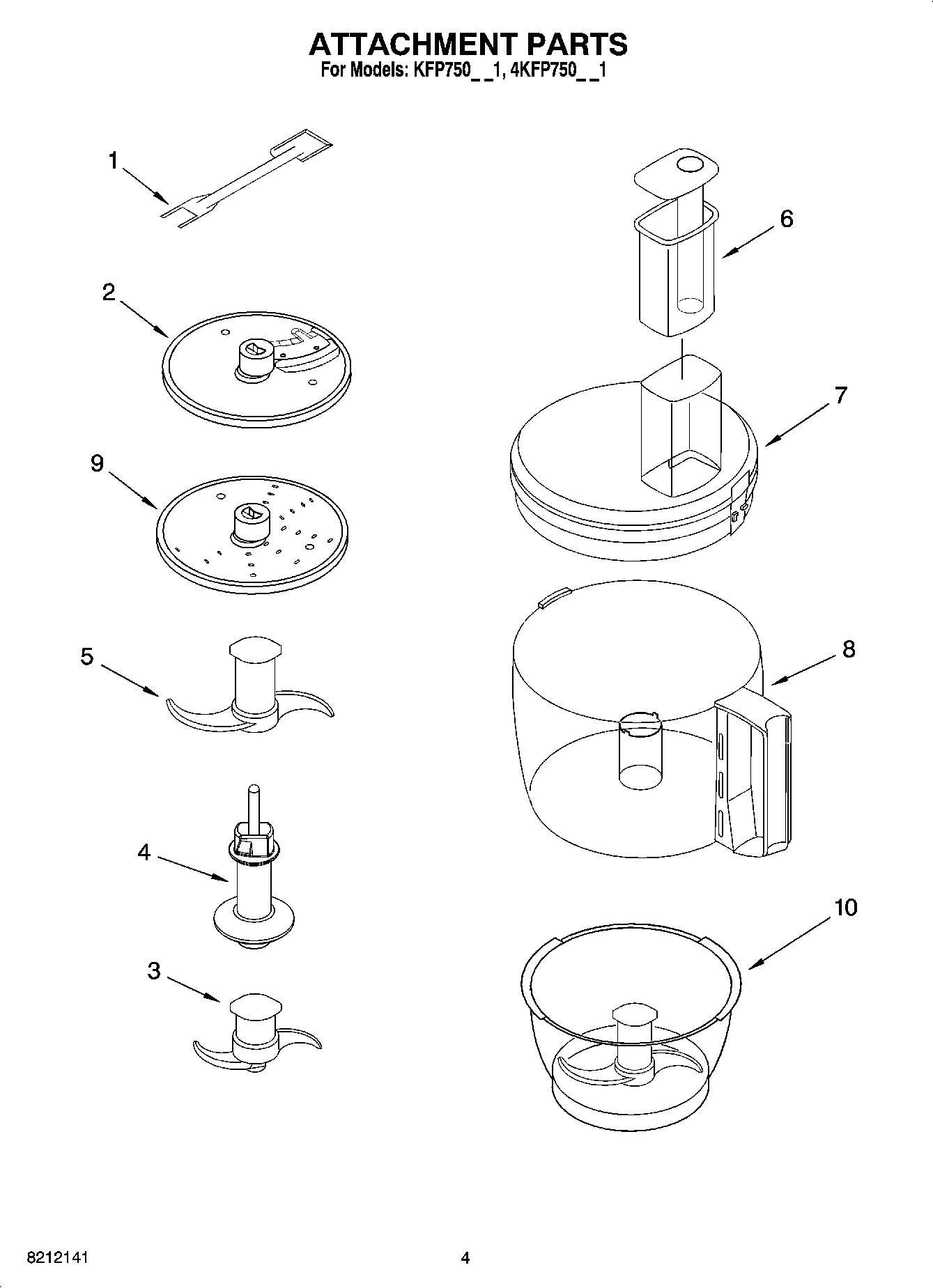

02 - ATTACHMENT PARTS

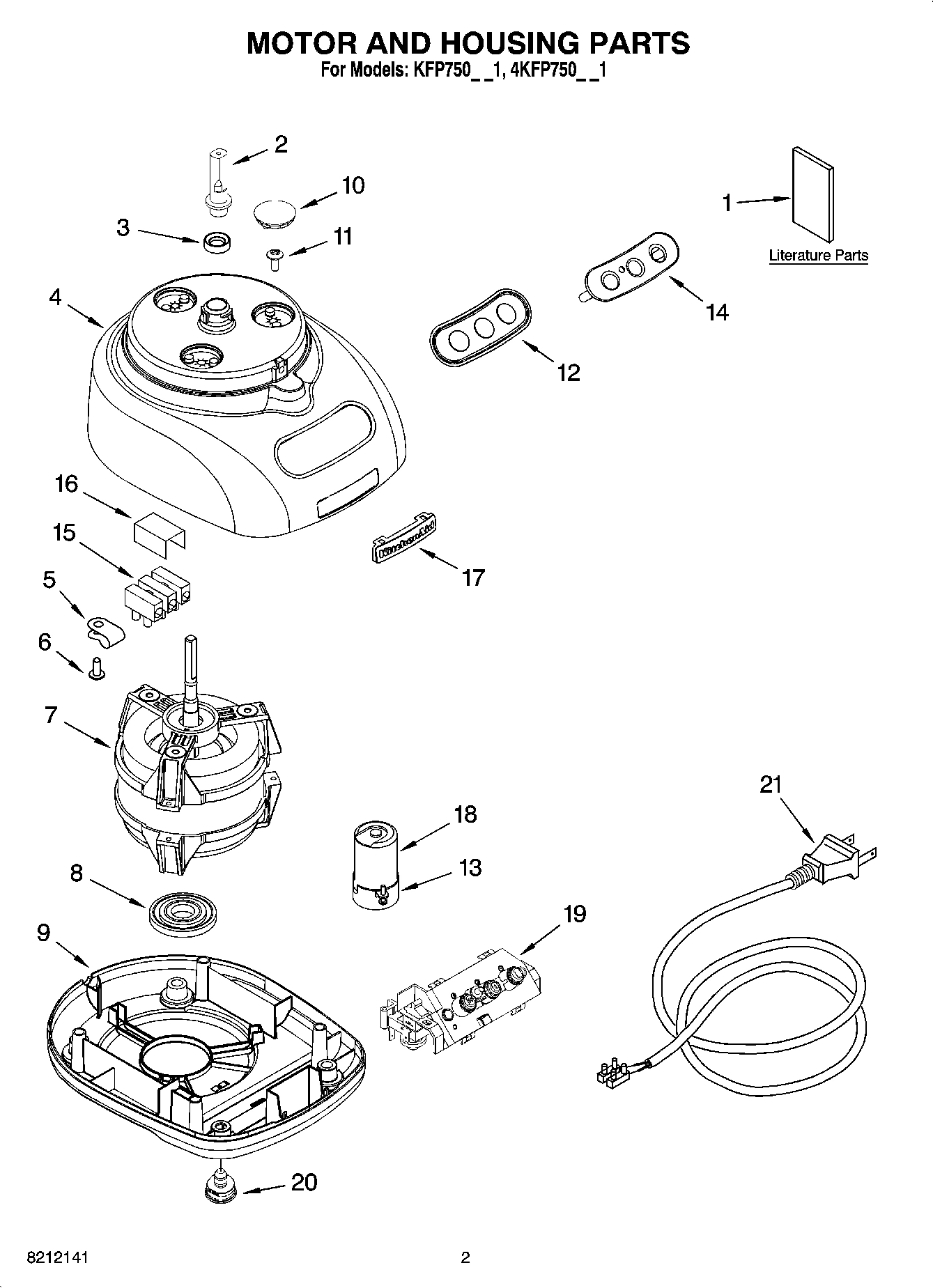

01 - MOTOR AND HOUSING PARTS
Common parts from model Whirlpool KFP750WH1 12 CUP FOOD PROCESSOR
1
Use & Care Guide WPL 8211865 Contact Us For Availability
1
Repair Parts List WPL 8212141 Contact Us For Availability
2
Sleeve, Motor Shaft WPL 8211849 Contact Us For Availability
3
Mini Blade WPL 8212012 Contact Us For Availability
3
Seal, Oil WPL 8211828 Contact Us For Availability
4
Adapter, Shaft & Disc WPL 8211858 Contact Us For Availability
4
Housing, Motor (White) WPL 8212184 Contact Us For Availability
4
Housing, Motor (Empire Red) WPL 8212236 Contact Us For Availability
4
Housing, Motor (Cobalt Blue) WPL 8212237 Contact Us For Availability
4
Housing, Motor (Onyx Black) WPL 8212238 Contact Us For Availability
4
Housing, Motor (Pink) WPL 8212239 Contact Us For Availability
4
Housing, Motor (Blue Willow) WPL 8212284 Contact Us For Availability
4
Housing, Motor (Gloss Cinnamon) WPL 8212285 Contact Us For Availability
5
Blade, Multipurpose WPL 8212014 Contact Us For Availability
6
Pusher, Double Feed Tube (White) WPL 8212251 Contact Us For Availability
6
Pusher, Double Feed Tube (Empire Red) WPL 8212252 Contact Us For Availability
6
Pusher, Double Feed Tube (Cobalt Blue) WPL 8212253 Contact Us For Availability
6
Pusher, Double Feed Tube (Onyx Black) WPL 8212254 Contact Us For Availability
6
Pusher, Double Feed Tube (Pink) WPL 8212255 Contact Us For Availability
6
Pusher, Double Feed Tube (Blue Willow) WPL 8212290 Contact Us For Availability
6
Pusher, Double Feed Tube (Gloss Cinnamon) WPL 8212291 Contact Us For Availability
6
Screw, Clamp WPL 8211731 Contact Us For Availability
7
Cover, Work Bowl WPL 8212029 Contact Us For Availability
7
Motor, Sheet Metal WPL 8212186 Contact Us For Availability
8
Bowl, Work (Onyx Black) WPL 8212249 Contact Us For Availability
8
Bowl, Work (White) WPL 8212246 Contact Us For Availability
8
Bowl, Work (Empire Red) WPL 8212247 Contact Us For Availability
8
Bowl, Work (Cobalt Blue) WPL 8212248 Contact Us For Availability
8
Bowl, Work (Pink) WPL 8212250 Contact Us For Availability
8
Bowl, Work (Blue Willow) WPL 8212288 Contact Us For Availability
8
Bowl, Work (Gloss Cinnamon) WPL 8212289 Contact Us For Availability
8
Grommet, Motor WPL 8212188 Contact Us For Availability
9
Disc, Shredding (4 mm) WPL 8211933 Contact Us For Availability
9
Base, Housing (White) WPL 8212183 Contact Us For Availability
9
Base, Housing (Empire Red) WPL 8212187 Contact Us For Availability
9
Base, Housing (Cobalt Blue) WPL 8212189 Contact Us For Availability
9
Base, Housing (Onyx Black) WPL 8212190 Contact Us For Availability
9
Base, Housing (Pink) WPL 8212235 Contact Us For Availability
9
Base, Housing (Blue Willow) WPL 8212282 Contact Us For Availability
9
Base, Housing (Gloss Cinnamon) WPL 8212283 Contact Us For Availability
10
Bowl, Mini WPL 8211926 Contact Us For Availability
10
Lid, Mini Bowl WPL 8211927 Contact Us For Availability
10
Bowl, Chef`s WPL 8211928 Contact Us For Availability
10
6mm WPL 8211931 Contact Us For Availability
10
Disc, Shredding 2 mm WPL 8211932 Contact Us For Availability
10
Disc, Shredding (6 mm) WPL 8211934 Contact Us For Availability
10
Disc, Julienne WPL 8211935 Contact Us For Availability
10
Disc, Grating Parmesan/Ice WPL 8211936 Contact Us For Availability
10
Disc, Cutting French Fry WPL 8211937 Contact Us For Availability
10
Rack, Disc WPL 8211938 Contact Us For Availability
10
Blade, Dough WPL 8212016 Contact Us For Availability
10
Citrus Extractor WPL 8212025 Contact Us For Availability
10
Egg Whip, 12 Cup WPL 8212033 Contact Us For Availability
10
Accessory Box WPL 8212034 Contact Us For Availability
10
OPTIONAL PARTS NOT ILLUSTRATED WPL ARI87278A4 Contact Us For Availability
10
Disc, Slicing WPL ARI87279A5 Contact Us For Availability
10
Disc, Shredding WPL ARI87280A7 Contact Us For Availability
10
Cover, Screw (White) WPL 8212185 Contact Us For Availability
10
Cover, Screw (Red) WPL 8212191 Contact Us For Availability
10
Cover, Screw (Blue) WPL 8212192 Contact Us For Availability
10
Cover, Screw (Black) WPL 8212193 Contact Us For Availability
10
Cover, Screw (Pink) WPL 8212194 Contact Us For Availability
10
Cover, Screw (Blue Willow) WPL 8212286 Contact Us For Availability
10
Cover, Screw (Gloss Cinnamon) WPL 8212287 Contact Us For Availability
11
Screw, Motor Locking WPL 8211829 Contact Us For Availability
12
Bezel, Switch Panel WPL 8211848 Contact Us For Availability
13
Clip, Capacitor WPL 8211607 Contact Us For Availability
14
Overlay, Switch Assembly (Silver) WPL 8211847 Contact Us For Availability
15
Terminal Block WPL 8211605 Contact Us For Availability
16
Cover, Terminal WPL 8211852 Contact Us For Availability
17
Nameplate WPL 8211842 Contact Us For Availability
18
Capacitor WPL 8211608 Contact Us For Availability
19
Relay & Switch Assembly WPL 8212011 Contact Us For Availability
20
Foot (White) WPL 8211844 Contact Us For Availability
20
Foot (Black) WPL 8211845 Contact Us For Availability
× ![]()
