Model Whirlpool KFP740QWH3 9-CUP FOOD PROCESSOR – Common Parts & Diagrams

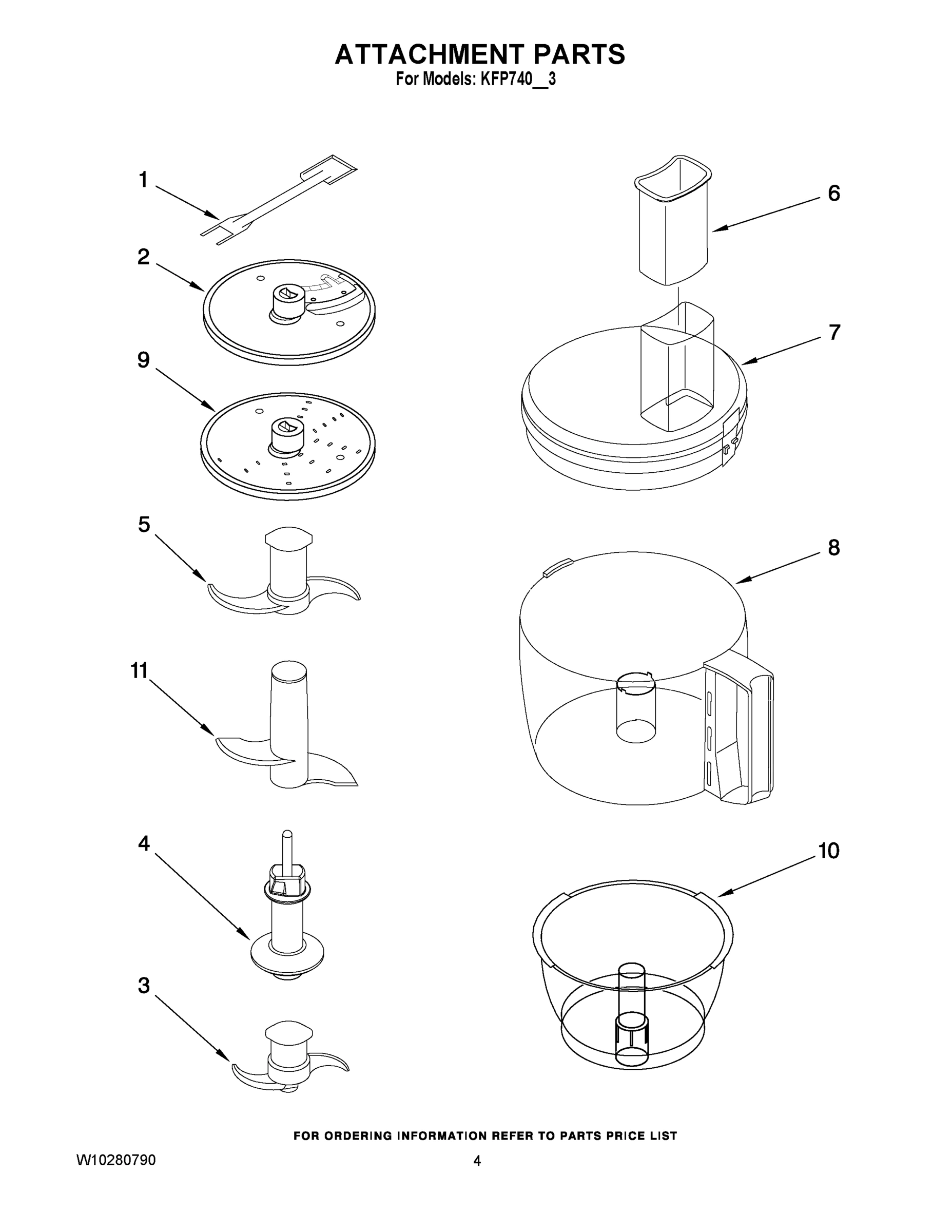

02 - ATTACHMENT PARTS

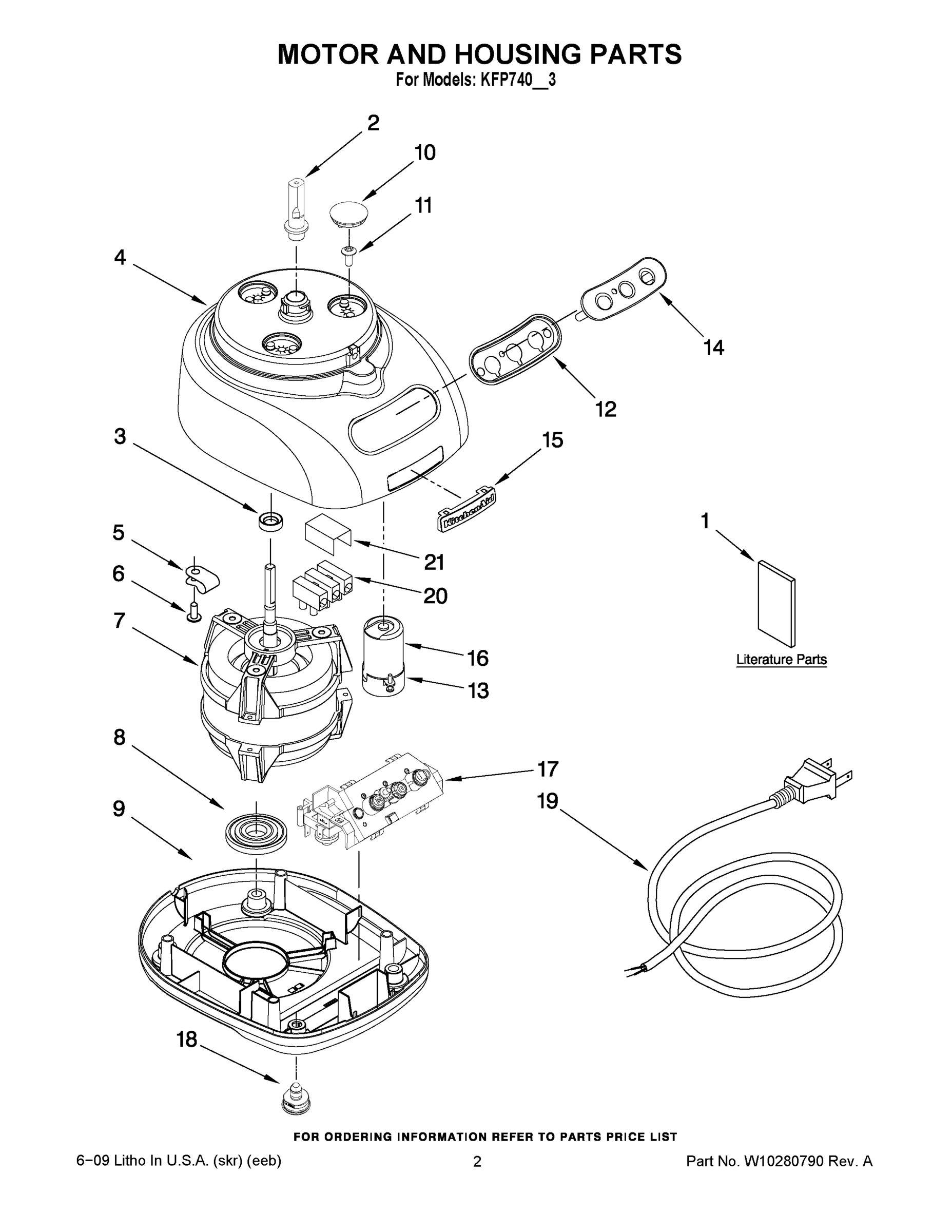

01 - MOTOR AND HOUSING PARTS
Common parts from model Whirlpool KFP740QWH3 9-CUP FOOD PROCESSOR
1
Use & Care, Trilin WPL 8212411 Contact Us For Availability
1
REPAIR PARTS LIST WPL W10280790 Contact Us For Availability
2
Sleeve, Motor Shaft WPL 8211850 Contact Us For Availability
3
Mini Blade WPL 8212012 Contact Us For Availability
3
Seal, Oil WPL 8211828 Contact Us For Availability
4
ADAPTER, SHAFT & DISC WPL W10281249 Contact Us For Availability
4
Housing, Motor (White) WPL 8212184 Contact Us For Availability
4
Housing, Motor (Empire Red) WPL 8212236 Contact Us For Availability
4
Housing, Motor (Onyx Black) WPL 8212238 Contact Us For Availability
4
Housing, Motor (Blue Willow) WPL 8212284 Contact Us For Availability
4
Housing, Motor (Gloss Cinnamon) WPL 8212285 Contact Us For Availability
4
Housing, Motor (Buttercup) WPL W10159620 Contact Us For Availability
5
Blade, Multipurpose WPL 8212013 Contact Us For Availability
6
PUSHER, FOOD WPL W10280874 Contact Us For Availability
6
Screw, Clamp WPL 8211731 Contact Us For Availability
7
COVER, WORK BOWL WPL W10280873 Contact Us For Availability
7
Motor WPL W10197998 Contact Us For Availability
8
Bowl, Work (White) WPL 8211939 Contact Us For Availability
8
Bowl, Work (Onyx Black) WPL 8212044 Contact Us For Availability
8
Bowl, Work (Empire Red) WPL W10159632 Contact Us For Availability
8
Bowl, Work (Gloss Cinnamon) WPL W10159633 Contact Us For Availability
8
Bowl, Work (Blue Willow) WPL W10159634 Contact Us For Availability
8
Bowl, Work (Buttercup) WPL W10159635 Contact Us For Availability
8
Grommet, Motor WPL 8212188 Contact Us For Availability
9
DISC, SHREDDING (4MM) WPL W10274088 Contact Us For Availability
9
Base, Housing (White) WPL 8212183 Contact Us For Availability
9
Base, Housing (Empire Red) WPL 8212187 Contact Us For Availability
9
Base, Housing (Onyx Black) WPL 8212190 Contact Us For Availability
9
Base, Housing (Blue Willow) WPL 8212282 Contact Us For Availability
9
Base, Housing (Gloss Cinnamon) WPL 8212283 Contact Us For Availability
9
Base, Housing (Buttercup) WPL W10159621 Contact Us For Availability
10
Bowl, Mini WPL 8211926 Contact Us For Availability
10
Cover, Screw (White) WPL 8212185 Contact Us For Availability
10
Cover, Screw (Empire Red) WPL 8212191 Contact Us For Availability
10
Cover, Screw (Onyx Black) WPL 8212193 Contact Us For Availability
10
Cover, Screw (Blue Willow) WPL 8212286 Contact Us For Availability
10
Cover, Screw (Gloss Cinnamon) WPL 8212287 Contact Us For Availability
10
Cover, Screw (Buttercup) WPL W10159622 Contact Us For Availability
11
Blade, Dough WPL 8212015 Contact Us For Availability
11
Screw, Motor Locking WPL 8211829 Contact Us For Availability
12
Bezel, Switch Panel WPL 8211848 Contact Us For Availability
13
Clip, Capacitor WPL 8211607 Contact Us For Availability
14
Overlay, Panel Switch Assy WPL 8211847 Contact Us For Availability
15
Nameplate WPL 8211842 Contact Us For Availability
16
Capacitor WPL 8211608 Contact Us For Availability
17
Relay & Switch Assembly WPL 8212011 Contact Us For Availability
18
Foot (White) WPL 8211844 Contact Us For Availability
18
Foot (Black) WPL 8211845 Contact Us For Availability
20
Terminal Block WPL 8211605 Contact Us For Availability
21
Cover, Terminal WPL 8211852 Contact Us For Availability
NI
Whip, Egg (9-Cup) WPL 8211925 Contact Us For Availability
NI
Lid, Mini Bowl WPL 8211927 Contact Us For Availability
NI
Bowl, Chef`s WPL 8211928 Contact Us For Availability
NI
Citrus Extractor WPL 8212025 Contact Us For Availability
NI
Accessory Box WPL 8212034 Contact Us For Availability
NI
DISC,SLICING (4 MM) WPL W10274087 Contact Us For Availability
NI
DISC, SLICING (6 MM) WPL W10280887 Contact Us For Availability
NI
DISC, SHREDDING (2 MM) WPL W10280889 Contact Us For Availability
NI
DISC, SHREDDING (6 MM) WPL W10280891 Contact Us For Availability
NI
DISC, GRATING PARMESAN/ICE WPL W10280892 Contact Us For Availability
NI
DISC, JULIENNE WPL W10280893 Contact Us For Availability
NI
DISC, CUTTING FRENCH FRY WPL W10280896 Contact Us For Availability
× ![]()
