Model Whirlpool KFP403 FOOD PROCESSOR – Common Parts & Diagrams
06 - CITRUS JUICER ATTACHMENT
05 - JUICE EXTRACTOR ATTACHMENT

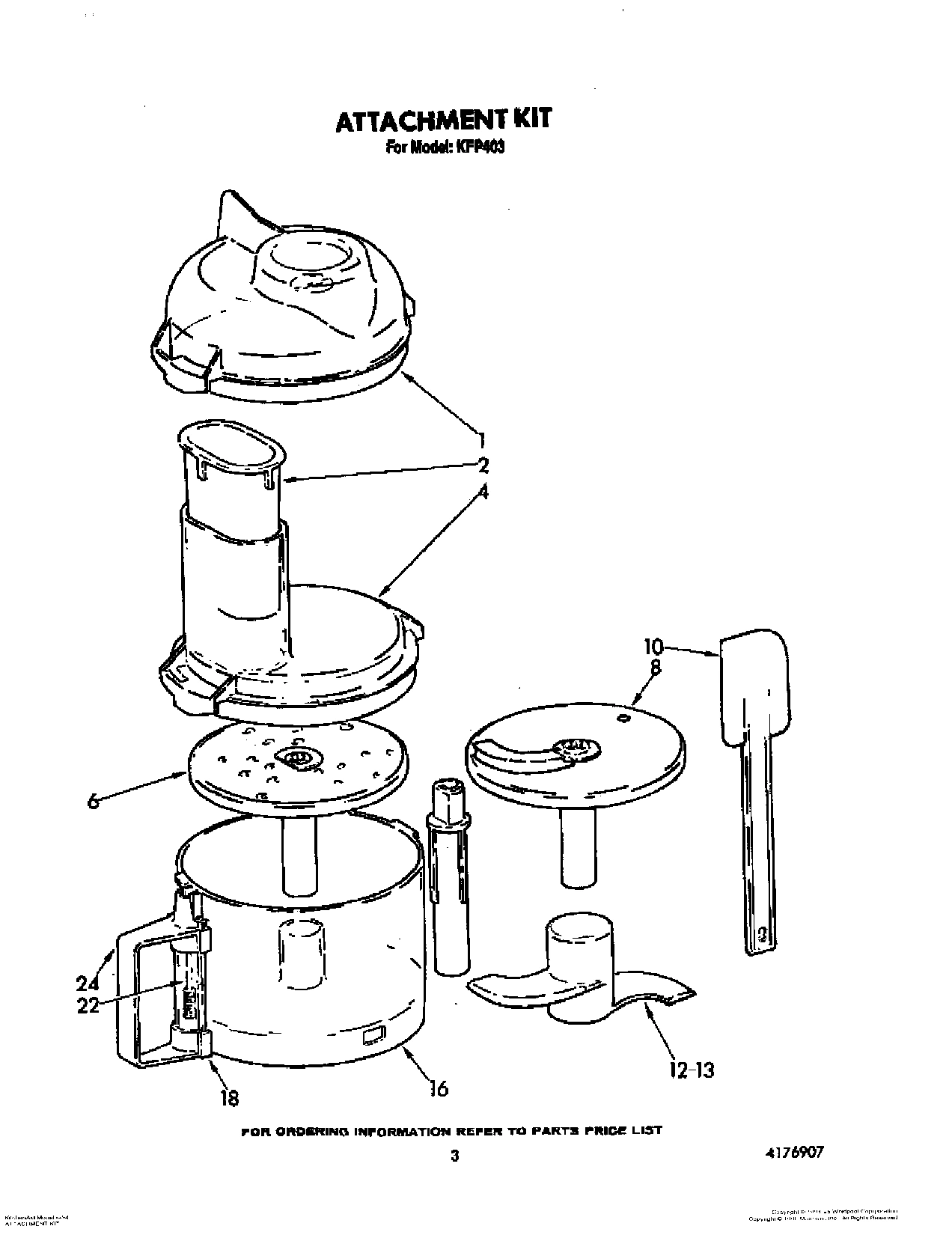

03 - ATTACHMENT KIT

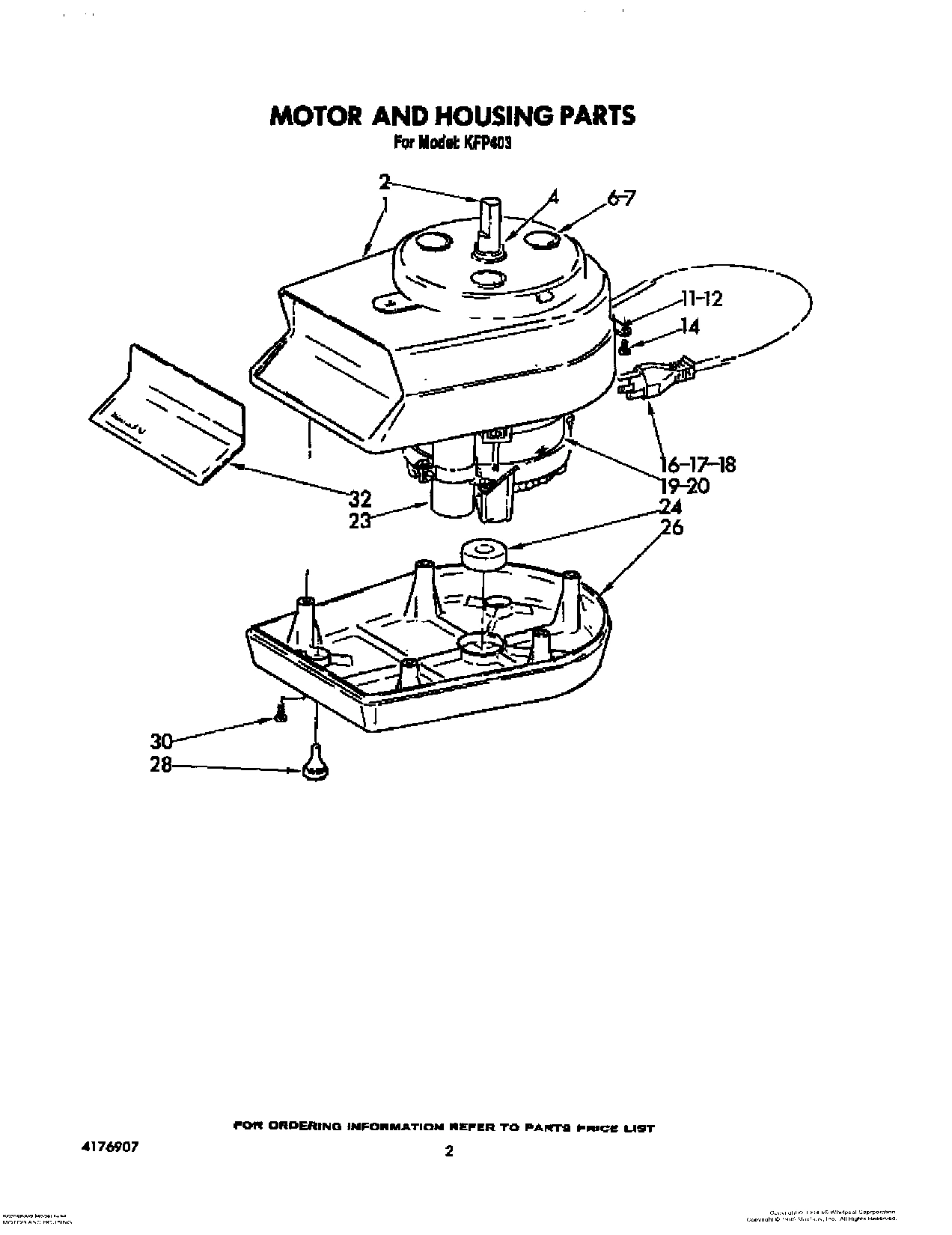

02 - MOTOR AND HOUSING

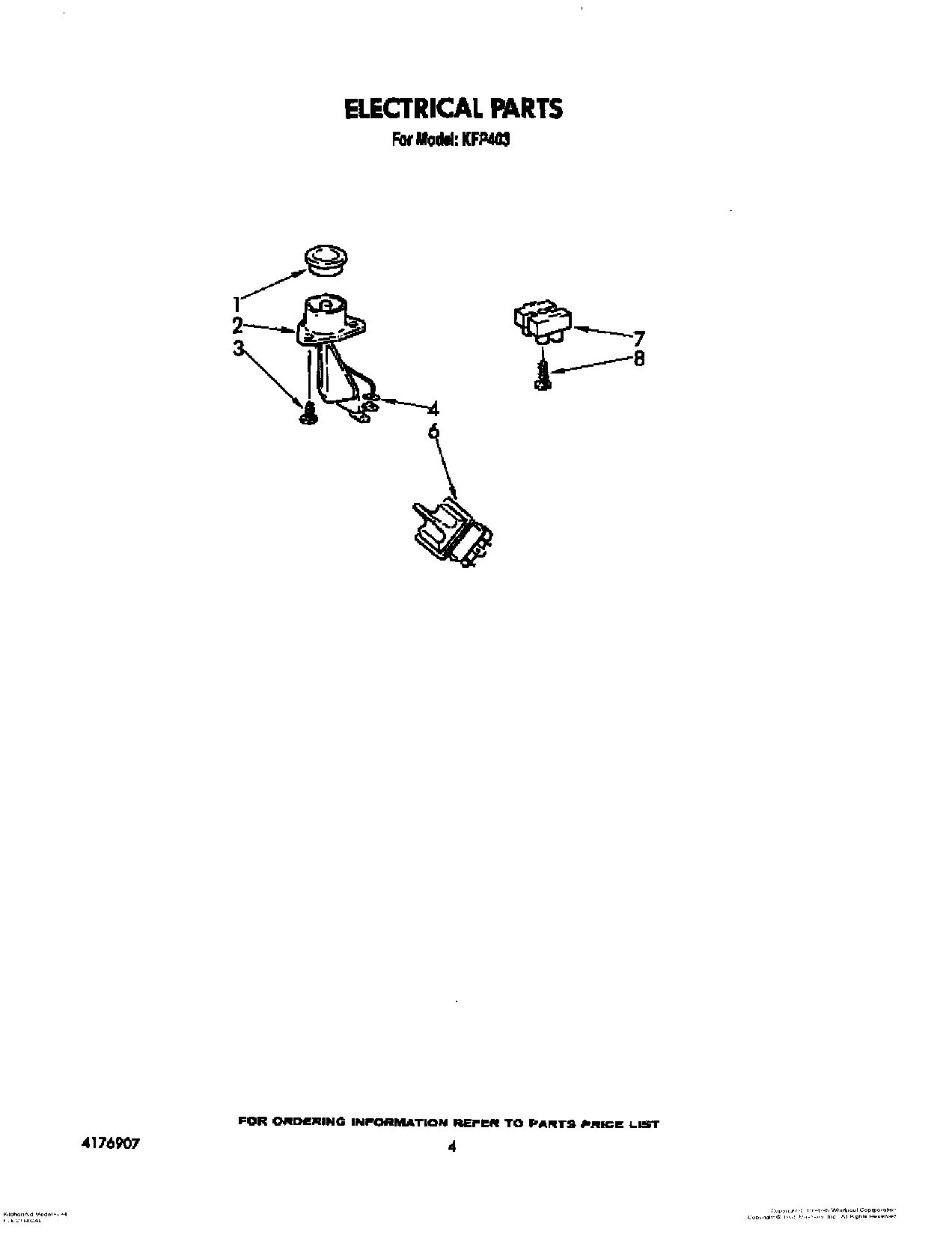

04 - ELECTRICAL
Common parts from model Whirlpool KFP403 FOOD PROCESSOR
1
Small Cone WPL 4163100 Contact Us For Availability
1
Chute Cover WPL 4163298 Contact Us For Availability
1
Dough Dome WPL 4163195 Contact Us For Availability
1
Motor Housing WPL 3177161 Contact Us For Availability
1
Grommet, Interlock WPL 4163223 Contact Us For Availability
2
Large Cone WPL 4163101 Contact Us For Availability
2
Strainer, Disc Basket WPL 4163295 Contact Us For Availability
2
Sleeve, Motor Shaft WPL 4163218 Contact Us For Availability
2
Interlock Switch Support WPL 4163089 Contact Us For Availability
3
Juicer Bowler WPL 4163214 Contact Us For Availability
3
Extractor Chute WPL 4163294 Contact Us For Availability
4
Strainer Scraper WPL 4163296 Contact Us For Availability
4
Bowl Lid WPL 4163120 Contact Us For Availability
4
Retaining Ring WPL 4163477 Contact Us For Availability
4
Palnut WPL 4163088 Contact Us For Availability
4
Microswitch, Interlock WPL 4163221 Contact Us For Availability
5
Shaft WPL 4163213 Contact Us For Availability
5
Scraper Handle WPL 4163297 Contact Us For Availability
6
Shredding Disc (Med) WPL 4169303 Contact Us For Availability
6
Cover, Screw WPL 4163081 Contact Us For Availability
6
Switch, Control WPL 4163219 Contact Us For Availability
7
Screw, 6 x 12 WPL 4163217 Contact Us For Availability
7
Terminal Block WPL 4163220 Contact Us For Availability
8
Slicing Disc (Med) WPL 4163132 Contact Us For Availability
8
Screw, 3.5 x 15.9 WPL 4163290 Contact Us For Availability
10
Spatula WPL 4163015 Contact Us For Availability
11
Strain Relief WPL 4163092 Contact Us For Availability
12
Knife, Steel WPL 4163126 Contact Us For Availability
12
Sleeve, Cord WPL 4163091 Contact Us For Availability
13
Knife, Dough WPL 4163129 Contact Us For Availability
16
Bowl Assy. WPL 4163116 Contact Us For Availability
17
Cord & Plug (2 Wire) WPL 4163480 Contact Us For Availability
18
Plunger Retainer (Bowl Interlock) WPL 4163483 Contact Us For Availability
18
Protector, Cord WPL 4163090 Contact Us For Availability
19
Motor, Includes Item No.23 WPL 4163215 Contact Us For Availability
20
Seal Ring, Shaft WPL 4163216 Contact Us For Availability
22
Bowl Interlock Plunger WPL 4163481 Contact Us For Availability
23
Capacitor WPL 4163112 Contact Us For Availability
24
Slicing Disc (Thin) WPL 4163138 Contact Us For Availability
24
Slicing Disc (Thick) WPL 4163141 Contact Us For Availability
24
French Fry Disc WPL 4163144 Contact Us For Availability
24
Ice/Parmesan Disc WPL 4163147 Contact Us For Availability
24
Feed Pusher WPL 4163192 Contact Us For Availability
24
Holder WPL 4163203 Contact Us For Availability
24
Handle, Bowl WPL 4163484 Contact Us For Availability
24
Cover, Dust WPL 4169350 Contact Us For Availability
24
Pad (Motor Vibration) WPL 4163299 Contact Us For Availability
26
Base WPL 4176095 Contact Us For Availability
28
Foot, Rubber WPL 4163293 Contact Us For Availability
32
Relay, Motor WPL 4163342 Contact Us For Availability
32
Nameplate WPL 4176094 Contact Us For Availability
× ![]()
