Model Whirlpool KFGR383SSS0 CARTED GRILLE with Side Burners 48`` – Common Parts & Diagrams

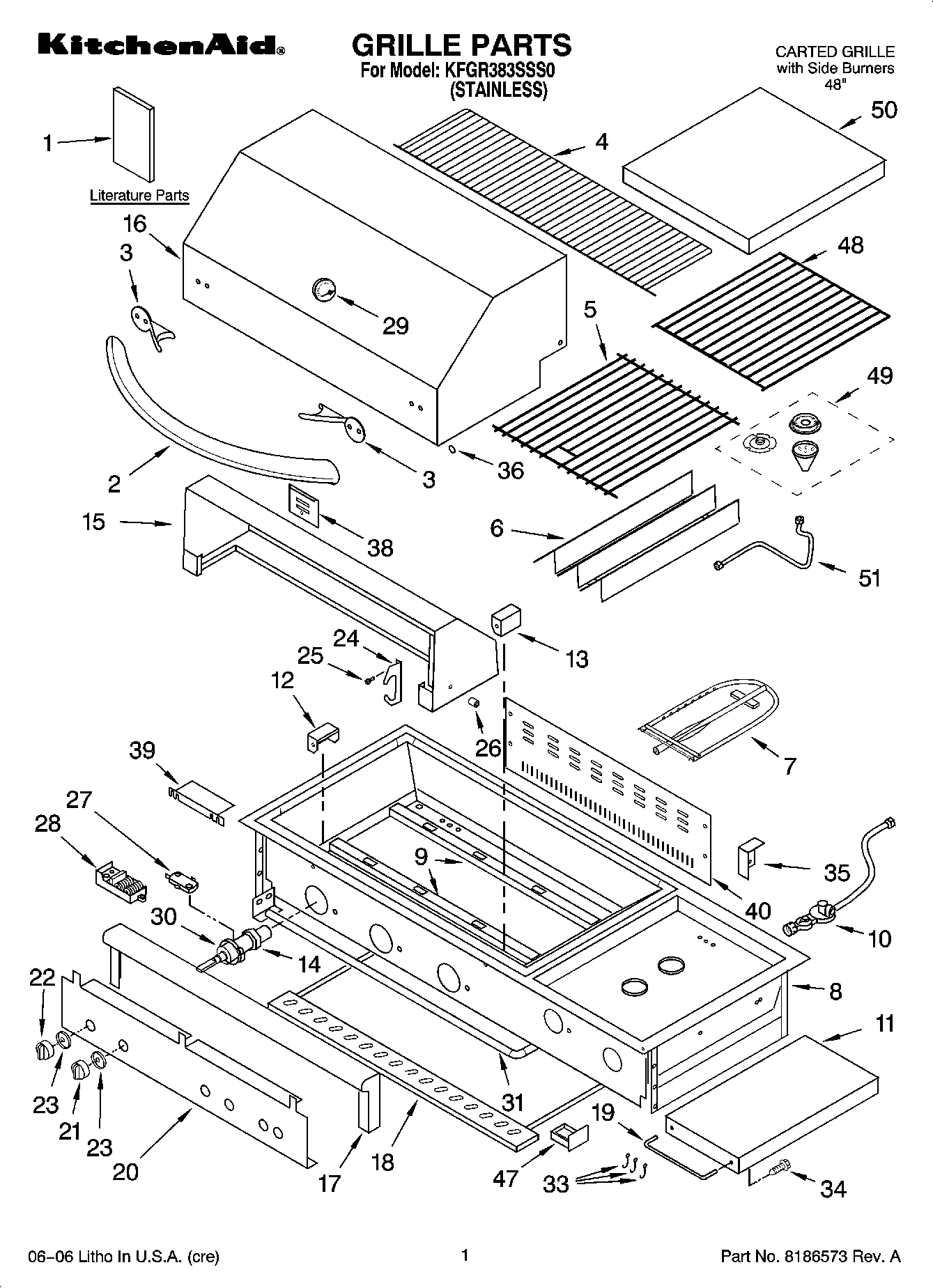

01 - GRILLE PARTS
Common parts from model Whirlpool KFGR383SSS0 CARTED GRILLE with Side Burners 48``
3
Insulator, Handle WPL 8186540 Contact Us For Availability
4
Shelf, Warmer WPL 8186641 Contact Us For Availability
5
Grate (2) WPL 8186636 Contact Us For Availability
6
Plate, Sear (3) WPL 8186579 Contact Us For Availability
7
Burner, Main (3) WPL 8190632 Contact Us For Availability
8
Fire Box Asy (Not Serviced) WPL ARI87177A6 Contact Us For Availability
9
Hanger, Burner (2) WPL 8186594 Contact Us For Availability
10
Regulator w/Hose WPL 8190022 Contact Us For Availability
11
Shelf, Side (Right) WPL 8186738 Contact Us For Availability
11
Shelf, Side (Left) WPL 8186739 Contact Us For Availability
12
Left Collector Box WPL 8186593 Contact Us For Availability
13
Right Collectr Box WPL 8186592 Contact Us For Availability
14
Orifices-LP Gas (57 IR) WPL 8186627 Contact Us For Availability
14
Orifices-LP Gas (55 Main) WPL 8186643 Contact Us For Availability
15
Hood Asy, Rear WPL 8186560 Contact Us For Availability
16
Hood Asy, Front WPL 8186559 Contact Us For Availability
17
Bullnose Asy WPL 8190586 Contact Us For Availability
18
Tray, Drip WPL 8186539 Contact Us For Availability
19
Bar, Tool WPL 8186740 Contact Us For Availability
20
Panel, Front WPL 8186552 Contact Us For Availability
21
Knob, Burner WPL 8186542 Contact Us For Availability
22
Knob, IR WPL 8186543 Contact Us For Availability
23
Bezel (7) WPL 8186578 Contact Us For Availability
24
Saddle, Spit (2) WPL 8186620 Contact Us For Availability
26
Spacer, Hood (2) WPL 8186619 Contact Us For Availability
27
Switch, Igniter (Main Burner) WPL 8190638 Contact Us For Availability
27
Switch, Igniter (SideBurner) WPL 8190641 Contact Us For Availability
28
Module, Spark (4 Spark) WPL 8186554 Contact Us For Availability
28
Module, Spark (2 Spark) WPL 8186553 Contact Us For Availability
29
Thermometer WPL 8186656 Contact Us For Availability
30
Valve, Burner (Main (5)) WPL 8186541 Contact Us For Availability
30
Valve, Burner (IR) WPL 8186567 Contact Us For Availability
31
Manifold WPL 8190587 Contact Us For Availability
33
Hook WPL 8186737 Contact Us For Availability
35
Stop, Hood (Left) WPL 8186581 Contact Us For Availability
35
Stop, Hood (Right) WPL 8186586 Contact Us For Availability
36
Plug, Hole (4) WPL 8186603 Contact Us For Availability
38
Cover, Rear WPL 8186588 Contact Us For Availability
39
Shield, Igniter (2) WPL 8186575 Contact Us For Availability
40
Panel, Access WPL 8186612 Contact Us For Availability
47
Tray, Battery Assy WPL 8186565 Contact Us For Availability
48
Grate, SideBurner WPL 8190484 Contact Us For Availability
49
Burner Assembly (2) WPL 8190455 Contact Us For Availability
50
Cover, SideBurner WPL 8190524 Contact Us For Availability
51
WPL 8190124 WPL 8190124 Contact Us For Availability
51
Main Burner WPL 8186549 Contact Us For Availability
51
Cover, Bullnose WPL 8186550 Contact Us For Availability
51
Handle, Door (2) WPL 8186577 Contact Us For Availability
51
Logo, Kitchenaid WPL 8186580 Contact Us For Availability
51
W/O Brake WPL 8186601 Contact Us For Availability
51
W/Brake WPL 8186602 Contact Us For Availability
51
Washer, Fiber (4) (Handle Hood) WPL 8186607 Contact Us For Availability
51
Infared Weld Asy WPL 8186614 Contact Us For Availability
51
Bracket, IR Igntr WPL 8186615 Contact Us For Availability
51
Cover, IR Igntr WPL 8186616 Contact Us For Availability
51
Elb WPL 8186625 Contact Us For Availability
51
WPL 8186639 WPL 8186639 Contact Us For Availability
51
WPL 8190033 WPL 8190033 Contact Us For Availability
51
WPL 8190035 WPL 8190035 Contact Us For Availability
51
WPL 8190115 WPL 8190115 Contact Us For Availability
51
WPL 8190117 WPL 8190117 Contact Us For Availability
51
WPL 8190122 WPL 8190122 Contact Us For Availability
51
WPL 8190123 WPL 8190123 Contact Us For Availability
51
WPL 8190125 WPL 8190125 Contact Us For Availability
51
WPL 8190134 WPL 8190134 Contact Us For Availability
51
WPL 8190158 WPL 8190158 Contact Us For Availability
51
WPL 8190169 WPL 8190169 Contact Us For Availability
51
WPL 8190173 WPL 8190173 Contact Us For Availability
51
WPL 8190178 WPL 8190178 Contact Us For Availability
51
WPL 8190431 WPL 8190431 Contact Us For Availability
51
WPL 8190457 WPL 8190457 Contact Us For Availability
51
WPL 8190460 WPL 8190460 Contact Us For Availability
51
WPL 8190516 WPL 8190516 Contact Us For Availability
51
WPL 8190517 WPL 8190517 Contact Us For Availability
51
WPL 8190528 WPL 8190528 Contact Us For Availability
51
WPL 8190588 WPL 8190588 Contact Us For Availability
51
WPL 8190589 WPL 8190589 Contact Us For Availability
51
WPL 8190644 WPL 8190644 Contact Us For Availability
51
WPL ARI87178A1 WPL ARI87178A1 Contact Us For Availability
× ![]()
