Model Whirlpool KFGR361SSS0 CARTED GRILLE 36`` – Common Parts & Diagrams

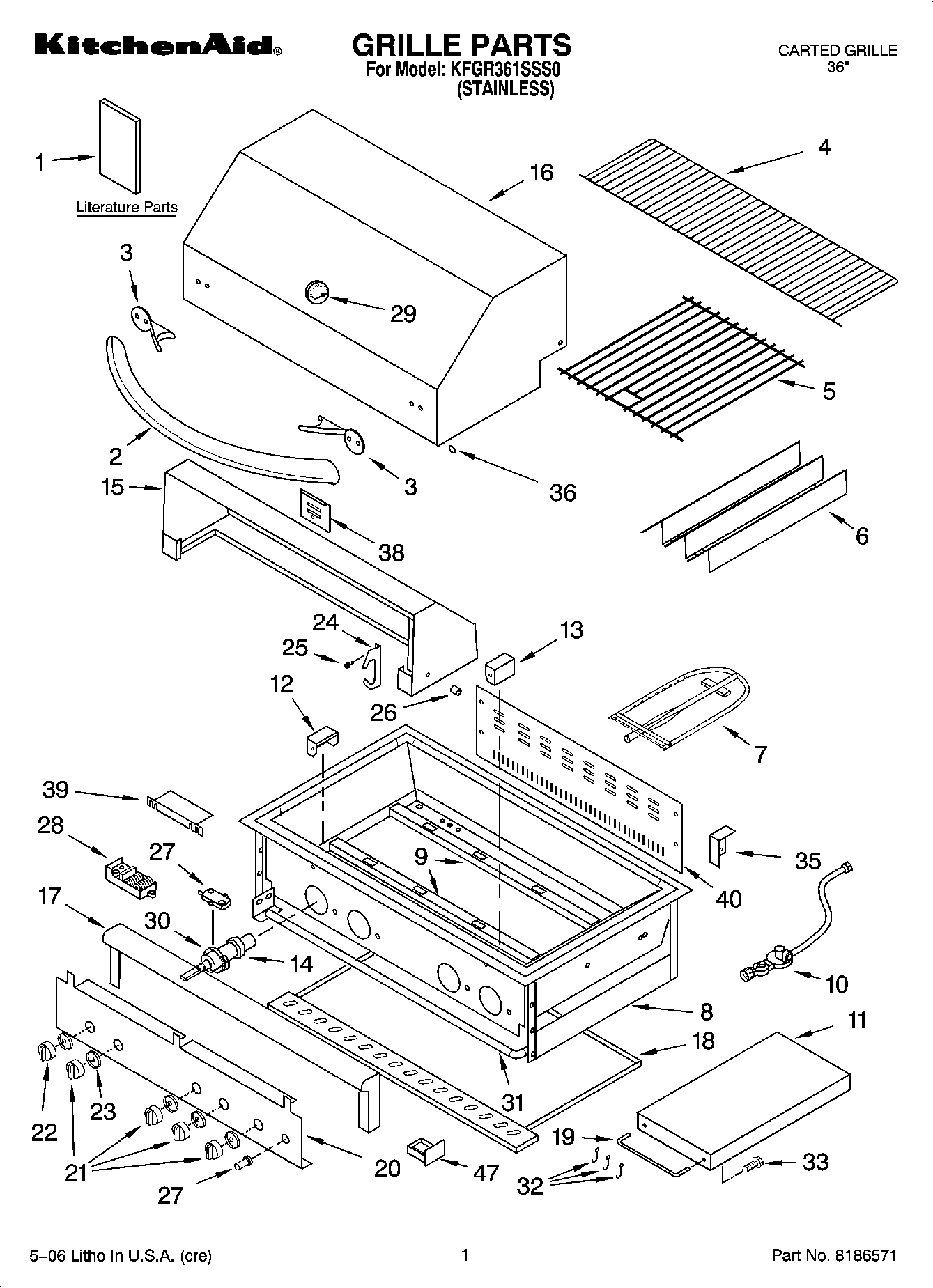

01 - GRILLE PARTS
Common parts from model Whirlpool KFGR361SSS0 CARTED GRILLE 36``
3
Insulator, Handle WPL 8186540 Contact Us For Availability
4
Shelf, Warmer WPL 8186641 Contact Us For Availability
5
Grate (2) WPL 8186636 Contact Us For Availability
6
Plate, Sear (3) WPL 8186579 Contact Us For Availability
7
Burner, Main (3) WPL 8190632 Contact Us For Availability
8
Fire Box Asy (Not Serviced) WPL ARI87162A7 Contact Us For Availability
9
Hanger, Burner (2) WPL 8186594 Contact Us For Availability
10
Regulator w/Hose WPL 8190022 Contact Us For Availability
11
Shelf, Side (Right) WPL 8186738 Contact Us For Availability
11
Shelf, Side (Left) WPL 8186739 Contact Us For Availability
12
Left Collector Box WPL 8186593 Contact Us For Availability
13
Right Collectr Box WPL 8186592 Contact Us For Availability
14
Orifice (Infared) WPL 8186627 Contact Us For Availability
14
Orifice (Main Burner (3)) WPL 8186643 Contact Us For Availability
15
Hood Asy, Rear WPL 8186560 Contact Us For Availability
16
Hood Asy, Front WPL 8186559 Contact Us For Availability
17
Bullnose Asy WPL 8186571 Contact Us For Availability
18
Tray, Drip WPL 8186538 Contact Us For Availability
19
Bar, Tool WPL 8186740 Contact Us For Availability
20
Panel, Front WPL 8186537 Contact Us For Availability
21
Knob, Burner (3) WPL 8186542 Contact Us For Availability
22
Knob, IR WPL 8186543 Contact Us For Availability
23
Bezel (4) WPL 8186578 Contact Us For Availability
24
Saddle, Spit (2) WPL 8186620 Contact Us For Availability
26
Spacer, Hood (2) WPL 8186619 Contact Us For Availability
27
Switch, Igniter WPL 8190638 Contact Us For Availability
28
Module, Spark (4 Spark) WPL 8186554 Contact Us For Availability
29
Thermometer WPL 8186656 Contact Us For Availability
30
Valve, Burner (Main (3)) WPL 8186541 Contact Us For Availability
30
Valve, Burner (Smoker / IR) WPL 8186567 Contact Us For Availability
31
MANIFOLD WPL 8190189 Contact Us For Availability
32
Hook WPL 8186737 Contact Us For Availability
35
Stop, Hood (Left) WPL 8186581 Contact Us For Availability
35
Stop, Hood (Right) WPL 8186586 Contact Us For Availability
36
Plug, Hole (4) WPL 8186603 Contact Us For Availability
38
Cover, Rear WPL 8186588 Contact Us For Availability
39
Shield, Igniter WPL 8186575 Contact Us For Availability
40
Panel, Access WPL 8190193 Contact Us For Availability
47
WPL 8190124 WPL 8190124 Contact Us For Availability
47
Electrode Kit WPL 8186548 Contact Us For Availability
47
Cover, Bullnose WPL 8186550 Contact Us For Availability
47
Tray, Battery Assy WPL 8186565 Contact Us For Availability
47
Handle, Door (2) WPL 8186577 Contact Us For Availability
47
Logo, Kitchenaid WPL 8186580 Contact Us For Availability
47
W/O Brake WPL 8186601 Contact Us For Availability
47
W/Brake WPL 8186602 Contact Us For Availability
47
Washer, Fiber (4) (Hood Handle) WPL 8186607 Contact Us For Availability
47
Infared Weld Asy WPL 8186614 Contact Us For Availability
47
Bracket, IR Igntr WPL 8186615 Contact Us For Availability
47
Cover, IR Igntr WPL 8186616 Contact Us For Availability
47
Elbow, Orifice (W/O Hood & Pin) WPL 8186625 Contact Us For Availability
47
Elbow 3/8 to 1/2 WPL 8186633 Contact Us For Availability
47
Thermocouple, IR WPL 8186639 Contact Us For Availability
47
Clip, J Type 8-32 WPL 8190033 Contact Us For Availability
47
Latch-Door Caster, Swive WPL 8190115 Contact Us For Availability
47
WPL 8190117 WPL 8190117 Contact Us For Availability
47
WPL 8190121 WPL 8190121 Contact Us For Availability
47
WPL 8190122 WPL 8190122 Contact Us For Availability
47
WPL 8190123 WPL 8190123 Contact Us For Availability
47
WPL 8190125 WPL 8190125 Contact Us For Availability
47
WPL 8190134 WPL 8190134 Contact Us For Availability
47
WPL 8190140 WPL 8190140 Contact Us For Availability
47
WPL 8190158 WPL 8190158 Contact Us For Availability
47
WPL 8190169 WPL 8190169 Contact Us For Availability
47
WPL 8190173 WPL 8190173 Contact Us For Availability
47
WPL 8190174 WPL 8190174 Contact Us For Availability
47
WPL 8190178 WPL 8190178 Contact Us For Availability
47
WPL 8190190 WPL 8190190 Contact Us For Availability
47
WPL 8190191 WPL 8190191 Contact Us For Availability
47
WPL ARI87163A1 WPL ARI87163A1 Contact Us For Availability
× ![]()
