Model Whirlpool KFGR270LSS0 27`` – Common Parts & Diagrams

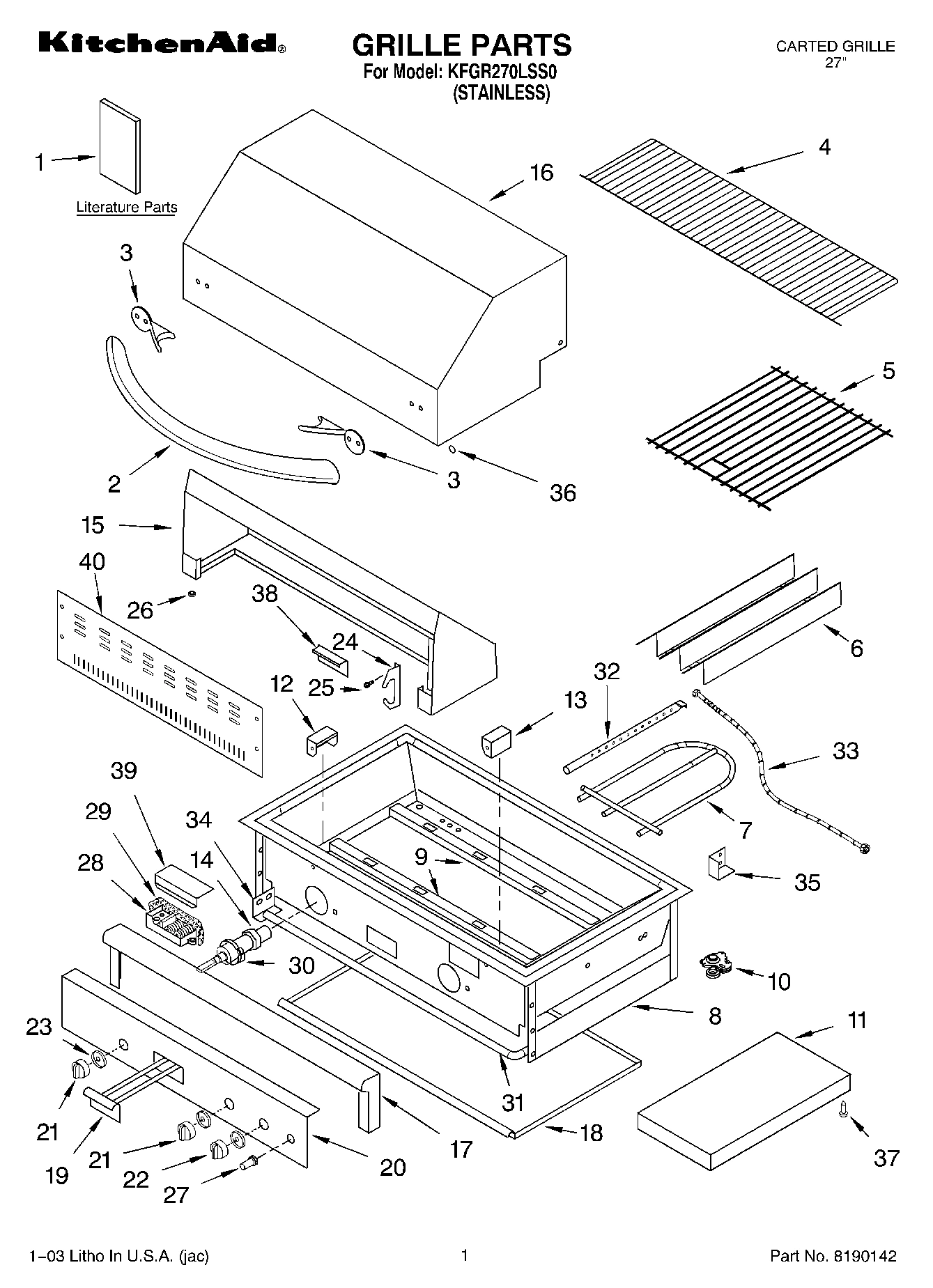

01 - GRILLE PARTS
Common parts from model Whirlpool KFGR270LSS0 27``
2
Handle, Hood WPL 8190085 Contact Us For Availability
3
Insulator, Handle WPL 8190084 Contact Us For Availability
4
Shelf, Warmer WPL 8190112 Contact Us For Availability
5
Grate (2) WPL 8190126 Contact Us For Availability
6
Plate, Sear (2) WPL 8190088 Contact Us For Availability
7
Burner, Main (2) WPL 8190103 Contact Us For Availability
8
Fire Box Asy (Not Serviced) WPL ARI87142A1 Contact Us For Availability
9
Hanger, Burner (2) WPL 8190131 Contact Us For Availability
10
Regulator w/Hose WPL 8190113 Contact Us For Availability
11
Shelf, Side (2) WPL 8190087 Contact Us For Availability
12
Left Collector Box WPL 8190100 Contact Us For Availability
13
Right Collectr Box WPL 8190099 Contact Us For Availability
14
Orifice (Smoker) WPL 8190129 Contact Us For Availability
14
Orifice (Main Burner (2)) WPL 8190138 Contact Us For Availability
15
Hood Asy, Rear WPL 8190107 Contact Us For Availability
16
Hood Asy, Front WPL 8190108 Contact Us For Availability
17
Bullnose Asy WPL 8190109 Contact Us For Availability
18
Tray, Drip WPL 8190082 Contact Us For Availability
19
Tray Asy, Smoker WPL 8190110 Contact Us For Availability
20
Panel, Front WPL 8190102 Contact Us For Availability
21
Knob, Burner (2) WPL 8190028 Contact Us For Availability
22
Knob, Smoker WPL 8190030 Contact Us For Availability
23
Bezel (3) WPL 8190027 Contact Us For Availability
24
Saddle, Spit (2) WPL 8190111 Contact Us For Availability
26
Spacer, Hood (2) WPL 8190031 Contact Us For Availability
27
Switch, Igniter WPL 8190029 Contact Us For Availability
28
Module, Spark WPL 8190459 Contact Us For Availability
29
Insulation, Module WPL 8190130 Contact Us For Availability
30
Valve, Burner (Main (2)) WPL 8190024 Contact Us For Availability
30
Valve, Burner (Smoker) WPL 8190141 Contact Us For Availability
31
Manifold WPL 8190137 Contact Us For Availability
32
Burner, Smoker WPL 8190127 Contact Us For Availability
33
Flex Tube, Smoker WPL 8190128 Contact Us For Availability
34
Bracket, Manifold WPL 8190139 Contact Us For Availability
35
Stop, Hood (Left) WPL 8190091 Contact Us For Availability
35
Stop, Hood (Right) WPL 8190092 Contact Us For Availability
36
Plug, Hole (4) WPL 8190104 Contact Us For Availability
37
Bumper (6) WPL 8190034 Contact Us For Availability
38
Cover, Rear WPL 8190094 Contact Us For Availability
39
Shield, Igniter WPL 8190081 Contact Us For Availability
40
Clip, J Type 8-32 WPL 8190033 Contact Us For Availability
40
Elbow 3/8 to 1/2 WPL 8190035 Contact Us For Availability
40
Handle, Door (2) WPL 8190086 Contact Us For Availability
40
Tank, LP WPL 8190089 Contact Us For Availability
40
Logo, Kitchenaid WPL 8190090 Contact Us For Availability
40
Cover, Bullnose WPL 8190105 Contact Us For Availability
40
Wire, Battery WPL 8190106 Contact Us For Availability
40
Latch-Door Caster, Swivel WPL 8190115 Contact Us For Availability
40
Screw 1/4-20X3/8SS WPL 8190117 Contact Us For Availability
40
Screw 18X1/2 Pan WPL 8190121 Contact Us For Availability
40
Nut, Combination WPL 8190122 Contact Us For Availability
40
Lockwasher 1/4SS WPL 8190123 Contact Us For Availability
40
Screw 1/4-20X1/2SS (Hex Bolt) WPL 8190124 Contact Us For Availability
40
Washer, WPL 8190125 Contact Us For Availability
40
WPL 8190132 WPL 8190132 Contact Us For Availability
40
WPL 8190133 WPL 8190133 Contact Us For Availability
40
WPL 8190134 WPL 8190134 Contact Us For Availability
40
WPL 8190135 WPL 8190135 Contact Us For Availability
40
WPL 8190136 WPL 8190136 Contact Us For Availability
40
WPL 8190140 WPL 8190140 Contact Us For Availability
40
WPL 8190156 WPL 8190156 Contact Us For Availability
40
WPL 8190164 WPL 8190164 Contact Us For Availability
40
WPL 8190372 WPL 8190372 Contact Us For Availability
40
WPL 8190453 WPL 8190453 Contact Us For Availability
40
WPL 8190457 WPL 8190457 Contact Us For Availability
40
WPL ARI87143A7 WPL ARI87143A7 Contact Us For Availability
40
WPL ARI87144A5 WPL ARI87144A5 Contact Us For Availability
× ![]()
