Model Whirlpool KFDD500ESS02 RANGE, DUAL FUEL, DOUBLE-OVEN – Common Parts & Diagrams

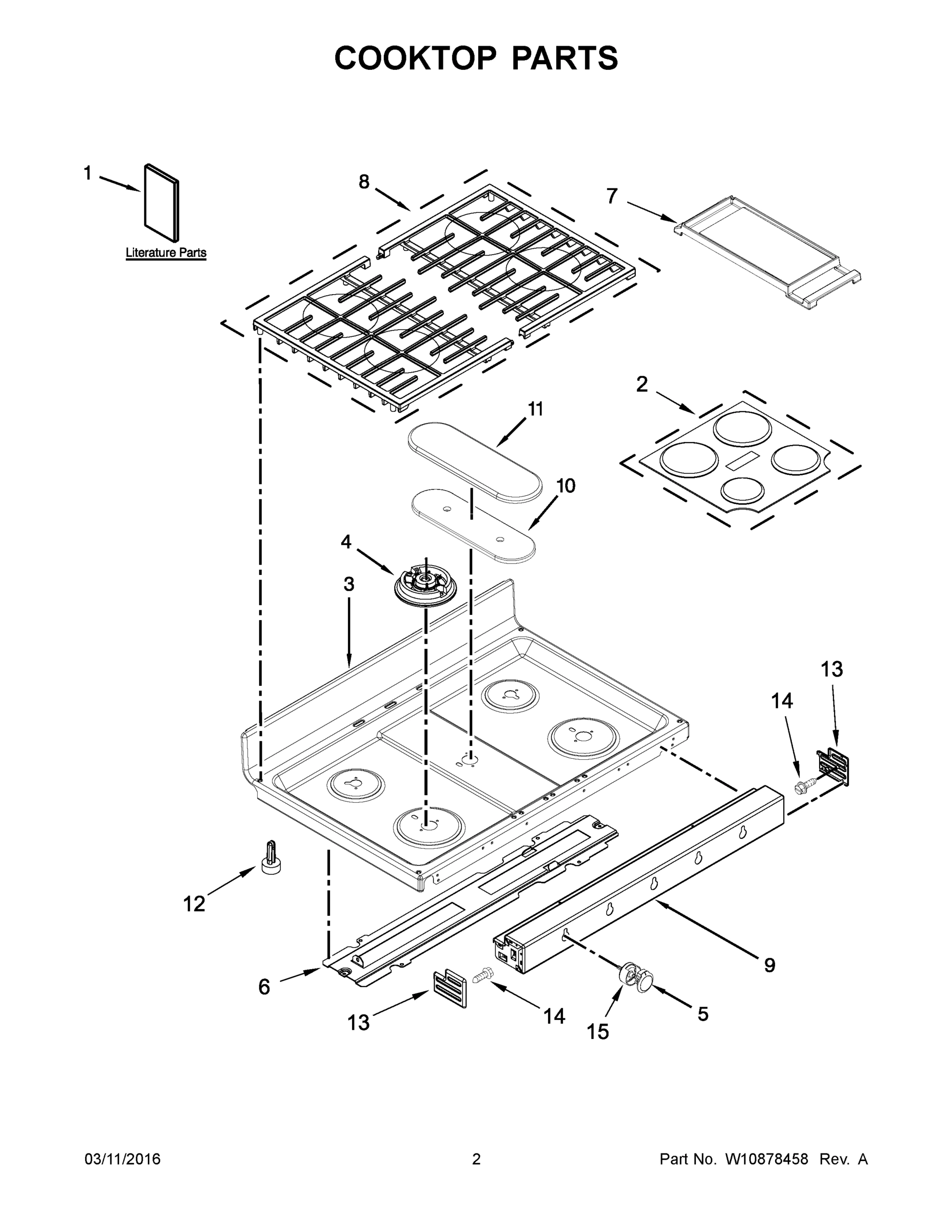

02 - COOKTOP PARTS

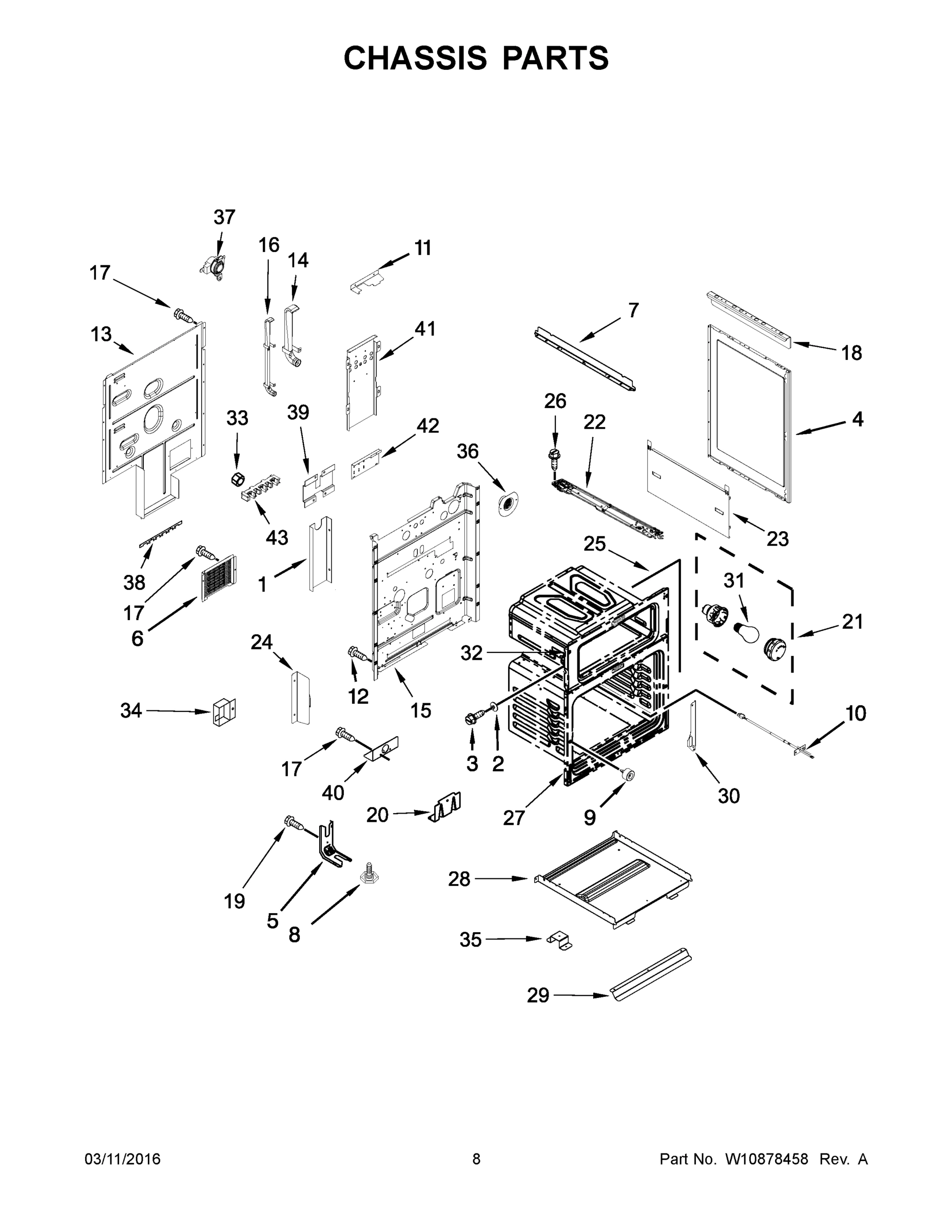

05 - CHASSIS PARTS
08 - INTERNAL OVEN PARTS
09 - OPTIONAL PARTS (NOT INCLUDED)
01 - COVER SHEET
07 - LOWER DOOR PARTS
03 - CONTROL PANEL PARTS
04 - MANIFOLD PARTS
06 - UPPER DOOR PARTS
Common parts from model Whirlpool KFDD500ESS02 RANGE, DUAL FUEL, DOUBLE-OVEN
1
SUPPORT, BACKGUARD (BLACK (LEFT)) WPL W10319109 Contact Us For Availability
1A
SUPPORT, BACKGUARD (BLACK (RIGHT)) WPL W10319111 Contact Us For Availability
2A
HOLDER, ORIFICE (5K) (LEFT REAR) WPL W10643269 Contact Us For Availability
2C
HOLDER, ORIFICE (5K) (RIGHT REAR) WPL W10643271 Contact Us For Availability
2D
HOLDER, ORIFICE (7K) (CENTER) WPL W10643272 Contact Us For Availability
4
REGULATOR, PRESSURE WPL W10582429 Contact Us For Availability
5
RETAINER, INSULATION WPL W10485723 Contact Us For Availability
5
INSULATION, CONVECTION MOTOR WPL W10274268 Contact Us For Availability
6
ASSEMBLY, USER INTERFACE (BLACK) WPL W10692425 Contact Us For Availability
6
COVER, ACCESS (TERMINAL BLOCK) WPL W10312612 Contact Us For Availability
6
PLATE, INSULATION WPL W10339476 Contact Us For Availability
7
GRIDDLE WPL W10432544 Contact Us For Availability
7
BRACKET, SIDE PANEL WPL W10357697 Contact Us For Availability
7
SHIELD, VENT WPL W10278697 Contact Us For Availability
8
COVER, FAN WPL 8303962BU Contact Us For Availability
8A
VALVE (5K) (LEFT REAR & RIGHT REAR) WPL W10718182 Contact Us For Availability
8B
VALVE, FISH (RIGHT FRONT & CENTER) WPL W10718181 Contact Us For Availability
9
COVER, BACKGUARD WPL W10776098 Contact Us For Availability
9
BUMPER & SCREW WPL W10105790 Contact Us For Availability
9A
ELECTRODE, FISH (CENTER) WPL W10637673 Contact Us For Availability
10
ELEMENT, CONVECTION (240VAC) WPL W10271639 Contact Us For Availability
11
RETAINER, INSULATION WPL W10340464 Contact Us For Availability
11
SCREW WPL W10217535 Contact Us For Availability
12
SHIELD, BROIL WPL W10319762 Contact Us For Availability
12
INSULATION, DOOR WPL W10321285 Contact Us For Availability
13
ELEMENT, BROIL (UPPER) WPL W10317476 Contact Us For Availability
13
EXTENSION, ELECTRODE WPL W10636384 Contact Us For Availability
14
TUBE, VENT (UPPER) WPL W10337391 Contact Us For Availability
15
BACK, MAIN WPL W10668730 Contact Us For Availability
16
TUBING (SUPPLY SHUTOFF TO MANIFOLD) WPL W10642388 Contact Us For Availability
18
TUBING (SUPPLY REGULATOR TO SHUTOFF) WPL W10524331 Contact Us For Availability
18
BRACKET, U CHANNEL WPL W10319087 Contact Us For Availability
19
SCREW, VALVE WPL W10295997 Contact Us For Availability
25
GASKET, OVEN DOOR (UPPER) WPL W10337392 Contact Us For Availability
28
PAN, ELEMENT WPL W10548601 Contact Us For Availability
29
BRACKET, RETAINING WPL W10253470 Contact Us For Availability
30
COVER, HINGE (LEFT) WPL W10410463 Contact Us For Availability
30A
COVER, HINGE (RIGHT) WPL W10410461 Contact Us For Availability
35
CLIP, RETAINING WPL W10260545 Contact Us For Availability
36
ADAPTER, VENT TUBE WPL W10322408 Contact Us For Availability
42
SHIELD, CORD WPL W10332449 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE) WPL 350930 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BISCUIT/BISQUE) WPL 4392899 Contact Us For Availability
NI
ACCESSORIES, CLEANER, STAINLESS STEEL WPL W10355016 Contact Us For Availability
NI
PAINT, SPRAY (BLACK) WPL 285006 Contact Us For Availability
NI
PAINT, SPRAY (BISCUIT/BISQUE) WPL 4392901 Contact Us For Availability
NI
PAINT, SPRAY (ALMOND) WPL 350956 Contact Us For Availability
NI
ACCESSORIES, RACK, BROILER PAN & ROASTING WPL W10123240 Contact Us For Availability
NI
ACCESSORIES, CLEANER, KITCHEN & APPLIANCE WPL W10355010 Contact Us For Availability
NI
PAINT, SPRAY (GRAY PRIMER) WPL 350938 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE PORCELAIN (2 OZ WPL 511873 Contact Us For Availability
NI
HARNESS, SPARK WPL W10408058 Contact Us For Availability
NI
PAINT, SPRAY (WHITE PRIMER) WPL 350942 Contact Us For Availability
NI
HARNESS, MAIN WPL W10745677 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE (UNCUT)) WPL 799344 Contact Us For Availability
× ![]()
