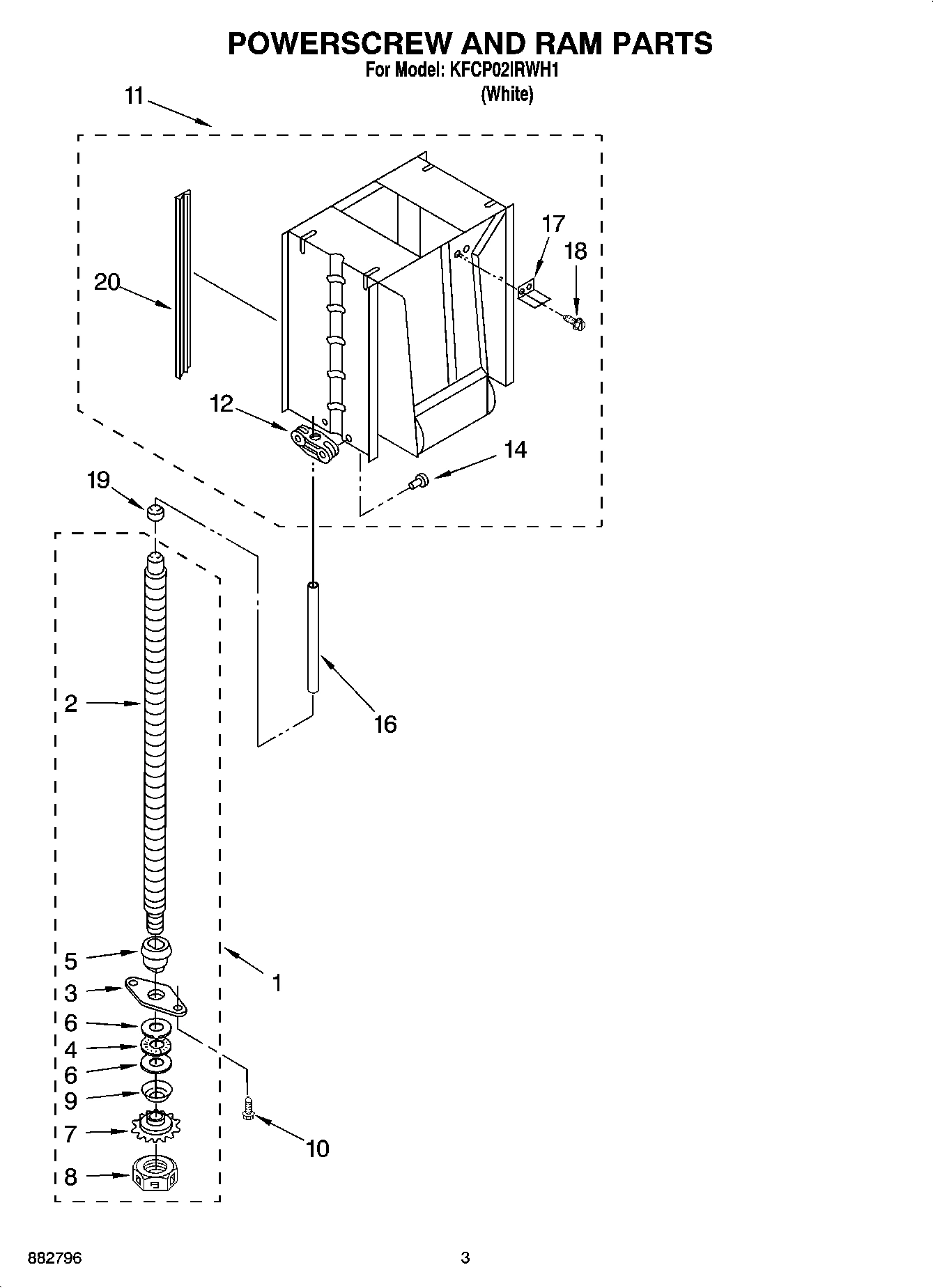

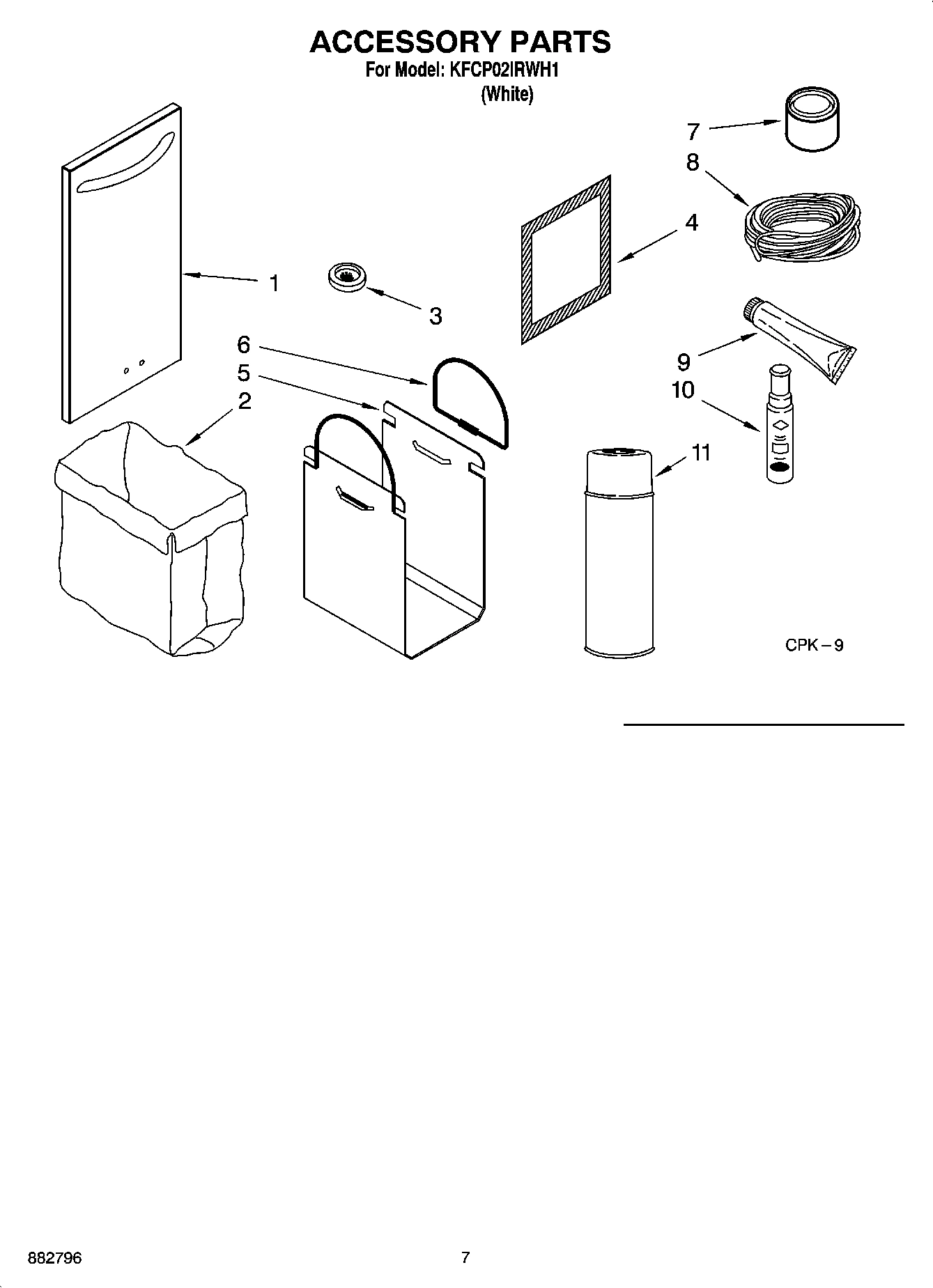

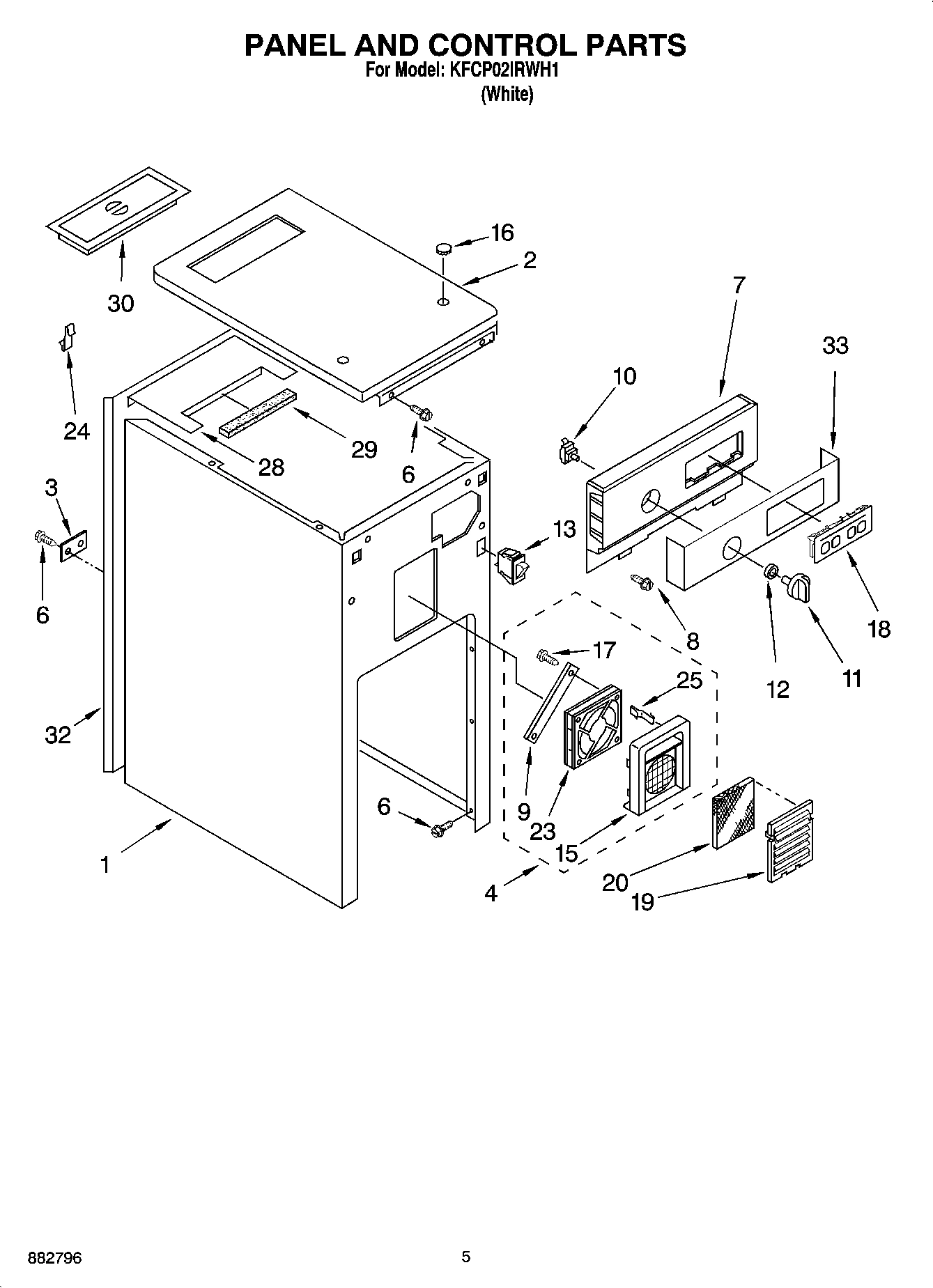

Model Whirlpool KFCP02IRWH1 TRASH COMPACTOR – Common Parts &amp; Diagrams

1

Frame (Not A Serviceable Part) WPL ARI87102A8 Contact Us For Availability

2

9870867 Whirlpool Shield Backorder WPL 9870867 $8.05

3

779121 Whirlpool Compactor Plate Backorder WPL 779121 $12.32

3

W11722978 Whirlpool Slide Backorder WPL W11722978 $51.02

3

WP9870975 Whirlpool Compactor Slide Backorder WPL WP9870975 $32.94

4

776327 Whirlpool Compactor Motor Plate Backorder WPL 776327 $40.88

4

882688 Whirlpool Compactor Bearing In Stock WPL 882688 $12.37

4

W10540355 Whirlpool Deodorant In Stock WPL W10540355 $5.95

4

W10917043 Whirlpool Compactor Bearing Backorder WPL W10917043 $9.59

5

776941 Whirlpool Compactor Power Crew Hub Backorder WPL 776941 $8.86

6

775481 Whirlpool Compactor Bearing Backorder WPL 775481 $29.74

6

WP486754 Whirlpool Compactor Screw Backorder WPL WP486754 $2.51

6

WP777108 Whirlpool Compactor Bag Handle Backorder WPL WP777108 $8.16

7

675351 Whirlpool Compactor Grease Backorder WPL 675351 $34.20

7

9871989W Whirlpool Compactor Foot Pedal Assem Backorder WPL 9871989W $52.70

7

W11759042 Whirlpool Nut In Stock WPL W11759042 $7.72

7

WP454512 Whirlpool Compactor Spring Pin Backorder WPL WP454512 $3.70

8

4154842 Whirlpool Compactor Nut Backorder WPL 4154842 $29.10

8

776035 Whirlpool Compactor Washer Backorder WPL 776035 $9.59

8

WP780263 Whirlpool Compactor Screw In Stock WPL WP780263 $2.51

8

WP780437 Whirlpool Compactor Bottom Pan Backorder WPL WP780437 $114.85

8

Wire (16 Ga. 80 c Blue) WPL 10875 Contact Us For Availability

8

Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability

8

Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability

8

Wire, 25`` Roll (White 14 GA.) WPL 242826 Contact Us For Availability

8

Wire, 25` Roll (Red 12 Ga.) WPL 299885 Contact Us For Availability

8

Wire, 25`` Roll (Black 12 GA.) WPL 47261 Contact Us For Availability

8

Wire, 25`` Roll (White 12 GA.) WPL 47263 Contact Us For Availability

9

W11214485 Whirlpool Compactor Washer Backorder WPL W11214485 $9.59

9

WP279368 Whirlpool High-Temperature Silicone In Stock WPL WP279368 $29.08

9

WP777332 Whirlpool Compactor Washer Backorder WPL WP777332 $2.38

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.20

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $6.86

8171571 Whirlpool Touch-Up Paint Cobalt Blue In Stock WPL 8171571 $12.81

8171651 Whirlpool Touch Up Backorder WPL 8171651 $8.40

8171652 Whirlpool Touch-Up Backorder WPL 8171652 $10.07

WP72107 Whirlpool Touchup In Stock WPL WP72107 $6.13

Paint, Touch-Up 1/2 Oz. (Biscuit) WPL 4892899 Contact Us For Availability

WPL 8171653 WPL 8171653 Contact Us For Availability

Angle, Top Support WPL 775668 Contact Us For Availability

285006 Whirlpool Spray In Stock WPL 285006 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $26.26

882763 Whirlpool Compactor Front Trim Backorder WPL 882763 $70.59

W11696573 Whirlpool Ram Backorder WPL W11696573 $129.98

WP488234 Whirlpool Air Conditioner Screw Backorder WPL WP488234 $3.09

WP9871799 Whirlpool Compactor Switch Knob In Stock WPL WP9871799 $37.08

WPL 9871383 WPL 9871383 Contact Us For Availability

WPL 9871600 WPL 9871600 Contact Us For Availability

WPL ARI87105A1 WPL ARI87105A1 Contact Us For Availability

780477 Whirlpool Compactor Drive Chain Backorder WPL 780477 $80.02

9871125 Whirlpool Compactor Actuator Backorder WPL 9871125 $9.52

WP777383 Whirlpool Compactor Nut In Stock WPL WP777383 $4.89

WP9870163 Whirlpool Compactor Trunnion Nut In Stock WPL WP9870163 $29.77

14

Barrier, Glass WPL 776780 Contact Us For Availability

15

WP4387911 Whirlpool Refrigerator Switch In Stock WPL WP4387911 $13.43

15

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $2.51

16

WP9870037 Whirlpool Ram Stop Backorder WPL WP9870037 $3.70

16

WP9871602 Whirlpool Compactor Bearing In Stock WPL WP9871602 $7.01

17

WP776356 Whirlpool Compactor Nut Backorder WPL WP776356 $2.51

17

Bracket, Top Limit Switch WPL 9870498 Contact Us For Availability

18

WP489399 Whirlpool Refrigerator Screw In Stock WPL WP489399 $2.51

18

WP777811 Whirlpool Compactor Directional Swit In Stock WPL WP777811 $38.74

18

Switch Assembly (White) WPL 9871766 Contact Us For Availability

19

777849 Whirlpool Compactor Screw Backorder WPL 777849 $4.85

19

Cover, Air Freshener (White) WPL 9870911 Contact Us For Availability

20

W10917246 Whirlpool Compactor RAM Slide Backorder WPL W10917246 $45.64

20

WP4151750 Whirlpool Charcoal Air Filter In Stock WPL WP4151750 $6.59

20

Plate, Nut WPL 777850 Contact Us For Availability

21

775736 Whirlpool Compactor Spring Backorder WPL 775736 $28.80

21

Wiring Harness & Power Cord WPL 9872116 Contact Us For Availability

22

Bushing, Cord WPL 776119 Contact Us For Availability

23

775665 Whirlpool Compactor Plate Latch Backorder WPL 775665 $35.28

23

W11705832 Whirlpool Clamp Backorder WPL W11705832 $12.17

24

WP3196175 Whirlpool Screw In Stock WPL WP3196175 $2.51

25

WPW10001130 Whirlpool Leveling Leg In Stock WPL WPW10001130 $2.29

27

W11023674 Whirlpool Compactor Leveling Wheel Backorder WPL W11023674 $35.14

28

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $2.51

30

WP9870444 Whirlpool Compactor Inner Panel Backorder WPL WP9870444 $35.76

33

WP777180 Whirlpool Compactor Spring In Stock WPL WP777180 $28.80
