Model Electrolux KF650GDH3 RANGE – Common Parts & Diagrams
02 - BACKGUARD

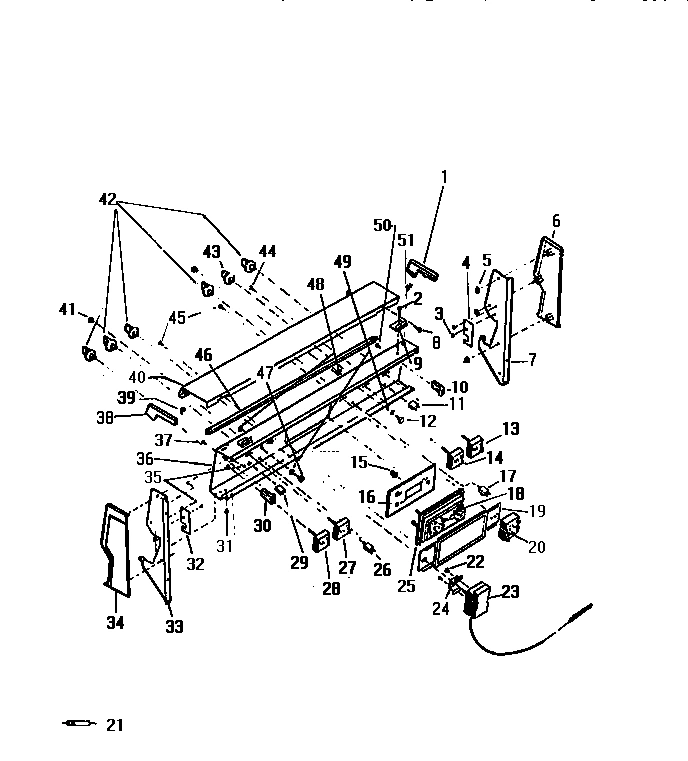

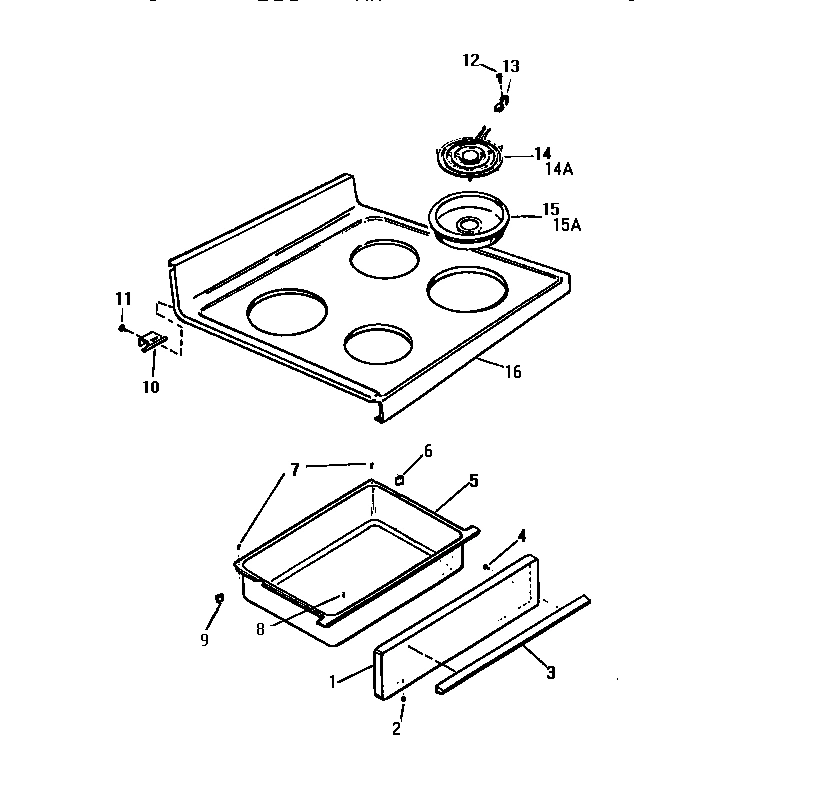

03 - TOP, CONTROL PANEL

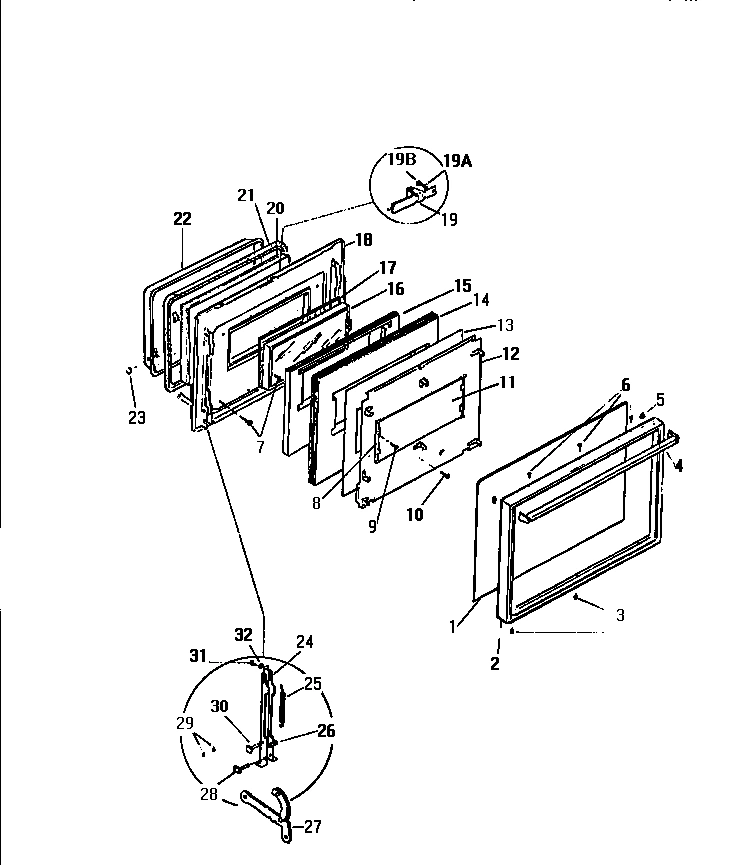

04 - DOOR

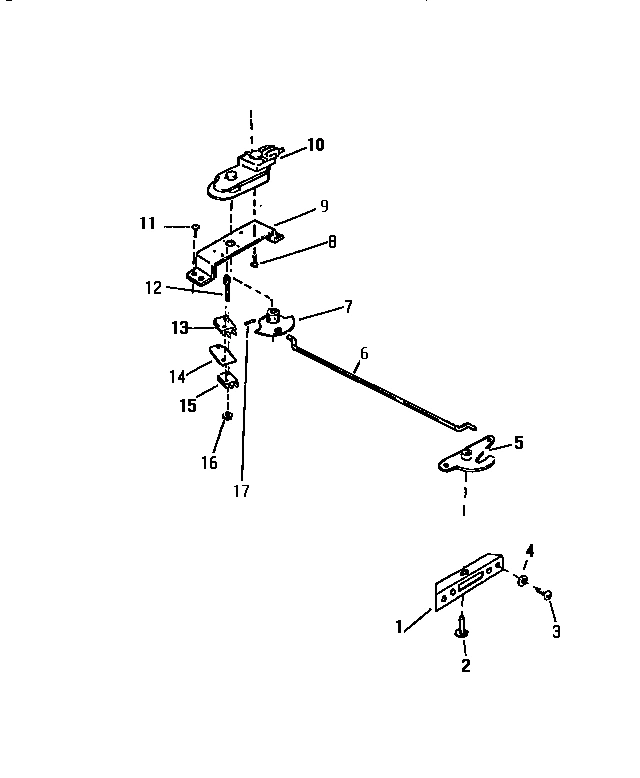

05 - DOOR LATCH ASSEMBLY

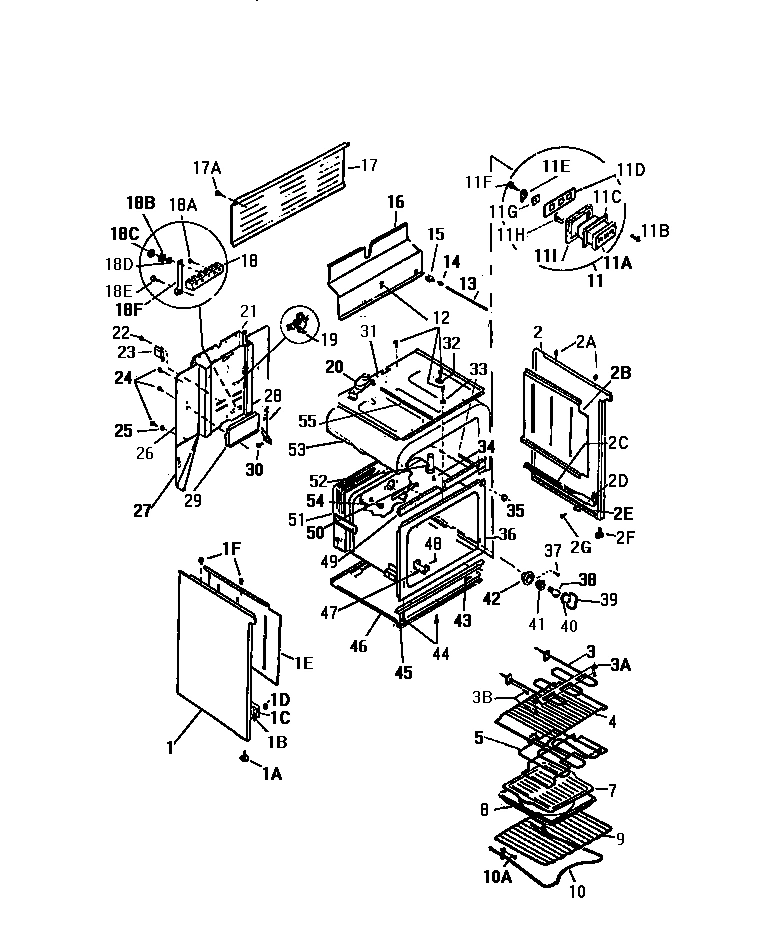

06 - BODY, SIDE PANELS
Common parts from model Electrolux KF650GDH3 RANGE
1
WCI K5033502 WCI K5033502 Contact Us For Availability
1
WCI K1326099 WCI K1326099 Contact Us For Availability
1
GLASS, OUTER WCI K5027201 Contact Us For Availability
1
WCI K1324830 WCI K1324830 Contact Us For Availability
1
END PANEL, LH WCI K5024610 Contact Us For Availability
1C
RAIL, DWR, LH WCI K5269902 Contact Us For Availability
1E
WCI K1326388 WCI K1326388 Contact Us For Availability
2
FRAME WCI K5276801 Contact Us For Availability
2
AXLE, LATCH WCI K5038501 Contact Us For Availability
2
END PANEL, RH WCI K5024609 Contact Us For Availability
2A
BUMPER WCI K5106901 Contact Us For Availability
2B
WCI K1375388 WCI K1375388 Contact Us For Availability
2C
RAIL, DWR., RH WCI K5269901 Contact Us For Availability
2D
SPACER, RAIL WCI K1324860 Contact Us For Availability
2E
GUIDE WCI K1315216 Contact Us For Availability
2F
LEG WCI K1322905 Contact Us For Availability
2G
SCREW WCI K1164569 Contact Us For Availability
3
WCI K1164550 WCI K1164550 Contact Us For Availability
3
HANDLE WCI K5030201 Contact Us For Availability
3A
WCI K1314458 WCI K1314458 Contact Us For Availability
4
HANDLE ASSY (COMP. W/ STANCHIONS WCI K5026601 Contact Us For Availability
4
WCI K5133401 WCI K5133401 Contact Us For Availability
5
NUT (3) WCI K5036602 Contact Us For Availability
5
DRAWER WCI K1324096 Contact Us For Availability
5
SCREW (4) WCI K5046501 Contact Us For Availability
5
LATCH, DOOR (1) WCI K5260202 Contact Us For Availability
5
WCI K1313230 WCI K1313230 Contact Us For Availability
6
WCI K5030402 WCI K5030402 Contact Us For Availability
6
GUIDE WCI K1324091 Contact Us For Availability
6
WCI K5271201 WCI K5271201 Contact Us For Availability
7
WCI K5025202 WCI K5025202 Contact Us For Availability
7
CAM (1) WCI K5151605 Contact Us For Availability
7
WCI K1317972 WCI K1317972 Contact Us For Availability
8
SCREW WCI K5022201 Contact Us For Availability
8
RETAINER, GLASS (2) WCI K1317628 Contact Us For Availability
8
WCI K5151604 WCI K5151604 Contact Us For Availability
8
WCI K1317973 WCI K1317973 Contact Us For Availability
9
WCI K5297501 WCI K5297501 Contact Us For Availability
9
WCI K1324081 WCI K1324081 Contact Us For Availability
9
SUPPORT WCI K5151602 Contact Us For Availability
9
RACK WCI K1311570 Contact Us For Availability
10
WCI K5024901 WCI K5024901 Contact Us For Availability
10
SCREW WCI K1164557 Contact Us For Availability
10
WCI K5151603 WCI K5151603 Contact Us For Availability
10
WCI K1312863 WCI K1312863 Contact Us For Availability
11
WCI K1317924 WCI K1317924 Contact Us For Availability
11
WCI Q160978 WCI Q160978 Contact Us For Availability
11A
BLOCK WCI Q210771 Contact Us For Availability
11C
WCI Q22662 WCI Q22662 Contact Us For Availability
11D
WCI Q291142 WCI Q291142 Contact Us For Availability
11E
WCI Q81159 WCI Q81159 Contact Us For Availability
11F
SCREW (3) WCI Q414002 Contact Us For Availability
11G
WCI Q273020 WCI Q273020 Contact Us For Availability
11H
WCI Q62643 WCI Q62643 Contact Us For Availability
11I
WCI Q208506 WCI Q208506 Contact Us For Availability
12
SWITCH, FLUOR. LT. WCI K5057501 Contact Us For Availability
12
WCI KK5276901 WCI KK5276901 Contact Us For Availability
12
WCI K5151610 WCI K5151610 Contact Us For Availability
13
FOIL, ALUM. WCI K1318825 Contact Us For Availability
13
SWITCH, UPPER (1) WCI K1315370 Contact Us For Availability
13
PUSH ROD WCI K1323421 Contact Us For Availability
14
WCI K1322652 WCI K1322652 Contact Us For Availability
14
INSULATOR WCI K1308690 Contact Us For Availability
14
END CAP, ROD WCI K1322682 Contact Us For Availability
15
KNOB TIMER (3) WCI K1167676 Contact Us For Availability
15
WCI K1322651 WCI K1322651 Contact Us For Availability
15
SWITCH, LOWER WCI K1167190 Contact Us For Availability
15
SWITCH, OVEN LT. WCI K5328101 Contact Us For Availability
16
GLASS WCI K1167584 Contact Us For Availability
16
PLATFORM WCI K5024214 Contact Us For Availability
16
WINDOW ASSY. WCI K1322068 Contact Us For Availability
16
WCI K5029505 WCI K5029505 Contact Us For Availability
17
LIGHT SIGNAL (CLEAN 250V) WCI K5046101 Contact Us For Availability
17
WCI K1322069 WCI K1322069 Contact Us For Availability
17
PIN WCI K5151606 Contact Us For Availability
17
COVER, BACKGUARD WCI K1315140 Contact Us For Availability
18
TIMER COMPLETE WCI K5036801 Contact Us For Availability
18
WCI K1324721 WCI K1324721 Contact Us For Availability
18
TERMINAL BLOCK KIT (INCL NUTS, SCREWS, WASHER WCI Q134264 Contact Us For Availability
18B
LOCK WASHER (3) WCI Q500411 Contact Us For Availability
18C
NUT (6) WCI Q401002 Contact Us For Availability
18D
WASHER (6) WCI Q402503 Contact Us For Availability
18F
BRKT., GROUND WCI K1145190 Contact Us For Availability
19
WCI K5296301 WCI K5296301 Contact Us For Availability
19
STRIKE ASSY. WCI K1323556 Contact Us For Availability
19
WCI K5328001 WCI K5328001 Contact Us For Availability
20
WCI K5328201 WCI K5328201 Contact Us For Availability
20
INSULATION WCI K1322622 Contact Us For Availability
20
WCI 0000000 WCI 0000000 Contact Us For Availability
21
120K RESISTANCE, BROWN BAND 1, RED BAND 2, YE WCI K5044001 Contact Us For Availability
21
GASKET OV DOOR WCI K1323811 Contact Us For Availability
21
COVER, WIRE WCI K5276202 Contact Us For Availability
21A
51K RESISTANCE, GREEN BAND 1, BROWN BAND 2, O WCI K5044101 Contact Us For Availability
21B
39K RESISTANCE, ORANGE BAND 1, WHITE BAND 2, WCI K5044102 Contact Us For Availability
22
SCREW WCI K5104301 Contact Us For Availability
22
WCI K1323752 WCI K1323752 Contact Us For Availability
23
WCI K1324562 WCI K1324562 Contact Us For Availability
23
PLUG BUTTON (2) WCI KGM142001 Contact Us For Availability
23
WCI K5290501 WCI K5290501 Contact Us For Availability
24
WCI K5267103 WCI K5267103 Contact Us For Availability
24
CHANNEL ASSY (COMPLETE W/ROLLER & STUD) WCI K1311514 Contact Us For Availability
25
BEZEL WCI K1166856 Contact Us For Availability
25
SPRING WCI K1302501 Contact Us For Availability
25
WCI Q410505 WCI Q410505 Contact Us For Availability
26
WCI K1167358 WCI K1167358 Contact Us For Availability
26
ROLLER KIT (2) WCI K1167752 Contact Us For Availability
26
WCI K5275904 WCI K5275904 Contact Us For Availability
27
ARM ASSY. WCI K1310065 Contact Us For Availability
27
GUSSET, LH WCI K5285804 Contact Us For Availability
28
GUSSET, RH WCI K5285802 Contact Us For Availability
29
LIGHT,SIGNAL (SURFACE UNIT 125V) WCI K1167857 Contact Us For Availability
29
WCI K5134501 WCI K5134501 Contact Us For Availability
30
WCI K5046401 WCI K5046401 Contact Us For Availability
30
RIVET WCI K1100773 Contact Us For Availability
30
WCI K1164540 WCI K1164540 Contact Us For Availability
31
WCI K1164566 WCI K1164566 Contact Us For Availability
31
WCI K5025802 WCI K5025802 Contact Us For Availability
32
WCI K5025001 WCI K5025001 Contact Us For Availability
32
RETAINER WCI K1310049 Contact Us For Availability
33
WCI K5025201 WCI K5025201 Contact Us For Availability
33
WASHER, PADDED (3) WCI K1313226 Contact Us For Availability
34
WCI K5030401 WCI K5030401 Contact Us For Availability
34
SCREW WCI K1164309 Contact Us For Availability
35
PLUG BUTTON WCI KGM142025 Contact Us For Availability
36
WCI K5327901 WCI K5327901 Contact Us For Availability
36
WCI K5024701 WCI K5024701 Contact Us For Availability
38
WCI K5033501 WCI K5033501 Contact Us For Availability
38
WCI Q63749 WCI Q63749 Contact Us For Availability
39
RETAINING WIRE WCI K1325529 Contact Us For Availability
40
WCI K5030702 WCI K5030702 Contact Us For Availability
40
WCI K1326628 WCI K1326628 Contact Us For Availability
41
WCI K1326527 WCI K1326527 Contact Us For Availability
42
KNOB (6) WCI K5156302 Contact Us For Availability
42
WCI K1325630 WCI K1325630 Contact Us For Availability
43
LENS (2) WCI K1322678 Contact Us For Availability
43
SCREW WCI K1164479 Contact Us For Availability
45
SCREW WCI K1313060 Contact Us For Availability
45
WCI K1315106 WCI K1315106 Contact Us For Availability
46
LIGHT WCI K1313090 Contact Us For Availability
46
WCI K5276502 WCI K5276502 Contact Us For Availability
47
SWITCH, OV. LT. WCI K5051801 Contact Us For Availability
47
BRACKET THERM. BULB WCI K1311369 Contact Us For Availability
48
WCI K5051701 WCI K5051701 Contact Us For Availability
49
NUT, FLAT HEX WCI Q501442 Contact Us For Availability
49
CHANNEL, OVEN SUPPORT WCI K1323561 Contact Us For Availability
50
SCREW WCI K5022101 Contact Us For Availability
51
WCI K5033301 WCI K5033301 Contact Us For Availability
51
WCI K5066901 WCI K5066901 Contact Us For Availability
52
VENT TUBE WCI K5055001 Contact Us For Availability
53
INSULATON, WRAP WCI K1311331 Contact Us For Availability
54
WCI KGM142017 WCI KGM142017 Contact Us For Availability
55
ROD WCI K1315232 Contact Us For Availability
× ![]()
