Model Electrolux KF650GDF1 RANGE – Common Parts & Diagrams
02 - BACKGUARD
03 - TOP, DRAWER

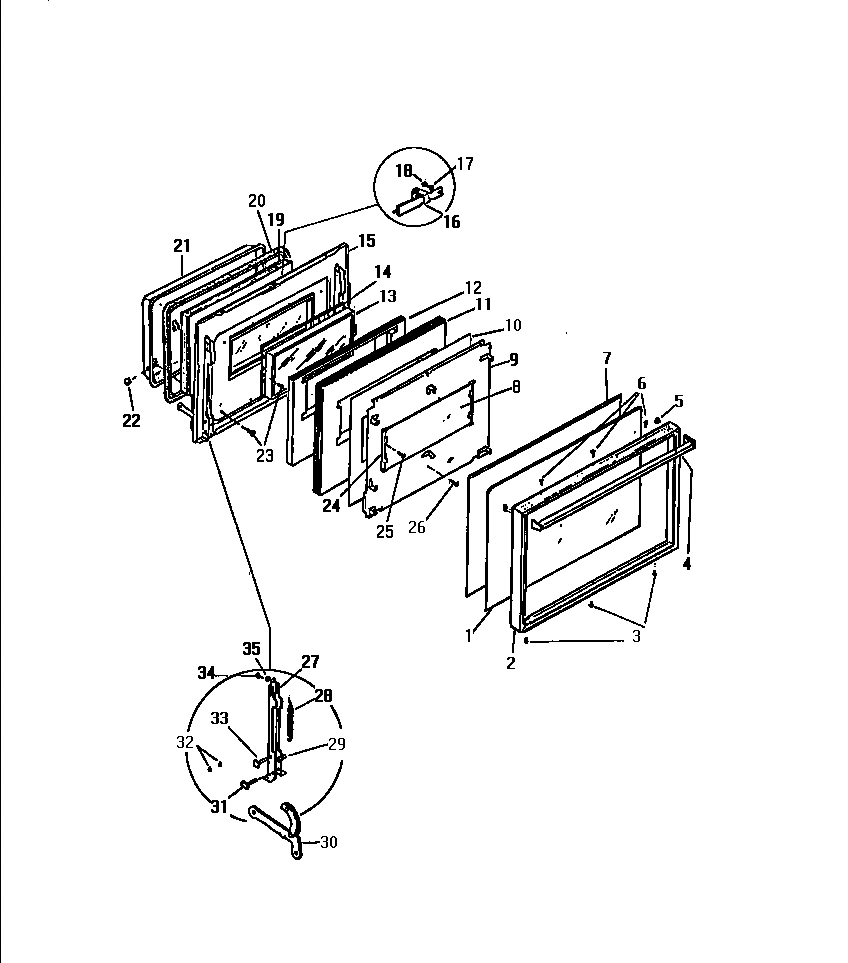

04 - DOOR

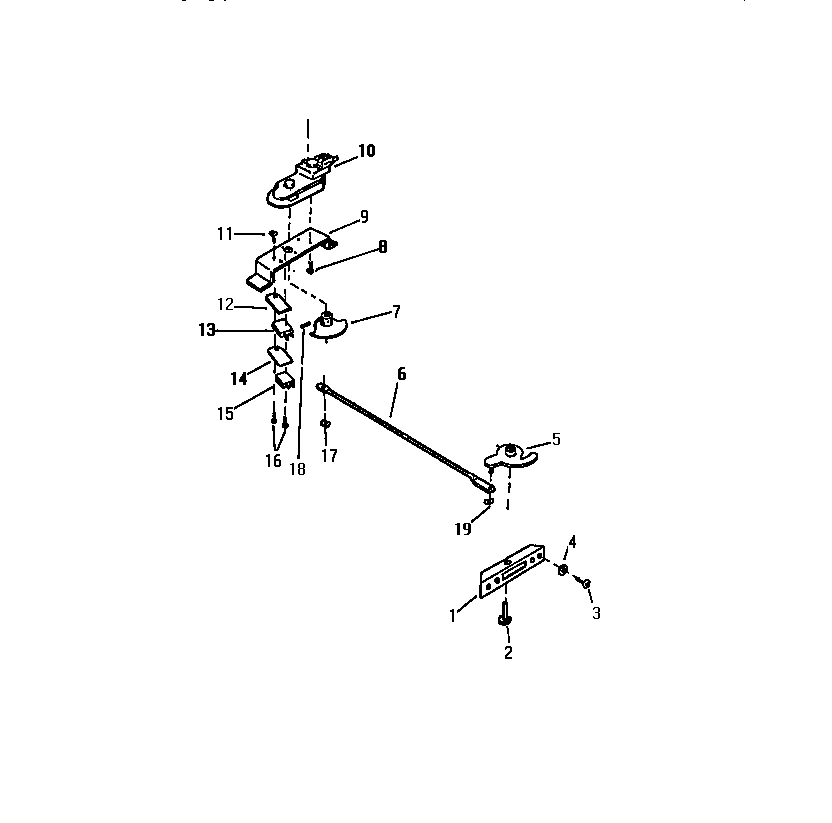

05 - DOOR LATCH ASSEMBLY
06 - BODY, SIDE PANELS
Common parts from model Electrolux KF650GDF1 RANGE
1
WCI K1324562 WCI K1324562 Contact Us For Availability
1
WCI K1325097 WCI K1325097 Contact Us For Availability
1
GLASS, OUTER WCI K5027201 Contact Us For Availability
1
WCI K1324830 WCI K1324830 Contact Us For Availability
2
SCREW WCI K5104301 Contact Us For Availability
2
FRAME WCI K5027101 Contact Us For Availability
2
AXLE, LATCH WCI K5038501 Contact Us For Availability
3
GLASS WCI K1167584 Contact Us For Availability
3
WCI K1164550 WCI K1164550 Contact Us For Availability
3
HANDLE WCI K5030201 Contact Us For Availability
3
RACK WCI K1311570 Contact Us For Availability
4
KNOB TIMER (3) WCI K1167676 Contact Us For Availability
4
HANDLE ASSEMBLY, (COMPLETE W/ STANCHIONS) WCI K5026601 Contact Us For Availability
4
WCI K1317972 WCI K1317972 Contact Us For Availability
5
WCI K5057501 WCI K5057501 Contact Us For Availability
5
DRAWER WCI K1324095 Contact Us For Availability
5
SCREW (4) WCI K5046501 Contact Us For Availability
5
LATCH WCI K5260201 Contact Us For Availability
5
WCI K5133401 WCI K5133401 Contact Us For Availability
6
WCI K5067801 WCI K5067801 Contact Us For Availability
6
WCI K1317813 WCI K1317813 Contact Us For Availability
6
HANGER WCI K1314456 Contact Us For Availability
7
WCI K5296301 WCI K5296301 Contact Us For Availability
7
WCI K5024212 WCI K5024212 Contact Us For Availability
7
WCI K5030801 WCI K5030801 Contact Us For Availability
7
CAM WCI K1325071 Contact Us For Availability
8
TIMER COMPLETE WCI K5036801 Contact Us For Availability
8
WCI K1317924 WCI K1317924 Contact Us For Availability
8
SCREW WCI K5157101 Contact Us For Availability
9
LIGHT SIGNAL (CLEAN 250V) WCI K5046101 Contact Us For Availability
9
WCI K1323173 WCI K1323173 Contact Us For Availability
9
SUPPORT WCI K1324263 Contact Us For Availability
9
WCI K1313230 WCI K1313230 Contact Us For Availability
10
WCI K1318825 WCI K1318825 Contact Us For Availability
10
WCI K1318885 WCI K1318885 Contact Us For Availability
10
WCI K1317973 WCI K1317973 Contact Us For Availability
11
WCI K1322652 WCI K1322652 Contact Us For Availability
12
WCI K1322651 WCI K1322651 Contact Us For Availability
12
WCI K1315121 WCI K1315121 Contact Us For Availability
13
WCI K5024901 WCI K5024901 Contact Us For Availability
13
WCI K1322068 WCI K1322068 Contact Us For Availability
13
SWITCH, UPPER LIMIT WCI K1315370 Contact Us For Availability
13
COVER WCI K1303601 Contact Us For Availability
14
WCI K5297501 WCI K5297501 Contact Us For Availability
14
WCI K1322069 WCI K1322069 Contact Us For Availability
14
INSULATOR WCI K1308690 Contact Us For Availability
14
WCI K1164563 WCI K1164563 Contact Us For Availability
15
GUIDE WCI K1324091 Contact Us For Availability
15
WCI K1324721 WCI K1324721 Contact Us For Availability
15
SWITCH, LOWER LIMIT WCI K1167190 Contact Us For Availability
16
WCI K5025202 WCI K5025202 Contact Us For Availability
16
SCREW WCI K5022201 Contact Us For Availability
16
STRIKE ASSEMBLY WCI K1323556 Contact Us For Availability
16
SCREW WCI K1164502 Contact Us For Availability
17
WCI K5269902 WCI K5269902 Contact Us For Availability
18
PIN WCI KGM455105 Contact Us For Availability
19
WCI K5030402 WCI K5030402 Contact Us For Availability
19
INSULATION WCI K1322622 Contact Us For Availability
19
PUSH NUT WCI K1164424 Contact Us For Availability
20
NUT (3) WCI K5036602 Contact Us For Availability
20
WCI K1323811 WCI K1323811 Contact Us For Availability
20
WCI Q52613 WCI Q52613 Contact Us For Availability
21
WCI K1323752 WCI K1323752 Contact Us For Availability
21
END PANEL, LH, COFFEE WCI K5024606 Contact Us For Availability
22
WCI K5033502 WCI K5033502 Contact Us For Availability
22
PLUG BUTTON (2) WCI KGM142001 Contact Us For Availability
22
GUSSET, LH WCI K1325114 Contact Us For Availability
23
WCI Q410505 WCI Q410505 Contact Us For Availability
24
RETAINER, GLASS (2) WCI K1317628 Contact Us For Availability
25
NUT, FLAT HEX WCI Q501442 Contact Us For Availability
25
BRACKET, GROUND WCI K1145190 Contact Us For Availability
26
WCI K5051701 WCI K5051701 Contact Us For Availability
26
SCREW WCI K1164557 Contact Us For Availability
27
CHANNEL ASSEMBLY (COMPLETE W/ROLLER & STUD) WCI K1311514 Contact Us For Availability
27
WASHER (6) WCI Q402503 Contact Us For Availability
28
SPRING WCI K1302501 Contact Us For Availability
28
NUT (6) WCI Q401002 Contact Us For Availability
29
ROLLER KIT (2) WCI K1167752 Contact Us For Availability
29
LOCK WASHER (3) WCI Q500411 Contact Us For Availability
30
KNOB (6) WCI K5156302 Contact Us For Availability
30
ARM ASSEMBLY WCI K1310065 Contact Us For Availability
31
SCREW WCI K1313060 Contact Us For Availability
31
COVER, BACKGUARD WCI K1315140 Contact Us For Availability
32
LIGHT WCI K1313090 Contact Us For Availability
33
WCI K5051801 WCI K5051801 Contact Us For Availability
33
RIVET WCI K1100773 Contact Us For Availability
33
TERMINAL BLOCK KIT (INCLUDES NUTS, SCREWS, WA WCI Q134264 Contact Us For Availability
34
LENS (2) WCI K1322678 Contact Us For Availability
34
COVER, WIRE WCI K1315110 Contact Us For Availability
35
WCI K5030702 WCI K5030702 Contact Us For Availability
35
WCI K1317817 WCI K1317817 Contact Us For Availability
36
WCI K5033301 WCI K5033301 Contact Us For Availability
36
GUSSET, RH WCI K1325113 Contact Us For Availability
37
WCI K5033501 WCI K5033501 Contact Us For Availability
37
ROD WCI K1315232 Contact Us For Availability
38
SCREW WCI K5022101 Contact Us For Availability
38
INSULATION, WRAP WCI K1311331 Contact Us For Availability
39
WCI K5031502 WCI K5031502 Contact Us For Availability
40
WCI KGM142017 WCI KGM142017 Contact Us For Availability
41
WCI K5030401 WCI K5030401 Contact Us For Availability
41
VENT TUBE WCI K5055001 Contact Us For Availability
42
WCI K5025201 WCI K5025201 Contact Us For Availability
42
INSULATION, BACK WCI K5056901 Contact Us For Availability
43
BRACKET HINGE MOUNTING WCI K5025001 Contact Us For Availability
44
WCI K1164566 WCI K1164566 Contact Us For Availability
45
WCI K5046401 WCI K5046401 Contact Us For Availability
45
CHANEL, OVEN SUPPORT WCI K1323561 Contact Us For Availability
46
LIGHT,SIGNAL (SURFACE UNIT 125V) WCI K1167857 Contact Us For Availability
46
BRACKET THERM. BULB WCI K1311369 Contact Us For Availability
47
WCI K1317644 WCI K1317644 Contact Us For Availability
48
CHANNEL, OVEN SUPPORT WCI K1315108 Contact Us For Availability
49
LIGHT SIGNAL (OVEN 250V) WCI K1167858 Contact Us For Availability
50
BEZEL WCI K1166856 Contact Us For Availability
51
WCI K5267103 WCI K5267103 Contact Us For Availability
51
WCI K1325530 WCI K1325530 Contact Us For Availability
52
120K RESISTOR (BROWN, RED, YELLOW, GOLD BANDS WCI K5044001 Contact Us For Availability
52A
51K RESISTOR (GREEN, BROWN, ORANGE, GOLD BAND WCI K5044101 Contact Us For Availability
52B
39K RESISTOR (ORANGE, WHITE, ORANGE, GOLD BAN WCI K5044102 Contact Us For Availability
54
RETAINING WIRE WCI K1325529 Contact Us For Availability
55
WCI Q63749 WCI Q63749 Contact Us For Availability
57
WCI K5024701 WCI K5024701 Contact Us For Availability
58
PLUG BUTTON WCI KGM142025 Contact Us For Availability
59
SCREW WCI K1164309 Contact Us For Availability
60
WASHER, PADDED (3) WCI K1313226 Contact Us For Availability
61
RETAINER WCI K1310049 Contact Us For Availability
63
PUSH ROD WCI K1323421 Contact Us For Availability
64
END CAP, ROD WCI K1322682 Contact Us For Availability
65
SWITCH, OVEN LIGHT WCI K1310199 Contact Us For Availability
66
WCI K5032101 WCI K5032101 Contact Us For Availability
67
SCREW (3) WCI Q414002 Contact Us For Availability
68
WCI Q273020 WCI Q273020 Contact Us For Availability
69
WCI Q62643 WCI Q62643 Contact Us For Availability
70
WCI Q208505 WCI Q208505 Contact Us For Availability
71
WCI Q81559 WCI Q81559 Contact Us For Availability
72
WCI Q281142 WCI Q281142 Contact Us For Availability
73
GASKET (1) WCI Q22652 Contact Us For Availability
74
SCREW (4) WCI K1164479 Contact Us For Availability
75
WCI Q210771 WCI Q210771 Contact Us For Availability
76
WCI Q160978 WCI Q160978 Contact Us For Availability
77
END PANEL, RH, COFFEE WCI K5024605 Contact Us For Availability
78
BUMPER WCI K5106901 Contact Us For Availability
79
RETAINER, INSULATION WCI K1325388 Contact Us For Availability
80
WCI K5269901 WCI K5269901 Contact Us For Availability
81
SPACER, RAIL WCI K1324860 Contact Us For Availability
82
GUIDE WCI K1315216 Contact Us For Availability
83
LEG WCI K1322905 Contact Us For Availability
84
SCREW WCI K1164569 Contact Us For Availability
85
WCI K5025802 WCI K5025802 Contact Us For Availability
× ![]()
