Model Electrolux KF590HDW2 RANGE – Common Parts & Diagrams

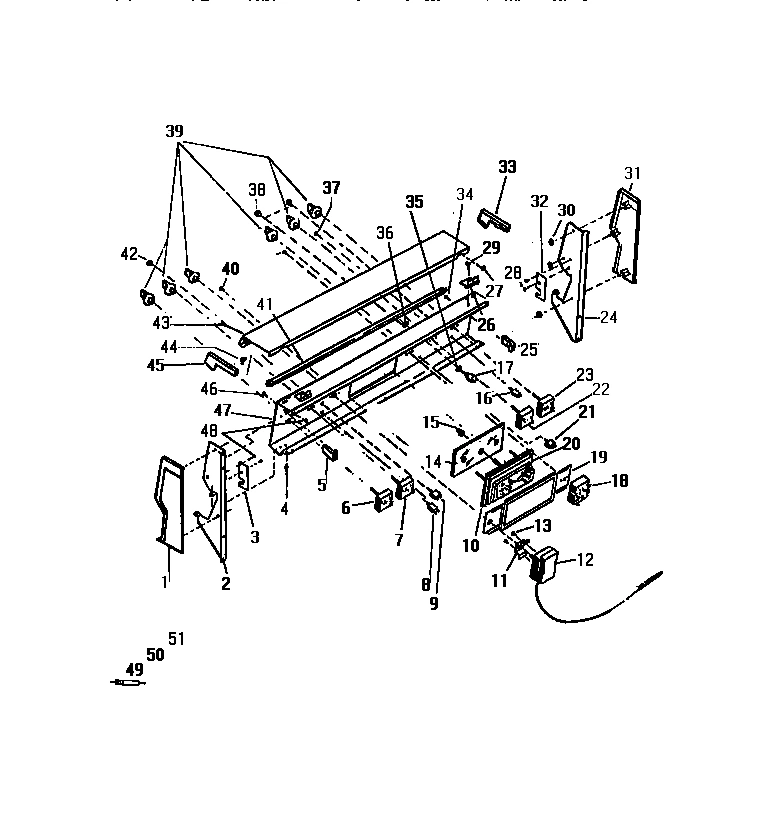

02 - BACKGUARD

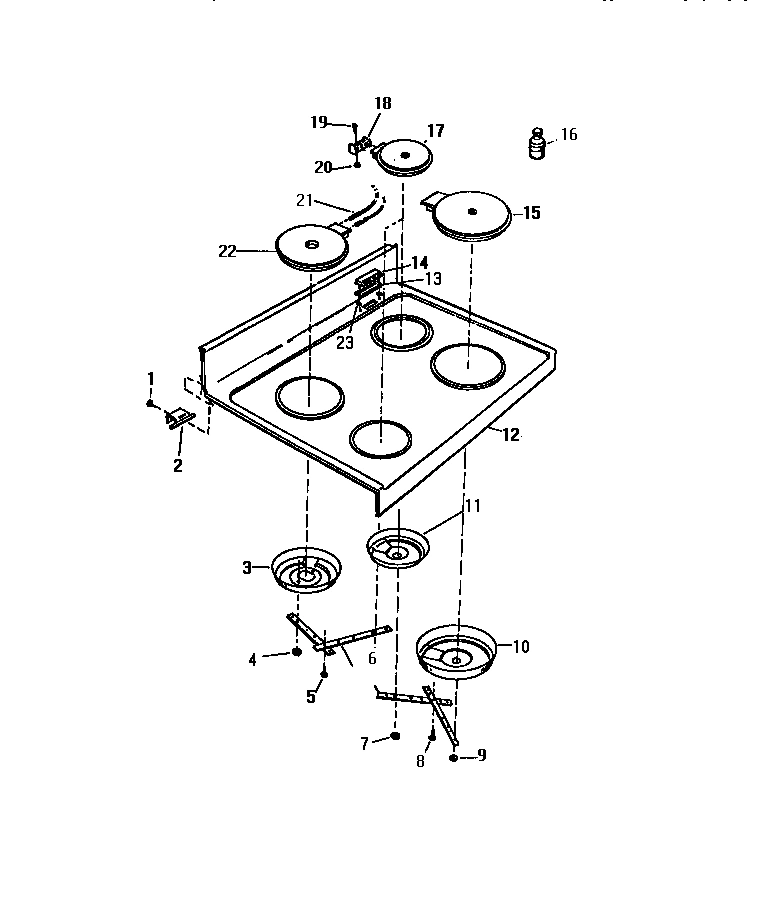

03 - TOP

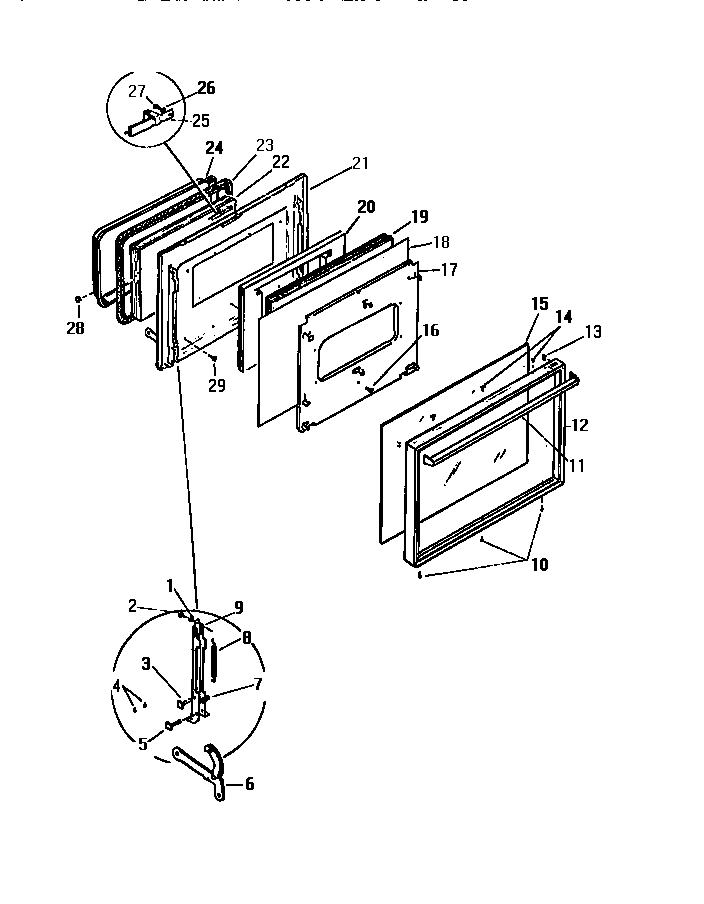

04 - DOOR

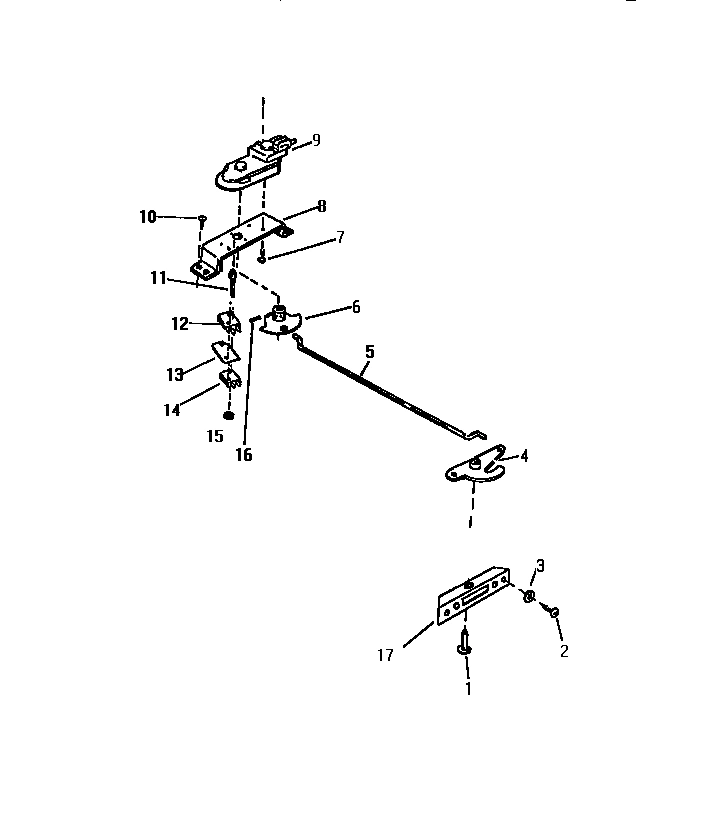

05 - DOOR LATCH ASSEMBLY

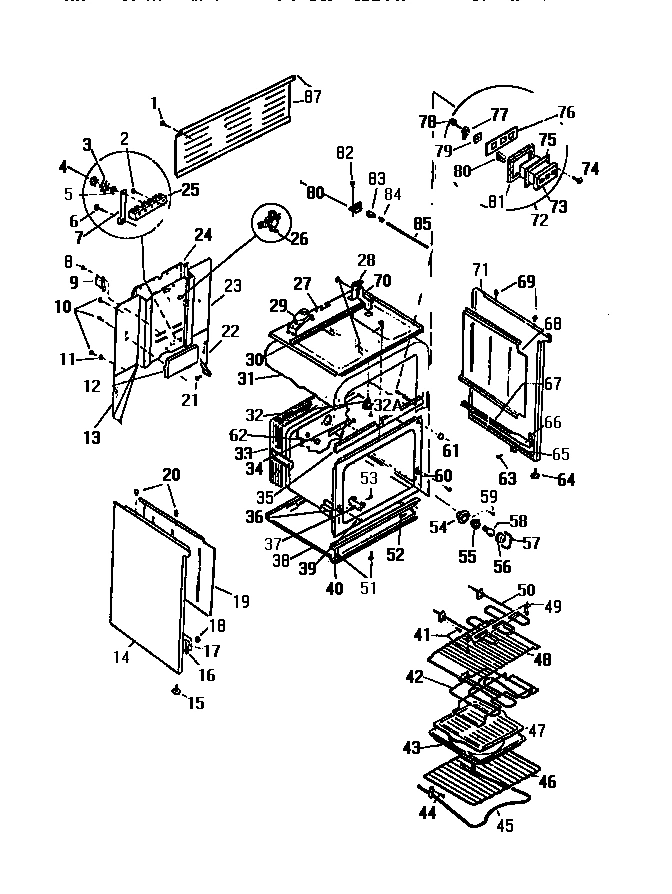

06 - BODY, SIDE PANELS

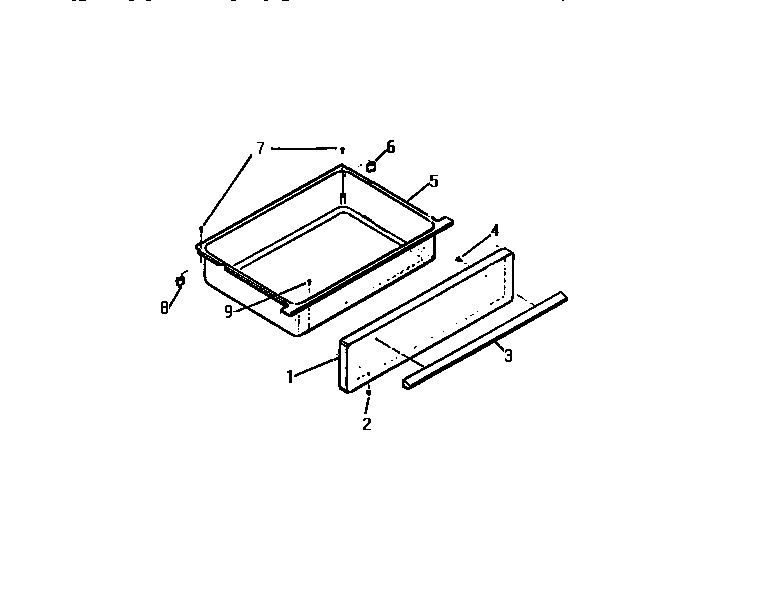

07 - DRAWER
Common parts from model Electrolux KF590HDW2 RANGE
1
WCI K5030401 WCI K5030401 Contact Us For Availability
1
AXLE, LATCH WCI K5038501 Contact Us For Availability
1
WCI K1325096 WCI K1325096 Contact Us For Availability
2
WCI K5025201 WCI K5025201 Contact Us For Availability
2
WCI K5024901 WCI K5024901 Contact Us For Availability
3
SHIELD, AUTO HTR WCI K5129701 Contact Us For Availability
3
RIVET WCI K1100773 Contact Us For Availability
3
WASHER WCI K1313226 Contact Us For Availability
3
LOCK WASHER (3) WCI Q500411 Contact Us For Availability
3
HANDLE WCI K5030201 Contact Us For Availability
4
WCI K1164566 WCI K1164566 Contact Us For Availability
4
WCI K5129901 WCI K5129901 Contact Us For Availability
4
WCI K5260202 WCI K5260202 Contact Us For Availability
4
NUT (6) WCI Q401002 Contact Us For Availability
5
WCI K5271201 WCI K5271201 Contact Us For Availability
5
WASHER (6) WCI Q402503 Contact Us For Availability
5
DRAWER WCI K1324095 Contact Us For Availability
6
STRAP (4) WCI K5129801 Contact Us For Availability
6
ARM ASSEMBLY WCI K1310065 Contact Us For Availability
6
CAM WCI K5151605 Contact Us For Availability
7
ROLLER KIT (PKG. OF 2) WCI K1167752 Contact Us For Availability
7
WCI K5151604 WCI K5151604 Contact Us For Availability
7
BRACKET, GROUND WCI K1145190 Contact Us For Availability
8
SPRING WCI K1302501 Contact Us For Availability
8
SUPPORT WCI K5151602 Contact Us For Availability
8
GUIDE WCI K1324091 Contact Us For Availability
9
LIGHT, SIGNAL (LOCK 250V) WCI K5046101 Contact Us For Availability
9
NUT, 6 MM WCI K5130001 Contact Us For Availability
9
CHANNEL ASSEMBLY (COMPLETE W/ROLLER & STUD) WCI K1311514 Contact Us For Availability
9
WCI K5151603 WCI K5151603 Contact Us For Availability
9
WCI K5290501 WCI K5290501 Contact Us For Availability
9
SCREW WCI K5022201 Contact Us For Availability
10
BEZEL WCI K1166856 Contact Us For Availability
10
SHIELD, LARGE WCI K5129602 Contact Us For Availability
11
WCI K5267103 WCI K5267103 Contact Us For Availability
11
SHIELD, SMALL (2) WCI K5134101 Contact Us For Availability
11
HANDLE ASSEMBLY W/ STANCHIONS WCI K5026601 Contact Us For Availability
11
WCI K5151610 WCI K5151610 Contact Us For Availability
11
WASHERK5134501 WCI Q410505 Contact Us For Availability
12
WCI K1324562 WCI K1324562 Contact Us For Availability
12
WCI K5273501 WCI K5273501 Contact Us For Availability
12
FRAME WCI K5276801 Contact Us For Availability
12
SWITCH, UPPER WCI K1315370 Contact Us For Availability
12
CHANNEL , AIR 1 ONLY WCI K5134501 Contact Us For Availability
13
SCREW WCI K5104301 Contact Us For Availability
13
GASKET WCI K5130801 Contact Us For Availability
13
SCREW (4) WCI K5046501 Contact Us For Availability
13
INSULATOR WCI K1308690 Contact Us For Availability
13
GUSSET, LH WCI K5285804 Contact Us For Availability
14
GLASS WCI K1167678 Contact Us For Availability
14
TRIM, VENT WCI K5130901 Contact Us For Availability
14
SWITCH, LOWER WCI K1167190 Contact Us For Availability
14
END PANEL, LH, WHITE WCI K5024602 Contact Us For Availability
15
KNOB TIMER (3) WCI K1167676 Contact Us For Availability
15
HEATER, LARGE WCI K5134001 Contact Us For Availability
15
GLASS, OUTER WCI K5027202 Contact Us For Availability
16
LIGHT, SIGNAL (AUTOMATIC HTR) WCI K1167858 Contact Us For Availability
16
POLISH, SURACE HTRS WCI K5155701 Contact Us For Availability
16
SCREW WCI K1164557 Contact Us For Availability
16
PIN WCI K5151606 Contact Us For Availability
17
WCI K5057501 WCI K5057501 Contact Us For Availability
17
HEATER, SMALL 2 REQ. WCI K5129301 Contact Us For Availability
17
WCI K5276901 WCI K5276901 Contact Us For Availability
17
WCI K1324830 WCI K1324830 Contact Us For Availability
17
WCI K5269902 WCI K5269902 Contact Us For Availability
18
WCI K5328201 WCI K5328201 Contact Us For Availability
18
FOIL, ALUMINUM WCI K1313020 Contact Us For Availability
19
WCI K5296301 WCI K5296301 Contact Us For Availability
19
WCI K1167978 WCI K1167978 Contact Us For Availability
19
WCI K1322652 WCI K1322652 Contact Us For Availability
20
WCI K5033001 WCI K5033001 Contact Us For Availability
20
WCI K1167977 WCI K1167977 Contact Us For Availability
20
INSULATION WCI K1322651 Contact Us For Availability
21
LIGHT,SIGNAL (SURFACE UNIT 125V) WCI K1167857 Contact Us For Availability
21
WCI K5000202 WCI K5000202 Contact Us For Availability
21
WCI K1324721 WCI K1324721 Contact Us For Availability
22
SWITCH, HTR (AUTOMATIC) WCI K5130501 Contact Us For Availability
22
HEATER, AUTO HTR WCI K5129501 Contact Us For Availability
22
INSULATION WCI K1322622 Contact Us For Availability
22
GUSSET, RH WCI K5285802 Contact Us For Availability
23
CLIP (2) WCI K1164567 Contact Us For Availability
23
GASKET WCI K1323811 Contact Us For Availability
23
WCI K5275904 WCI K5275904 Contact Us For Availability
24
WCI K5025202 WCI K5025202 Contact Us For Availability
24
WCI K1322616 WCI K1322616 Contact Us For Availability
24
COVER, WIRE WCI K5276202 Contact Us For Availability
25
WCI K5046401 WCI K5046401 Contact Us For Availability
25
STRIKE ASSEMBLY WCI K1323556 Contact Us For Availability
25
TERMINAL BLOCK KIT (INCLUDES NUTS, SCREWS, WA WCI Q134264 Contact Us For Availability
26
WCI K5297501 WCI K5297501 Contact Us For Availability
26
WCI K5328001 WCI K5328001 Contact Us For Availability
27
WCI K5025704 WCI K5025704 Contact Us For Availability
28
PLUG BUTTON (2) WCI KGM142001 Contact Us For Availability
28
WCI K5130701 WCI K5130701 Contact Us For Availability
29
WCI 000000 WCI 000000 Contact Us For Availability
30
NUT (3) WCI K5036602 Contact Us For Availability
30
WCI K5303702 WCI K5303702 Contact Us For Availability
31
WCI K5030402 WCI K5030402 Contact Us For Availability
31
INSULATION, WRAP WCI K1311331 Contact Us For Availability
32
BRACKET HINGE MOUNTING WCI K5025001 Contact Us For Availability
32
WCI K5055201 WCI K5055201 Contact Us For Availability
32A
SCREW WCI K1164309 Contact Us For Availability
33
WCI K5033502 WCI K5033502 Contact Us For Availability
33
WCI K5053901 WCI K5053901 Contact Us For Availability
35
NUT, FLAT HEX WCI Q501442 Contact Us For Availability
35
WCI K1323502 WCI K1323502 Contact Us For Availability
36
WCI Q501444 WCI Q501444 Contact Us For Availability
36
WCI K5319101 WCI K5319101 Contact Us For Availability
37
BRACKET THERM. BULB WCI K1311369 Contact Us For Availability
38
WCI K5276502 WCI K5276502 Contact Us For Availability
39
WCI K1164550 WCI K1164550 Contact Us For Availability
39
KNOB (6) WCI K5156302 Contact Us For Availability
40
SCREW WCI K1313060 Contact Us For Availability
40
CHANNEL, OVEN SUPPORT WCI K1315108 Contact Us For Availability
41
LIGHT WCI K1313090 Contact Us For Availability
42
LENS WCI K1322678 Contact Us For Availability
42
WCI K1313230 WCI K1313230 Contact Us For Availability
43
WCI K5030702 WCI K5030702 Contact Us For Availability
43
WCI K1317973 WCI K1317973 Contact Us For Availability
44
WCI K5033301 WCI K5033301 Contact Us For Availability
45
WCI K5033501 WCI K5033501 Contact Us For Availability
46
SCREW WCI K5022101 Contact Us For Availability
46
RACK WCI K1311570 Contact Us For Availability
47
WCI K5327701 WCI K5327701 Contact Us For Availability
47
WCI K1317972 WCI K1317972 Contact Us For Availability
48
WCI K5133401 WCI K5133401 Contact Us For Availability
49
120K RESISTOR (BROWN, RED, YELLOW, GOLD BANDS WCI K5044001 Contact Us For Availability
49
HANGER WCI K1314456 Contact Us For Availability
50
51K RESISTOR (GREEN, BROWN, ORANGE, GOLD BAND WCI K5044101 Contact Us For Availability
51
39K RESISTOR (ORANGE, WHITE, ORANGE, GOLD BAN WCI K5044102 Contact Us For Availability
54
WCI K1325530 WCI K1325530 Contact Us For Availability
57
RETAINING WIRE WCI K1325529 Contact Us For Availability
58
WCI Q63749 WCI Q63749 Contact Us For Availability
60
WCI K5024701 WCI K5024701 Contact Us For Availability
61
PLUG BUTTON WCI KGM142025 Contact Us For Availability
62
WCI KGM142017 WCI KGM142017 Contact Us For Availability
63
SCREW WCI K1164569 Contact Us For Availability
64
LEG WCI K1322905 Contact Us For Availability
65
GUIDE WCI K1315216 Contact Us For Availability
66
SPACER, RAIL WCI K1324860 Contact Us For Availability
67
WCI K5269901 WCI K5269901 Contact Us For Availability
68
RETAINER, INSULATION WCI K1325388 Contact Us For Availability
69
BUMPER WCI K5106901 Contact Us For Availability
70
VENT TUBE, UPPER WCI K5130601 Contact Us For Availability
71
END PANEL, RH, WHITE WCI K5024601 Contact Us For Availability
72
WCI Q160978 WCI Q160978 Contact Us For Availability
73
BLOCK WCI Q210771 Contact Us For Availability
74
SCREW (4) WCI K1164479 Contact Us For Availability
75
WCI Q22652 WCI Q22652 Contact Us For Availability
76
WCI Q291142 WCI Q291142 Contact Us For Availability
77
WCI Q81559 WCI Q81559 Contact Us For Availability
78
SCREW (3) WCI Q414002 Contact Us For Availability
79
WCI Q273020 WCI Q273020 Contact Us For Availability
80
WCI Q62643 WCI Q62643 Contact Us For Availability
81
WCI Q208505 WCI Q208505 Contact Us For Availability
82
WCI K5351301 WCI K5351301 Contact Us For Availability
84
WCI K5328101 WCI K5328101 Contact Us For Availability
85
END CAP, ROD WCI K1322682 Contact Us For Availability
86
PUSH ROD WCI K1323421 Contact Us For Availability
87
COVER, BACKGUARD WCI K1315140 Contact Us For Availability
× ![]()
