Model Electrolux KF590HDH0 RANGE – Common Parts & Diagrams

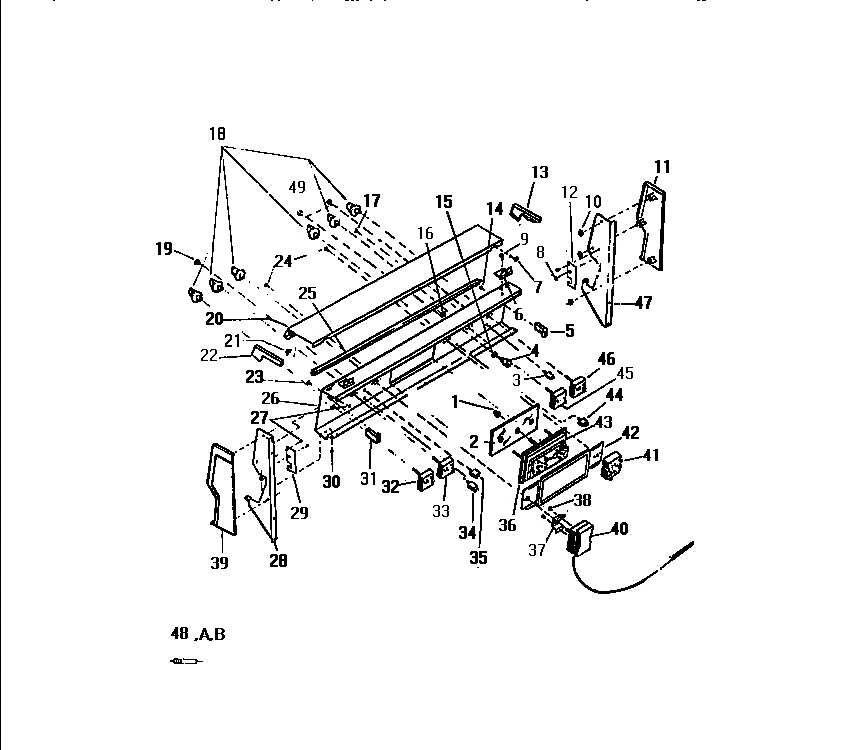

02 - BACKGUARD

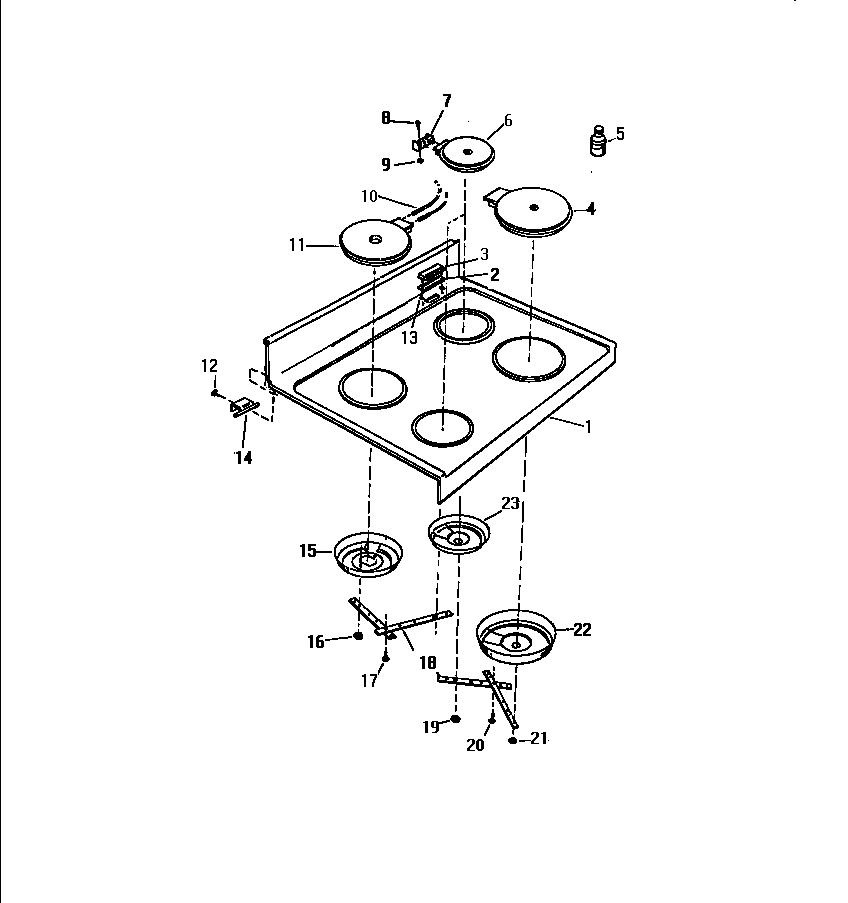

03 - TOP, DRAWER

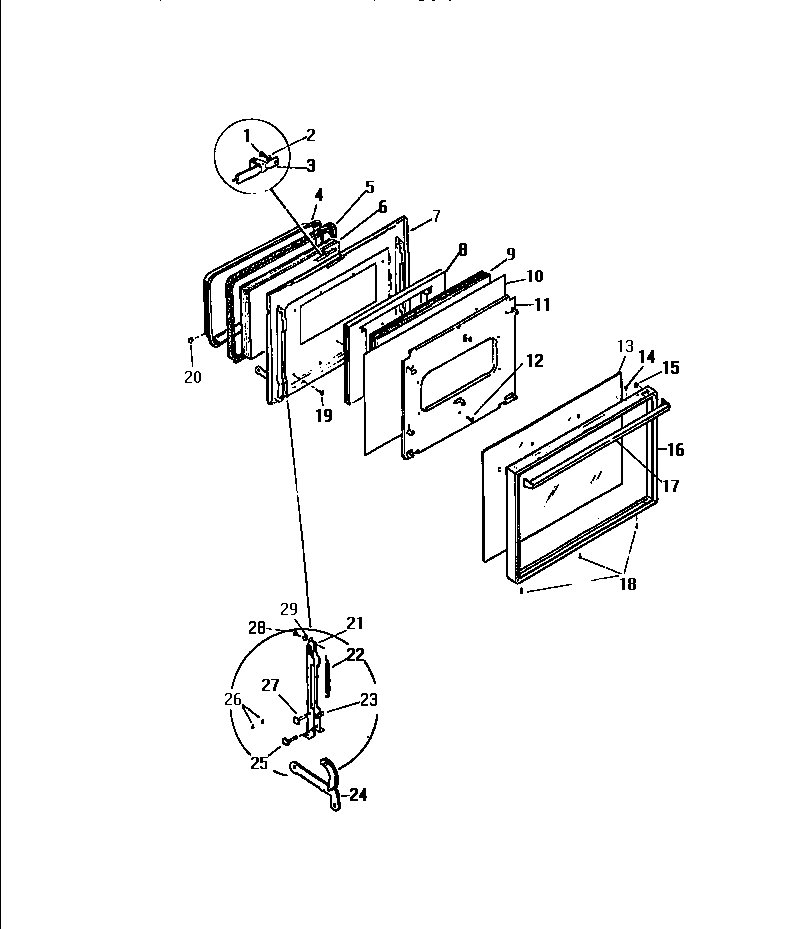

04 - DOOR

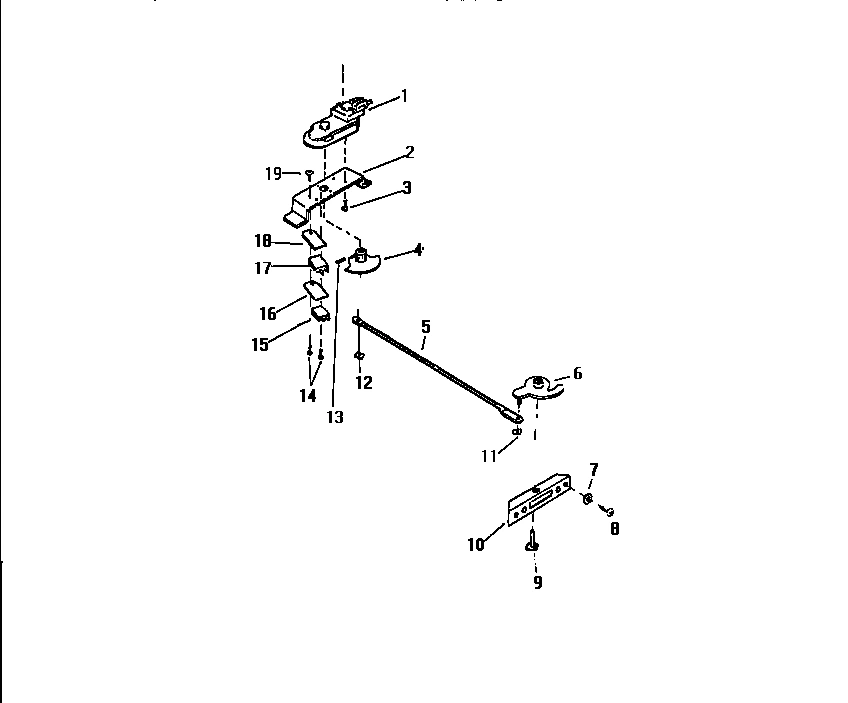

05 - DOOR LATCH ASSEMBLY

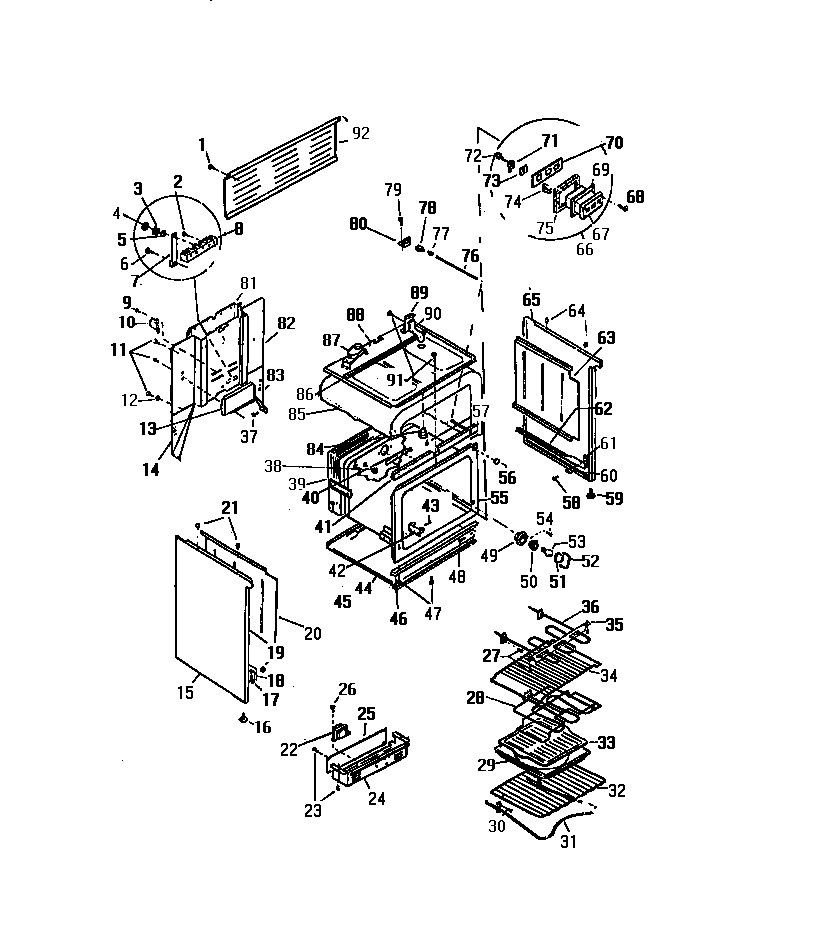

07 - BODY & RACKS

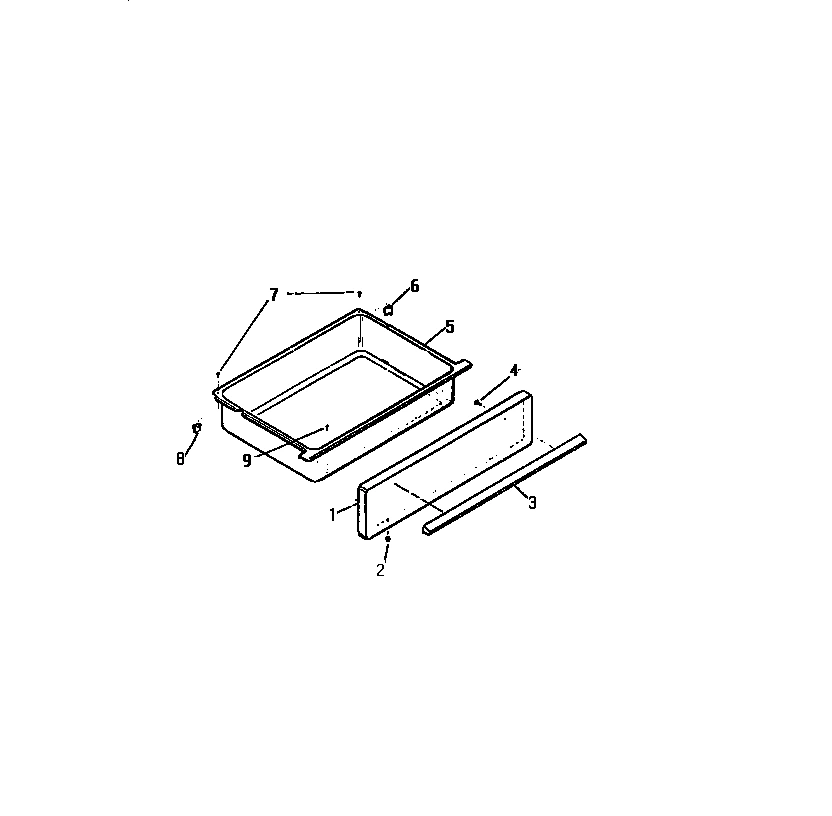

08 - DRAWERR
Common parts from model Electrolux KF590HDH0 RANGE
1
KNOB TIMER (3) WCI K1167676 Contact Us For Availability
1
WCI K5273504 WCI K5273504 Contact Us For Availability
1
WCI K1318885 WCI K1318885 Contact Us For Availability
1
WCI K1325099 WCI K1325099 Contact Us For Availability
2
GLASS WCI K1167678 Contact Us For Availability
2
GASKET WCI K5130801 Contact Us For Availability
2
SUPPORT WCI K1324263 Contact Us For Availability
3
TRIM, VENT WCI K5130901 Contact Us For Availability
3
STRIKE ASSY. WCI K1323556 Contact Us For Availability
3
SCREW WCI K5157101 Contact Us For Availability
3
LOCK WASHER (3) WCI Q500411 Contact Us For Availability
3
HANDLE WCI K5030201 Contact Us For Availability
4
WCI K5057501 WCI K5057501 Contact Us For Availability
4
HEATER, LARGE WCI K5134001 Contact Us For Availability
4
WCI K1322616 WCI K1322616 Contact Us For Availability
4
CAM WCI K1325071 Contact Us For Availability
4
NUT (6) WCI Q401002 Contact Us For Availability
5
POLISH, SURFACE HEATERS WCI K5155701 Contact Us For Availability
5
GASKET WCI K1323811 Contact Us For Availability
5
WCI K1317813 WCI K1317813 Contact Us For Availability
5
WASHER (6) WCI Q402503 Contact Us For Availability
5
DRAWER WCI K1324095 Contact Us For Availability
6
WCI K5297501 WCI K5297501 Contact Us For Availability
6
HEATER, SMALL (2) WCI K5129301 Contact Us For Availability
6
INSULATION WCI K1322622 Contact Us For Availability
6
LATCH WCI K5260201 Contact Us For Availability
7
WCI K1167979 WCI K1167979 Contact Us For Availability
7
WCI K1324721 WCI K1324721 Contact Us For Availability
7
WASHER, PADDED WCI K1313226 Contact Us For Availability
7
BRACKET, GROUND WCI K1145190 Contact Us For Availability
8
WCI K1164550 WCI K1164550 Contact Us For Availability
8
WCI K1167978 WCI K1167978 Contact Us For Availability
8
INSULATION WCI K1322651 Contact Us For Availability
8
TERMINAL BLOCK KIT (INCLUDES NUTS, SCREWS, WA WCI Q134264 Contact Us For Availability
8
GUIDE WCI K1324091 Contact Us For Availability
9
WCI K1167977 WCI K1167977 Contact Us For Availability
9
WCI K1322652 WCI K1322652 Contact Us For Availability
9
AXLE, LATCH WCI K5038501 Contact Us For Availability
9
SCREW WCI K5022201 Contact Us For Availability
10
NUT (3) WCI K5036602 Contact Us For Availability
10
WCI K5000202 WCI K5000202 Contact Us For Availability
10
FOIL, ALUMINUM WCI K1313020 Contact Us For Availability
10
WCI K1324830 WCI K1324830 Contact Us For Availability
11
WCI K5030402 WCI K5030402 Contact Us For Availability
11
HEATER, AUTOMATIC WCI K5129501 Contact Us For Availability
11
WCI K1323173 WCI K1323173 Contact Us For Availability
12
SCREW WCI K1164557 Contact Us For Availability
12
PUSH NUT WCI K1164424 Contact Us For Availability
12
WCI Q410505 WCI Q410505 Contact Us For Availability
13
WCI K5033502 WCI K5033502 Contact Us For Availability
13
CLIP (2) WCI K1164567 Contact Us For Availability
13
GLASS, OUTER WCI K5027202 Contact Us For Availability
13
PIN WCI KGM455105 Contact Us For Availability
14
WCI K5024901 WCI K5024901 Contact Us For Availability
14
SCREW WCI K1164502 Contact Us For Availability
14
GUSSET, LH WCI K1325114 Contact Us For Availability
15
NUT, FLAT HEX WCI Q501442 Contact Us For Availability
15
SHIELD, AUTOMATIC HEATER WCI K5129701 Contact Us For Availability
15
SCREW (4) WCI K5046501 Contact Us For Availability
15
SWITCH, LOWER LIMIT WCI K1167190 Contact Us For Availability
15
END PANEL, LH, WHEAT WCI K5024610 Contact Us For Availability
16
WCI Q501444 WCI Q501444 Contact Us For Availability
16
WCI K5129901 WCI K5129901 Contact Us For Availability
16
FRAME WCI K5027101 Contact Us For Availability
17
HANDLE ASSY (W/STANCHIONS) WCI K5026601 Contact Us For Availability
17
SWITCH, UPPER LIMIT WCI K1315370 Contact Us For Availability
18
KNOB (6) WCI K5156302 Contact Us For Availability
18
STRAP (4) WCI K5129801 Contact Us For Availability
18
INSULATOR WCI K1308690 Contact Us For Availability
18
WCI K5269902 WCI K5269902 Contact Us For Availability
20
WCI K5030702 WCI K5030702 Contact Us For Availability
20
PLUG BUTTON (2) WCI KGM142001 Contact Us For Availability
21
WCI K5033301 WCI K5033301 Contact Us For Availability
21
NUT, 6 MM WCI K5130001 Contact Us For Availability
21
CHANNEL ASSY (COMPLETE W/ROLLER & STUD) WCI K1311514 Contact Us For Availability
22
WCI K5033501 WCI K5033501 Contact Us For Availability
22
SHIELD, LARGE WCI K5129602 Contact Us For Availability
22
SPRING WCI K1302501 Contact Us For Availability
22
WCI Q52613 WCI Q52613 Contact Us For Availability
23
SCREW WCI K5022101 Contact Us For Availability
23
SHIELD, SMALL (2) WCI K5134101 Contact Us For Availability
23
ROLLER KIT (2) WCI K1167752 Contact Us For Availability
24
SCREW WCI K1313060 Contact Us For Availability
24
ARM ASSY. WCI K1310065 Contact Us For Availability
24
WCI K1315121 WCI K1315121 Contact Us For Availability
25
LIGHT WCI K1313090 Contact Us For Availability
25
COVER WCI K1303601 Contact Us For Availability
26
WCI K5273302 WCI K5273302 Contact Us For Availability
26
WCI K1164563 WCI K1164563 Contact Us For Availability
27
RIVET WCI K1100773 Contact Us For Availability
28
WCI K5025201 WCI K5025201 Contact Us For Availability
28
WCI K1313230 WCI K1313230 Contact Us For Availability
29
BRACKET HINGE MOUNTING WCI K5025001 Contact Us For Availability
29
WCI K1317973 WCI K1317973 Contact Us For Availability
30
WCI K1164566 WCI K1164566 Contact Us For Availability
31
WCI K5046401 WCI K5046401 Contact Us For Availability
32
RACK WCI K1311570 Contact Us For Availability
33
WCI K1317972 WCI K1317972 Contact Us For Availability
34
LIGHT SIGNAL (OVEN 250V) WCI K1167858 Contact Us For Availability
34
WCI K5133401 WCI K5133401 Contact Us For Availability
35
LIGHT, SIGNAL (LOCK 250V) WCI K5046101 Contact Us For Availability
35
HANGER WCI K1314456 Contact Us For Availability
36
BEZEL WCI K1166856 Contact Us For Availability
37
WCI K5267103 WCI K5267103 Contact Us For Availability
38
SCREW WCI K5104301 Contact Us For Availability
38
WCI KGM142017 WCI KGM142017 Contact Us For Availability
39
WCI K5030401 WCI K5030401 Contact Us For Availability
39
INSULATION, BACK WCI K5056901 Contact Us For Availability
40
WCI K1324562 WCI K1324562 Contact Us For Availability
41
WCI K5067801 WCI K5067801 Contact Us For Availability
41
WCI K1323502 WCI K1323502 Contact Us For Availability
42
WCI K5296301 WCI K5296301 Contact Us For Availability
42
BRACKET THERM. BULB WCI K1311369 Contact Us For Availability
43
WCI K5033001 WCI K5033001 Contact Us For Availability
44
LIGHT,SIGNAL (SURFACE UNIT 125V) WCI K1167857 Contact Us For Availability
44
WCI K1317644 WCI K1317644 Contact Us For Availability
45
SWITCH, HTR (AUTOMATIC) WCI K5130501 Contact Us For Availability
46
CHANNEL, OVEN SUPPORT WCI K1315108 Contact Us For Availability
47
WCI K5025202 WCI K5025202 Contact Us For Availability
48
120K RESISTOR (BROWN, RED, YELLOW, GOLD BANDS WCI K5044001 Contact Us For Availability
48A
51K RESISTOR (GREEN, BROWN, ORANGE, GOLD BAND WCI K5044101 Contact Us For Availability
48B
39K RESISTOR (ORANGE, WHITE, ORANGE, GOLD BAN WCI K5044102 Contact Us For Availability
49
LENS WCI K1322678 Contact Us For Availability
49
WCI K1325530 WCI K1325530 Contact Us For Availability
52
RETAINING WIRE WCI K1325529 Contact Us For Availability
53
WCI Q63749 WCI Q63749 Contact Us For Availability
55
WCI K5024701 WCI K5024701 Contact Us For Availability
56
PLUG BUTTON WCI KGM142025 Contact Us For Availability
57
SCREW WCI K1164309 Contact Us For Availability
58
SCREW WCI K1164569 Contact Us For Availability
59
LEG WCI K1322905 Contact Us For Availability
60
GUIDE WCI K1315216 Contact Us For Availability
61
SPACER, RAIL WCI K1324860 Contact Us For Availability
62
WCI K5269901 WCI K5269901 Contact Us For Availability
63
RETAINER, INSULATION WCI K1325388 Contact Us For Availability
64
BUMPER WCI K5106901 Contact Us For Availability
65
END PANEL, RH, WHEAT WCI K5024609 Contact Us For Availability
66
WCI Q160978 WCI Q160978 Contact Us For Availability
67
BLOCK WCI Q210771 Contact Us For Availability
68
SCREW (4) WCI K1164479 Contact Us For Availability
69
WCI Q22652 WCI Q22652 Contact Us For Availability
70
WCI Q291142 WCI Q291142 Contact Us For Availability
71
WCI Q81559 WCI Q81559 Contact Us For Availability
72
SCREW (3) WCI Q414002 Contact Us For Availability
73
WCI Q273020 WCI Q273020 Contact Us For Availability
74
WCI Q62643 WCI Q62643 Contact Us For Availability
75
WCI Q208505 WCI Q208505 Contact Us For Availability
76
WCI K1322683 WCI K1322683 Contact Us For Availability
77
END CAP, ROD WCI K1322682 Contact Us For Availability
78
SWITCH, OVEN LIGHT WCI K1310199 Contact Us For Availability
80
BRACKET, DOOR LATCH SWITCH WCI K1311371 Contact Us For Availability
81
COVER, WIRE WCI K5276202 Contact Us For Availability
82
WCI K5275902 WCI K5275902 Contact Us For Availability
83
GUSSET, RH WCI K1325113 Contact Us For Availability
84
WCI K5055201 WCI K5055201 Contact Us For Availability
85
INSULATION, WRAP WCI K1311331 Contact Us For Availability
86
WCI K5303702 WCI K5303702 Contact Us For Availability
88
WCI K5025704 WCI K5025704 Contact Us For Availability
89
WCI K5130701 WCI K5130701 Contact Us For Availability
90
VENT TUBE, UPPPER WCI K5130601 Contact Us For Availability
92
COVER BKGD WCI K1315140 Contact Us For Availability
× ![]()
