Model Electrolux KF560GDW3 RANGE – Common Parts & Diagrams

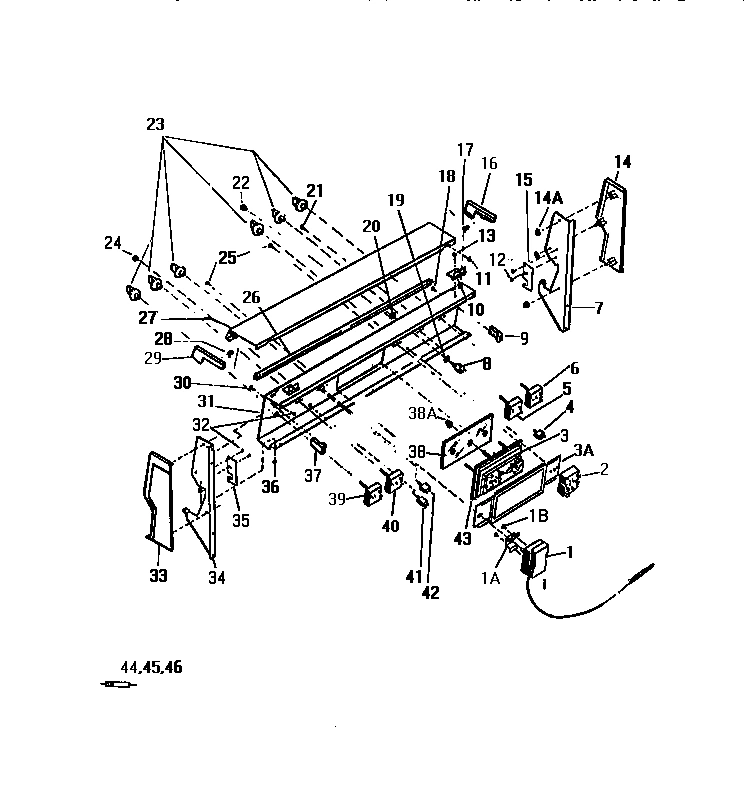

02 - BACKGUARD

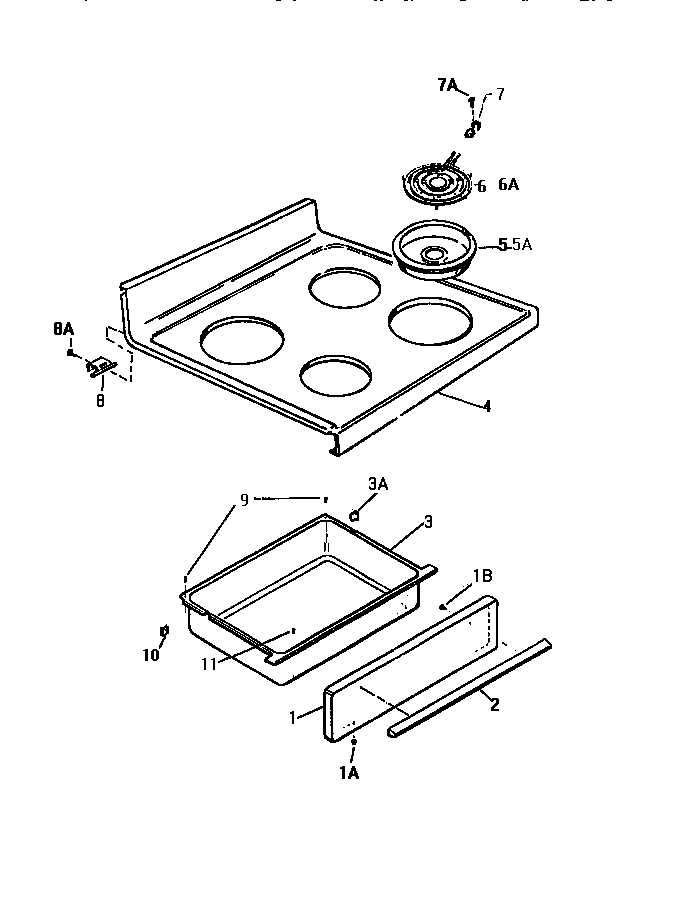

03 - TOP, DRAWER
04 - DOOR
05 - DOOR LATCH ASSEMBLY
06 - BODY, SIDE PANELS
Common parts from model Electrolux KF560GDW3 RANGE
1
WCI K1324562 WCI K1324562 Contact Us For Availability
1
WCI K1325096 WCI K1325096 Contact Us For Availability
1
WCI K1324830 WCI K1324830 Contact Us For Availability
1A
WCI K5267103 WCI K5267103 Contact Us For Availability
1B
SCREW WCI K5104301 Contact Us For Availability
2
WCI K5328201 WCI K5328201 Contact Us For Availability
2
HANDLE WCI K5030201 Contact Us For Availability
2
AXLE, LATCH WCI K5038501 Contact Us For Availability
2
RACK WCI K1311570 Contact Us For Availability
3
WCI K5033001 WCI K5033001 Contact Us For Availability
3
WCI K1164550 WCI K1164550 Contact Us For Availability
3
DRAWER WCI K1324095 Contact Us For Availability
3
RIVET WCI K1100773 Contact Us For Availability
3
WCI K1317972 WCI K1317972 Contact Us For Availability
3A
WCI K5296301 WCI K5296301 Contact Us For Availability
4
LIGHT,SIGNAL (SURFACE UNIT 125V) WCI K1167857 Contact Us For Availability
4
WCI K5024211 WCI K5024211 Contact Us For Availability
4
WCI K5133401 WCI K5133401 Contact Us For Availability
5
WCI K5260202 WCI K5260202 Contact Us For Availability
5
HANGER WCI K1314456 Contact Us For Availability
6
ARM ASSEMBLY WCI K1310065 Contact Us For Availability
6
WCI K5271201 WCI K5271201 Contact Us For Availability
7
WCI K5025202 WCI K5025202 Contact Us For Availability
7
ROLLER KIT (PKG. OF 2) WCI K1167752 Contact Us For Availability
7
CAM WCI K5151605 Contact Us For Availability
8
WCI K5057501 WCI K5057501 Contact Us For Availability
8
WCI K5024901 WCI K5024901 Contact Us For Availability
8
SPRING WCI K1302501 Contact Us For Availability
8
SCREW WCI K5151604 Contact Us For Availability
8
WCI K1313230 WCI K1313230 Contact Us For Availability
9
CHANNEL ASSEMBLY (COMPLETE W/ROLLER & STUD) WCI K1311514 Contact Us For Availability
9
SUPPORT WCI K5151602 Contact Us For Availability
9
WCI K1317973 WCI K1317973 Contact Us For Availability
10
WCI K5297501 WCI K5297501 Contact Us For Availability
10
GUIDE WCI K1324091 Contact Us For Availability
10
WCI K5151603 WCI K5151603 Contact Us For Availability
11
SCREW WCI K5022201 Contact Us For Availability
11
HANDL ASSEMBLY (W/STANCHIONS) WCI K5026601 Contact Us For Availability
11
END PANEL, LH, WHITE WCI K5024602 Contact Us For Availability
12
FRAME WCI K5276801 Contact Us For Availability
12
WCI K5151610 WCI K5151610 Contact Us For Availability
13
SCREW (4) WCI K5046501 Contact Us For Availability
13
SWITCH, UPPER WCI K1315370 Contact Us For Availability
14
WCI K5030402 WCI K5030402 Contact Us For Availability
14
INSULATOR WCI K1308690 Contact Us For Availability
14
WCI K5269902 WCI K5269902 Contact Us For Availability
14A
NUT (3) WCI K5036602 Contact Us For Availability
15
GLASS, OUTER WCI K5027202 Contact Us For Availability
15
SWITCH, LOWER WCI K1167190 Contact Us For Availability
16
WCI K5033502 WCI K5033502 Contact Us For Availability
16
SCREW WCI K1164557 Contact Us For Availability
17
WCI K5276901 WCI K5276901 Contact Us For Availability
17
PIN WCI K5151606 Contact Us For Availability
18
FOIL, ALUMINUM WCI K1313020 Contact Us For Availability
18
GUSSET, LH WCI K5285804 Contact Us For Availability
19
NUT, FLAT HEX WCI Q501442 Contact Us For Availability
19
WCI K1322652 WCI K1322652 Contact Us For Availability
19
WCI K5275904 WCI K5275904 Contact Us For Availability
20
WCI Q501444 WCI Q501444 Contact Us For Availability
20
INSULATION WCI K1322651 Contact Us For Availability
20
WCI Q410505 WCI Q410505 Contact Us For Availability
21
WCI K1324721 WCI K1324721 Contact Us For Availability
22
INSULATION WCI K1322622 Contact Us For Availability
22
WCI K5290501 WCI K5290501 Contact Us For Availability
23
KNOB (6) WCI K5156302 Contact Us For Availability
23
GASKET WCI K1323811 Contact Us For Availability
24
LENS WCI K1322678 Contact Us For Availability
24
WCI K1322616 WCI K1322616 Contact Us For Availability
24
BRACKET, GROUND WCI K1145190 Contact Us For Availability
25
SCREW WCI K1313060 Contact Us For Availability
25
STRIKE ASSEMBLY WCI K1323556 Contact Us For Availability
26
LIGHT WCI K1313090 Contact Us For Availability
26
WASHER (6) WCI Q402503 Contact Us For Availability
27
WCI K5030702 WCI K5030702 Contact Us For Availability
27
NUT (6) WCI Q401002 Contact Us For Availability
28
WCI K5033301 WCI K5033301 Contact Us For Availability
28
PLUG BUTTON (2) WCI KGM142001 Contact Us For Availability
28
LOCK WASHER (3) WCI Q500411 Contact Us For Availability
29
WCI K5033501 WCI K5033501 Contact Us For Availability
30
SCREW WCI K5022101 Contact Us For Availability
31
WCI K5327601 WCI K5327601 Contact Us For Availability
31
TERMINAL BLOCK KIT (INCLUDES NUTS, SCREWS, WA WCI Q134264 Contact Us For Availability
32
COVER, WIRE WCI K5276202 Contact Us For Availability
33
WCI K5030401 WCI K5030401 Contact Us For Availability
33
WCI K5328001 WCI K5328001 Contact Us For Availability
34
WCI K5025201 WCI K5025201 Contact Us For Availability
34
GUSSET, RH WCI K5285802 Contact Us For Availability
35
BRACKET HINGE MOUNTING WCI K5025001 Contact Us For Availability
36
WCI K1164566 WCI K1164566 Contact Us For Availability
36
WCI K5134501 WCI K5134501 Contact Us For Availability
37
WCI K5046401 WCI K5046401 Contact Us For Availability
37
ROD WCI K1315232 Contact Us For Availability
38
GLASS WCI K1167678 Contact Us For Availability
38
INSULATION, WRAP WCI K1311331 Contact Us For Availability
38A
KNOB TIMER (3) WCI K1167676 Contact Us For Availability
39
VENT TUBE WCI K5055001 Contact Us For Availability
40
WCI KGM142017 WCI KGM142017 Contact Us For Availability
41
LIGHT SIGNAL (OVEN 250V) WCI K1167858 Contact Us For Availability
41
INSULATION, BACK WCI K5056901 Contact Us For Availability
42
LIGHT, SIGNAL (LOCK 250V) WCI K5046101 Contact Us For Availability
43
BEZEL WCI K1166856 Contact Us For Availability
43
CHANNEL, OVEN SUPPORT WCI K1323561 Contact Us For Availability
44
120K RESISTOR (BROWN, RED, YELLOW, GOLD BANDS WCI K5044001 Contact Us For Availability
44
BRACKET THERM. BULB WCI K1311369 Contact Us For Availability
45
51K RESISTOR (GREEN, BROWN, ORANGE, GOLD BAND WCI K5044101 Contact Us For Availability
45
WCI K5276502 WCI K5276502 Contact Us For Availability
46
39K RESISTOR (ORANGE, WHITE, ORANGE, GOLD BAN WCI K5044102 Contact Us For Availability
46
CHANNEL, OVEN SUPPORT WCI K1315108 Contact Us For Availability
49
WCI K1325530 WCI K1325530 Contact Us For Availability
52
RETAINING WIRE WCI K1325529 Contact Us For Availability
53
WCI Q63749 WCI Q63749 Contact Us For Availability
55
WCI K5024701 WCI K5024701 Contact Us For Availability
56
PLUG BUTTON WCI KGM142025 Contact Us For Availability
58
SCREW WCI K1164309 Contact Us For Availability
59
WASHER, PADDED WCI K1313226 Contact Us For Availability
60
RETAINER WCI K1310049 Contact Us For Availability
61
SCREW WCI K1164569 Contact Us For Availability
62
LEG WCI K1322905 Contact Us For Availability
63
GUIDE WCI K1315216 Contact Us For Availability
64
SPACER, RAIL WCI K1324860 Contact Us For Availability
65
WCI K5269901 WCI K5269901 Contact Us For Availability
66
RETAINER, INSULATION WCI K1325388 Contact Us For Availability
67
BUMPER WCI K5106901 Contact Us For Availability
68
END PANEL, RH, WHITE WCI K5024601 Contact Us For Availability
69
WCI Q160978 WCI Q160978 Contact Us For Availability
70
BLOCK WCI Q210771 Contact Us For Availability
71
SCREW (4) WCI K1164479 Contact Us For Availability
72
WCI Q22652 WCI Q22652 Contact Us For Availability
73
WCI Q291142 WCI Q291142 Contact Us For Availability
74
WCI Q81559 WCI Q81559 Contact Us For Availability
75
SCREW (3) WCI Q414002 Contact Us For Availability
76
WCI Q273020 WCI Q273020 Contact Us For Availability
77
WCI Q62643 WCI Q62643 Contact Us For Availability
78
WCI Q208505 WCI Q208505 Contact Us For Availability
79
PUSH ROD WCI K1323421 Contact Us For Availability
80
END CAP, ROD WCI K1322682 Contact Us For Availability
81
WCI K5328101 WCI K5328101 Contact Us For Availability
83
WCI K5029505 WCI K5029505 Contact Us For Availability
84
COVER, BACKGUARD WCI K1315140 Contact Us For Availability
85
WCI K5025802 WCI K5025802 Contact Us For Availability
86
WCI 000000 WCI 000000 Contact Us For Availability
× ![]()
