Model Electrolux KF520GDW0 RANGE – Common Parts & Diagrams
02 - BACKGUARD
03 - TOP, DRAWER

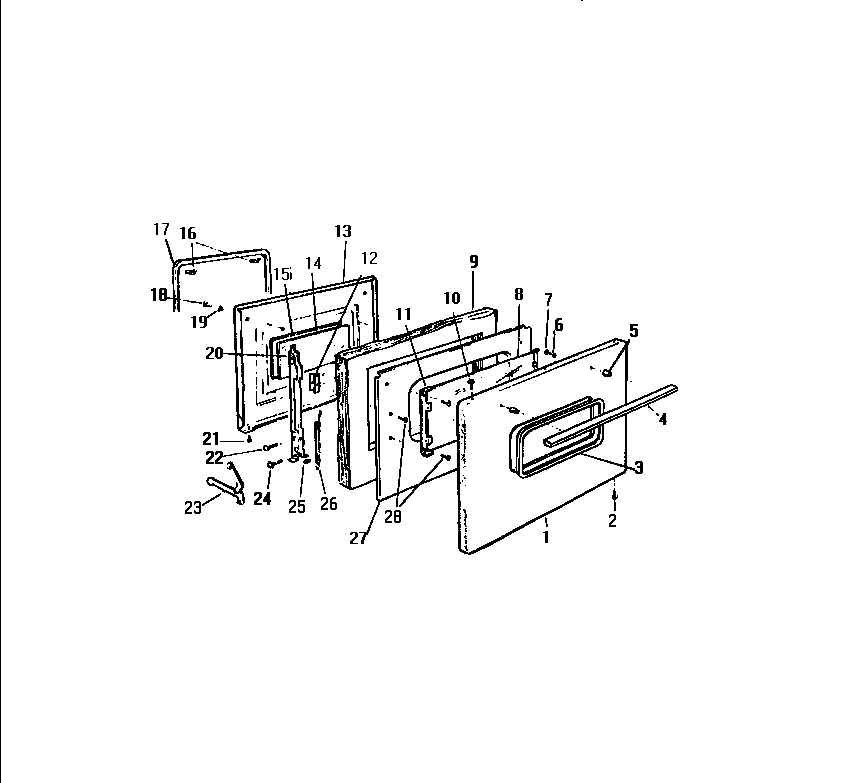

04 - DOOR

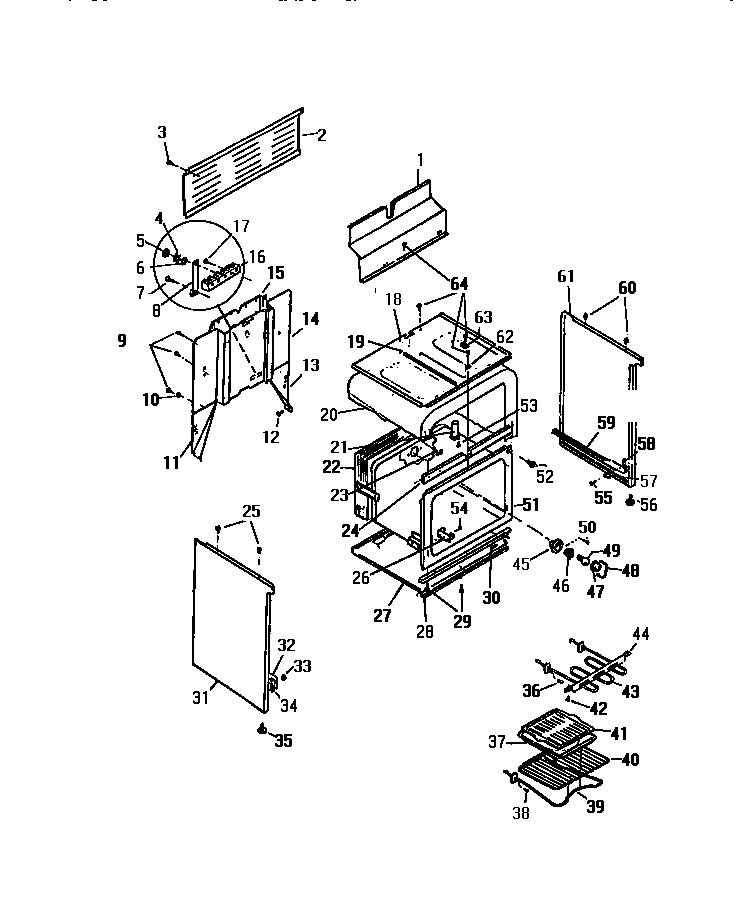

05 - BODY, SIDE PANELS
Common parts from model Electrolux KF520GDW0 RANGE
1
KNOB, (2) WCI K5026901 Contact Us For Availability
1
WCI K5024211 WCI K5024211 Contact Us For Availability
1
WCI K1325514 WCI K1325514 Contact Us For Availability
1
WCI K5032101 WCI K5032101 Contact Us For Availability
2
WCI K1164560 WCI K1164560 Contact Us For Availability
2
COVER, BACKGUARD WCI K1315140 Contact Us For Availability
3
LENS WCI K1322678 Contact Us For Availability
3
J MOULDING WCI K1313568 Contact Us For Availability
4
HANDLE WCI K5030201 Contact Us For Availability
4
LOCK WASHER (3) WCI Q500411 Contact Us For Availability
5
WCI K5051701 WCI K5051701 Contact Us For Availability
5
WCI K1311966 WCI K1311966 Contact Us For Availability
5
NUT (6) WCI Q401002 Contact Us For Availability
6
SCREW, SWITCH MOUNTING (8) WCI K1313060 Contact Us For Availability
6
WASHER (6) WCI Q402503 Contact Us For Availability
7
WCI K5030901 WCI K5030901 Contact Us For Availability
7
SCREW (2) WCI K5104201 Contact Us For Availability
8
WCI K1325512 WCI K1325512 Contact Us For Availability
8
BRACKET, GROUND WCI K1145190 Contact Us For Availability
9
WCI K5024901 WCI K5024901 Contact Us For Availability
9
INSULATION WCI K1325629 Contact Us For Availability
10
NUT (3) WCI K5036602 Contact Us For Availability
10
WCI Q410505 WCI Q410505 Contact Us For Availability
11
WCI K5030402 WCI K5030402 Contact Us For Availability
11
RETAINER (2) WCI K1325270 Contact Us For Availability
11
GUSSET, LH WCI K1325114 Contact Us For Availability
12
NUT, FLAT HEX WCI K1186512 Contact Us For Availability
12
WCI K1325510 WCI K1325510 Contact Us For Availability
12
WCI K1184542 WCI K1184542 Contact Us For Availability
13
WCI K5051801 WCI K5051801 Contact Us For Availability
13
GUIDE WCI K1324091 Contact Us For Availability
13
WCI K1325505 WCI K1325505 Contact Us For Availability
13
GUSSET, RH WCI K1325113 Contact Us For Availability
14
WCI K1308105 WCI K1308105 Contact Us For Availability
14
DRAWER WCI K1324095 Contact Us For Availability
14
WCI K1325511 WCI K1325511 Contact Us For Availability
14
BACK WCI K5275802 Contact Us For Availability
15
KNOB TIMER (3) WCI K1167676 Contact Us For Availability
15
SCREW WCI K5022201 Contact Us For Availability
15
WCI K1325686 WCI K1325686 Contact Us For Availability
15
COVER, WIRE WCI K1315110 Contact Us For Availability
16
CLIP, DOOR GASKET WCI K1309666 Contact Us For Availability
16
TERMINAL BLOCK KIT (INCLUDES NUTS, SCREWS, WA WCI Q134264 Contact Us For Availability
17
WCI K5030401 WCI K5030401 Contact Us For Availability
17
GASKET, ( COMPLETE W/ CLIPS ) WCI K1312480 Contact Us For Availability
17
SCREW (2) WCI K1164479 Contact Us For Availability
18
WCI K5025201 WCI K5025201 Contact Us For Availability
18
WCI K1325096 WCI K1325096 Contact Us For Availability
18
WCI K5025802 WCI K5025802 Contact Us For Availability
19
BRACKET HINGE MOUNTING WCI K5025001 Contact Us For Availability
19
ROD WCI K1315232 Contact Us For Availability
20
WCI K1164566 WCI K1164566 Contact Us For Availability
20
CHANNEL ASSEMBLY (COMPLETE W/ROLLER & STUD) WCI K1311514 Contact Us For Availability
20
INSULATION, WRAP WCI K1311329 Contact Us For Availability
21
VENT TUBE WCI K5025501 Contact Us For Availability
22
RIVET WCI K1100773 Contact Us For Availability
22
INSULATION, BACK WCI K1325625 Contact Us For Availability
23
LIGHT SIGNAL (OVEN 250V) WCI K1167858 Contact Us For Availability
23
HINGE ARM ASSEMBLY (2) WCI K1310065 Contact Us For Availability
24
BEZEL WCI K1166856 Contact Us For Availability
24
PIN WCI K5038501 Contact Us For Availability
24
CHANNEL, OVEN SUPPORT WCI K1325472 Contact Us For Availability
25
BRACKET WCI K1312148 Contact Us For Availability
25
ROLLER KIT COMPLETE (PKG OF 2) WCI K1167752 Contact Us For Availability
26
WCI K1306350 WCI K1306350 Contact Us For Availability
26
SPRING WCI K1302505 Contact Us For Availability
26
BRACKET THERM. BULB WCI K1311369 Contact Us For Availability
27
THERMOSTAT WCI K1322361 Contact Us For Availability
27
PANEL, AIRWASH WCI K1325509 Contact Us For Availability
27
WCI K1315107 WCI K1315107 Contact Us For Availability
28
SCREW WCI K5022101 Contact Us For Availability
28
WCI K1164550 WCI K1164550 Contact Us For Availability
28
CHANNEL, OVEN SUPPORT WCI K1315108 Contact Us For Availability
29
SWITCH, SELECTOR WCI K1311985 Contact Us For Availability
30
WCI K5296301 WCI K5296301 Contact Us For Availability
30
WCI K1154479 WCI K1154479 Contact Us For Availability
31
WCI K5036701 WCI K5036701 Contact Us For Availability
31
END PANEL, LH, WHITE WCI K5024602 Contact Us For Availability
32
LIGHT,SIGNAL (SURFACE UNIT 125V) WCI K1167857 Contact Us For Availability
32
WCI K5269902 WCI K5269902 Contact Us For Availability
35
WCI K5025202 WCI K5025202 Contact Us For Availability
37
PAN WCI K1317973 Contact Us For Availability
40
RACK (2) WCI K1311570 Contact Us For Availability
41
GRILL WCI K1317972 Contact Us For Availability
44
HANGER WCI K1314456 Contact Us For Availability
45
WCI K1325530 WCI K1325530 Contact Us For Availability
47
WCI K1325628 WCI K1325628 Contact Us For Availability
48
RETAINING WIRE WCI K1325529 Contact Us For Availability
49
WCI Q63749 WCI Q63749 Contact Us For Availability
51
WCI K1325537 WCI K1325537 Contact Us For Availability
52
SWITCH, OVEN LIGHT WCI K1314211 Contact Us For Availability
53
SCREW WCI K1164309 Contact Us For Availability
55
SCREW WCI K1164569 Contact Us For Availability
56
LEG WCI K1322905 Contact Us For Availability
57
GUIDE WCI K1315216 Contact Us For Availability
58
SPACER, RAIL WCI K1324860 Contact Us For Availability
59
WCI K5269901 WCI K5269901 Contact Us For Availability
60
BUMPER WCI K5106901 Contact Us For Availability
61
END PANEL, WHITE WCI K5024601 Contact Us For Availability
62
WASHER, PADDED (3) WCI K1313226 Contact Us For Availability
63
RETAINER WCI K1310049 Contact Us For Availability
× ![]()
