Model Electrolux KF460GDH0 RANGE – Common Parts & Diagrams

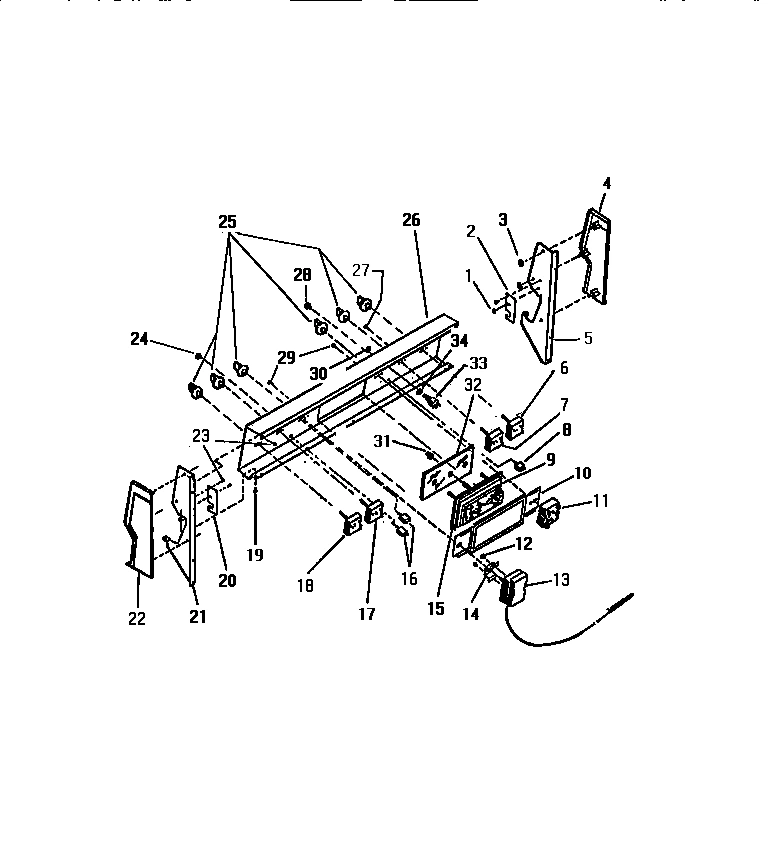

02 - BACKGUARD

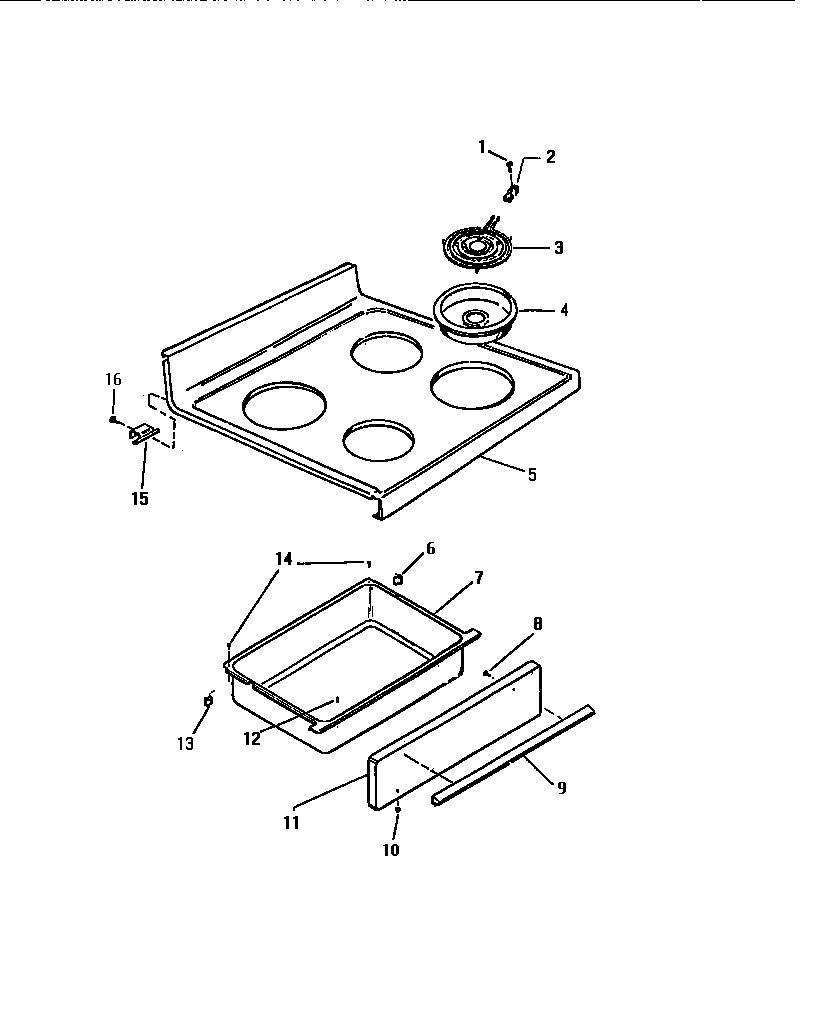

03 - TOP, DRAWER
04 - DOOR
05 - DOOR LATCH ASSY.
06 - BODY, SIDE PANELS
Common parts from model Electrolux KF460GDH0 RANGE
*94440
RESISTORS (COMPONENT OF WIRING HARNESS) 39K, WCI K5044102 Contact Us For Availability
*94441
RESISTORS (COMPONENT OF WIRING HARNESS) 120K, WCI K5044001 Contact Us For Availability
*94442
RESISTORS (COMPONENT OF WIRING HARNESS) 51K, WCI K5044101 Contact Us For Availability
1
WCI K1318885 WCI K1318885 Contact Us For Availability
1
END PANEL, RH, WHEAT WCI K5024609 Contact Us For Availability
2
SUPPORT WCI K1324263 Contact Us For Availability
3
NUT (3) WCI K5036602 Contact Us For Availability
3
STRIKE ASSEMBLY WCI K1323556 Contact Us For Availability
3
SCREW WCI K5157101 Contact Us For Availability
4
WCI K5030402 WCI K5030402 Contact Us For Availability
4
WCI K1324721 WCI K1324721 Contact Us For Availability
4
CAM WCI K1325071 Contact Us For Availability
4
WCI K5269901 WCI K5269901 Contact Us For Availability
5
WCI K5025202 WCI K5025202 Contact Us For Availability
5
WCI K5024214 WCI K5024214 Contact Us For Availability
5
WCI K1322069 WCI K1322069 Contact Us For Availability
5
WCI K1317813 WCI K1317813 Contact Us For Availability
6
WCI K1322068 WCI K1322068 Contact Us For Availability
6
LATCH WCI K5260201 Contact Us For Availability
7
DRAWER WCI K1324095 Contact Us For Availability
7
INSULATION WCI K1322651 Contact Us For Availability
8
LIGHT,SIGNAL (SURFACE UNIT 125V) WCI K1167857 Contact Us For Availability
8
INSULATION WCI K1322652 Contact Us For Availability
8
WCI K1164550 WCI K1164550 Contact Us For Availability
8
SCREW WCI K1164569 Contact Us For Availability
9
WCI K5033001 WCI K5033001 Contact Us For Availability
9
HANDLE WCI K1325038 Contact Us For Availability
9
FOIL, ALUM. WCI K1318825 Contact Us For Availability
9
AXLE, LATCH WCI K5038501 Contact Us For Availability
9
WCI Q63749 WCI Q63749 Contact Us For Availability
10
WCI K5296301 WCI K5296301 Contact Us For Availability
10
WCI K1323173 WCI K1323173 Contact Us For Availability
10
WCI K1324830 WCI K1324830 Contact Us For Availability
10
RETAINING WIRE WCI K1325529 Contact Us For Availability
11
SWITCH, SELEC. WCI K5041801 Contact Us For Availability
11
WCI K1325099 WCI K1325099 Contact Us For Availability
12
SCREW WCI K5104301 Contact Us For Availability
12
WCI K1318805 WCI K1318805 Contact Us For Availability
12
PUSH NUT WCI K1164424 Contact Us For Availability
13
WCI K1324562 WCI K1324562 Contact Us For Availability
13
GUIDE WCI K1324091 Contact Us For Availability
13
PAD, INSULATOR WCI K1314506 Contact Us For Availability
13
PIN WCI KGM455105 Contact Us For Availability
13
HANGER WCI K1314456 Contact Us For Availability
14
WCI K5267103 WCI K5267103 Contact Us For Availability
14
SCREW WCI K5022201 Contact Us For Availability
14
SCREW WCI K1164502 Contact Us For Availability
14
RACK-OFFSET WCI K5133501 Contact Us For Availability
15
BEZEL WCI K1166856 Contact Us For Availability
15
WCI K5024901 WCI K5024901 Contact Us For Availability
15
WCI K1317924 WCI K1317924 Contact Us For Availability
15
SWITCH, LOWER LIMIT WCI K1167190 Contact Us For Availability
15
WCI K1317972 WCI K1317972 Contact Us For Availability
16
LIGHT, SIGNAL (CLEAN & OVEN 250V.) WCI K5046101 Contact Us For Availability
16
RACK WCI K1311570 Contact Us For Availability
17
WCI K1326038 WCI K1326038 Contact Us For Availability
17
SWITCH, UPPER LIMIT WCI K1315370 Contact Us For Availability
18
J MOULDING WCI K1313568 Contact Us For Availability
18
INSULATOR WCI K1308690 Contact Us For Availability
19
WCI K1164566 WCI K1164566 Contact Us For Availability
19
OUTER DOOR PANEL, WHEAT WCI K1317633 Contact Us For Availability
19
WCI K1317973 WCI K1317973 Contact Us For Availability
20
WCI K5025001 WCI K5025001 Contact Us For Availability
21
WCI K5025201 WCI K5025201 Contact Us For Availability
21
SPACER (2) WCI K1311965 Contact Us For Availability
21
WCI K5032101 WCI K5032101 Contact Us For Availability
22
WCI K5030401 WCI K5030401 Contact Us For Availability
22
RETAINER (2) WCI K1313344 Contact Us For Availability
22
SWITCH, OV. LT. WCI K1310199 Contact Us For Availability
23
WCI K1313244 WCI K1313244 Contact Us For Availability
23
END CAP, ROD WCI K1322682 Contact Us For Availability
24
SCREW, HANDLE (2) WCI K5104201 Contact Us For Availability
24
PUSH ROD WCI K1323421 Contact Us For Availability
25
WCI K5026901 WCI K5026901 Contact Us For Availability
25
SCREW WCI K1164557 Contact Us For Availability
26
WCI K5031301 WCI K5031301 Contact Us For Availability
26
RETAINER WCI K1310049 Contact Us For Availability
27
RETAINER (2) WCI K1317628 Contact Us For Availability
27
WASHER, PADDED (3) WCI K1313226 Contact Us For Availability
28
LENS WCI K1322678 Contact Us For Availability
28
SCREW WCI K1164309 Contact Us For Availability
29
SCREW WCI K1313060 Contact Us For Availability
29
PLUG BUTTON (2) WCI KGM142001 Contact Us For Availability
29
PLUG BUTTON WCI KGM142025 Contact Us For Availability
30
WCI K5051701 WCI K5051701 Contact Us For Availability
30
WCI K1323752 WCI K1323752 Contact Us For Availability
30
WCI K1325537 WCI K1325537 Contact Us For Availability
31
KNOB TIMER (3) WCI K1167676 Contact Us For Availability
31
GASKET OV DOOR WCI K1323811 Contact Us For Availability
32
GLASS WCI K1167678 Contact Us For Availability
32
INSULATION WCI K1322622 Contact Us For Availability
33
SWITCH, LIGHT WCI K5051801 Contact Us For Availability
33
SPRING WCI K1302501 Contact Us For Availability
33
CUP, OVEN LT WCI K1325530 Contact Us For Availability
34
NUT, FLAT HEX WCI Q501442 Contact Us For Availability
34
ROLLER KIT (PKG. OF 2) WCI K1167752 Contact Us For Availability
35
CHANNEL ASSEMBLY (COMPLETE WITH ROLLER AND ST WCI K1311514 Contact Us For Availability
36
ARM ASSEMBLY WCI K1310065 Contact Us For Availability
36
CHANNEL, OV. SUPT. WCI K1315108 Contact Us For Availability
37
COVER WCI K1303601 Contact Us For Availability
38
WCI K1315121 WCI K1315121 Contact Us For Availability
39
RIVET WCI K1100773 Contact Us For Availability
40
WCI K1317644 WCI K1317644 Contact Us For Availability
41
BRACKET THERM. BULB WCI K1311369 Contact Us For Availability
43
RETAINER, INSUL WCI K1325388 Contact Us For Availability
44
GUIDE WCI K1315216 Contact Us For Availability
45
WCI K5269902 WCI K5269902 Contact Us For Availability
46
SPACER, RAIL WCI K1324860 Contact Us For Availability
47
LEG WCI K1322905 Contact Us For Availability
48
END PANEL, LH, WHEAT WCI K5024610 Contact Us For Availability
49
WCI K5025802 WCI K5025802 Contact Us For Availability
50
ROD WCI K1315232 Contact Us For Availability
51
INSULATION, WRAP WCI K1311331 Contact Us For Availability
52
VENT TUBE WCI K5055001 Contact Us For Availability
54
WCI KGM142017 WCI KGM142017 Contact Us For Availability
55
INSULATION, BACK WCI K5056901 Contact Us For Availability
57
WCI K1323561 WCI K1323561 Contact Us For Availability
58
BUMPER WCI K5106901 Contact Us For Availability
59
GUSSET, LH WCI K1325114 Contact Us For Availability
60
WCI Q410505 WCI Q410505 Contact Us For Availability
62
BRACKET, GND. WCI K1145190 Contact Us For Availability
64
WASHER (6) WCI Q402603 Contact Us For Availability
65
NUT (6) WCI Q401002 Contact Us For Availability
66
LOCK WASHER (3) WCI Q500411 Contact Us For Availability
68
COVER BKGD WCI K1315140 Contact Us For Availability
69
SCREW (2) WCI K1164479 Contact Us For Availability
70
TERM BLOCK KIT, ( INCLUDES NUTS, SCREWS AND W WCI Q134264 Contact Us For Availability
71
COVER, WIRE WCI K1315110 Contact Us For Availability
72
BACK WCI K5275802 Contact Us For Availability
73
GUSSET, RH WCI K1325113 Contact Us For Availability
× ![]()
