Model Electrolux KF450GDV3 RANGE – Common Parts & Diagrams

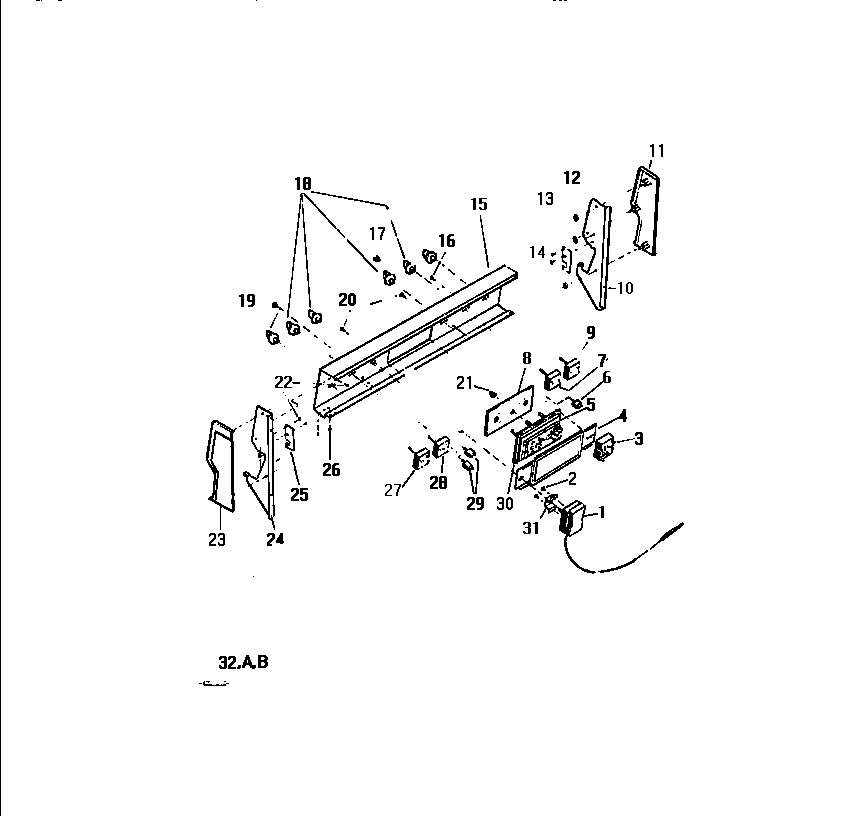

02 - BACKGUARD

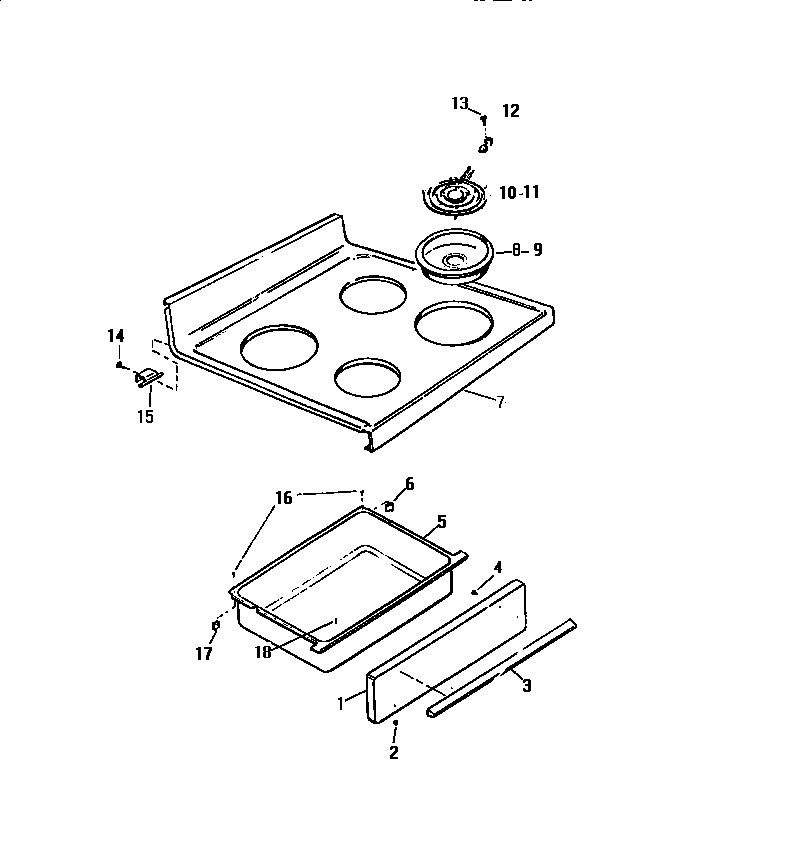

03 - TOP & DRAWER
05 - DOOR LATCH ASSEMBLY
06 - DOOR
07 - BODY, SIDE PANELS
Common parts from model Electrolux KF450GDV3 RANGE
1
WCI K1324562 WCI K1324562 Contact Us For Availability
1
PANEL DRAWER, AVOCADO WCI K1325098 Contact Us For Availability
1
WCI K1324830 WCI K1324830 Contact Us For Availability
1
END PANEL, LH, AVOCADO WCI K5024608 Contact Us For Availability
2
SCREW WCI K5104301 Contact Us For Availability
3
WCI K5041801 WCI K5041801 Contact Us For Availability
3
HANDLE WCI K5030201 Contact Us For Availability
3
RIVET WCI K1100773 Contact Us For Availability
4
WCI K5296301 WCI K5296301 Contact Us For Availability
5
WCI K5033001 WCI K5033001 Contact Us For Availability
5
DRAWER WCI K1324095 Contact Us For Availability
5
AXLE WCI K5038501 Contact Us For Availability
5
WCI K5260202 WCI K5260202 Contact Us For Availability
6
LIGHT,SIGNAL (SURFACE UNIT 125V) WCI K1167857 Contact Us For Availability
6
WCI K5271201 WCI K5271201 Contact Us For Availability
6
ARM ASSEMBLY WCI K1310065 Contact Us For Availability
7
PLATFORM, AVOCADO WCI K5024213 Contact Us For Availability
7
CAM WCI K5151605 Contact Us For Availability
7
ROLLER KIT (PKG. OF 2) WCI K1167752 Contact Us For Availability
7
WCI K5269902 WCI K5269902 Contact Us For Availability
8
GLASS WCI K1167678 Contact Us For Availability
8
WCI K5151604 WCI K5151604 Contact Us For Availability
8
SPRING WCI K1302501 Contact Us For Availability
9
SUPPORT WCI K5151602 Contact Us For Availability
9
CHANNEL ASSEMBLY (COMPLETE W/ROLLER & STUD) WCI K1311514 Contact Us For Availability
10
WCI K5025202 WCI K5025202 Contact Us For Availability
10
WCI K5151603 WCI K5151603 Contact Us For Availability
10
WCI K1317973 WCI K1317973 Contact Us For Availability
11
WCI K5030402 WCI K5030402 Contact Us For Availability
11
HANDLE ASSEMBLY W/ STANCHIONS WCI K5026601 Contact Us For Availability
12
NUT (3) WCI K5036602 Contact Us For Availability
12
WCI K5151610 WCI K5151610 Contact Us For Availability
12
FRAME WCI K5027101 Contact Us For Availability
13
SWITCH, UPPER WCI K1315370 Contact Us For Availability
13
SCREW (4) WCI K5046501 Contact Us For Availability
13
RACK WCI K1311570 Contact Us For Availability
14
INSULATOR WCI K1308690 Contact Us For Availability
14
WCI K1317972 WCI K1317972 Contact Us For Availability
15
WCI K5031101 WCI K5031101 Contact Us For Availability
15
WCI K5024901 WCI K5024901 Contact Us For Availability
15
SWITCH, LOWER WCI K1167190 Contact Us For Availability
15
GLASS, OUTER WCI K5027202 Contact Us For Availability
15
RACK-OFFSET WCI K5133501 Contact Us For Availability
16
SCREW WCI K1164557 Contact Us For Availability
16
HANGER WCI K1314456 Contact Us For Availability
17
GUIDE WCI K1324091 Contact Us For Availability
17
PIN WCI K5151606 Contact Us For Availability
17
WCI K1323173 WCI K1323173 Contact Us For Availability
18
KNOB (6) WCI K5156302 Contact Us For Availability
18
SCREW WCI K5022201 Contact Us For Availability
18
FOIL, ALUMINUM WCI K1313020 Contact Us For Availability
19
LENS WCI K1322678 Contact Us For Availability
19
WCI K1322652 WCI K1322652 Contact Us For Availability
19
CHANNEL, OVEN SUPPORT WCI K1315108 Contact Us For Availability
20
SCREW WCI K1313060 Contact Us For Availability
20
INSULATION WCI K1322651 Contact Us For Availability
21
KNOB TIMER (3) WCI K1167676 Contact Us For Availability
21
WCI K1324721 WCI K1324721 Contact Us For Availability
22
INSULATION WCI K1322622 Contact Us For Availability
22
WCI K1325530 WCI K1325530 Contact Us For Availability
23
WCI K5030401 WCI K5030401 Contact Us For Availability
23
GASKET WCI K1323811 Contact Us For Availability
24
WCI K5025201 WCI K5025201 Contact Us For Availability
24
WCI K1322616 WCI K1322616 Contact Us For Availability
25
BRACKET HINGE MOUNTING WCI K5025001 Contact Us For Availability
25
STRIKE ASSEMBLY WCI K1323556 Contact Us For Availability
25
RETAINING WIRE WCI K1325529 Contact Us For Availability
26
WCI K1164566 WCI K1164566 Contact Us For Availability
26
WCI Q63749 WCI Q63749 Contact Us For Availability
27
WCI K1164550 WCI K1164550 Contact Us For Availability
28
PLUG BUTTON (2) WCI KGM142001 Contact Us For Availability
29
LIGHT, SIGNAL (CLEAN & OVEN 250V.) WCI K5046101 Contact Us For Availability
29
WCI K1325537 WCI K1325537 Contact Us For Availability
30
BEZEL WCI K1166856 Contact Us For Availability
30
PLUG BUTTON WCI KGM142025 Contact Us For Availability
31
WCI K5267103 WCI K5267103 Contact Us For Availability
31
SCREW WCI K1164569 Contact Us For Availability
32
120K RESISTOR (BROWN, RED, YELLOW, GOLD BANDS WCI K5044001 Contact Us For Availability
32
LEG WCI K1322905 Contact Us For Availability
32A
51K RESISTOR (GREEN, BROWN, ORANGE, GOLD BAND WCI K5044101 Contact Us For Availability
32B
39K RESISTOR (ORANGE, WHITE, ORANGE, GOLD BAN WCI K5044102 Contact Us For Availability
33
GUIDE WCI K1315216 Contact Us For Availability
34
SPACER, RAIL WCI K1324860 Contact Us For Availability
35
WCI K5269901 WCI K5269901 Contact Us For Availability
36
SCREW WCI K1164309 Contact Us For Availability
37
WASHER, PADDED (3) WCI K1313226 Contact Us For Availability
39
END PANEL, RH, AVOCADO WCI K5024607 Contact Us For Availability
40
RETAINER, INSULATION WCI K1325388 Contact Us For Availability
41
RETAINER WCI K1310049 Contact Us For Availability
43
PUSH ROD WCI K1323421 Contact Us For Availability
44
END CAP, ROD WCI K1322682 Contact Us For Availability
45
SWITCH, OVEN LIGHT WCI K1310199 Contact Us For Availability
47
WCI K5029503 WCI K5029503 Contact Us For Availability
48
COVER, BACKGUARD WCI K1315140 Contact Us For Availability
50
LOCK WASHER (3) WCI Q500411 Contact Us For Availability
51
NUT (6) WCI Q401002 Contact Us For Availability
52
WASHER (6) WCI Q402503 Contact Us For Availability
54
BRACKET, GROUND WCI K1145190 Contact Us For Availability
56
WCI Q410505 WCI Q410505 Contact Us For Availability
57
WCI K5134501 WCI K5134501 Contact Us For Availability
58
GUSSET, LH WCI K1325114 Contact Us For Availability
59
WCI KGM142017 WCI KGM142017 Contact Us For Availability
61
GUSSET, RH WCI K1325113 Contact Us For Availability
62
BACK WCI K5275802 Contact Us For Availability
63
COVER, WIRE WCI K5276202 Contact Us For Availability
64
SCREW (2) WCI K1164479 Contact Us For Availability
65
TERMINAL BLOCK KIT (INCLUDES NUTS, SCREWS, WA WCI Q134264 Contact Us For Availability
66
WCI K5025802 WCI K5025802 Contact Us For Availability
67
SEE PAGES 4 OR 5 FOR PARTS WCI N/A Contact Us For Availability
68
ROD WCI K1315232 Contact Us For Availability
69
INSULATION, WRAP WCI K1311331 Contact Us For Availability
70
VENT TUBE WCI K5055001 Contact Us For Availability
71
INSULATION, BACK WCI K5056901 Contact Us For Availability
73
WCI K1323531 WCI K1323531 Contact Us For Availability
74
BRACKET THERM. BULB WCI K1311369 Contact Us For Availability
75
WCI K5276502 WCI K5276502 Contact Us For Availability
77
BUMPER WCI K5106901 Contact Us For Availability
× ![]()
