Model Electrolux KF450GDF1 RANGE – Common Parts & Diagrams
02 - BACKGUARD
03 - TOP, DRAWER

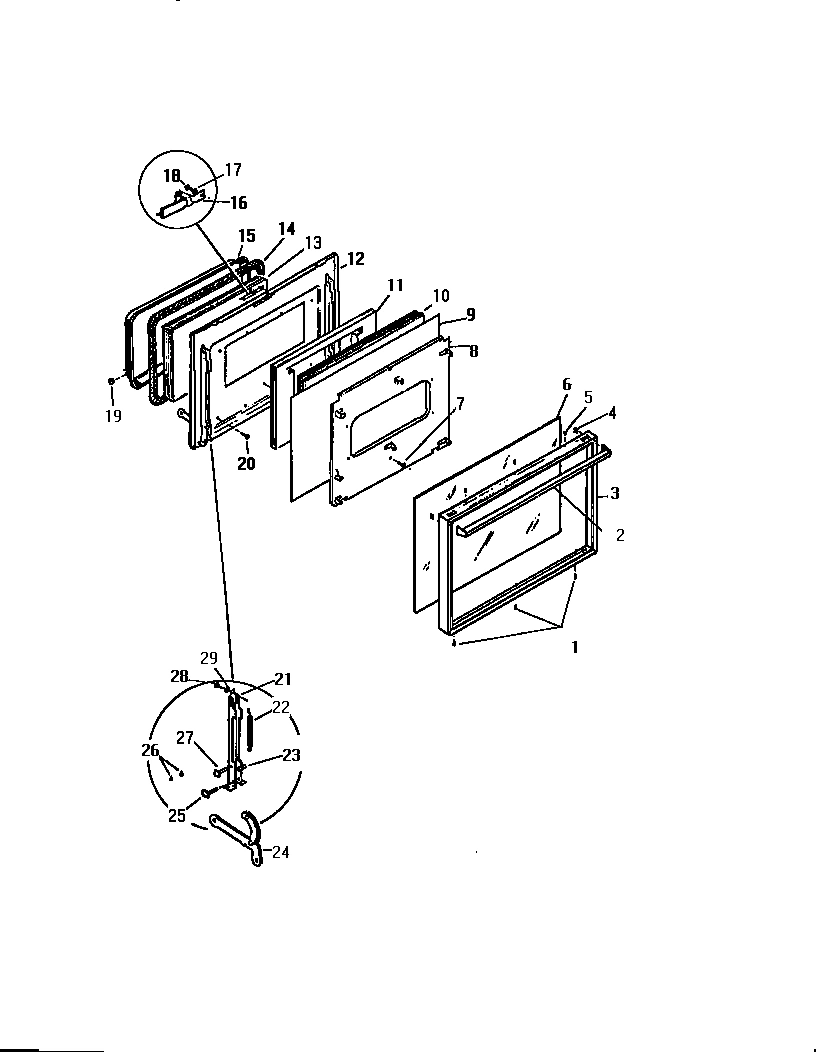

04 - DOOR

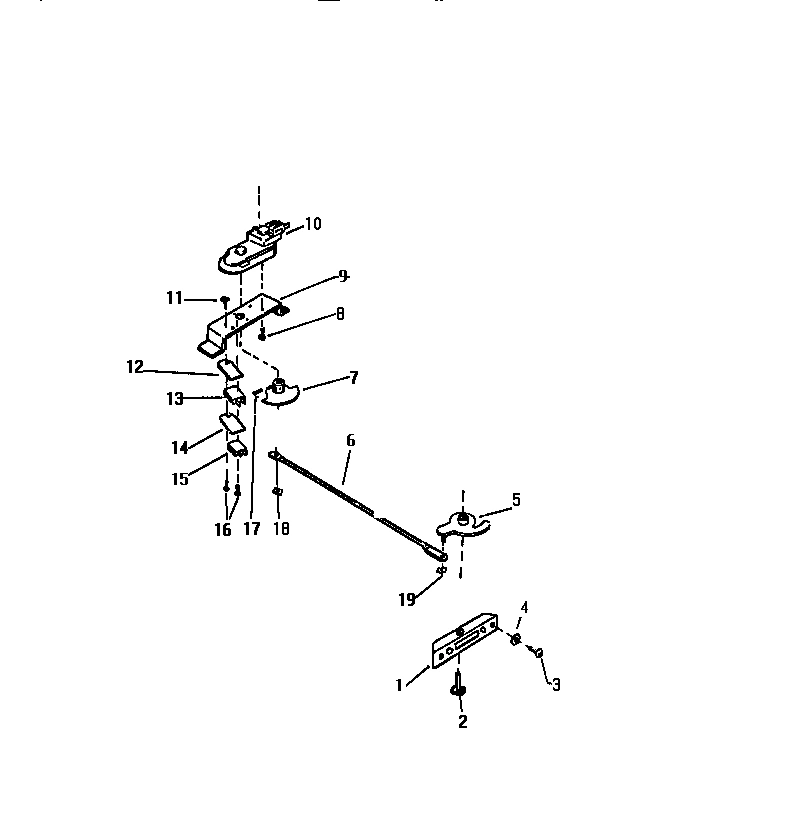

05 - DOR LATCH ASSEMBLY

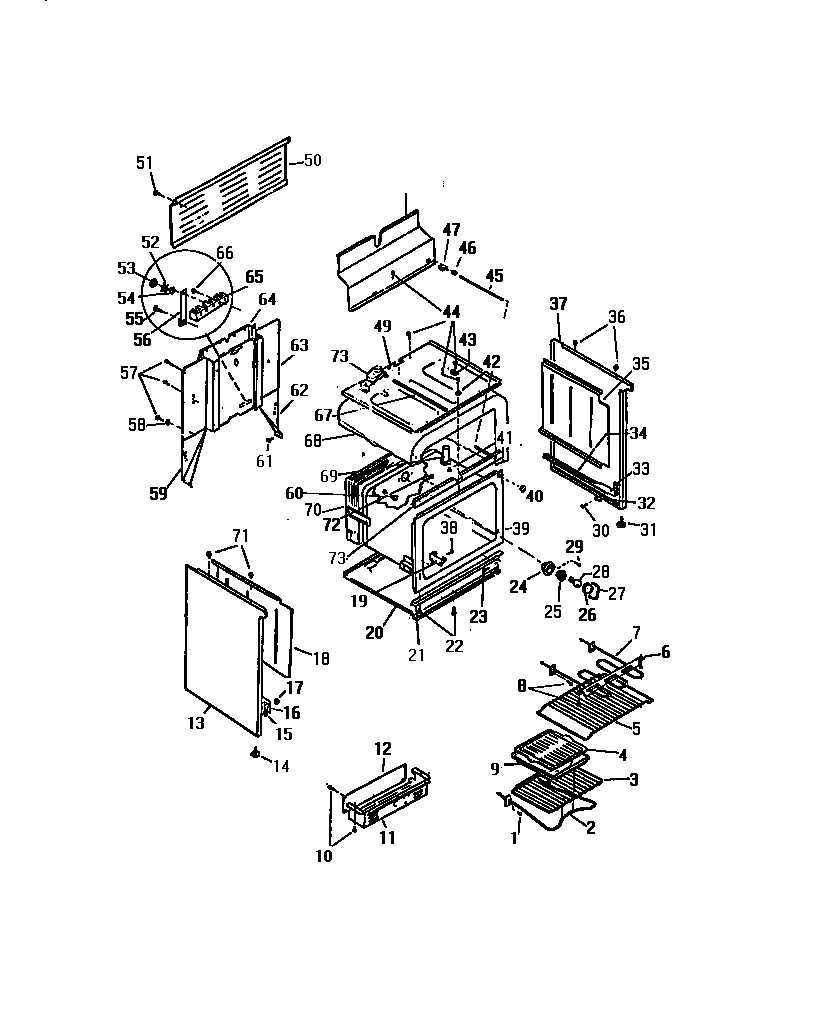

06 - BODY, SIDE PANELS
Common parts from model Electrolux KF450GDF1 RANGE
*88600
120K RESISTOR (BROWN, RED, YELLOW, GOLD BANDS WCI K5044001 Contact Us For Availability
*88601
39K RESISTOR (ORANGE, WHITE, ORANGE, GOLD BAN WCI K5044102 Contact Us For Availability
*88602
51K RESISTOR (GREEN, BROWN, ORANGE, GOLD BAND WCI K5044101 Contact Us For Availability
1
WCI K5101903 WCI K5101903 Contact Us For Availability
1
WCI K1325097 WCI K1325097 Contact Us For Availability
1
WCI K1324830 WCI K1324830 Contact Us For Availability
2
SCREW WCI K5104301 Contact Us For Availability
2
HANDLE ASSEMBLY W/ STANCHIONS WCI K5026601 Contact Us For Availability
2
AXLE, LATCH WCI K5038501 Contact Us For Availability
3
WCI K5041801 WCI K5041801 Contact Us For Availability
3
HANDLE WCI K5030201 Contact Us For Availability
3
FRAME WCI K5027101 Contact Us For Availability
3
WCI K1164550 WCI K1164550 Contact Us For Availability
3
RACK WCI K1311570 Contact Us For Availability
4
WCI K5296301 WCI K5296301 Contact Us For Availability
4
SCREW (4) WCI K5046501 Contact Us For Availability
4
WCI K1317972 WCI K1317972 Contact Us For Availability
5
WCI K5033001 WCI K5033001 Contact Us For Availability
5
DRAWER WCI K1324095 Contact Us For Availability
5
LATCH WCI K5260201 Contact Us For Availability
5
RACK-OFFSET WCI K5133501 Contact Us For Availability
6
LIGHT,SIGNAL (SURFACE UNIT 125V) WCI K1167857 Contact Us For Availability
6
GLASS, OUTER WCI K5027202 Contact Us For Availability
6
WCI K1317813 WCI K1317813 Contact Us For Availability
6
HANGER WCI K1314456 Contact Us For Availability
7
WCI K5024212 WCI K5024212 Contact Us For Availability
7
SCREW WCI K1164557 Contact Us For Availability
7
CAM WCI K1325071 Contact Us For Availability
8
WCI K1323173 WCI K1323173 Contact Us For Availability
8
SCREW WCI K5157101 Contact Us For Availability
9
WCI K5025202 WCI K5025202 Contact Us For Availability
9
FOIL, ALUMINUM WCI K1313020 Contact Us For Availability
9
SUPPORT WCI K1324263 Contact Us For Availability
9
WCI K1317973 WCI K1317973 Contact Us For Availability
10
GLASS WCI K1167678 Contact Us For Availability
10
WCI K1322652 WCI K1322652 Contact Us For Availability
10
WCI K1318885 WCI K1318885 Contact Us For Availability
11
WCI K5030402 WCI K5030402 Contact Us For Availability
11
INSULATION WCI K1322651 Contact Us For Availability
11
WCI K1315121 WCI K1315121 Contact Us For Availability
12
NUT (3) WCI K5036602 Contact Us For Availability
12
WCI K1324721 WCI K1324721 Contact Us For Availability
12
COVER WCI K1303601 Contact Us For Availability
13
INSULATION WCI K1322622 Contact Us For Availability
13
SWITCH, UPPER LIMIT WCI K1315370 Contact Us For Availability
13
END PANEL, RH, COFFEE WCI K5024606 Contact Us For Availability
14
GASKET WCI K1323811 Contact Us For Availability
14
INSULATOR WCI K1308690 Contact Us For Availability
15
WCI K5158701 WCI K5158701 Contact Us For Availability
15
WCI K5024901 WCI K5024901 Contact Us For Availability
15
WCI K1322616 WCI K1322616 Contact Us For Availability
15
SWITCH, LOWER LIMIT WCI K1167190 Contact Us For Availability
16
STRIKE ASSEMBLY WCI K1323556 Contact Us For Availability
16
SCREW WCI K1164502 Contact Us For Availability
16
WCI K5269902 WCI K5269902 Contact Us For Availability
17
GUIDE WCI K1324091 Contact Us For Availability
17
PIN WCI KGM455105 Contact Us For Availability
18
WCI K5026901 WCI K5026901 Contact Us For Availability
18
SCREW WCI K5022201 Contact Us For Availability
19
LENS WCI K1322678 Contact Us For Availability
19
PLUG BUTTON (2) WCI KGM142001 Contact Us For Availability
19
PUSH NUT WCI K1164424 Contact Us For Availability
19
BRACKET THERM. BULB WCI K1311369 Contact Us For Availability
20
SCREW WCI K1313060 Contact Us For Availability
20
WCI K1317644 WCI K1317644 Contact Us For Availability
21
CHANNEL ASSEMBLY (COMPLETE W/ROLLER & STUD) WCI K1311514 Contact Us For Availability
21
CHANNEL, OVEN SUPPORT WCI K1315108 Contact Us For Availability
22
KNOB TIMER (3) WCI K1167676 Contact Us For Availability
22
SPRING WCI K1302501 Contact Us For Availability
23
WCI K1164566 WCI K1164566 Contact Us For Availability
23
ROLLER KIT (PKG. OF 2) WCI K1167752 Contact Us For Availability
24
BRACKET HINGE MOUNTING WCI K5025001 Contact Us For Availability
24
ARM ASSEMBLY WCI K1310065 Contact Us For Availability
24
WCI K1325530 WCI K1325530 Contact Us For Availability
25
WCI K5025201 WCI K5025201 Contact Us For Availability
26
WCI K5030401 WCI K5030401 Contact Us For Availability
27
RIVET WCI K1100773 Contact Us For Availability
27
RETAINING WIRE WCI K1325529 Contact Us For Availability
28
WCI Q63749 WCI Q63749 Contact Us For Availability
29
LIGHT, SIGNAL (CLEAN & OVEN 250V.) WCI K5046101 Contact Us For Availability
30
BEZEL WCI K1166856 Contact Us For Availability
30
SCREW WCI K1164569 Contact Us For Availability
31
WCI K5267103 WCI K5267103 Contact Us For Availability
31
LEG WCI K1322905 Contact Us For Availability
32
GUIDE WCI K1315216 Contact Us For Availability
33
SPACER, RAIL WCI K1324860 Contact Us For Availability
34
WCI K5269901 WCI K5269901 Contact Us For Availability
35
RETAINER, INSULATION WCI K1325388 Contact Us For Availability
37
END PANEL, RH, COFFEE WCI K5024605 Contact Us For Availability
39
WCI K1323537 WCI K1323537 Contact Us For Availability
40
PLUG BUTTON WCI KGM142025 Contact Us For Availability
41
SCREW WCI K1164309 Contact Us For Availability
42
WASHER, PADDED (3) WCI K1313226 Contact Us For Availability
43
RETAINER WCI K1310049 Contact Us For Availability
45
PUSH ROD WCI K1323421 Contact Us For Availability
46
END CAP, ROD WCI K1322682 Contact Us For Availability
47
SWITCH, OVEN LIGHT WCI K1310199 Contact Us For Availability
48
WCI K5032101 WCI K5032101 Contact Us For Availability
49
WCI K5025802 WCI K5025802 Contact Us For Availability
50
COVER, BACKGUARD WCI K1315140 Contact Us For Availability
52
LOCK WASHER (3) WCI Q500411 Contact Us For Availability
53
NUT (6) WCI Q401002 Contact Us For Availability
54
WASHER (6) WCI Q402503 Contact Us For Availability
56
BRACKET, GROUND WCI K1145190 Contact Us For Availability
58
WCI Q410505 WCI Q410505 Contact Us For Availability
59
GUSSET, LH WCI K1325114 Contact Us For Availability
60
WCI KGM142017 WCI KGM142017 Contact Us For Availability
62
GUSSET, RH WCI K1325113 Contact Us For Availability
63
BACK WCI K5275802 Contact Us For Availability
64
COVER, WIRE WCI K1315110 Contact Us For Availability
65
TERMINAL BLOCK KIT (INCLUDES NUTS, SCREWS, WA WCI Q134264 Contact Us For Availability
66
SCREW (2) WCI K1164479 Contact Us For Availability
67
ROD WCI K1315232 Contact Us For Availability
68
INSULATION, WRAP WCI K1311331 Contact Us For Availability
69
VENT TUBE WCI K5055001 Contact Us For Availability
70
INSULATION, BACK WCI K5056901 Contact Us For Availability
71
BUMPER WCI K5106901 Contact Us For Availability
73
SEE PAGE 5 FOR PARTS WCI 00000 Contact Us For Availability
73
CHANNEL, OVEN SUPPORT WCI K1323561 Contact Us For Availability
× ![]()
