Model Electrolux KF440GDV2 RANGE – Common Parts & Diagrams
02 - BACKGUARD
03 - TOP, DRAWER

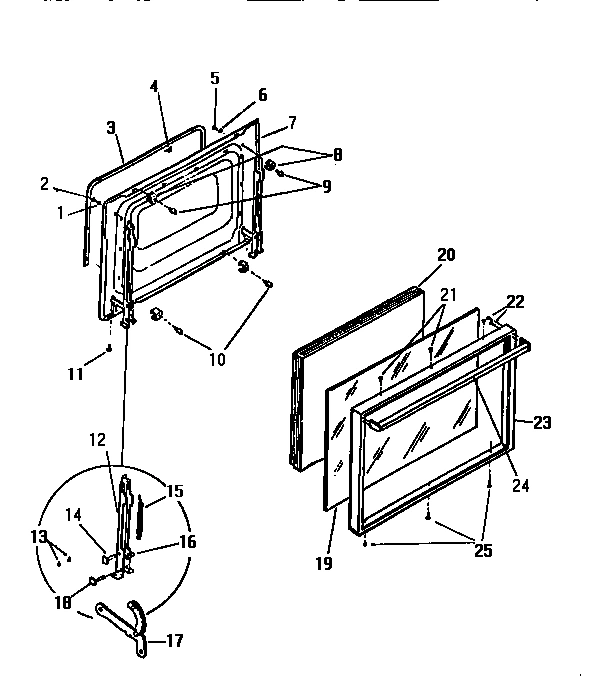

04 - DOOR

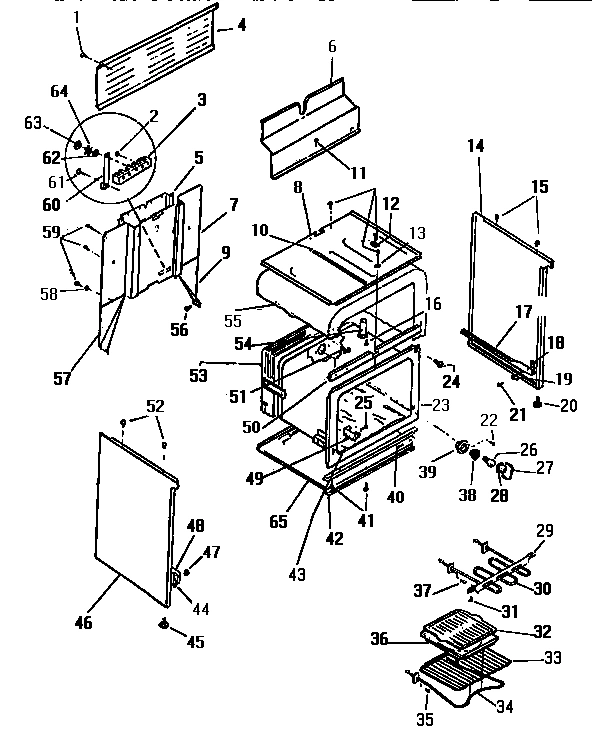

05 - BODY, SIDE PANELS
Common parts from model Electrolux KF440GDV2 RANGE
1
WCI K5024901 WCI K5024901 Contact Us For Availability
2
KNOB (6 REQ) WCI K5156302 Contact Us For Availability
3
GASKET (WITH CLIPS) WCI K1312480 Contact Us For Availability
3
TERM. BLOCK KIT (INCLUDES NUTS, SCREWS, WASHE WCI Q134264 Contact Us For Availability
4
LENS WCI K1322678 Contact Us For Availability
4
WCI K1309666 WCI K1309666 Contact Us For Availability
4
COVER BKGD WCI K1315140 Contact Us For Availability
5
SCREW, SW. MTG. (8 REQ) WCI K1313060 Contact Us For Availability
5
COVER, WIRE WCI K5276202 Contact Us For Availability
6
WCI K5031002 WCI K5031002 Contact Us For Availability
6
WCI 5029503 WCI 5029503 Contact Us For Availability
7
PLATEFORM FR. AV. WCI K5024212 Contact Us For Availability
7
WCI K1318402 WCI K1318402 Contact Us For Availability
7
BACK WCI K5275802 Contact Us For Availability
8
SPACER (4 REQ) WCI K1324812 Contact Us For Availability
8
WCI K5025802 WCI K5025802 Contact Us For Availability
9
NUT (3 REQ ) WCI K5036602 Contact Us For Availability
9
DRAWER WCI K1324095 Contact Us For Availability
9
BUMPER, TOP ( 2 REQ) WCI K5297101 Contact Us For Availability
9
GUSSET, RH WCI K5285802 Contact Us For Availability
10
WCI K5030402 WCI K5030402 Contact Us For Availability
10
BUMPER BTM WCI K1312009 Contact Us For Availability
10
ROD WCI K1315232 Contact Us For Availability
11
GLASS WCI K1167549 Contact Us For Availability
11
HANDLE WCI K5030201 Contact Us For Availability
12
WCI K5025202 WCI K5025202 Contact Us For Availability
12
CHANNEL ASSY (COMPLETE W/ROLLER & STUD) WCI K1311514 Contact Us For Availability
12
RETAINER WCI K1310049 Contact Us For Availability
13
PANEL DRAWER FR. AV. WCI K1325098 Contact Us For Availability
13
WASHER, PADDED, ( 3 REQ ) WCI K1313226 Contact Us For Availability
14
RIVET WCI K1100773 Contact Us For Availability
14
END PANEL RH, FR AV WCI K5024607 Contact Us For Availability
15
WCI K1677857 WCI K1677857 Contact Us For Availability
15
GUIDE WCI K1324091 Contact Us For Availability
15
SPRING WCI K1302505 Contact Us For Availability
16
WCI K5335801 WCI K5335801 Contact Us For Availability
16
SCREW WCI K5022201 Contact Us For Availability
16
ROLLER KIT (PKG. OF 2) WCI K1167752 Contact Us For Availability
16
SCREW WCI K1164309 Contact Us For Availability
17
WCI K5296301 WCI K5296301 Contact Us For Availability
17
ARM ASSY. WCI K1310065 Contact Us For Availability
17
WCI K5269901 WCI K5269901 Contact Us For Availability
18
SWITCH SELEC. WCI K5265901 Contact Us For Availability
18
AXLE WCI K5038501 Contact Us For Availability
19
SCREW WCI K5022101 Contact Us For Availability
19
GLASS WCI K5027202 Contact Us For Availability
20
THERMOSTAT WCI K1322361 Contact Us For Availability
20
INSULATION WCI K5270501 Contact Us For Availability
21
WCI K1305350 WCI K1305350 Contact Us For Availability
21
SCREW WCI K1164569 Contact Us For Availability
22
BRACKET WCI K1312148 Contact Us For Availability
22
SCREW WCI K5046501 Contact Us For Availability
23
BEZEL WCI K1166856 Contact Us For Availability
23
FRAME WCI K5276802 Contact Us For Availability
23
WCI K1325539 WCI K1325539 Contact Us For Availability
24
LIGHT SIGNAL (OVEN 250V) WCI K1167858 Contact Us For Availability
24
HANDLE ASSY (INCLUDES STANCHION) WCI K5026601 Contact Us For Availability
24
WCI K5294301 WCI K5294301 Contact Us For Availability
25
WCI K1164550 WCI K1164550 Contact Us For Availability
26
WCI Q63749 WCI Q63749 Contact Us For Availability
27
WCI K1164566 WCI K1164566 Contact Us For Availability
27
RETAINING WIRE WCI K1325529 Contact Us For Availability
28
WCI K5025001 WCI K5025001 Contact Us For Availability
29
WCI K5025201 WCI K5025201 Contact Us For Availability
29
HANGER WCI K1314456 Contact Us For Availability
30
WCI K5030401 WCI K5030401 Contact Us For Availability
32
KNOB, TIMER WCI K1167676 Contact Us For Availability
32
GRILL (BRNZTN) WCI K1313049 Contact Us For Availability
33
RACK, ( 2 REQ ) WCI K1311570 Contact Us For Availability
39
CUP, OVEN LT WCI K1325530 Contact Us For Availability
40
SCREW WCI K1164479 Contact Us For Availability
43
CHANNEL, OV. SUPT. WCI K1315108 Contact Us For Availability
44
SPACER, RAIL WCI K1324860 Contact Us For Availability
45
LEG WCI K1322905 Contact Us For Availability
46
END PANEL LH, FR. AV. WCI K5024608 Contact Us For Availability
47
GUIDE WCI K1315216 Contact Us For Availability
48
RAIL, SWR. L.H. WCI K5269902 Contact Us For Availability
49
BRACKET THERM. BULB WCI K1311369 Contact Us For Availability
50
CHANNEL, OV. SUPT. WCI K1325635 Contact Us For Availability
52
BUMPER WCI K5106901 Contact Us For Availability
53
INSULATION, BACK WCI K1325625 Contact Us For Availability
54
VENT TUBE WCI K5025501 Contact Us For Availability
55
INSULATION, WRAP WCI K1311329 Contact Us For Availability
57
GUSSET, LH WCI K5285804 Contact Us For Availability
58
WCI Q410505 WCI Q410505 Contact Us For Availability
60
BRACKET, GND. WCI K1145190 Contact Us For Availability
62
WASHER, ( 6 REQ ) WCI Q402503 Contact Us For Availability
63
NUT ( 6 REQ ) WCI Q401002 Contact Us For Availability
64
LOCK WASHER, ( 3 REQ ) WCI Q500411 Contact Us For Availability
65
WCI K5276504 WCI K5276504 Contact Us For Availability
× ![]()
