Model Electrolux KF404GDW2 RANGE – Common Parts & Diagrams

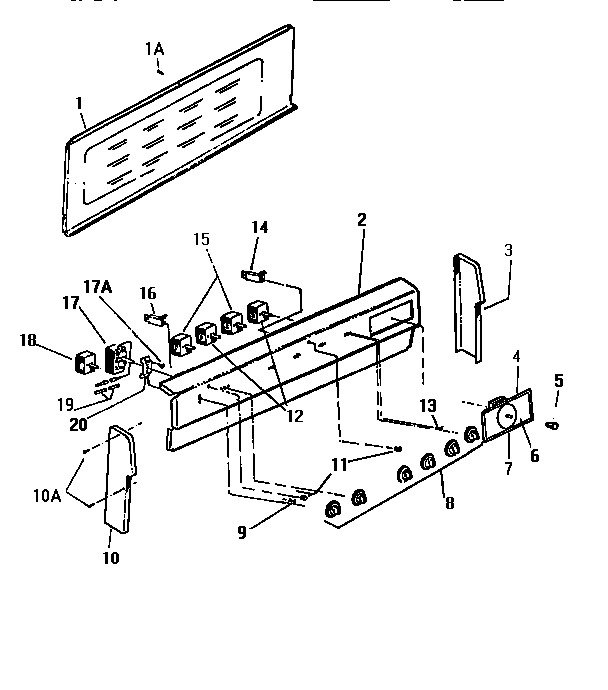

02 - BACKGUARD

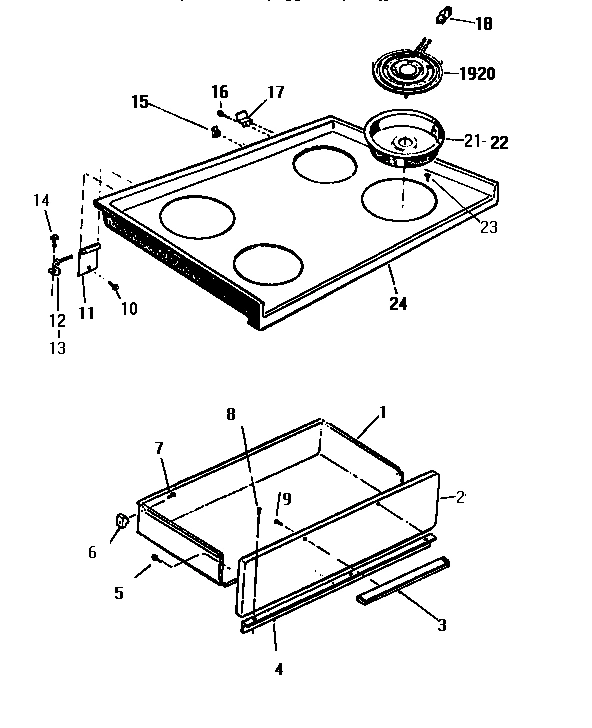

03 - TOP, DRAWER

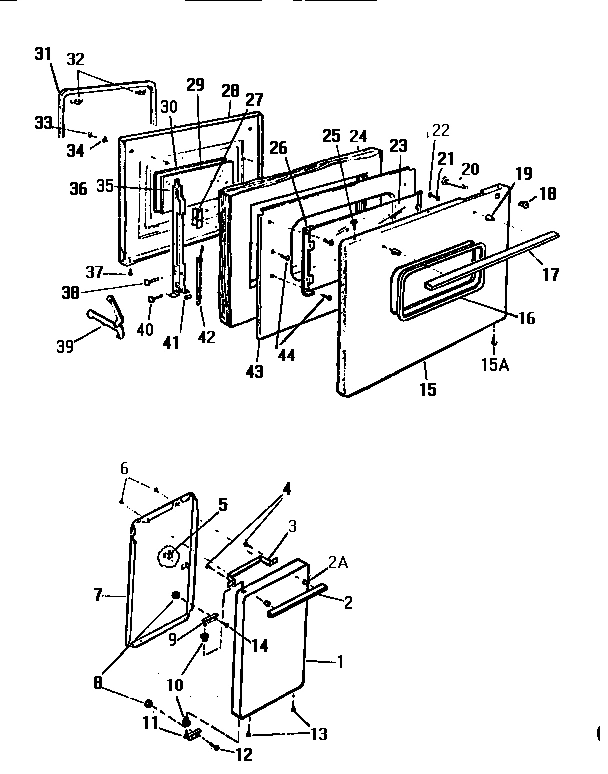

04 - DOOR

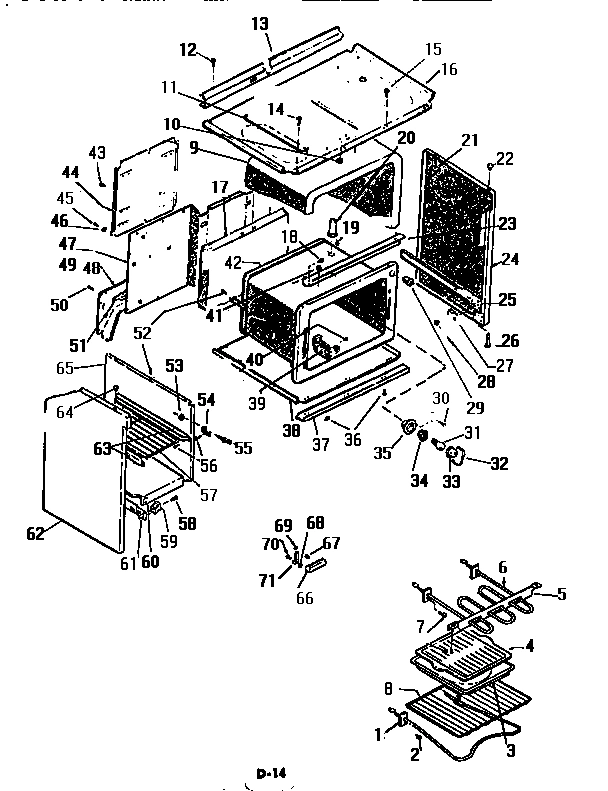

05 - BODY, SIDE PANELS
Common parts from model Electrolux KF404GDW2 RANGE
1
COVER WCI K1315123 Contact Us For Availability
1
WCI K1315211 WCI K1315211 Contact Us For Availability
1
PANEL, COMPT. DOOR, WHITE WCI K1317746 Contact Us For Availability
2
WCI K5068502 WCI K5068502 Contact Us For Availability
2
DRAWER, FRONT PANEL, WHITE WCI K1311378 Contact Us For Availability
2
HANDLE WCI K5034101 Contact Us For Availability
3
WCI K1311947 WCI K1311947 Contact Us For Availability
3
WCI K1317824 WCI K1317824 Contact Us For Availability
3
SPACER WCI K1318024 Contact Us For Availability
3
WCI K1317973 WCI K1317973 Contact Us For Availability
4
BEZEL WCI K1166856 Contact Us For Availability
4
WCI K1312503 WCI K1312503 Contact Us For Availability
4
WCI K1317972 WCI K1317972 Contact Us For Availability
5
KNOB, TIMER WCI K1167676 Contact Us For Availability
5
CATCH WCI K1310826 Contact Us For Availability
5
HANGER WCI K1314456 Contact Us For Availability
6
CRYSTAL WCI K1167549 Contact Us For Availability
6
GUIDE, DRAWER (2) WCI K1315217 Contact Us For Availability
7
TIMER WCI K5335801 Contact Us For Availability
7
LINER WCI K5048001 Contact Us For Availability
8
KNOB (6) WCI K5156302 Contact Us For Availability
8
RACK (2) WCI K1311570 Contact Us For Availability
9
SCREW, BRACKET MOUNTING WCI K5104301 Contact Us For Availability
9
WCI Q310114 WCI Q310114 Contact Us For Availability
9
INSULATION, WRAP WCI K1311329 Contact Us For Availability
10
WCI K1311948 WCI K1311948 Contact Us For Availability
10
SPACER, HINE WCI K1306686 Contact Us For Availability
10
WASHER, PADDED WCI K1313226 Contact Us For Availability
10A
WCI K5145201 WCI K5145201 Contact Us For Availability
11
JEWEL (2) WCI K1322678 Contact Us For Availability
11
RETAINER (2) WCI K1315632 Contact Us For Availability
11
WCI Q310113 WCI Q310113 Contact Us For Availability
11
ROD, COOKTOP WCI K1315232 Contact Us For Availability
12
WCI K1315631 WCI K1315631 Contact Us For Availability
13
SCREW (8) WCI K1313060 Contact Us For Availability
13
WCI K1315630 WCI K1315630 Contact Us For Availability
13
WCI K5287906 WCI K5287906 Contact Us For Availability
14
PILOT LIGHT, HTRS (125V) WCI K1167857 Contact Us For Availability
14
SCREW WCI K5022201 Contact Us For Availability
15
WCI K1315541 WCI K1315541 Contact Us For Availability
15
WCI K1326733 WCI K1326733 Contact Us For Availability
16
PILOT LIGHT, OVEN (250V) WCI K1167858 Contact Us For Availability
16
J MOULDING WCI K1313568 Contact Us For Availability
16
WCI K1323564 WCI K1323564 Contact Us For Availability
17
THERMOSTAT WCI K1322361 Contact Us For Availability
17
BRACKET (2) WCI K1307880 Contact Us For Availability
17
HANDLE WCI K1325038 Contact Us For Availability
17
INSULATION, BACK WCI K1325625 Contact Us For Availability
17A
SCREW, THERMO TO BRACKET WCI K5022101 Contact Us For Availability
18
SWITCH SELECTOR WCI K5265901 Contact Us For Availability
18
COLLAR WCI K1310071 Contact Us For Availability
19
SLEEVE (CUT TO SIZE) WCI K1305350 Contact Us For Availability
19
SPACER (2) WCI K1311965 Contact Us For Availability
19
SCREW WCI K1164309 Contact Us For Availability
20
BRACKET, THERMO MTG. WCI K1312148 Contact Us For Availability
20
PLUGNER, LIGHT SWITCH WCI K1313983 Contact Us For Availability
20
VENT TUBE WCI K1311218 Contact Us For Availability
21
GUSSET WCI K1315230 Contact Us For Availability
22
SCREW (2) WCI K5104201 Contact Us For Availability
22
BUMPER WCI K5106901 Contact Us For Availability
23
WCI K1325512 WCI K1325512 Contact Us For Availability
23
WCI K5048201 WCI K5048201 Contact Us For Availability
24
INSULATION WCI K1325629 Contact Us For Availability
24
END PANEL, RH WCI K5024601 Contact Us For Availability
25
WCI K5269901 WCI K5269901 Contact Us For Availability
26
RETAINER (2) WCI K1325270 Contact Us For Availability
26
LEG WCI K1322905 Contact Us For Availability
27
WCI K1325510 WCI K1325510 Contact Us For Availability
28
WCI K1325786 WCI K1325786 Contact Us For Availability
29
WCI K1325511 WCI K1325511 Contact Us For Availability
29
SWITCH, OVEN LIGHT WCI K5294301 Contact Us For Availability
30
WCI K1325686 WCI K1325686 Contact Us For Availability
31
GASKET (COMPLET W/CLIPS) WCI K1312480 Contact Us For Availability
31
WCI Q63749 WCI Q63749 Contact Us For Availability
32
CLIP, DOOR GASKET WCI K1309666 Contact Us For Availability
32
RETAINING WIRE WCI K1325529 Contact Us For Availability
35
CHANNEL ASSY, COMPLETE W/ROLLER & STUD) WCI K1311515 Contact Us For Availability
35
WCI K1325530 WCI K1325530 Contact Us For Availability
36
CHANNEL ASSY, RH, COMPLETE W/ROLLER & STUD WCI K1311514 Contact Us For Availability
37
WCI K1316113 WCI K1316113 Contact Us For Availability
38
RIVET WCI K1100773 Contact Us For Availability
38
WCI K5276504 WCI K5276504 Contact Us For Availability
39
HINGE ARM ASSY, (2) WCI K1310065 Contact Us For Availability
39
BRACKET, THERMO BULB WCI K1311369 Contact Us For Availability
40
PIN WCI K5038501 Contact Us For Availability
41
ROLLER KIT (PKG. OF 2) WCI K1167752 Contact Us For Availability
42
SPRING (20 WCI K1302505 Contact Us For Availability
42
WCI K5024704 WCI K5024704 Contact Us For Availability
43
PANEL AIRWASH WCI K1325729 Contact Us For Availability
44
WCI K1164550 WCI K1164550 Contact Us For Availability
44
WIRING COVER WCI K5276202 Contact Us For Availability
46
WCI Q410505 WCI Q410505 Contact Us For Availability
47
WCI K5277802 WCI K5277802 Contact Us For Availability
48
GUSSET, LH WCI K5285804 Contact Us For Availability
49
GUSSE, RH WCI K5285802 Contact Us For Availability
51
WCI K1307085 WCI K1307085 Contact Us For Availability
53
NUT WCI KGM271166 Contact Us For Availability
54
WCI K5138301 WCI K5138301 Contact Us For Availability
55
STRIKE WCI K1324043 Contact Us For Availability
57
RACK, SMALL WCI K1311283 Contact Us For Availability
59
GUIDE, DRAWER (2) WCI K1315216 Contact Us For Availability
60
PANEL, BOTTOM WCI K1315129 Contact Us For Availability
61
WCI K5269902 WCI K5269902 Contact Us For Availability
62
END PANEL, LH WCI K5024602 Contact Us For Availability
63
RAIL (2) WCI K1315199 Contact Us For Availability
64
WCI K5406901 WCI K5406901 Contact Us For Availability
65
PARTITION WCI K5157802 Contact Us For Availability
66
TERMINAL BLOCK, COMPLETE WCI Q134264 Contact Us For Availability
67
SCREW WCI K1164479 Contact Us For Availability
68
WCI Q402503 WCI Q402503 Contact Us For Availability
69
NUT WCI Q401002 Contact Us For Availability
× ![]()
