Model Electrolux KF400GDV2 RANGE – Common Parts & Diagrams

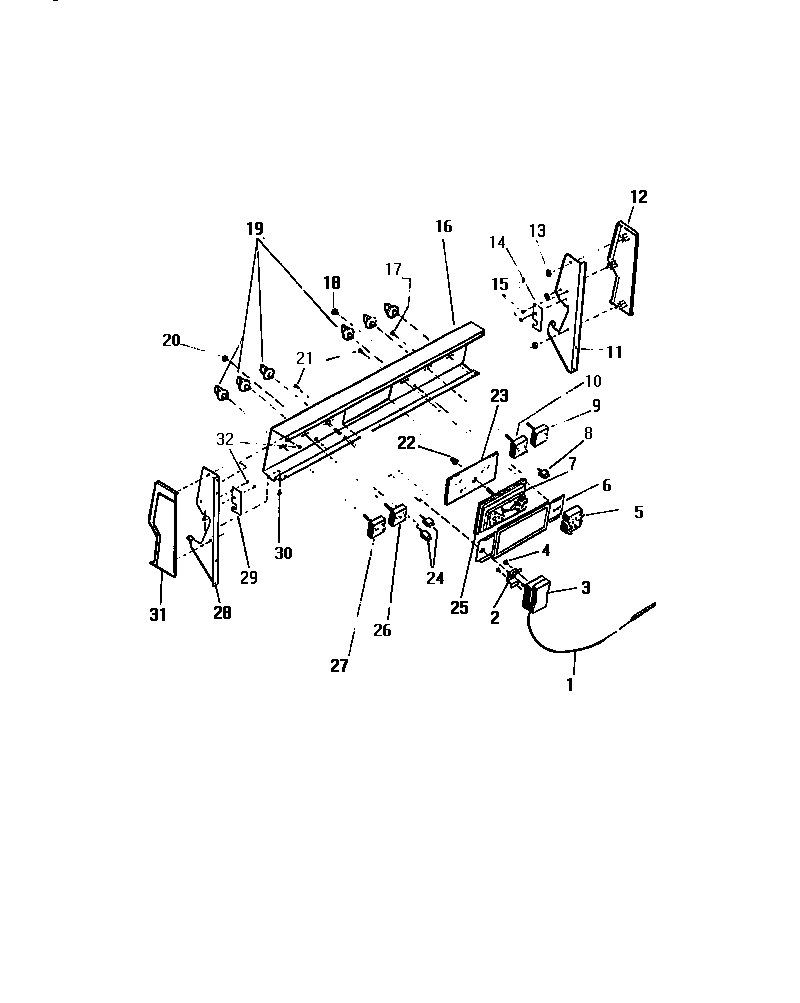

02 - BACKGUARD

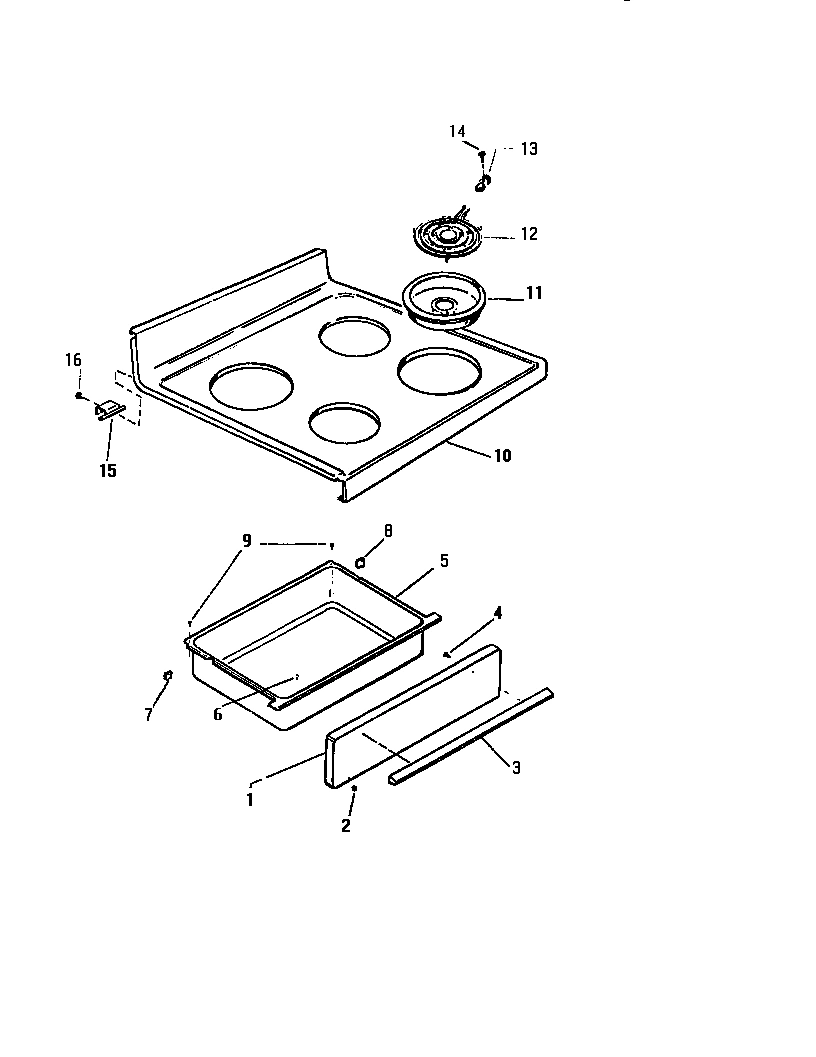

03 - TOP, DRAWER

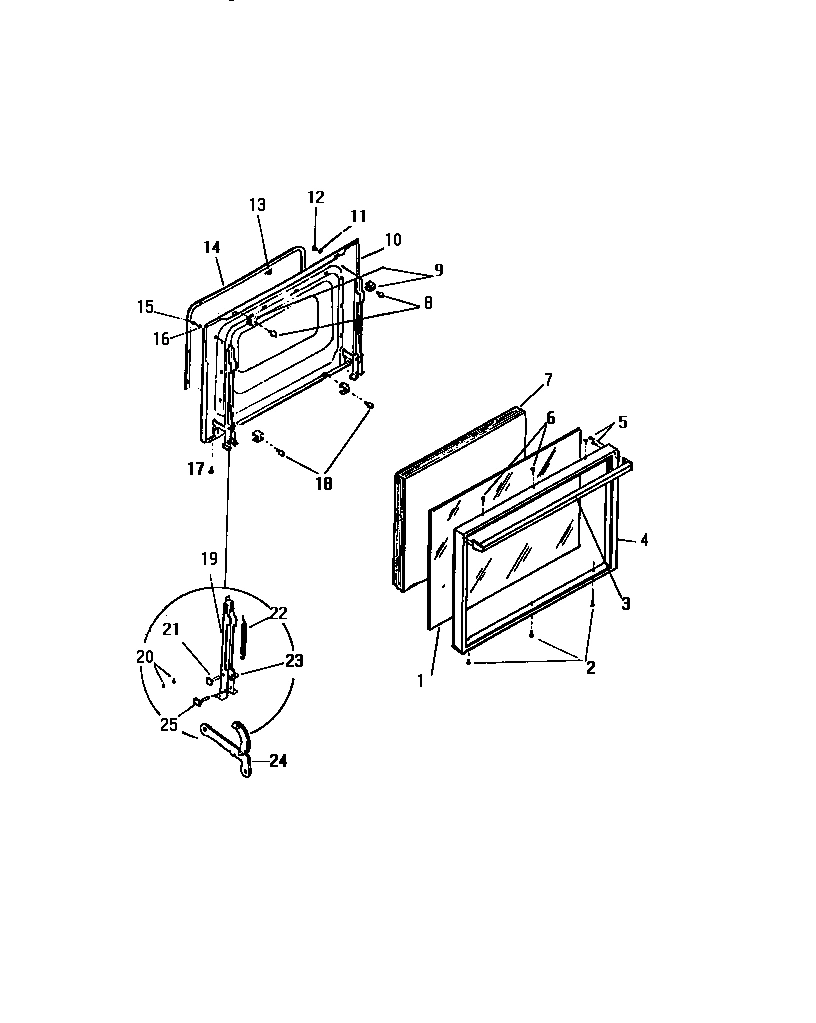

04 - DOOR

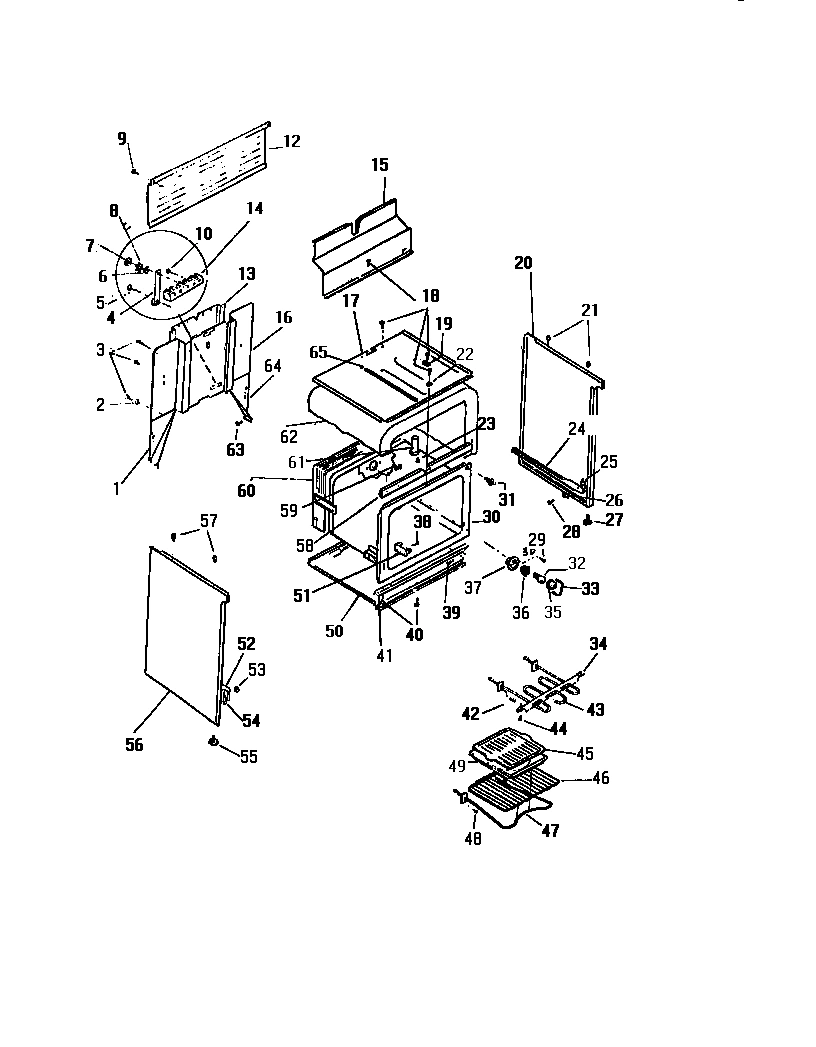

05 - BODY, SIDE PANELS
Common parts from model Electrolux KF400GDV2 RANGE
1
WCI K1305350 WCI K1305350 Contact Us For Availability
1
PANEL DRAWER FR. AV. WCI K1325098 Contact Us For Availability
1
GLASS WCI K5027202 Contact Us For Availability
1
WCI K5085804 WCI K5085804 Contact Us For Availability
2
BRACKET WCI K1312148 Contact Us For Availability
2
WCI Q410505 WCI Q410505 Contact Us For Availability
3
THERMOSTAT WCI K1322361 Contact Us For Availability
3
HANDLE WCI K5030201 Contact Us For Availability
3
HANDLE ASSY (INCLUDES STANCHION) WCI K5026601 Contact Us For Availability
4
SCREW WCI K5022101 Contact Us For Availability
4
FRAME WCI K5276802 Contact Us For Availability
4
BRACKET, GND. WCI K1145190 Contact Us For Availability
5
SWITCH SELEC. WCI K5265901 Contact Us For Availability
5
DRAWER WCI K1324095 Contact Us For Availability
5
SCREW WCI K5046501 Contact Us For Availability
6
WCI K5296301 WCI K5296301 Contact Us For Availability
6
WASHER (6) WCI Q402503 Contact Us For Availability
7
WCI K5335801 WCI K5335801 Contact Us For Availability
7
INSULATION WCI K5270501 Contact Us For Availability
7
NUT (6) WCI Q401002 Contact Us For Availability
8
LIGHT,SIGNAL (SURFACE UNIT 125V) WCI K1167857 Contact Us For Availability
8
GUIDE WCI K1324091 Contact Us For Availability
8
BUMPER TOP (2) WCI K5297101 Contact Us For Availability
8
LOCK WASHER (3) WCI Q500411 Contact Us For Availability
9
SCREW WCI K5022201 Contact Us For Availability
9
SPACER (4) WCI K1324812 Contact Us For Availability
10
WCI K5024213 WCI K5024213 Contact Us For Availability
10
WCI K1317740 WCI K1317740 Contact Us For Availability
11
WCI K5025202 WCI K5025202 Contact Us For Availability
12
WCI K5030402 WCI K5030402 Contact Us For Availability
12
COVER BKGD WCI K1315140 Contact Us For Availability
13
NUT (3) WCI K5036602 Contact Us For Availability
13
WCI K1309666 WCI K1309666 Contact Us For Availability
13
COVER, WIRE WCI K5276202 Contact Us For Availability
14
GASKET (WITH CLIPS) WCI K1312480 Contact Us For Availability
14
TERM BLOCK KIT, ( INCLUDES NUTS, SCREWS AND W WCI Q134264 Contact Us For Availability
15
WCI K5024901 WCI K5024901 Contact Us For Availability
15
WCI K5029503 WCI K5029503 Contact Us For Availability
16
WCI K5030302 WCI K5030302 Contact Us For Availability
16
WCI K164542 WCI K164542 Contact Us For Availability
16
BACK WCI K5275802 Contact Us For Availability
17
WCI K5025802 WCI K5025802 Contact Us For Availability
18
BUMPER BTM WCI K1312009 Contact Us For Availability
19
WCI 5156302 WCI 5156302 Contact Us For Availability
19
CHANNEL ASSY (COMPLETE W/ROLLER & STUD) WCI K1311514 Contact Us For Availability
19
RETAINER WCI K1310049 Contact Us For Availability
20
LENS WCI K1322678 Contact Us For Availability
20
WCI K1164550 WCI K1164550 Contact Us For Availability
20
END PANEL RH, FR AV WCI K5024607 Contact Us For Availability
21
SCREW WCI K1313060 Contact Us For Availability
21
RIVET WCI K1100773 Contact Us For Availability
22
KNOB, TIMER WCI K1167676 Contact Us For Availability
22
WASHER, PADDED (3) WCI K1313226 Contact Us For Availability
22
SPRING WCI K1302505 Contact Us For Availability
23
GLASS WCI K1167549 Contact Us For Availability
23
ROLLER KIT (PKG. OF 2) WCI K1167752 Contact Us For Availability
23
SCREW WCI K1164309 Contact Us For Availability
24
LIGHT SIGNAL (OVEN 250V) WCI K1167858 Contact Us For Availability
24
ARM ASSY. WCI K1310065 Contact Us For Availability
24
RAIL, DWR., RH WCI K5269901 Contact Us For Availability
25
BEZEL WCI K1166856 Contact Us For Availability
25
AXLE WCI K5038501 Contact Us For Availability
28
WCI K5025201 WCI K5025201 Contact Us For Availability
28
SCREW WCI K1164569 Contact Us For Availability
29
WCI K5025001 WCI K5025001 Contact Us For Availability
30
WCI K1164566 WCI K1164566 Contact Us For Availability
30
WCI K1325537 WCI K1325537 Contact Us For Availability
31
WCI K5030401 WCI K5030401 Contact Us For Availability
31
WCI K5294301 WCI K5294301 Contact Us For Availability
32
WCI Q63749 WCI Q63749 Contact Us For Availability
33
RETAINING WIRE WCI K1325529 Contact Us For Availability
34
HANGER WCI K1314456 Contact Us For Availability
37
CUP, OVEN LT WCI K1325530 Contact Us For Availability
39
SCREW WCI K1164479 Contact Us For Availability
41
CHANNEL, OV. SUPT. WCI K1315108 Contact Us For Availability
45
WCI K1317972 WCI K1317972 Contact Us For Availability
46
RACK (2) WCI K1311570 Contact Us For Availability
48
WCI K116447 WCI K116447 Contact Us For Availability
49
WCI K1317973 WCI K1317973 Contact Us For Availability
50
PANEL, BTM WCI K5276504 Contact Us For Availability
51
BRACKET THERM. BULB WCI K1311369 Contact Us For Availability
52
RAIL, DWR, LH WCI K5269902 Contact Us For Availability
53
GUIDE WCI K1315216 Contact Us For Availability
54
SPACER, RAIL WCI K1324860 Contact Us For Availability
55
LEG WCI K1322905 Contact Us For Availability
56
END PANEL LH, FR. AV. WCI K5024608 Contact Us For Availability
57
BUMPER WCI K5106901 Contact Us For Availability
58
WCI K1325472 WCI K1325472 Contact Us For Availability
60
INSULATION, BACK WCI K1325625 Contact Us For Availability
61
VENT TUBE WCI K5025501 Contact Us For Availability
62
INSULATION, WRAP WCI K1311329 Contact Us For Availability
64
GUSSET, RH WCI K5285802 Contact Us For Availability
65
ROD WCI K1315232 Contact Us For Availability
× ![]()
