Model Electrolux KF350GDF3 RANGE – Common Parts & Diagrams
02 - BACKGUARD

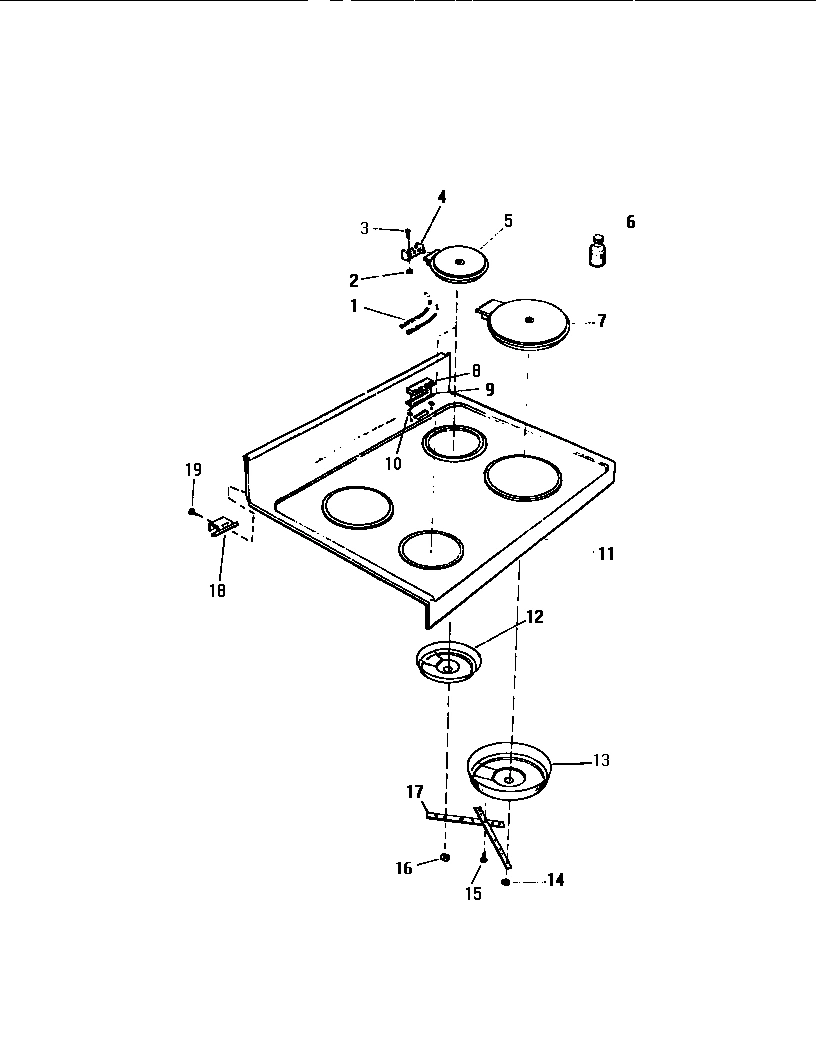

03 - TOP
04 - DOOR
05 - BODY, SIDE PANELS
06 - DRAWER
Common parts from model Electrolux KF350GDF3 RANGE
1
WCI K5000202 WCI K5000202 Contact Us For Availability
1
COVER BKGD WCI K1315140 Contact Us For Availability
2
KNOB (6) WCI K5156302 Contact Us For Availability
2
WCI K1167977 WCI K1167977 Contact Us For Availability
2
TERM BLOCK KIT, ( INCLUDES NUTS, SCREWS AND W WCI Q134264 Contact Us For Availability
3
SCREW WCI K5104301 Contact Us For Availability
3
WCI K1167978 WCI K1167978 Contact Us For Availability
3
GASKET (WITH CLIPS) WCI K1312480 Contact Us For Availability
3
COVER, WIRE WCI K5276202 Contact Us For Availability
3
DRAWER WCI K1324095 Contact Us For Availability
4
LENS WCI K1322678 Contact Us For Availability
4
WCI K1167979 WCI K1167979 Contact Us For Availability
4
WCI K1309666 WCI K1309666 Contact Us For Availability
4
BACK WCI K5275802 Contact Us For Availability
5
SCREW, SW MTG (8) WCI K1313060 Contact Us For Availability
5
HEATER, SMALL (2) WCI K5129301 Contact Us For Availability
5
HANDLE WCI K1325038 Contact Us For Availability
6
WCI K6029602 WCI K6029602 Contact Us For Availability
6
WCI K5155701 WCI K5155701 Contact Us For Availability
6
WASHER, PADDED WCI K1313226 Contact Us For Availability
6
GUSSET, LH WCI K5285804 Contact Us For Availability
7
WCI K5129401 WCI K5129401 Contact Us For Availability
7
WCI K1317740 WCI K1317740 Contact Us For Availability
7
WCI Q410505 WCI Q410505 Contact Us For Availability
7
WCI K1325096 WCI K1325096 Contact Us For Availability
7A
PANEL DRAWER, ALMOND WCI K1325100 Contact Us For Availability
8
TRIM, VENT WCI K5130901 Contact Us For Availability
8
SCREW WCI K5022201 Contact Us For Availability
9
NUT (3) WCI K5036602 Contact Us For Availability
9
GASKET WCI K5130801 Contact Us For Availability
9
BUMPER TOP (2) WCI K5297101 Contact Us For Availability
9
BRACKET, GND. WCI K1145190 Contact Us For Availability
9
GUIDE WCI K1324091 Contact Us For Availability
10
WCI K5030402 WCI K5030402 Contact Us For Availability
10
CLIP (2) WCI K1164567 Contact Us For Availability
10
INSULATION WCI K1325629 Contact Us For Availability
11
WCI K5025202 WCI K5025202 Contact Us For Availability
11
WASHER (6) WCI Q402503 Contact Us For Availability
12
SHIELD, SMALL (2) WCI K5134101 Contact Us For Availability
12
SCREW WCI K5046501 Contact Us For Availability
12
NUT (6) WCI Q401002 Contact Us For Availability
13
SHIELD LARGE (1) WCI K5129601 Contact Us For Availability
13
FRAME WCI K5276802 Contact Us For Availability
13
LOCK WASHER (3) WCI Q500411 Contact Us For Availability
14
HANDLE ASSEMBLY (INCLUDES STANCHION) WCI K5026601 Contact Us For Availability
15
SWITCH SELEC. WCI K5265901 Contact Us For Availability
15
END PANEL, RH, ALMOND WCI K5024603 Contact Us For Availability
16
SCREW WCI K5022101 Contact Us For Availability
16
WCI K5130001 WCI K5130001 Contact Us For Availability
16
GLASS WCI K5027202 Contact Us For Availability
16
WCI K510690 WCI K510690 Contact Us For Availability
17
THERMOSTAT WCI K1322361 Contact Us For Availability
17
STRAP (4) WCI K5129801 Contact Us For Availability
17
BUMPER, BTM (2) WCI K1312009 Contact Us For Availability
17
WCI K5269901 WCI K5269901 Contact Us For Availability
18
WCI K1305350 WCI K1305350 Contact Us For Availability
18
WCI K5024901 WCI K5024901 Contact Us For Availability
18
SPACER, BTM (2) WCI K1324812 Contact Us For Availability
19
BRACKET WCI K1312148 Contact Us For Availability
20
LIGHT SIGNAL (OVEN 250V) WCI K1167858 Contact Us For Availability
20
CHANNEL ASSEMBLY (COMP. WITH ROLLER AND STUD) WCI K1311514 Contact Us For Availability
20
LEG WCI K1322905 Contact Us For Availability
21
SPRING WCI K1302505 Contact Us For Availability
21
SCREW WCI K1164569 Contact Us For Availability
22
WCI K1164566 WCI K1164566 Contact Us For Availability
22
ROLLER KIT (PKG. OF 2) WCI K1167752 Contact Us For Availability
22
SCREW WCI K1164309 Contact Us For Availability
23
WCI K5025001 WCI K5025001 Contact Us For Availability
23
ARM ASSEMBLY WCI K1310065 Contact Us For Availability
23
PLUG BUTTON WCI KGM142025 Contact Us For Availability
24
WCI K5025201 WCI K5025201 Contact Us For Availability
24
AXLE WCI K5038501 Contact Us For Availability
24
WCI K1325537 WCI K1325537 Contact Us For Availability
25
WCI K5030401 WCI K5030401 Contact Us For Availability
25
WCI K1164550 WCI K1164550 Contact Us For Availability
26
RIVET WCI K1100773 Contact Us For Availability
26
WCI K1325624 WCI K1325624 Contact Us For Availability
27
SCREW WCI K1164479 Contact Us For Availability
29
CHANNEL, OV. SUPT. WCI K1315108 Contact Us For Availability
30
PANEL, BTM WCI K5276504 Contact Us For Availability
31
BRACKET THERM. BULB WCI K1311369 Contact Us For Availability
33
CHANNEL, OV SUPT. WCI K5009403 Contact Us For Availability
35
INSULATION, BACK WCI K1325625 Contact Us For Availability
36
WCI K5053701 WCI K5053701 Contact Us For Availability
37
INSULATION, WRAP WCI K1311329 Contact Us For Availability
38
WCI K5303702 WCI K5303702 Contact Us For Availability
39
WCI K5025704 WCI K5025704 Contact Us For Availability
41
BRACKET WCI K5130701 Contact Us For Availability
42
VENT TUBE WCI K5130601 Contact Us For Availability
43
HANGER WCI K1314456 Contact Us For Availability
46
GRILL WCI K1317972 Contact Us For Availability
47
RACK (2) WCI K1311570 Contact Us For Availability
50
PAN WCI K1317973 Contact Us For Availability
52
WCI K5269902 WCI K5269902 Contact Us For Availability
53
GUIDE WCI K1315216 Contact Us For Availability
54
SPACER, RAIL WCI K1324860 Contact Us For Availability
55
WCI K1322906 WCI K1322906 Contact Us For Availability
× ![]()
