Model Electrolux KF350GDF1 RANGE – Common Parts & Diagrams

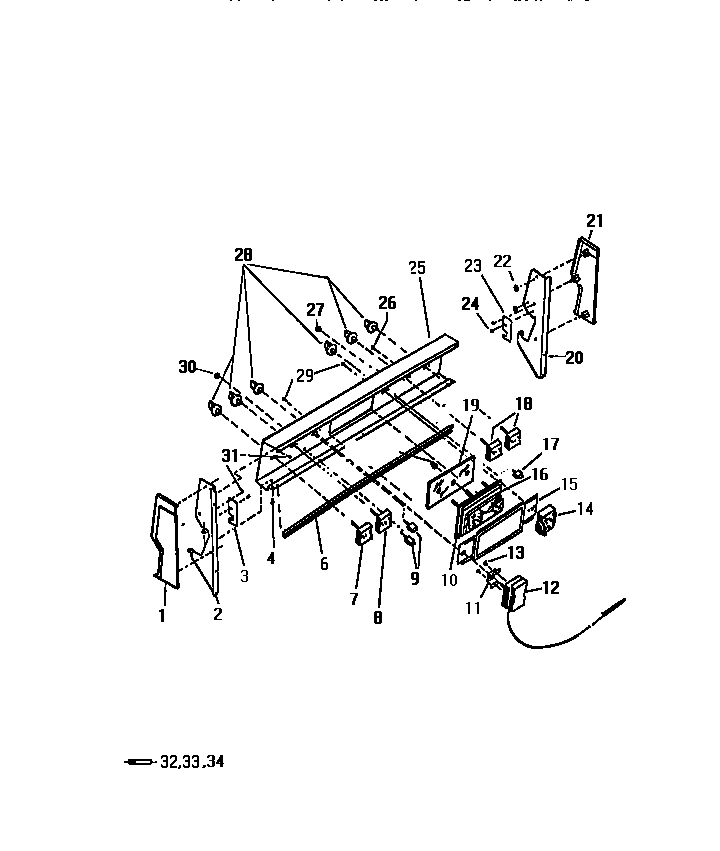

02 - BACKGUARD

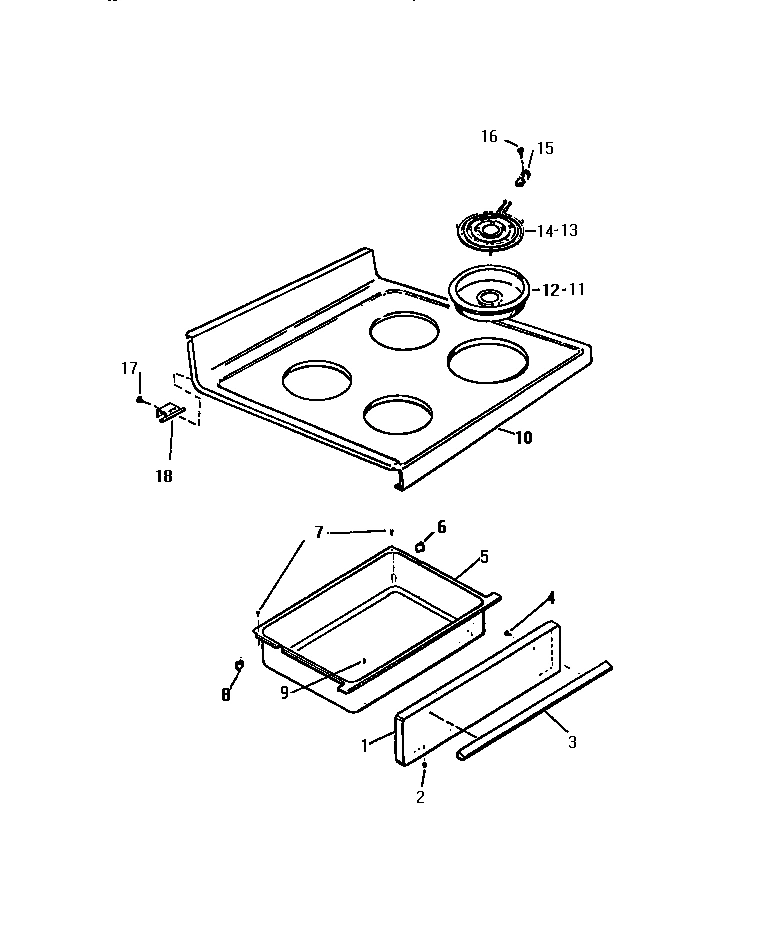

03 - TOP, DRAWER

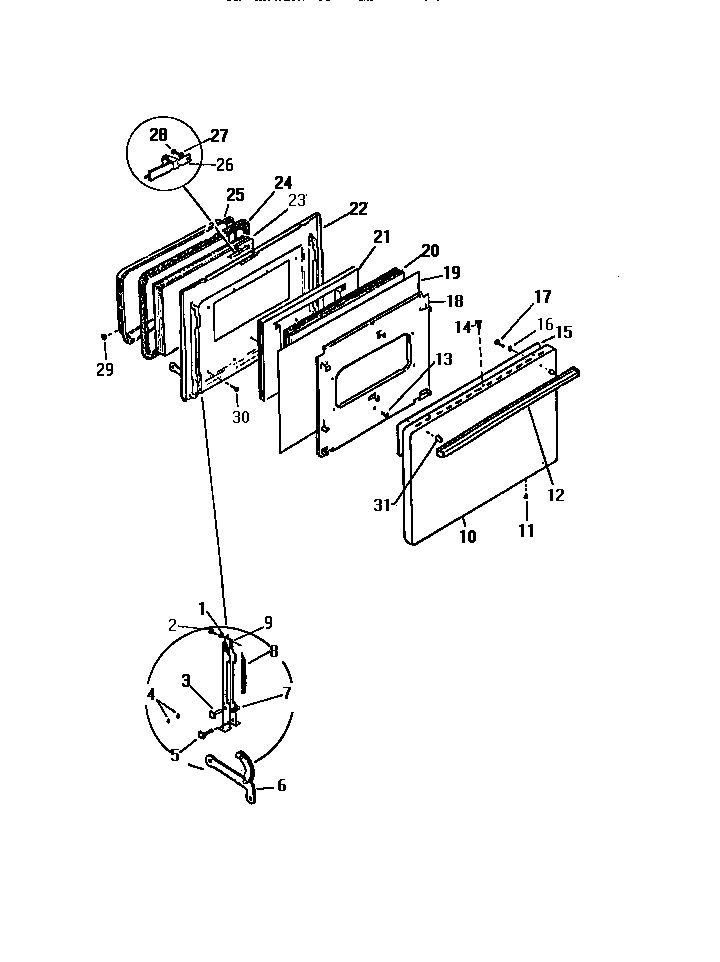

04 - DOOR

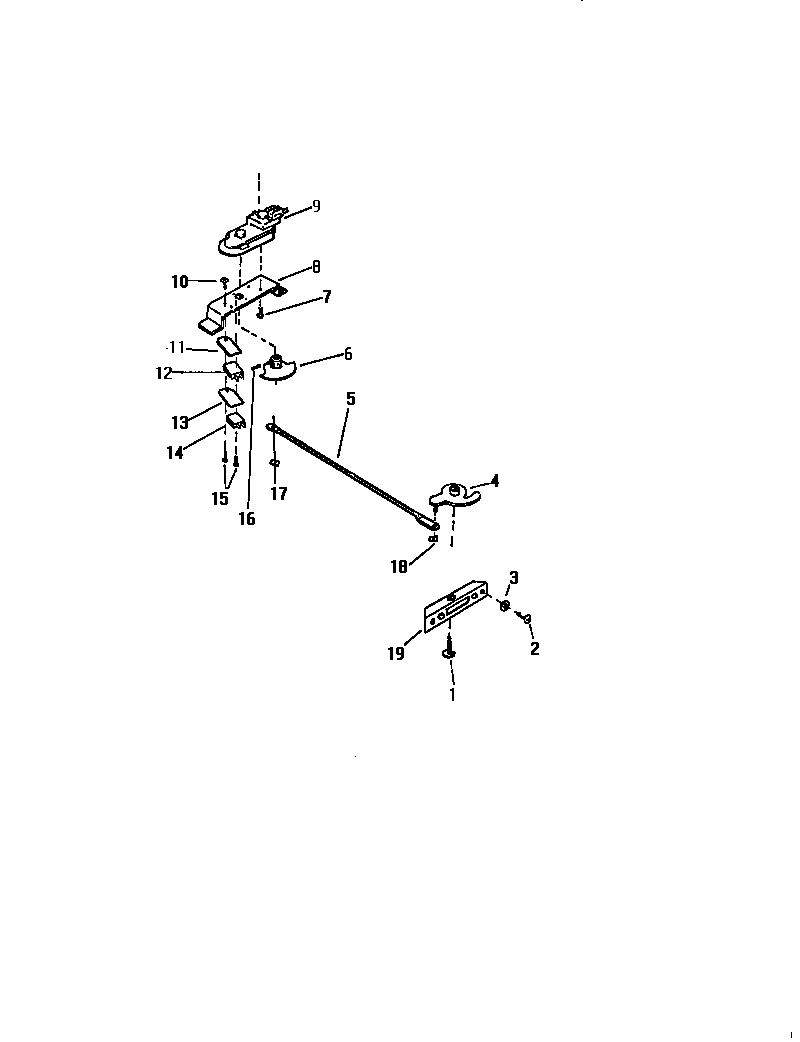

05 - DOOR LATCH ASSEMBLY

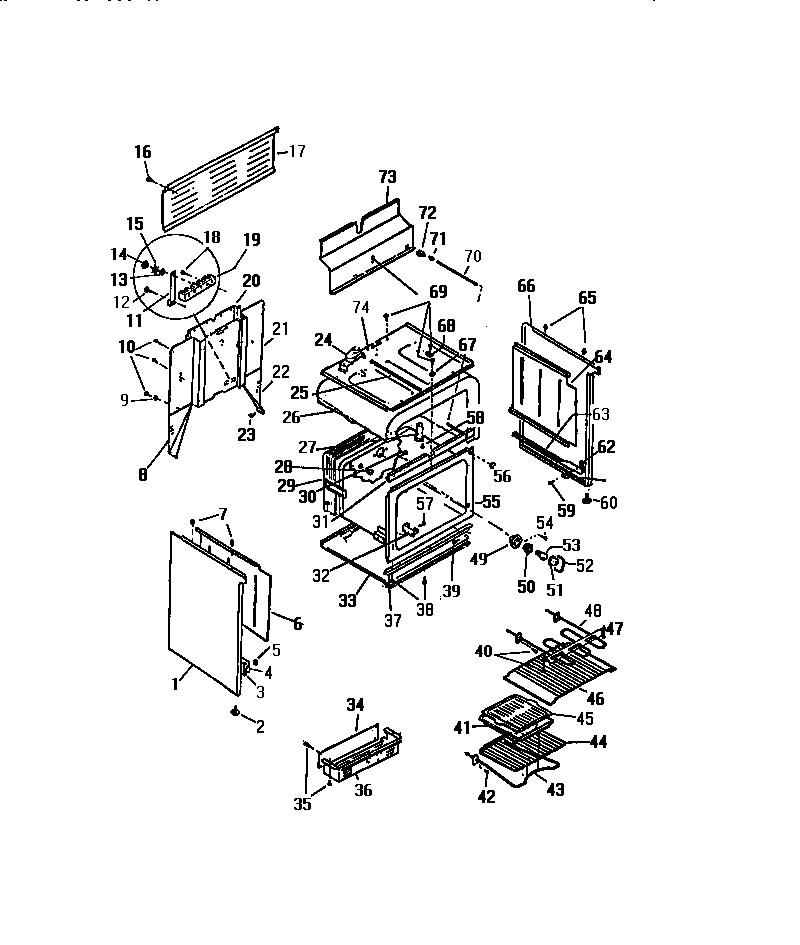

06 - CAVITY & SIDE PANEL
Common parts from model Electrolux KF350GDF1 RANGE
1
WCI K5030401 WCI K5030401 Contact Us For Availability
1
WCI K1325097 WCI K1325097 Contact Us For Availability
1
AXLE, LATCH WCI K5038501 Contact Us For Availability
1
END PANEL, LH, COFFEE WCI K5024606 Contact Us For Availability
2
WCI K5025201 WCI K5025201 Contact Us For Availability
2
WCI K1164550 WCI K1164550 Contact Us For Availability
3
RIVET WCI K1100773 Contact Us For Availability
4
WCI K1164566 WCI K1164566 Contact Us For Availability
4
LATCH WCI K5260201 Contact Us For Availability
4
WCI K5269902 WCI K5269902 Contact Us For Availability
5
WCI K5032201 WCI K5032201 Contact Us For Availability
5
DRAWER WCI K1324095 Contact Us For Availability
5
WCI K1317813 WCI K1317813 Contact Us For Availability
6
KNOB TIMER (3) WCI K1167676 Contact Us For Availability
6
ARM ASSEMBLY WCI K1310065 Contact Us For Availability
6
CAM WCI K1325071 Contact Us For Availability
6
RETAINER, INSULATION WCI K1325388 Contact Us For Availability
7
ROLLER KIT (PKG. OF 2) WCI K1167752 Contact Us For Availability
7
SCREW WCI K5157101 Contact Us For Availability
8
GUIDE WCI K1324091 Contact Us For Availability
8
SPRING WCI K1302501 Contact Us For Availability
8
SUPPORT WCI K1324263 Contact Us For Availability
8
GUSSET, LH WCI K1325114 Contact Us For Availability
9
LIGHT, SIGNAL (CLEAN & OVEN 250V.) WCI K5046101 Contact Us For Availability
9
SCREW WCI K5022201 Contact Us For Availability
9
CHANNEL ASSEMBLY (COMPLETE W/ROLLER & STUD) WCI K1311514 Contact Us For Availability
9
WCI Q410505 WCI Q410505 Contact Us For Availability
9
WCI K1318885 WCI K1318885 Contact Us For Availability
10
BEZEL WCI K1166856 Contact Us For Availability
10
WCI K5024207 WCI K5024207 Contact Us For Availability
10
OUTER DOOR PANEL, COFFEE WCI K1317742 Contact Us For Availability
11
WCI K5267103 WCI K5267103 Contact Us For Availability
11
BRACKET, GND. WCI K1145190 Contact Us For Availability
12
WCI K1324562 WCI K1324562 Contact Us For Availability
12
HANDLE WCI K1325038 Contact Us For Availability
12
SWITCH, UPPER LIMIT WCI K1315370 Contact Us For Availability
13
SCREW WCI K5104301 Contact Us For Availability
13
SCREW WCI K1164557 Contact Us For Availability
13
INSULATOR WCI K1308690 Contact Us For Availability
13
WASHER (6) WCI Q402503 Contact Us For Availability
14
WCI K5041901 WCI K5041901 Contact Us For Availability
14
SWITCH, LOWER LIMIT WCI K1167190 Contact Us For Availability
14
NUT (6) WCI Q401002 Contact Us For Availability
15
WCI K5296301 WCI K5296301 Contact Us For Availability
15
PAD, INSULATOR WCI K1314506 Contact Us For Availability
15
SCREW WCI K1164502 Contact Us For Availability
15
LOCK WASHER (3) WCI Q500411 Contact Us For Availability
16
WCI K5033001 WCI K5033001 Contact Us For Availability
16
PIN WCI KGM455105 Contact Us For Availability
17
LIGHT,SIGNAL (SURFACE UNIT 125V) WCI K1167857 Contact Us For Availability
17
SCREW, HANDLE (2) WCI K5104201 Contact Us For Availability
17
COVER, BACKGUARD WCI K1315140 Contact Us For Availability
18
WCI K5024901 WCI K5024901 Contact Us For Availability
18
WCI K1323173 WCI K1323173 Contact Us For Availability
18
PUSH NUT WCI K1164424 Contact Us For Availability
19
GLASS WCI K1167678 Contact Us For Availability
19
FOIL, ALUMINUM WCI K1313020 Contact Us For Availability
19
WCI K1324830 WCI K1324830 Contact Us For Availability
19
TERMINAL BLOCK KIT (INCLUDES NUTS, SCREWS, WA WCI Q134264 Contact Us For Availability
20
WCI K5025202 WCI K5025202 Contact Us For Availability
20
WCI K1322652 WCI K1322652 Contact Us For Availability
20
COVER, WIRE WCI K1315110 Contact Us For Availability
21
WCI K5030402 WCI K5030402 Contact Us For Availability
21
INSULATION WCI K1322651 Contact Us For Availability
21
BACK WCI K5137902 Contact Us For Availability
22
NUT (3) WCI K5036602 Contact Us For Availability
22
WCI K1324721 WCI K1324721 Contact Us For Availability
22
GUSSET, RH WCI K1325113 Contact Us For Availability
23
BRACKET HINGE MOUNTING WCI K5025001 Contact Us For Availability
23
INSULATION WCI K1322622 Contact Us For Availability
24
GASKET WCI K1323811 Contact Us For Availability
25
WCI K5031101 WCI K5031101 Contact Us For Availability
25
WCI K1322616 WCI K1322616 Contact Us For Availability
25
ROD WCI K1315232 Contact Us For Availability
26
STRIKE ASSEMBLY WCI K1323556 Contact Us For Availability
26
INSULATION, WRAP WCI K1311331 Contact Us For Availability
27
VENT TUBE WCI K5055001 Contact Us For Availability
28
KNOBS, (6) WCI K5156302 Contact Us For Availability
28
WCI KGM142017 WCI KGM142017 Contact Us For Availability
29
SCREW WCI K1313060 Contact Us For Availability
29
PLUG BUTTON (2) WCI KGM142001 Contact Us For Availability
29
INSULATION, BACK WCI K5056901 Contact Us For Availability
30
LENS WCI K1322678 Contact Us For Availability
31
SPACER (2) WCI K1311965 Contact Us For Availability
31
CHANNEL, OVEN SUPPORT WCI K1323561 Contact Us For Availability
32
120K RESISTOR (BROWN, RED, YELLOW, GOLD BANDS WCI K5044001 Contact Us For Availability
32
BRACKET THEM. BULB WCI K1311369 Contact Us For Availability
33
51K RESISITOR (GREEN, BROWN, ORANGE, GOLD BAN WCI K5044101 Contact Us For Availability
33
WCI K1317644 WCI K1317644 Contact Us For Availability
34
39K RESISTOR (ORANGE, WHITE, ORANGE, GOLD BAN WCI K5044102 Contact Us For Availability
34
COVER WCI K1303601 Contact Us For Availability
36
WCI K1315121 WCI K1315121 Contact Us For Availability
37
CHANNEL, OVEN SUPPORT WCI K1315108 Contact Us For Availability
39
SCREW WCI K1164479 Contact Us For Availability
41
WCI K1317973 WCI K1317973 Contact Us For Availability
44
RACK WCI K1311570 Contact Us For Availability
45
WCI K1317972 WCI K1317972 Contact Us For Availability
46
RACK-OFFSET WCI K5133501 Contact Us For Availability
47
HANGER WCI K1314456 Contact Us For Availability
49
WCI K1325530 WCI K1325530 Contact Us For Availability
52
RETAINING WIRE WCI K1325529 Contact Us For Availability
53
WCI Q63749 WCI Q63749 Contact Us For Availability
55
WCI K1325537 WCI K1325537 Contact Us For Availability
56
PLUG BUTTON WCI KGM142025 Contact Us For Availability
58
SCREW WCI K1164309 Contact Us For Availability
59
SCREW WCI K1164569 Contact Us For Availability
60
LEG WCI K1322905 Contact Us For Availability
61
GUIDE WCI K1315216 Contact Us For Availability
62
SPACER WCI K1324860 Contact Us For Availability
63
WCI K5269901 WCI K5269901 Contact Us For Availability
64
WCI K1325386 WCI K1325386 Contact Us For Availability
65
BUMPER WCI K5106901 Contact Us For Availability
66
END PANEL, RH, COFFEE WCI K5024605 Contact Us For Availability
67
WASHER, PADDED (3) WCI K1313226 Contact Us For Availability
68
RETAINER WCI K1310049 Contact Us For Availability
70
PUSH ROD WCI K1323421 Contact Us For Availability
71
END CAP, ROD WCI K1322682 Contact Us For Availability
72
SWITCH, OVEN LIGHT WCI K1310199 Contact Us For Availability
73
WCI K5029503 WCI K5029503 Contact Us For Availability
74
WCI K5025802 WCI K5025802 Contact Us For Availability
× ![]()
