Model Electrolux KF330JDDO RANGE – Common Parts & Diagrams
02 - BACKGUARD
03 - TOP, DRAWER

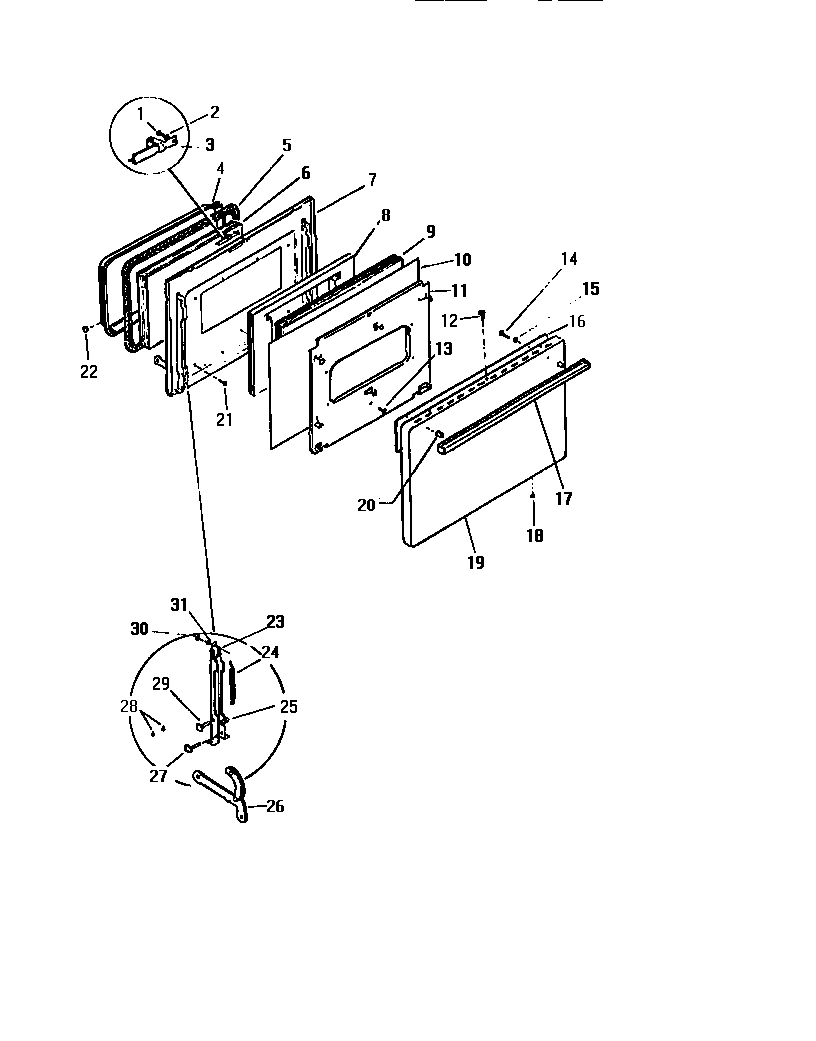

04 - DOOR

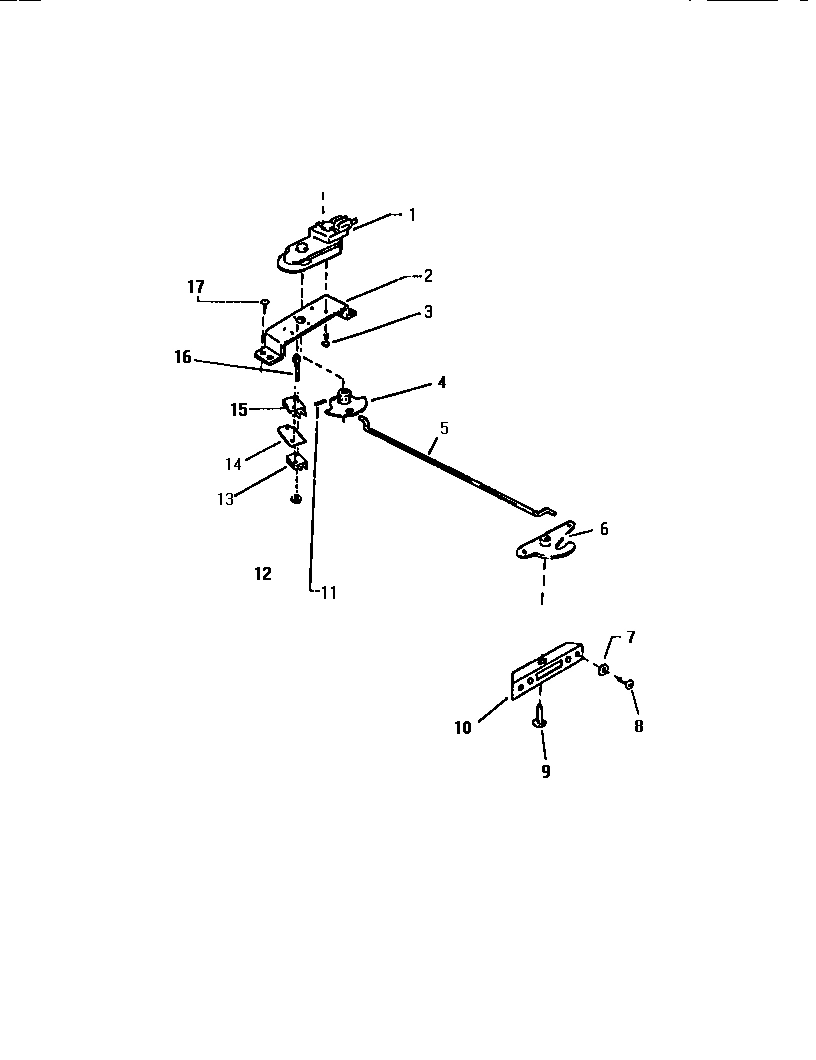

05 - DOOR LATCH ASSY.

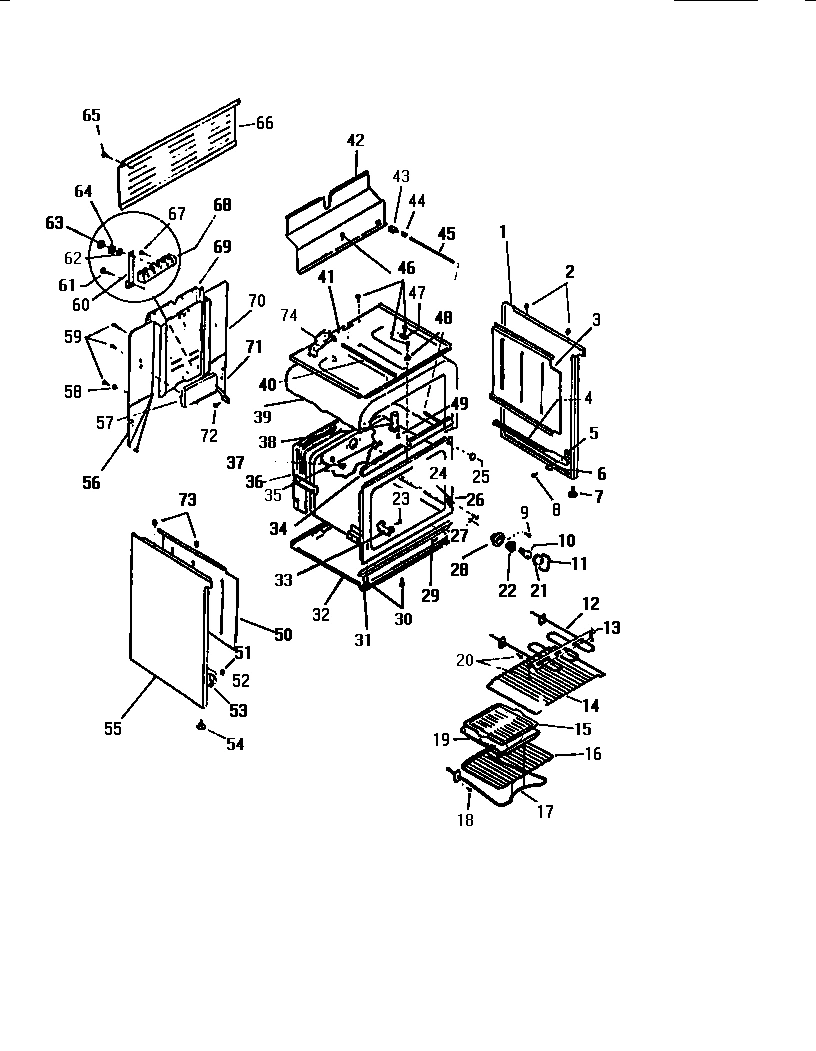

06 - BODY, SIDE PANELS
Common parts from model Electrolux KF330JDDO RANGE
*58440
RESISTORS (COMPONENT OF WIRING HARNESS) RESIS WCI K5044102 Contact Us For Availability
*58441
RESISTORS (COMPONENT OF WIRING HARNESS) RESIS WCI K5044101 Contact Us For Availability
*58442
RESISTORS (COMPONENT OF WIRING HARNESS) RESIS WCI K5044001 Contact Us For Availability
1
WCI K5151603 WCI K5151603 Contact Us For Availability
1
END PANEL, RH, ALMOND WCI K5024603 Contact Us For Availability
2
SUPPORT WCI K5151602 Contact Us For Availability
3
NUT (3) WCI K5036602 Contact Us For Availability
3
STRIKE ASSEMBLY WCI K1323556 Contact Us For Availability
3
WCI K5151604 WCI K5151604 Contact Us For Availability
4
WCI K5030402 WCI K5030402 Contact Us For Availability
4
WCI K1322616 WCI K1322616 Contact Us For Availability
4
CAM (1) WCI K5151605 Contact Us For Availability
4
RAIL, DWR., RH WCI K5269901 Contact Us For Availability
5
WCI K5025202 WCI K5025202 Contact Us For Availability
5
WCI K5024206 WCI K5024206 Contact Us For Availability
5
WCI K5024207 WCI K5024207 Contact Us For Availability
5
WCI K5024209 WCI K5024209 Contact Us For Availability
5
WCI K5024210 WCI K5024210 Contact Us For Availability
5
GASKET WCI K1323811 Contact Us For Availability
5
WCI K5271201 WCI K5271201 Contact Us For Availability
6
GLASS WCI K1167678 Contact Us For Availability
6
INSULATION WCI K1322622 Contact Us For Availability
6
LATCH, DOOR (1) WCI K5260202 Contact Us For Availability
7
DRAWER WCI K1324095 Contact Us For Availability
7
WCI K1324721 WCI K1324721 Contact Us For Availability
8
LIGHT,SIGNAL (SURFACE UNIT 125V) WCI K1167857 Contact Us For Availability
8
INSULATION WCI K1322651 Contact Us For Availability
8
WCI K1164589 WCI K1164589 Contact Us For Availability
9
WCI K5033001 WCI K5033001 Contact Us For Availability
9
WCI K1322652 WCI K1322652 Contact Us For Availability
9
AXLE, LATCH WCI K5038501 Contact Us For Availability
10
WCI K5296301 WCI K5296301 Contact Us For Availability
10
FOIL, ALUM WCI K1313020 Contact Us For Availability
10
WCI K1324830 WCI K1324830 Contact Us For Availability
10
WCI Q63749 WCI Q63749 Contact Us For Availability
11
SWITCH, SELEC WCI K5099601 Contact Us For Availability
11
PANEL DRAWER, ALMOND WCI K1325100 Contact Us For Availability
11
WCI K5276901 WCI K5276901 Contact Us For Availability
11
PIN (1) WCI K5151606 Contact Us For Availability
11
RETAINING WIRE WCI K1325529 Contact Us For Availability
12
SCREW WCI K5104301 Contact Us For Availability
13
WCI K1324562 WCI K1324562 Contact Us For Availability
13
GUIDE WCI K1324091 Contact Us For Availability
13
SCREW WCI K1164557 Contact Us For Availability
13
SWITCH, LOWER (1) WCI K1167190 Contact Us For Availability
13
HANGER WCI K1314456 Contact Us For Availability
14
WCI K5267103 WCI K5267103 Contact Us For Availability
14
SCREW WCI K5022201 Contact Us For Availability
14
SCREW, HANDLE (2) WCI K5104201 Contact Us For Availability
14
INSULATOR (1) WCI K1308690 Contact Us For Availability
14
RACK-OFFSET WCI K5133501 Contact Us For Availability
15
BEZEL WCI K1166856 Contact Us For Availability
15
WCI K5024901 WCI K5024901 Contact Us For Availability
15
SWITCH, UPPER (1) WCI K1315370 Contact Us For Availability
15
WCI K1317972 WCI K1317972 Contact Us For Availability
16
WCI K5046101 WCI K5046101 Contact Us For Availability
16
PAD, INSULATOR WCI K1314506 Contact Us For Availability
16
WCI K5151610 WCI K5151610 Contact Us For Availability
16
RACK WCI K1311570 Contact Us For Availability
17
HANDLE WCI K1325038 Contact Us For Availability
19
WCI K5032201 WCI K5032201 Contact Us For Availability
19
OUTER DOOR PANEL, ALMOND WCI K1317745 Contact Us For Availability
19
WCI K1317973 WCI K1317973 Contact Us For Availability
20
WCI K1164566 WCI K1164566 Contact Us For Availability
20
SPACER (2) WCI K1311965 Contact Us For Availability
21
WCI K5025001 WCI K5025001 Contact Us For Availability
22
WCI K5025201 WCI K5025201 Contact Us For Availability
22
PLUG BUTTON (2) WCI KGM142001 Contact Us For Availability
23
WCI K5030401 WCI K5030401 Contact Us For Availability
23
CHANNEL ASSEMBLY (COMPLETE WITH ROLLER AND ST WCI K1311514 Contact Us For Availability
24
KNOB TIMER (3) WCI K1167676 Contact Us For Availability
24
SPRING WCI K1302501 Contact Us For Availability
24
WCI K5319101 WCI K5319101 Contact Us For Availability
25
ROLLER KIT (2) WCI K1167752 Contact Us For Availability
25
PLUG BUTTON WCI KGM142025 Contact Us For Availability
26
ARM ASSEMBLY WCI K1310065 Contact Us For Availability
26
WCI K1325537 WCI K1325537 Contact Us For Availability
27
KNOB (6) WCI K5156302 Contact Us For Availability
27
WCI K1164550 WCI K1164550 Contact Us For Availability
28
CUP, OVEN LT WCI K1325530 Contact Us For Availability
29
LENS WCI K1322678 Contact Us For Availability
29
RIVET WCI K1100773 Contact Us For Availability
30
SCREW, SW MTG (8) WCI K1313060 Contact Us For Availability
30
WCI K1164642 WCI K1164642 Contact Us For Availability
31
WCI K5326901 WCI K5326901 Contact Us For Availability
31
CHANNEL, OV. SUPT. WCI K1315108 Contact Us For Availability
32
PANEL, BTM WCI K5276502 Contact Us For Availability
33
BRACKET, THERMO BULB WCI K1311369 Contact Us For Availability
34
WCI K1323561 WCI K1323561 Contact Us For Availability
36
INSULATION, BACK WCI K5056901 Contact Us For Availability
37
WCI KGM142017 WCI KGM142017 Contact Us For Availability
38
VENT TUBE WCI K5055001 Contact Us For Availability
39
INSULATION, WRAP WCI K1311331 Contact Us For Availability
40
ROD WCI K1315232 Contact Us For Availability
41
WCI K5025802 WCI K5025802 Contact Us For Availability
42
WCI K5029503 WCI K5029503 Contact Us For Availability
43
SWITCH, OV. LT. WCI K1310199 Contact Us For Availability
44
END CAP, ROD WCI K1322682 Contact Us For Availability
45
PUSH ROD WCI K1323421 Contact Us For Availability
47
RETAINER WCI K1310049 Contact Us For Availability
48
WASHER, PADDED (3) WCI K1313226 Contact Us For Availability
49
SCREW WCI K1164309 Contact Us For Availability
50
RETAINER, INSUL WCI K1325388 Contact Us For Availability
51
GUIDE WCI K1315216 Contact Us For Availability
52
RAIL, DWR, LH WCI K5269902 Contact Us For Availability
53
SPACER, RAIL WCI K1324860 Contact Us For Availability
54
LEG WCI K1322905 Contact Us For Availability
55
END PANEL, LH, ALMOND WCI K5024604 Contact Us For Availability
55
END PANEL, LH, COFFEE WCI K5024606 Contact Us For Availability
56
GUSSET, LH WCI K5285804 Contact Us For Availability
57
WCI K5134501 WCI K5134501 Contact Us For Availability
58
WCI Q410505 WCI Q410505 Contact Us For Availability
60
BRACKET, GND. WCI K1145190 Contact Us For Availability
62
WASHER (6) WCI Q402503 Contact Us For Availability
63
NUT (6) WCI Q401002 Contact Us For Availability
64
LOCK WASHER (3) WCI Q500411 Contact Us For Availability
66
COVER BKGD WCI K1315140 Contact Us For Availability
67
SCREW (2) WCI K1164479 Contact Us For Availability
68
TERM BLOCK KIT, ( INCLUDES NUTS, SCREWS AND W WCI Q134264 Contact Us For Availability
69
COVER, WIRE WCI K5276202 Contact Us For Availability
70
BACK WCI K5275802 Contact Us For Availability
71
GUSSET, RH WCI K5285802 Contact Us For Availability
73
BUMPER WCI K5106901 Contact Us For Availability
× ![]()
