Model Electrolux KF320JDH0 RANGE – Common Parts & Diagrams
02 - BACKGUARD
03 - TOP, DRAWER
04 - DOOR

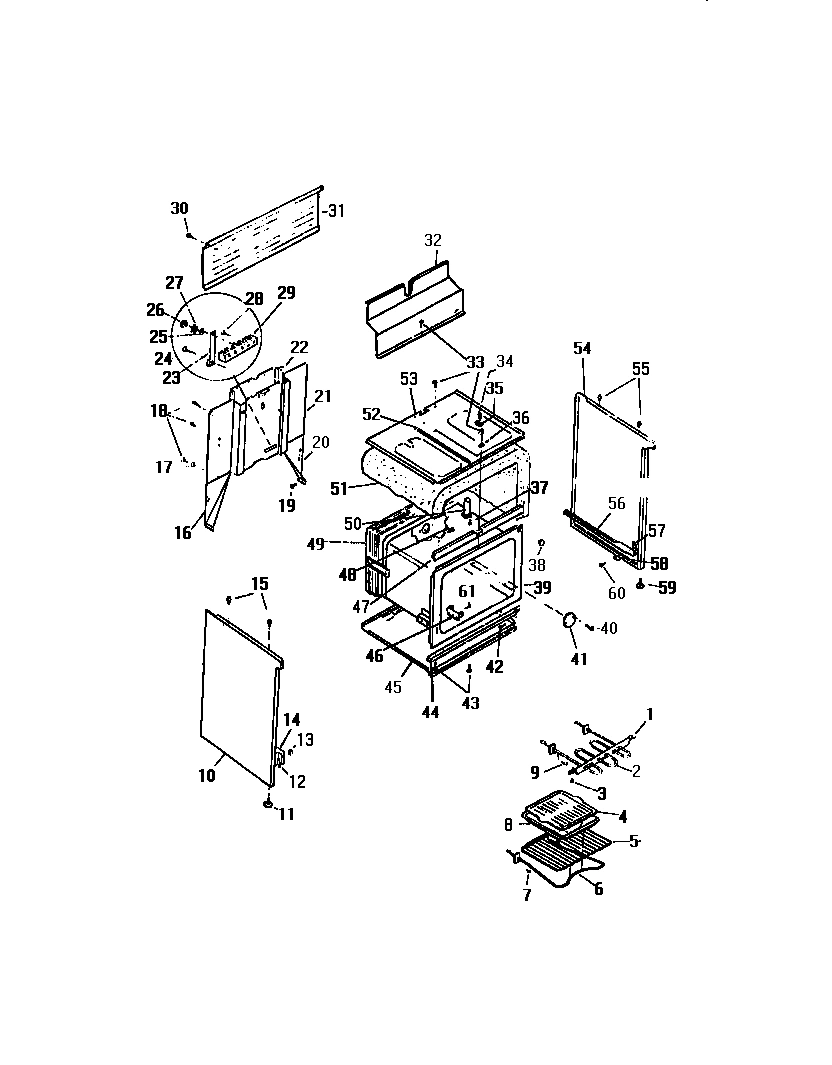

05 - BODY, SIDE PANELS
Common parts from model Electrolux KF320JDH0 RANGE
1
WCI K5024901 WCI K5024901 Contact Us For Availability
1
HANGER WCI K1314456 Contact Us For Availability
3
KNOB (6) WCI K5156302 Contact Us For Availability
3
GASKET (W/CLIPS) WCI K1312480 Contact Us For Availability
4
SCREW WCI K5104301 Contact Us For Availability
4
WCI K1309666 WCI K1309666 Contact Us For Availability
4
WCI K1317972 WCI K1317972 Contact Us For Availability
5
LENS WCI K1322678 Contact Us For Availability
5
RACK (2) WCI K1311570 Contact Us For Availability
6
SCREW, SW MTG (8) WCI K1313060 Contact Us For Availability
7
WCI K5029602 WCI K5029602 Contact Us For Availability
7
WCI K5024209 WCI K5024209 Contact Us For Availability
7
WCI K1317740 WCI K1317740 Contact Us For Availability
8
SPACER (4) WCI K1324812 Contact Us For Availability
8
WCI K1317973 WCI K1317973 Contact Us For Availability
9
BUMPER TOP (2) WCI K5297101 Contact Us For Availability
10
NUT (3) WCI K5036602 Contact Us For Availability
10
DRAWER WCI K1324095 Contact Us For Availability
10
BUMPER, BOTTOM WCI K1312009 Contact Us For Availability
10
END PANEL, LH, WHEAT WCI K5024610 Contact Us For Availability
11
WCI K5030402 WCI K5030402 Contact Us For Availability
12
WCI K5025202 WCI K5025202 Contact Us For Availability
12
HANDLE WCI K1325038 Contact Us For Availability
12
CHANNEL ASSY (COMP. W/ ROLLER & STUD) WCI K1311514 Contact Us For Availability
13
SPRING WCI K1302505 Contact Us For Availability
14
SWITCH SELECTOR WCI K5265901 Contact Us For Availability
14
WCI K1325099 WCI K1325099 Contact Us For Availability
14
ROLLER KIT (PKG. OF 2) WCI K1167752 Contact Us For Availability
14
WCI K5269902 WCI K5269902 Contact Us For Availability
15
SCREW WCI K5022101 Contact Us For Availability
15
SCREW WCI K5022201 Contact Us For Availability
15
ARM ASSY. WCI K1310065 Contact Us For Availability
16
THERMOSTAT WCI K1322361 Contact Us For Availability
16
GUIDE WCI K1324091 Contact Us For Availability
16
AXLE WCI K5038501 Contact Us For Availability
16
GUSSET, LH WCI K5285804 Contact Us For Availability
17
SLEEVING WCI K1305350 Contact Us For Availability
17
WCI Q410505 WCI Q410505 Contact Us For Availability
18
BRACKET WCI K1312148 Contact Us For Availability
18
RIVET WCI K1100773 Contact Us For Availability
19
INSULATION WCI K5270501 Contact Us For Availability
20
LIGHT SIGNAL (OVEN 250V) WCI K1167858 Contact Us For Availability
20
GUSSET, RH WCI K5285802 Contact Us For Availability
21
SCREW WCI K5046501 Contact Us For Availability
21
BACK WCI K5275802 Contact Us For Availability
22
WCI K1164566 WCI K1164566 Contact Us For Availability
22
FRAME WCI K5276802 Contact Us For Availability
22
COVER, WIRE WCI K5276202 Contact Us For Availability
23
WCI K5025001 WCI K5025001 Contact Us For Availability
23
HANDLE ASSY (INCL. STANCHION) WCI K5026601 Contact Us For Availability
23
BRACKET, GROUND WCI K1145190 Contact Us For Availability
24
WCI K5025201 WCI K5025201 Contact Us For Availability
25
WCI K5030401 WCI K5030401 Contact Us For Availability
25
GLASS WCI K5027202 Contact Us For Availability
25
WASHER (6) WCI Q402503 Contact Us For Availability
26
NUT (6) WCI Q401002 Contact Us For Availability
27
LOCK WASHER (3) WCI Q500411 Contact Us For Availability
29
TERM. BLOCK KIT (INCLUDES NUTS, SCREWS, WASHE WCI Q134264 Contact Us For Availability
31
COVER, BACKGUARD WCI K1315140 Contact Us For Availability
32
WCI K5029503 WCI K5029503 Contact Us For Availability
34
WCI K1164550 WCI K1164550 Contact Us For Availability
35
RETAINER WCI K1310049 Contact Us For Availability
36
WASHER, PADDED (3) WCI K1313226 Contact Us For Availability
37
SCREW WCI K1164309 Contact Us For Availability
38
PLUG BUTTON WCI KGM142025 Contact Us For Availability
39
WCI K1325537 WCI K1325537 Contact Us For Availability
41
COVER, L.T. HOLE WCI K1325524 Contact Us For Availability
42
SCREW WCI K1164479 Contact Us For Availability
44
CHANNEL, OVEN SUPPORT WCI K1315108 Contact Us For Availability
45
WCI K5276504 WCI K5276504 Contact Us For Availability
46
BRACKET THERM. BULB WCI K1311369 Contact Us For Availability
47
CHANNEL, OVEN SUPPORT WCI K1325472 Contact Us For Availability
49
INSULATION, BACK WCI K1325625 Contact Us For Availability
50
VENT TUBE WCI K5025501 Contact Us For Availability
51
INSULATION, WRAP WCI K1311329 Contact Us For Availability
52
ROD WCI K1315232 Contact Us For Availability
53
WCI K5025802 WCI K5025802 Contact Us For Availability
54
END PANEL, RH, WHEAT WCI K5024609 Contact Us For Availability
55
BUMPER WCI K5106901 Contact Us For Availability
56
RAIL, DWR., RH WCI K5269901 Contact Us For Availability
57
SPACER, RAIL WCI K1324860 Contact Us For Availability
58
GUIDE WCI K1315216 Contact Us For Availability
59
LEG WCI K1322905 Contact Us For Availability
60
SCREW WCI K1164569 Contact Us For Availability
× ![]()
