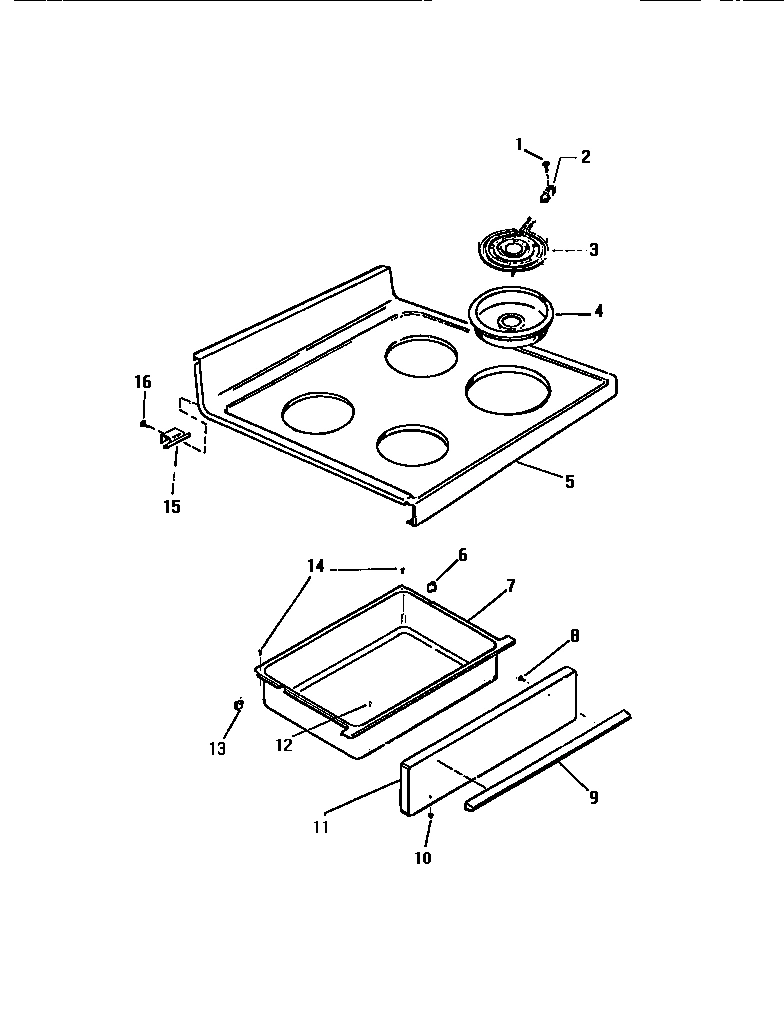

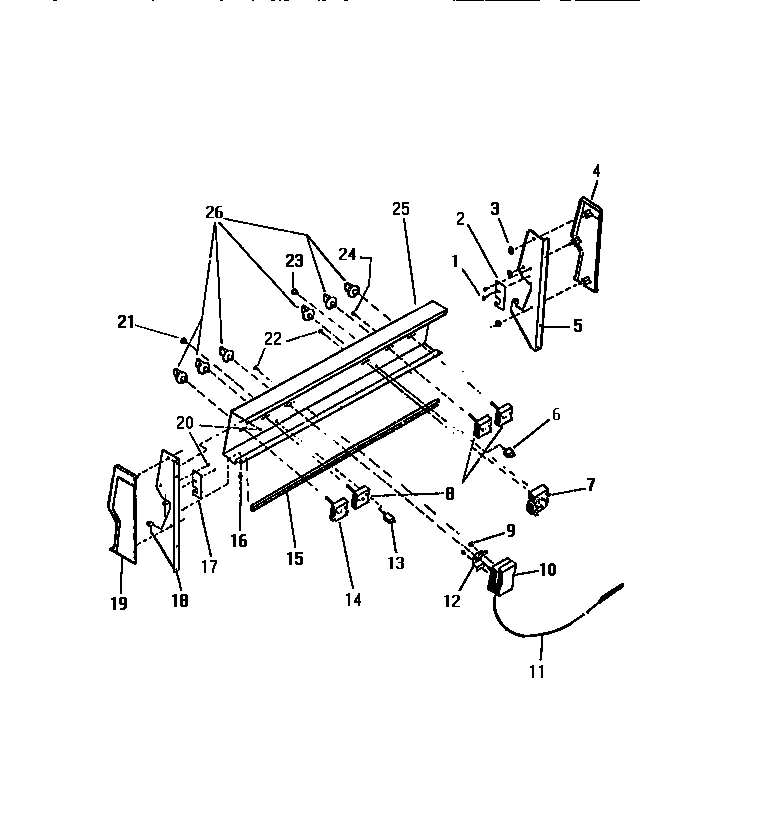

Model Electrolux KF300GDF1 RANGE – Common Parts &amp; Diagrams

1

WCI K5032101 WCI K5032101 Contact Us For Availability

2

5303935058 Frigidaire Oven Burner Receptacle In Stock WCI 5303935058 $4.58

2

WCI K5025802 WCI K5025802 Contact Us For Availability

3

316442300 Frigidaire Oven 2100W Coil Element In Stock WCI 316442300 $37.66

3

318372210 Frigidaire Oven Range 6" 1250W Surf In Stock WCI 318372210 $29.24

3

NUT (3) WCI K5036602 Contact Us For Availability

3

WCI K1309666 WCI K1309666 Contact Us For Availability

4

316048413 Frigidaire Oven Range Chrome 8" Dri In Stock WCI 316048413 $6.38

4

316048414 Frigidaire Oven Range Chrome 6" Dri In Stock WCI 316048414 $4.91

4

WCI K5030402 WCI K5030402 Contact Us For Availability

4

DOOR GASKET (SUPPL. WITH CLIPS) WCI K1312480 Contact Us For Availability

4

WCI K1164550 WCI K1164550 Contact Us For Availability

5

WCI K5025202 WCI K5025202 Contact Us For Availability

5

WCI K5024207 WCI K5024207 Contact Us For Availability

5

RETAINER WCI K1310049 Contact Us For Availability

6

WCI K1167868 WCI K1167868 Contact Us For Availability

6

WASHER, PADDED (3) WCI K1313226 Contact Us For Availability

7

SWITCH, SELEC. WCI K1311985 Contact Us For Availability

7

DRAWER WCI K1324095 Contact Us For Availability

7

WCI K1317740 WCI K1317740 Contact Us For Availability

7

END PANEL, RH, COFFEE WCI K5024605 Contact Us For Availability

8

5303935086 Frigidaire Oven Burner Top Switch In Stock WCI 5303935086 $28.53

8

WCI K1312279 WCI K1312279 Contact Us For Availability

9

SCREW WCI K5022101 Contact Us For Availability

9

SCREW WCI K1164309 Contact Us For Availability

Backorder WCI 154079601 $0.28

THERMOSTAT WCI K1322361 Contact Us For Availability

SCREW WCI K5104201 Contact Us For Availability

RAIL, DWR., RH WCI K5269901 Contact Us For Availability

WCI K1305350 WCI K1305350 Contact Us For Availability

WCI K1325097 WCI K1325097 Contact Us For Availability

COUNTER BALANCE (2) WCI K5109202 Contact Us For Availability

WCI K1325537 WCI K1325537 Contact Us For Availability

12

BRACKET WCI K1312148 Contact Us For Availability

12

SPACER WCI K1311965 Contact Us For Availability

12

PLUG BUTTON WCI KGM142025 Contact Us For Availability

13

LIGHT SIGNAL (OVEN 250V) WCI K1167858 Contact Us For Availability

13

GUIDE WCI K1324091 Contact Us For Availability

14

SCREW WCI K5022201 Contact Us For Availability

14

WCI K1317931 WCI K1317931 Contact Us For Availability

15

WCI K5032201 WCI K5032201 Contact Us For Availability

15

HANDLE WCI K1325038 Contact Us For Availability

15

WCI K5024901 WCI K5024901 Contact Us For Availability

16

WCI K1164566 WCI K1164566 Contact Us For Availability

16

INSULATION WCI K5270501 Contact Us For Availability

16

SCREW WCI K1164569 Contact Us For Availability

17

WCI K5025001 WCI K5025001 Contact Us For Availability

17

SPRING WCI K1302505 Contact Us For Availability

18

WCI K5025201 WCI K5025201 Contact Us For Availability

18

ROLLER KIT (2) WCI K1167752 Contact Us For Availability

18

COVER, L.T. HOLE WCI K1325524 Contact Us For Availability

19

WCI K5030401 WCI K5030401 Contact Us For Availability

19

ARM ASSEMBLY WCI K1310065 Contact Us For Availability

19

HANGER WCI K1314456 Contact Us For Availability

20

5303051516 Frigidaire Broil Element In Stock WCI 5303051516 $113.18

20

AXLE WCI K5038501 Contact Us For Availability

22

SCREW WCI K5104301 Contact Us For Availability

22

RIVET WCI K1100773 Contact Us For Availability

22

WCI K1317972 WCI K1317972 Contact Us For Availability

23

LENS WCI K1322678 Contact Us For Availability

23

CHANNEL ASSEMBLY (COMPLETE WITH ROLLER AND ST WCI K1311514 Contact Us For Availability

23

RACK (2) WCI K1311570 Contact Us For Availability

24

5303051519 Frigidaire Oven 2600W Bake Element In Stock WCI 5303051519 $9.93

24

SCREW, SW MTG (8) WCI K1313060 Contact Us For Availability

25

WCI K5029601 WCI K5029601 Contact Us For Availability

26

KNOB (6) WCI K5156302 Contact Us For Availability

26

WCI K1317973 WCI K1317973 Contact Us For Availability

30

CHANNEL, OV. SUPT. WCI K1315108 Contact Us For Availability

31

PANEL, BTM WCI K1315107 Contact Us For Availability

32

BRACKET THERM. BULB WCI K1311369 Contact Us For Availability

33

RAIL, DWR, LH WCI K5269902 Contact Us For Availability

34

GUIDE WCI K1315216 Contact Us For Availability

35

SPACER, RAIL WCI K1324860 Contact Us For Availability

36

LEG WCI K1322905 Contact Us For Availability

37

END PANEL, LH, COFFEE WCI K5024606 Contact Us For Availability

38

BUMPER WCI K5106901 Contact Us For Availability

39

WCI K1325472 WCI K1325472 Contact Us For Availability

41

INSULATION, BACK WCI K1325625 Contact Us For Availability

42

VENT TUBE WCI K5025501 Contact Us For Availability

44

INSULATION, WRAP WCI K1311329 Contact Us For Availability

45

ROD WCI K1315232 Contact Us For Availability

46

GUSSET, RH WCI K1325113 Contact Us For Availability

47

BACK WCI K5137902 Contact Us For Availability

48

COVER, WIRE WCI K1315110 Contact Us For Availability

49

TERM BLOCK KIT, ( INCLUDES NUTS, SCREWS AND W WCI Q134264 Contact Us For Availability

50

WCI K1315140 WCI K1315140 Contact Us For Availability

52

LOCK WASHER (3) WCI Q500411 Contact Us For Availability

53

NUT (6) WCI Q401002 Contact Us For Availability

54

WASHER (6) WCI Q402503 Contact Us For Availability

56

BRACKET, GND. WCI K1145190 Contact Us For Availability

58

WCI 0410505 WCI 0410505 Contact Us For Availability

59

GUSSET, LH WCI K1325114 Contact Us For Availability

60

SCREW (2) WCI K1164479 Contact Us For Availability
