Model Electrolux KF201HDH0 RANGE – Common Parts & Diagrams

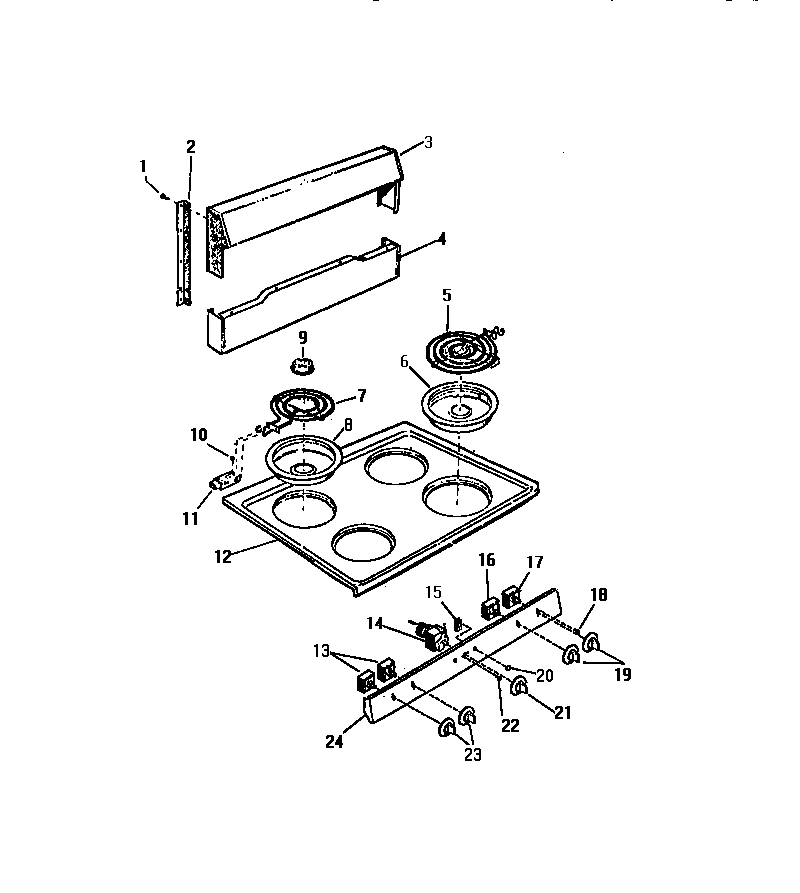

02 - TOP, DRAWER

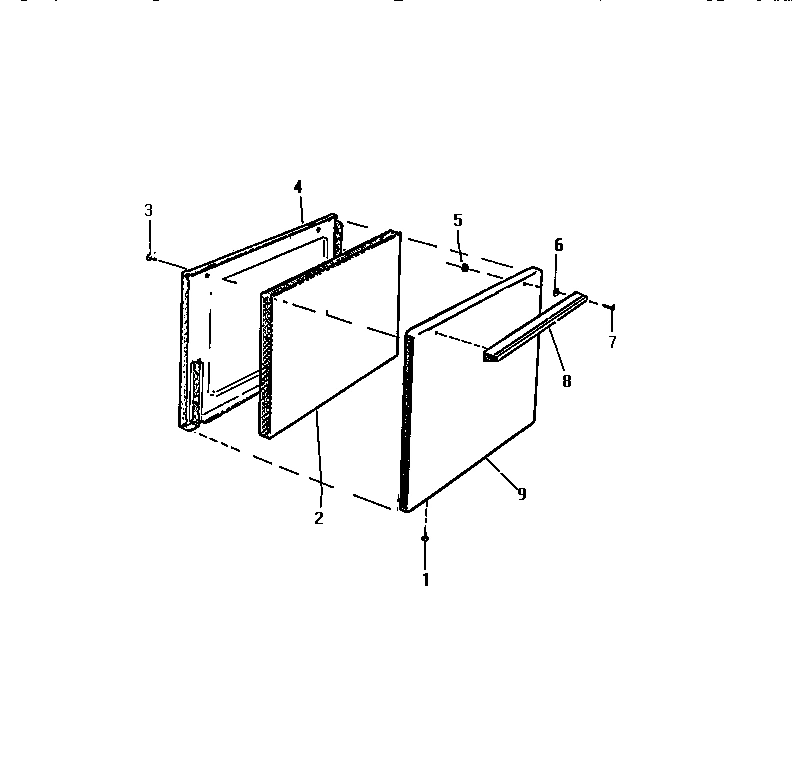

03 - DOOR

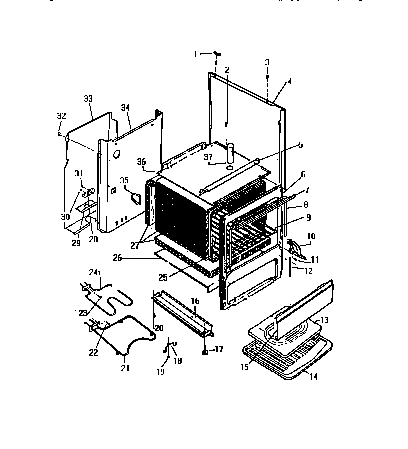

04 - BODY, SIDE PANELS
Common parts from model Electrolux KF201HDH0 RANGE
1
WCI Q301831 WCI Q301831 Contact Us For Availability
2
WCI Q301891 WCI Q301891 Contact Us For Availability
2
INSULATION WCI AP207039 Contact Us For Availability
3
WCI A96063071 WCI A96063071 Contact Us For Availability
3
WCI AP172002 WCI AP172002 Contact Us For Availability
4
PANEL, LOWER WCI A54099000 Contact Us For Availability
4
WCI Q301811 WCI Q301811 Contact Us For Availability
4
SIDE PANELS LH & RH, WHEAT WCI Q301945 Contact Us For Availability
5
WCI Q212691 WCI Q212691 Contact Us For Availability
5
NUT WCI AP265008 Contact Us For Availability
5
WCI Q301835 WCI Q301835 Contact Us For Availability
6
WCI Q61664 WCI Q61664 Contact Us For Availability
6
FRAME WCI Q301834 Contact Us For Availability
7
WCI Q212651 WCI Q212651 Contact Us For Availability
7
SUPPORT WCI A74062000 Contact Us For Availability
8
WCI Q301812 WCI Q301812 Contact Us For Availability
8
SEAL WCI AP326050 Contact Us For Availability
9
WCI Q204336 WCI Q204336 Contact Us For Availability
9
WCI A98351003 WCI A98351003 Contact Us For Availability
9
RACK WCI AP301042 Contact Us For Availability
10
WCI AP325006 WCI AP325006 Contact Us For Availability
10
HINGE ASSY-RH WCI A96068000 Contact Us For Availability
12
WCI Q301818 WCI Q301818 Contact Us For Availability
12
SPRING WCI AP339053 Contact Us For Availability
13
GRILLE WCI A43001000 Contact Us For Availability
14
WCI Q301960 WCI Q301960 Contact Us For Availability
14
PAN, BROILER WCI A53008000 Contact Us For Availability
15
WCI Q271721 WCI Q271721 Contact Us For Availability
15
WCI Q301843 WCI Q301843 Contact Us For Availability
16
BASE RAIL WCI A98373000 Contact Us For Availability
17
LEG WCI AP059009 Contact Us For Availability
18
SUPPORT, HTR WCI AP347006 Contact Us For Availability
20
WCI Q160952 WCI Q160952 Contact Us For Availability
21
WCI Q301829 WCI Q301829 Contact Us For Availability
21
HEATER, BAKE WCI AP141037 Contact Us For Availability
22
SCREW WCI AP049001 Contact Us For Availability
23
WCI Q301830 WCI Q301830 Contact Us For Availability
24
WCI Q301825 WCI Q301825 Contact Us For Availability
24
HEATER, BROIL WCI AP141040 Contact Us For Availability
25
WCI Q301847 WCI Q301847 Contact Us For Availability
25A
WCI Q301848 WCI Q301848 Contact Us For Availability
25B
WCI Q301849 WCI Q301849 Contact Us For Availability
25C
WCI Q301850 WCI Q301850 Contact Us For Availability
25D
OVEN WRAPPER PANELS, BOTTOM WCI Q301851 Contact Us For Availability
26
BOTTOM PAN WCI A53019000 Contact Us For Availability
27
WCI Q134234 WCI Q134234 Contact Us For Availability
28
TERM. BLOCK KIT WCI Q134264 Contact Us For Availability
29
SUPPORT WCI A74058000 Contact Us For Availability
30
NUT WCI Q401002 Contact Us For Availability
31
WCI Q505556 WCI Q505556 Contact Us For Availability
32
SCREW WCI AP051056 Contact Us For Availability
33
WCI Q301836 WCI Q301836 Contact Us For Availability
34
WCI Q301837 WCI Q301837 Contact Us For Availability
35
WCI A74060000 WCI A74060000 Contact Us For Availability
36
WCI Q301833 WCI Q301833 Contact Us For Availability
37
WCI A84024000 WCI A84024000 Contact Us For Availability
× ![]()
