Model Electrolux KF200GDW1 RANGE – Common Parts & Diagrams
02 - BACKGUARD
03 - DOOR & DRAWER

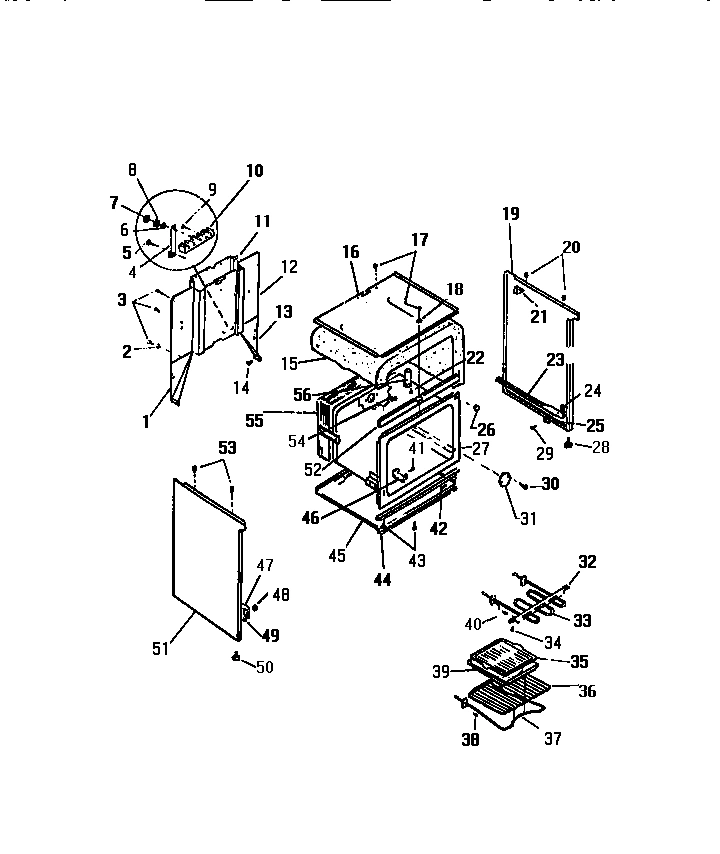

04 - BODY, SIDE PANELS
Common parts from model Electrolux KF200GDW1 RANGE
1
WCI K1315508 WCI K1315508 Contact Us For Availability
1
AXLE WCI K5038501 Contact Us For Availability
1
WCI K1325183 WCI K1325183 Contact Us For Availability
2
WCI Q410505 WCI Q410505 Contact Us For Availability
3
WCI K5037301 WCI K5037301 Contact Us For Availability
3
RIVET WCI K1100773 Contact Us For Availability
4
CHANNEL ASSY (COMPLETE W/ROLLER & STUD) WCI K1311514 Contact Us For Availability
4
BRACKET, GND. WCI K1145190 Contact Us For Availability
6
WASHER, ( 6 REQ ) WCI Q402503 Contact Us For Availability
7
WCI K5039801 WCI K5039801 Contact Us For Availability
7
WCI K1309686 WCI K1309686 Contact Us For Availability
7
NUT ( 6 REQ ) WCI Q401002 Contact Us For Availability
8
DOOR GASKET ( SUPPL W/CLIPS ) WCI K1312480 Contact Us For Availability
8
LOCK WASHER, ( 3 REQ ) WCI Q500411 Contact Us For Availability
10
SWITCH SELECTOR WCI K5265901 Contact Us For Availability
10
TERM BLOCK KIT, ( INCLUDES NUTS, SCREWS AND W WCI Q134264 Contact Us For Availability
11
WCI K1317740 WCI K1317740 Contact Us For Availability
11
COVER, WIRE WCI K5276202 Contact Us For Availability
12
BACK WCI K5275802 Contact Us For Availability
13
WCI K5036904 WCI K5036904 Contact Us For Availability
13
SCREW ( 2 REQ ) WCI K5109201 Contact Us For Availability
13
WCI K1325182 WCI K1325182 Contact Us For Availability
14
COUNTER BALANCE ( 2 REQ ) WCI K5109202 Contact Us For Availability
15
SPACER WCI K1311965 Contact Us For Availability
15
INSULATION, WRAP WCI K1311329 Contact Us For Availability
16
WCI K5036901 WCI K5036901 Contact Us For Availability
16
WCI K1164550 WCI K1164550 Contact Us For Availability
16
WCI K5025704 WCI K5025704 Contact Us For Availability
17
WCI K1317292 WCI K1317292 Contact Us For Availability
17
OVEN DOOR PANEL WCI K1317930 Contact Us For Availability
18
WCI K5036902 WCI K5036902 Contact Us For Availability
18
WASHER, PADDED, ( 3 REQ ) WCI K1313226 Contact Us For Availability
19
INDICATOR, THERMOSTAT WCI K1317291 Contact Us For Availability
19
ARM ASSY. WCI K1310065 Contact Us For Availability
19
WCI K1325223 WCI K1325223 Contact Us For Availability
20
SCREW ( 2 REQ ) WCI K5104301 Contact Us For Availability
20
WCI K167752 WCI K167752 Contact Us For Availability
21
WCI K1302506 WCI K1302506 Contact Us For Availability
21
WCI KK1315230 WCI KK1315230 Contact Us For Availability
22
WCI K5131402 WCI K5131402 Contact Us For Availability
22
WCI K5370601 WCI K5370601 Contact Us For Availability
22
SCREW WCI K1164309 Contact Us For Availability
23
WCI K5024101 WCI K5024101 Contact Us For Availability
23
RAIL, DWR., RH WCI K5269901 Contact Us For Availability
25
WCI K1315930 WCI K1315930 Contact Us For Availability
25
DRAWER WCI K1324095 Contact Us For Availability
26
WCI K1315179 WCI K1315179 Contact Us For Availability
26
PLUG BUTTON WCI KGM142025 Contact Us For Availability
27
HANDLE WCI K1325038 Contact Us For Availability
27
WCI K1325537 WCI K1325537 Contact Us For Availability
28
SCREW WCI K1164543 Contact Us For Availability
29
WCI K1315637 WCI K1315637 Contact Us For Availability
29
WCI K1325481 WCI K1325481 Contact Us For Availability
29
WCI K1164589 WCI K1164589 Contact Us For Availability
29A
WCI K1315636 WCI K1315636 Contact Us For Availability
30
SCREW WCI K5022201 Contact Us For Availability
31
HINGE RET. ( 2 REQ ) WCI K1315632 Contact Us For Availability
31
GUIDE WCI K1324091 Contact Us For Availability
31
COVER, L.T. HOLE WCI K1325524 Contact Us For Availability
32
SLEEVING , THERMO. ( CUT TO SIZE ) WCI K1305350 Contact Us For Availability
32
HANGER WCI K1314456 Contact Us For Availability
33
WCI K1315541 WCI K1315541 Contact Us For Availability
34
WCI K1315174 WCI K1315174 Contact Us For Availability
35
WCI K1303481 WCI K1303481 Contact Us For Availability
36
RACK, ( 2 REQ ) WCI K1311570 Contact Us For Availability
39
WCI K1303482 WCI K1303482 Contact Us For Availability
42
SCREW WCI K1164479 Contact Us For Availability
44
CHANNEL, OV. SUPT. WCI K1315108 Contact Us For Availability
45
PANEL, BTM WCI K5276504 Contact Us For Availability
46
BRACKET, THERMO BULB WCI K1311369 Contact Us For Availability
47
RAIL, DWR, LH WCI K5269902 Contact Us For Availability
48
GUIDE WCI K1315216 Contact Us For Availability
49
SPACER, RAIL WCI K1324860 Contact Us For Availability
50
WCI Q13325 WCI Q13325 Contact Us For Availability
51
WCI K1325224 WCI K1325224 Contact Us For Availability
52
CHANNEL, OV SUPT. WCI K5009403 Contact Us For Availability
53
WCI K1315013 WCI K1315013 Contact Us For Availability
55
INSULATION, BACK WCI K1325625 Contact Us For Availability
56
WCI K1315196 WCI K1315196 Contact Us For Availability
× ![]()
