Model Electrolux KF100HDW1 RANGE – Common Parts & Diagrams

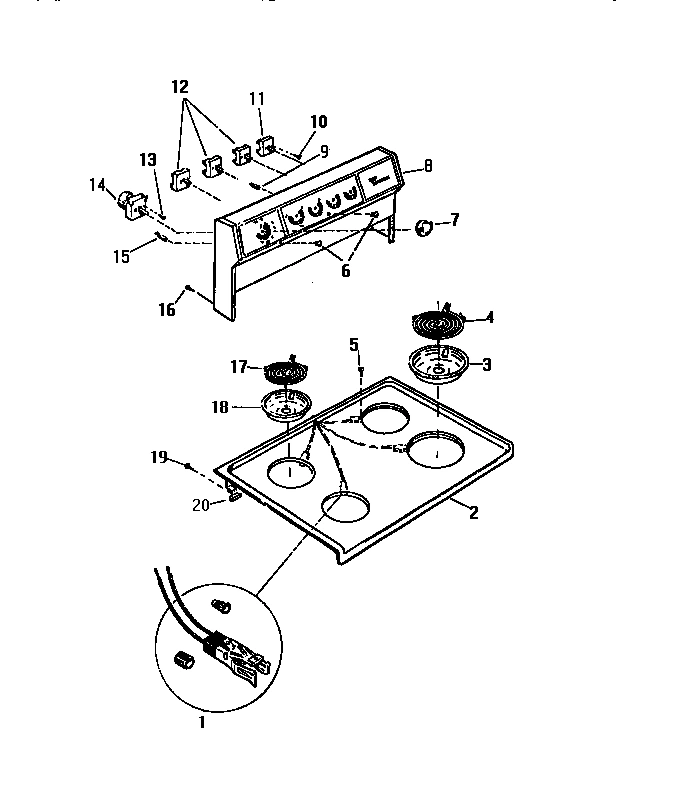

02 - BACKGUARD
03 - DOOR
04 - OVEN CAVITY
Common parts from model Electrolux KF100HDW1 RANGE
1
CHANNEL ASSY (COMPLETE W/ROLLER & STUD) WCI K1311514 Contact Us For Availability
2
WCI K5125102 WCI K5125102 Contact Us For Availability
3
RIVET WCI K1100773 Contact Us For Availability
3
RACK (2) WCI K1311570 Contact Us For Availability
4
SPRING WCI K1302505 Contact Us For Availability
5
ROLLER KIT (PKG. OF 2) WCI K1167752 Contact Us For Availability
6
LENS, SIGNAL LIGHT WCI K1322678 Contact Us For Availability
6
AXLE WCI K5038501 Contact Us For Availability
7
WCI K5156302 WCI K5156302 Contact Us For Availability
7
ARM ASSY. WCI K1310065 Contact Us For Availability
7
HANGER WCI K1314456 Contact Us For Availability
8
WCI K5268501 WCI K5268501 Contact Us For Availability
8
INSULATION WCI K5270501 Contact Us For Availability
8
COVER, LIGHT HOLE WCI K1325524 Contact Us For Availability
9
HANDLE WCI K1325038 Contact Us For Availability
10
SCREW, SWITCH MOUNTING WCI K1313060 Contact Us For Availability
10
OVEN DOOR PANEL, WHITE WCI K1317930 Contact Us For Availability
11
WCI K1325537 WCI K1325537 Contact Us For Availability
12
SPACER WCI K1311965 Contact Us For Availability
12
PLUG BUTTON WCI KGM142025 Contact Us For Availability
13
SCREW, THERMO MOUNTING WCI K5104301 Contact Us For Availability
13
COUNTER BALANCE (2) WCI K5109202 Contact Us For Availability
14
WCI K5127001 WCI K5127001 Contact Us For Availability
14
WCI K5109201 WCI K5109201 Contact Us For Availability
15
SIGNAL LIGHT THERMO 250 V WCI K1167858 Contact Us For Availability
15
SCREW WCI K1164309 Contact Us For Availability
16
WCI K1317740 WCI K1317740 Contact Us For Availability
17
END PANEL, RH, WHITE WCI K5024601 Contact Us For Availability
19
DOOR GASKET ( SUPPL W/CLIPS ) WCI K1312480 Contact Us For Availability
20
WCI K1315632 WCI K1315632 Contact Us For Availability
20
CLIP, GASKET (10) WCI K1309666 Contact Us For Availability
20
PIN, HINGE, RH WCI K1315630 Contact Us For Availability
21
WASHER, PADDED (3) WCI K1313226 Contact Us For Availability
22
WCI K1164550 WCI K1164550 Contact Us For Availability
23
WCI K5025704 WCI K5025704 Contact Us For Availability
25
WCI K5287902 WCI K5287902 Contact Us For Availability
26
COVER, BACKGUARD WCI K1315111 Contact Us For Availability
28
LOCK WASHER (3) WCI Q500411 Contact Us For Availability
29
NUT (6) WCI Q401002 Contact Us For Availability
30
WASHER (6) WCI Q402503 Contact Us For Availability
32
BRACKET, GROUND WCI K1145190 Contact Us For Availability
34
TERMINAL BLOCK KIT (INCLUDES NUTS, SCREWS, WA WCI Q134264 Contact Us For Availability
36
COVER, WIRE WCI K5276202 Contact Us For Availability
37
BACK WCI K5275802 Contact Us For Availability
38
GUSSET, RH WCI K1325113 Contact Us For Availability
39
WCI Q410505 WCI Q410505 Contact Us For Availability
41
GUSSET, LH WCI K1325114 Contact Us For Availability
42
PIN, HINGE LH WCI K1315631 Contact Us For Availability
44
BUMPER WCI K5106901 Contact Us For Availability
45
INSULATION, BACK WCI K1325625 Contact Us For Availability
46
VENT TUBE WCI K1311218 Contact Us For Availability
47
INSULATION, WRAP WCI K1311329 Contact Us For Availability
49
WCI K5009403 WCI K5009403 Contact Us For Availability
50
WCI K1187203 WCI K1187203 Contact Us For Availability
51
BRACKET THERMO. BULB WCI K1321147 Contact Us For Availability
52
WCI K5276504 WCI K5276504 Contact Us For Availability
53
CHANNEL, OVEN SUPPORT WCI K1315108 Contact Us For Availability
55
END PANEL, LH, WHITE WCI K5024602 Contact Us For Availability
56
GUSSET WCI K1315230 Contact Us For Availability
57
SCREW WCI K1164479 Contact Us For Availability
59
WCI K1310115 WCI K1310115 Contact Us For Availability
60
WCI K1316086 WCI K1316086 Contact Us For Availability
61
WCI K1310116 WCI K1310116 Contact Us For Availability
62
LEG WCI K1322905 Contact Us For Availability
63
WCI K1164568 WCI K1164568 Contact Us For Availability
× ![]()
