Model Whirlpool KEWD175HWH06 27`` ELECTRIC BUILT-IN WARMING DRAWER – Common Parts & Diagrams

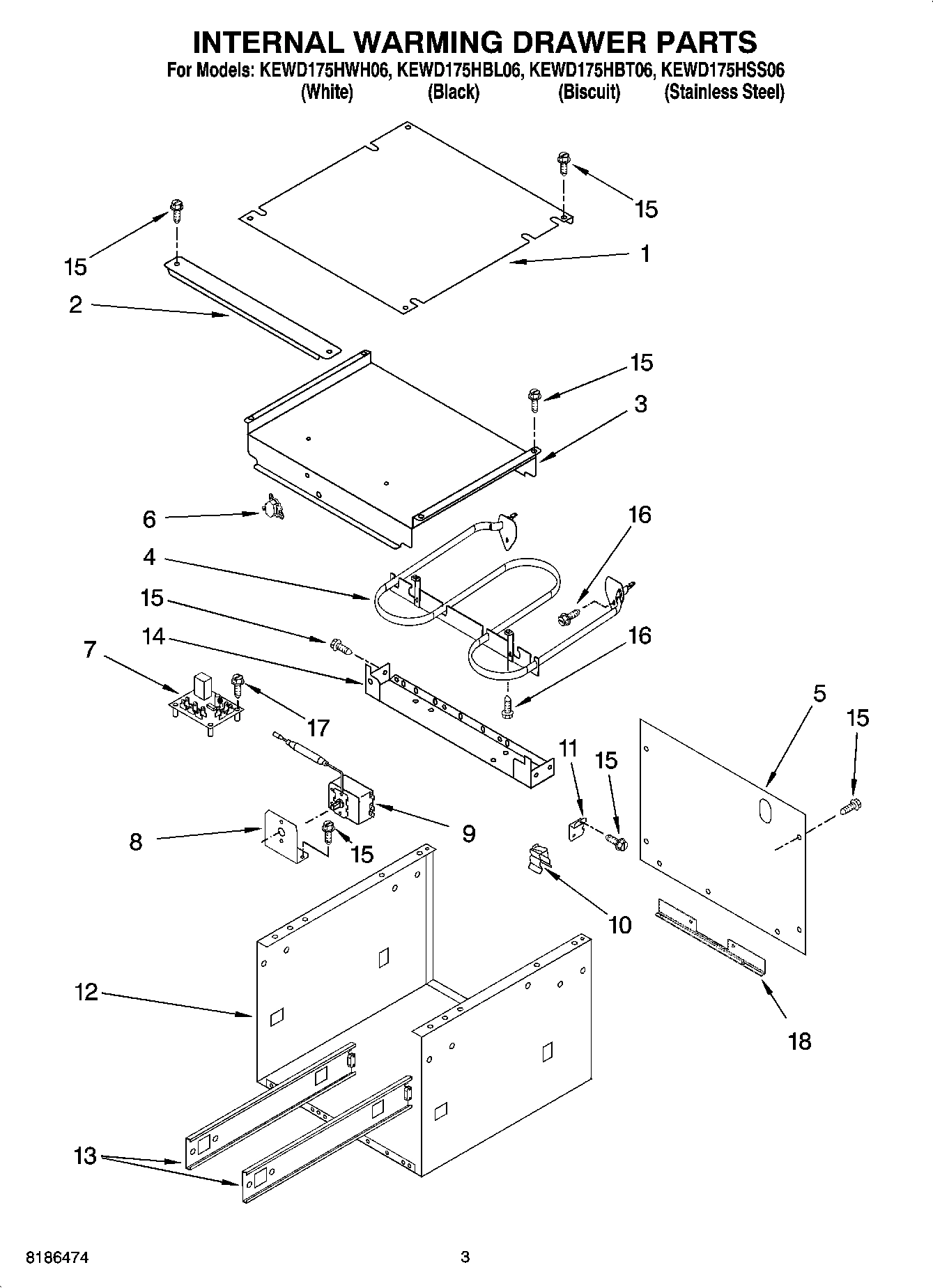

02 - INTERNAL WARMING DRAWER PARTS

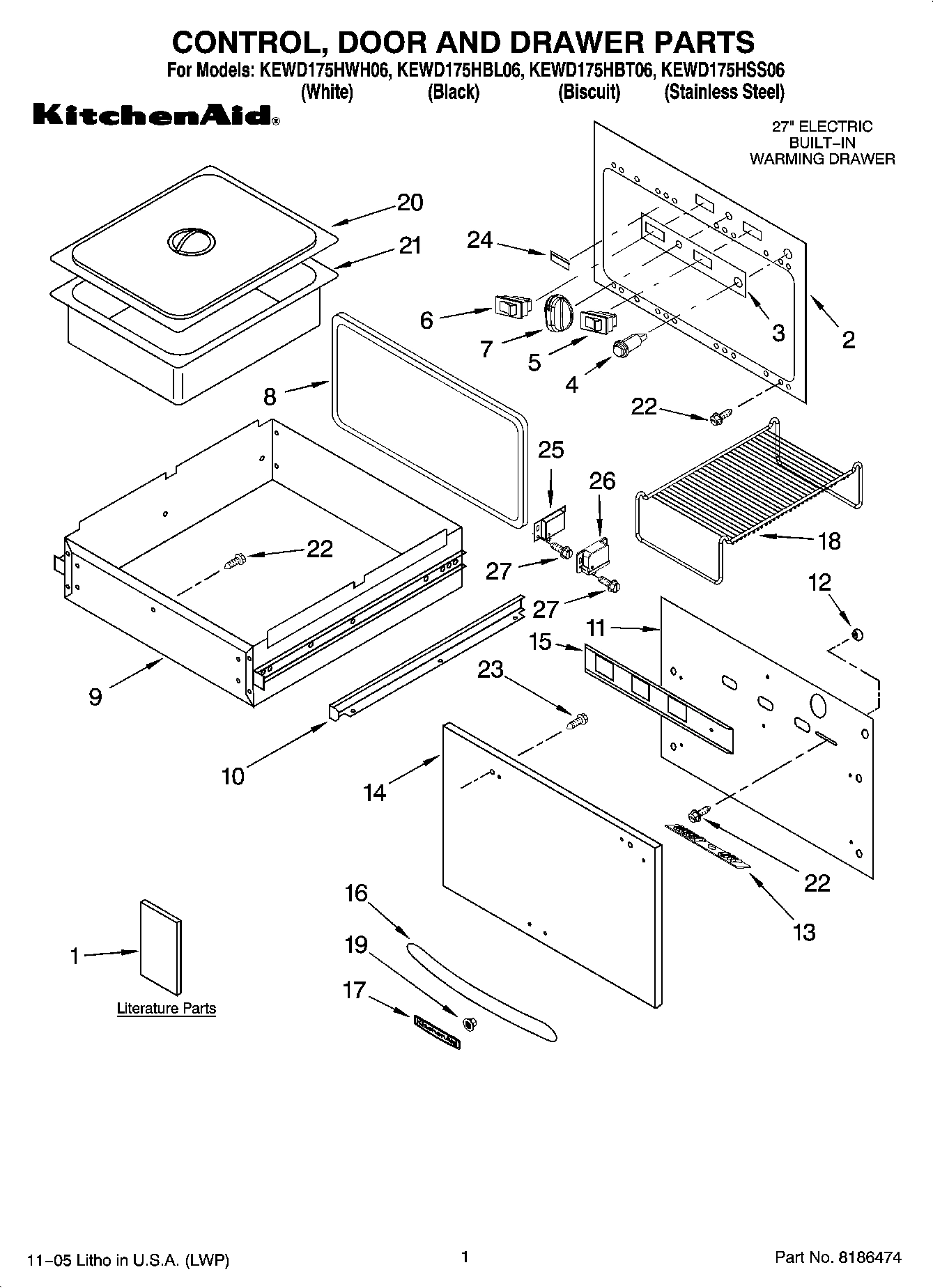

01 - CONTROL, DOOR AND DRAWER PARTS
Common parts from model Whirlpool KEWD175HWH06 27`` ELECTRIC BUILT-IN WARMING DRAWER
1
Installation Instructions WPL 8300561 Contact Us For Availability
1
Tech Sheet WPL 8300562 Contact Us For Availability
1
Owners Manual WPL 8304068 Contact Us For Availability
2
Panel, Control WPL 4456458 Contact Us For Availability
3
Escutchen, Control Panel WPL 4456052 Contact Us For Availability
4
Light, Indicator WPL 4452824 Contact Us For Availability
5
Switch, Rocker SPST Illuminated WPL 4452841 Contact Us For Availability
8
Gasket, Drawer WPL 4456463 Contact Us For Availability
9
Thermostat, Bi-Metal WPL 4456533 Contact Us For Availability
9
Drawer Assembly WPL 9760841 Contact Us For Availability
10
Clip, Thermostat WPL 4456049 Contact Us For Availability
10
Adapter WPL 4453105 Contact Us For Availability
11
Bracket, Mounting WPL 9760836 Contact Us For Availability
11
Liner, Drawer WPL 8301371 Contact Us For Availability
12
WRAPPER WPL 4456662 Contact Us For Availability
12
Knob, Ball WPL 4452820 Contact Us For Availability
13
Slide Assembly (Right hand) WPL 9760448 Contact Us For Availability
13
Slide Assembly (Left Hand) WPL 9760449 Contact Us For Availability
13
Label, Moist/Dry WPL 4452830 Contact Us For Availability
14
Bracket, Control WPL 4453047 Contact Us For Availability
14
Door, Front Assy (Stainless Steel) WPL 4456415 Contact Us For Availability
14
Door, Front Assy (Black) WPL 4456447 Contact Us For Availability
14
Door, Front Assy (White) WPL 4456448 Contact Us For Availability
14
Door, Front Assy (Biscuit) WPL 4456449 Contact Us For Availability
15
Vent, Slide WPL 8301005 Contact Us For Availability
16
Handle, Drawer (Stainless Steel) WPL 4452087 Contact Us For Availability
16
Handle, Drawer (Black) WPL 4452500 Contact Us For Availability
16
Handle, Drawer (White) WPL 4452501 Contact Us For Availability
16
Handle, Drawer (Biscuit) WPL 4452870 Contact Us For Availability
17
Nameplate WPL 2005292 Contact Us For Availability
18
Harness, Wire (Main) WPL 4452825 Contact Us For Availability
18
Insulation WPL 4453197 Contact Us For Availability
18
Hook, Bracket WPL 4456661 Contact Us For Availability
18
Power Cord WPL 9763117 Contact Us For Availability
18
FOLLOWING PARTS NOT ILLUSTRATED WIRING HARNES WPL ARI87003A7 Contact Us For Availability
18
Insulation WPL ARI87004A5 Contact Us For Availability
18
Miscellaneous WPL ARI87005A2 Contact Us For Availability
18
Rack, Warming WPL 4452821 Contact Us For Availability
19
Palnut WPL 3400633 Contact Us For Availability
20
Cover, Pan WPL 4452853 Contact Us For Availability
21
Pan, Warming WPL 4452849 Contact Us For Availability
24
Insulation WPL 4456038 Contact Us For Availability
25
Catch, Door WPL 8301471 Contact Us For Availability
26
Housing, Catch WPL 8301482 Contact Us For Availability
27
Screw WPL 313806 Contact Us For Availability
× ![]()
