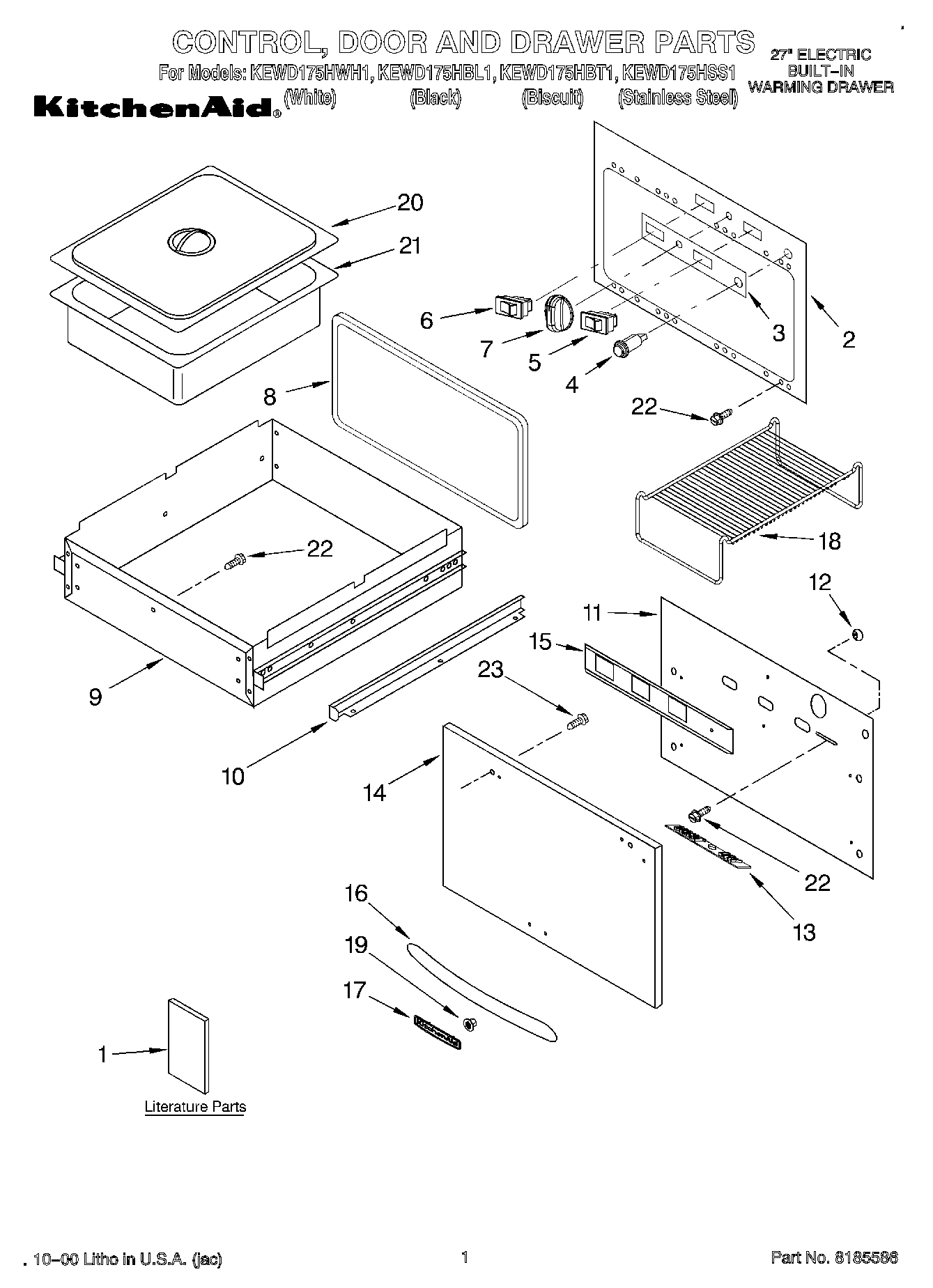

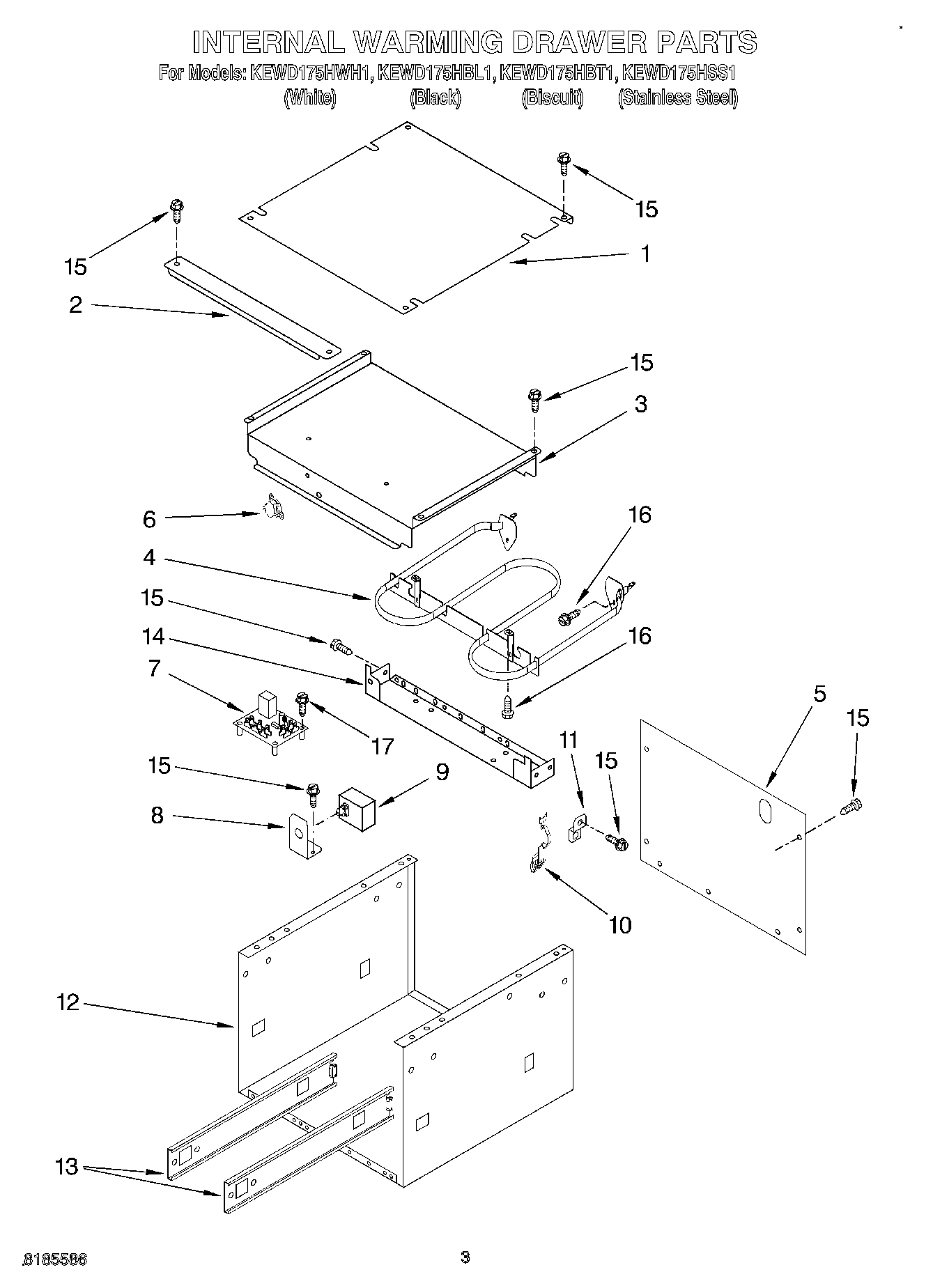

Model Whirlpool KEWD175HBT1 COOKTOP – Common Parts & Diagrams

1
Literature Parts (Use & Care Guide)
Literature Parts (Use & Care Guide) WPL LIT8300560 Contact Us For Availability
View on Model
1
Literature Parts (Installation Instructions)
Literature Parts (Installation Instructions) WPL LIT8300561 Contact Us For Availability
View on Model
1
Literature Parts (Tech Sheet)
Literature Parts (Tech Sheet) WPL LIT8300562 Contact Us For Availability
View on Model
2
Panel, Control
Panel, Control WPL 4453041 Contact Us For Availability
View on Model
3
Escutchen, Control Panel
Escutchen, Control Panel WPL 4453049 Contact Us For Availability
View on Model
4
Light, Indicator
Light, Indicator WPL 4452824 Contact Us For Availability
View on Model
5
Switch, Rocker SPST Illuminated
Switch, Rocker SPST Illuminated WPL 4452841 Contact Us For Availability
View on Model
7
Timer Assembly
Timer Assembly WPL 4452822 Contact Us For Availability
View on Model
8
Bracket, Mounting Thermostat
Bracket, Mounting Thermostat WPL 4452508 Contact Us For Availability
View on Model
8
Gasket, Drawer
Gasket, Drawer WPL 4453038 Contact Us For Availability
View on Model
9
Thermostat, Bi-Metal
Thermostat, Bi-Metal WPL 4452823 Contact Us For Availability
View on Model
9
Drawer Assembly
Drawer Assembly WPL 4452978 Contact Us For Availability
View on Model
10
Clip, Thermostat
Clip, Thermostat WPL 4456049 Contact Us For Availability
View on Model
10
Adapter
Adapter WPL 4453105 Contact Us For Availability
View on Model
11
Bracket, Mounting
Bracket, Mounting WPL 4452596 Contact Us For Availability
View on Model
11
Liner, Door
Liner, Door WPL 4452516 Contact Us For Availability
View on Model
12
Wrapper
Wrapper WPL 4453044 Contact Us For Availability
View on Model
12
Knob, Ball
Knob, Ball WPL 4452820 Contact Us For Availability
View on Model
13
Slide Assembly (Right hand)
Slide Assembly (Right hand) WPL 4452877 Contact Us For Availability
View on Model
13
Slide Assembly (Left Hand)
Slide Assembly (Left Hand) WPL 4452878 Contact Us For Availability
View on Model
13
Label, Moist/Dry
Label, Moist/Dry WPL 4452830 Contact Us For Availability
View on Model
14
Bracket, Control
Bracket, Control WPL 4453047 Contact Us For Availability
View on Model
14
Door, Front Assy (Black)
Door, Front Assy (Black) WPL 4453012 Contact Us For Availability
View on Model
14
Door, Front Assy (White)
Door, Front Assy (White) WPL 4453013 Contact Us For Availability
View on Model
14
Door, Front Assy (Biscuit)
Door, Front Assy (Biscuit) WPL 4453014 Contact Us For Availability
View on Model
14
Door, Front Assy (Stainless Steel)
Door, Front Assy (Stainless Steel) WPL 4453015 Contact Us For Availability
View on Model
15
Vent, Slide
Vent, Slide WPL 4453196 Contact Us For Availability
View on Model
16
Handle, Drawer (Stainless Steel)
Handle, Drawer (Stainless Steel) WPL 4452087 Contact Us For Availability
View on Model
16
Handle, Drawer (Black)
Handle, Drawer (Black) WPL 4452500 Contact Us For Availability
View on Model
16
Handle, Drawer (White)
Handle, Drawer (White) WPL 4452501 Contact Us For Availability
View on Model
16
Handle, Drawer (Biscuit)
Handle, Drawer (Biscuit) WPL 4452870 Contact Us For Availability
View on Model
17
Screw, 6-32 x 3/8
Screw, 6-32 x 3/8 WPL 313806 Contact Us For Availability
View on Model
17
Harness, Wire (Main)
Harness, Wire (Main) WPL 4452825 Contact Us For Availability
View on Model
17
Power Cord
Power Cord WPL 4452886 Contact Us For Availability
View on Model
17
Insulation
Insulation WPL 4453197 Contact Us For Availability
View on Model
17
Nameplate
Nameplate WPL 2005292 Contact Us For Availability
View on Model
18
Rack, Warming
Rack, Warming WPL 4452821 Contact Us For Availability
View on Model
19
Palnut
Palnut WPL 4453107 Contact Us For Availability
View on Model
20
Cover, Pan
Cover, Pan WPL 4452853 Contact Us For Availability
View on Model
21
Pan, Warming
Pan, Warming WPL 4452849 Contact Us For Availability
View on Model
22
Screw, 8-32 x 1/2
Screw, 8-32 x 1/2 WPL 3190699 Contact Us For Availability
