Model Whirlpool KEWD175HBL05 27`` ELECTRIC BUILT-IN WARMING DRAWER – Common Parts & Diagrams

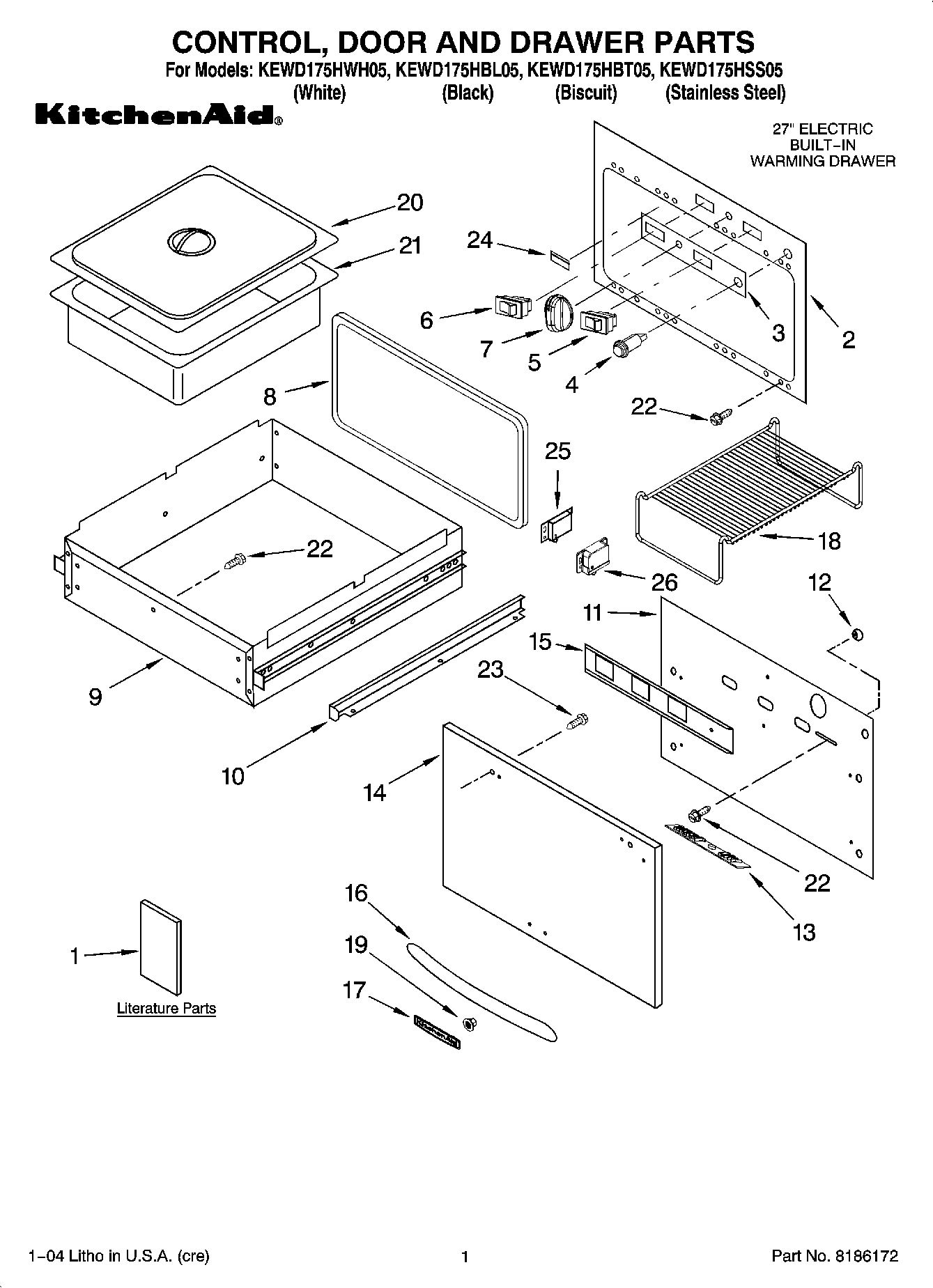

01 - CONTROL, DOOR AND DRAWER PARTS

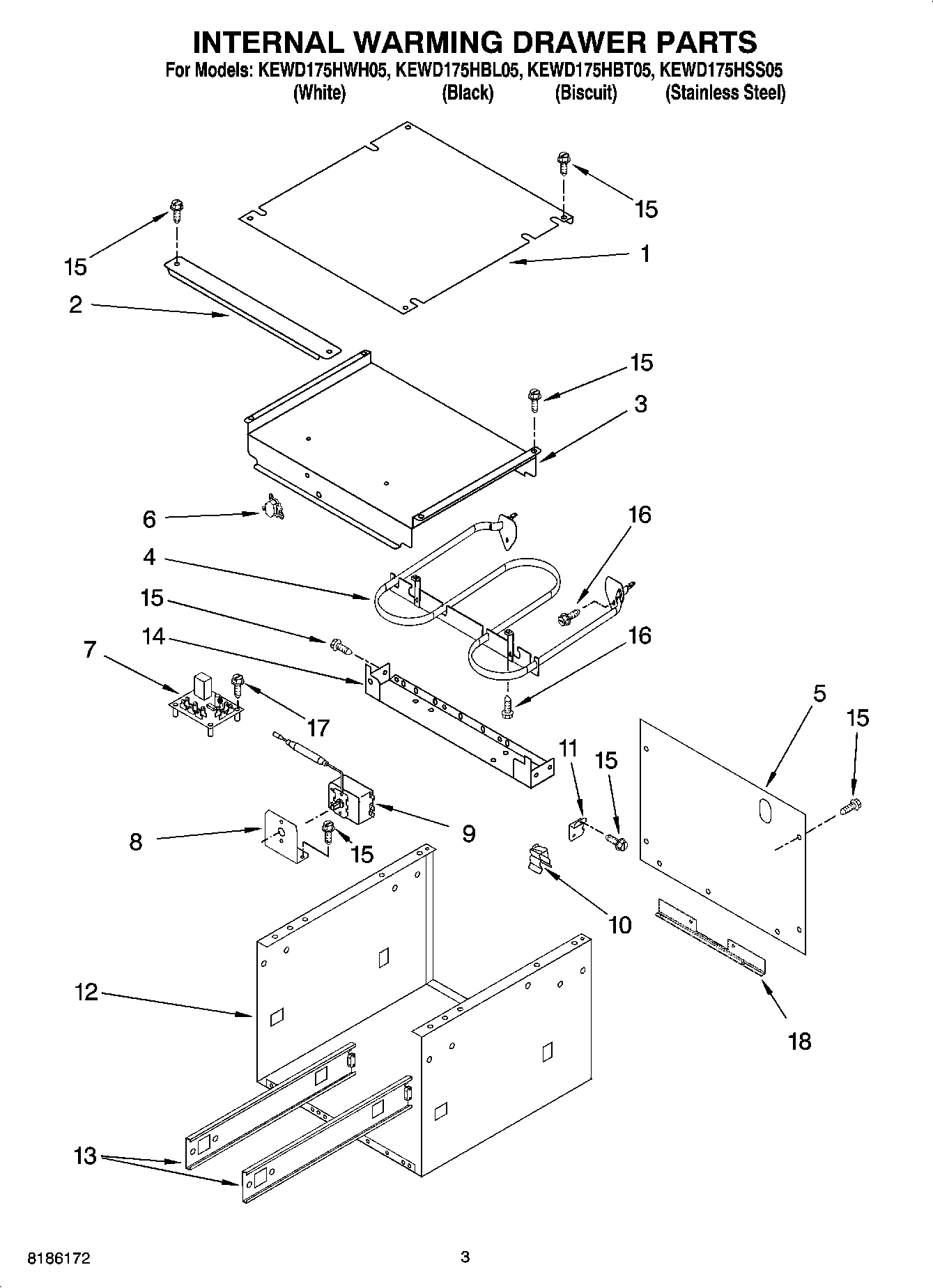

02 - INTERNAL WARMING DRAWER PARTS
Common parts from model Whirlpool KEWD175HBL05 27`` ELECTRIC BUILT-IN WARMING DRAWER
1
Top, Wrapper WPL 4453064 Contact Us For Availability
2
Panel, Service WPL 4453099 Contact Us For Availability
3
Plate, Element Mounting WPL 4453149 Contact Us For Availability
5
Switch, Rocker SPST Illuminated WPL 4452841 Contact Us For Availability
5
Back, Wrapper WPL 8301487 Contact Us For Availability
6
Screw WPL 3400956 Contact Us For Availability
7
Timer Assembly WPL 4456840 Contact Us For Availability
8
Gasket, Drawer WPL 4456463 Contact Us For Availability
8
Bracket, Mounting Thermostat WPL 4456037 Contact Us For Availability
9
Thermostat, Bi-Metal WPL 4456533 Contact Us For Availability
9
Drawer Assembly WPL 4456680 Contact Us For Availability
10
Adapter WPL 4453105 Contact Us For Availability
10
Clip, Thermostat WPL 4456049 Contact Us For Availability
11
Liner, Drawer WPL 8301371 Contact Us For Availability
11
Bracket, Mounting WPL 4456046 Contact Us For Availability
12
Knob, Ball WPL 4452820 Contact Us For Availability
12
WRAPPER WPL 4456662 Contact Us For Availability
13
Label, Moist/Dry WPL 4452830 Contact Us For Availability
13
Slide Assembly (Right hand) WPL 4452877 Contact Us For Availability
13
Slide Assembly (Left Hand) WPL 4452878 Contact Us For Availability
14
Door, Front Assy (Stainless Steel) WPL 4456415 Contact Us For Availability
14
Door, Front Assy (Black) WPL 4456447 Contact Us For Availability
14
Door, Front Assy (White) WPL 4456448 Contact Us For Availability
14
Door, Front Assy (Biscuit) WPL 4456449 Contact Us For Availability
14
Bracket, Control WPL 4453047 Contact Us For Availability
15
Vent, Slide WPL 8301005 Contact Us For Availability
16
Handle, Drawer (Stainless Steel) WPL 4452087 Contact Us For Availability
16
Handle, Drawer (Black) WPL 4452500 Contact Us For Availability
16
Handle, Drawer (White) WPL 4452501 Contact Us For Availability
16
Handle, Drawer (Biscuit) WPL 4452870 Contact Us For Availability
17
Nameplate WPL 2005292 Contact Us For Availability
18
Rack, Warming WPL 4452821 Contact Us For Availability
18
Harness, Wire (Main) WPL 4452825 Contact Us For Availability
18
Power Cord WPL 4452886 Contact Us For Availability
18
Insulation WPL 4453197 Contact Us For Availability
18
Hook, Bracket WPL 4456661 Contact Us For Availability
18
FOLLOWING PARTS NOT ILLUSTRATED WIRING HARNES WPL ARI86973A3 Contact Us For Availability
18
Insulation WPL ARI86974A5 Contact Us For Availability
18
Miscellaneous WPL ARI86975A9 Contact Us For Availability
19
Palnut WPL 3400633 Contact Us For Availability
20
Cover, Pan WPL 4452853 Contact Us For Availability
21
Pan, Warming WPL 4452849 Contact Us For Availability
24
Insulation WPL 4456038 Contact Us For Availability
25
Catch, Door WPL 8301471 Contact Us For Availability
26
Housing, Catch WPL 8301482 Contact Us For Availability
× ![]()
