  • Whirlpool KEWD105HBL1

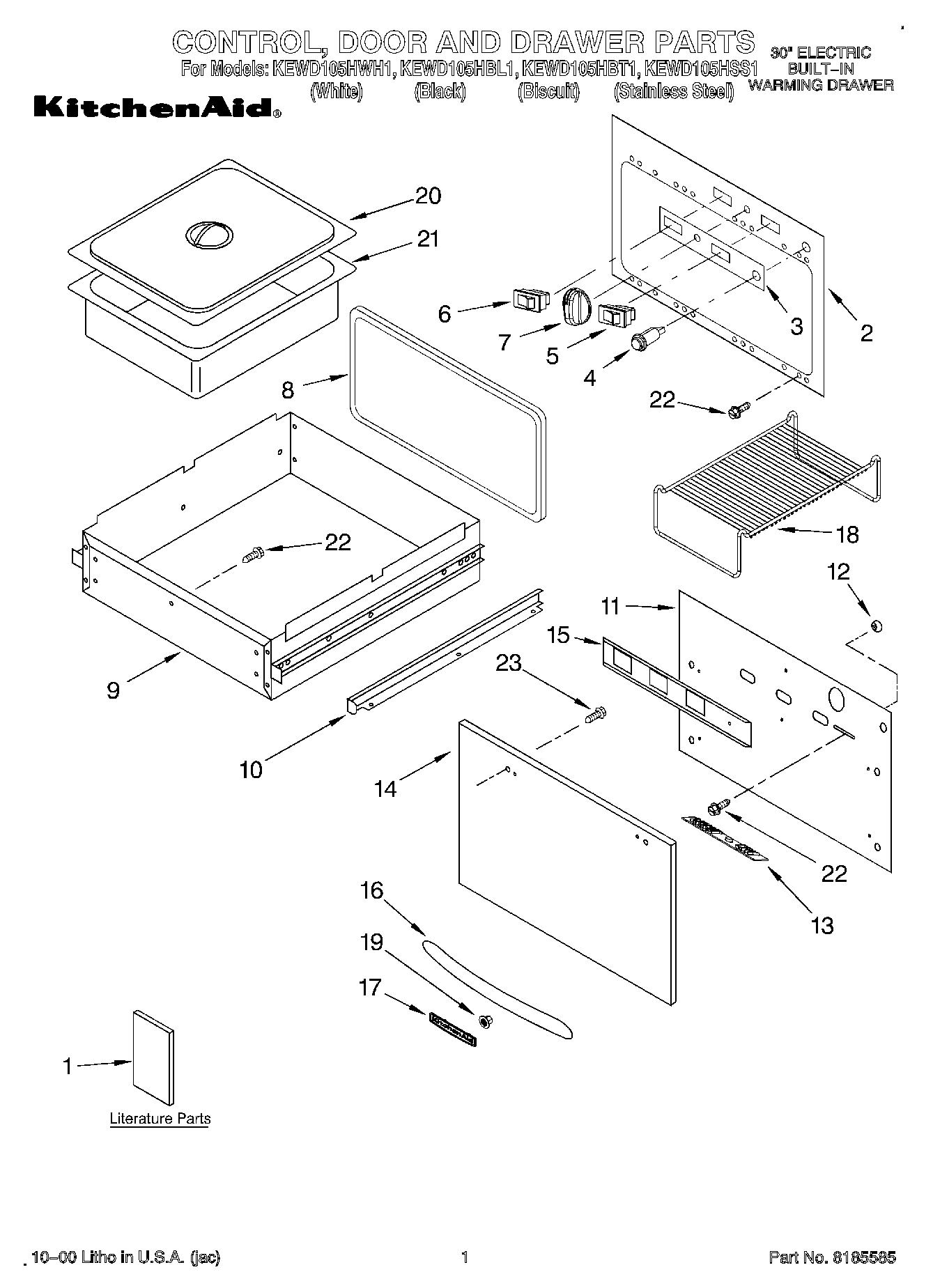

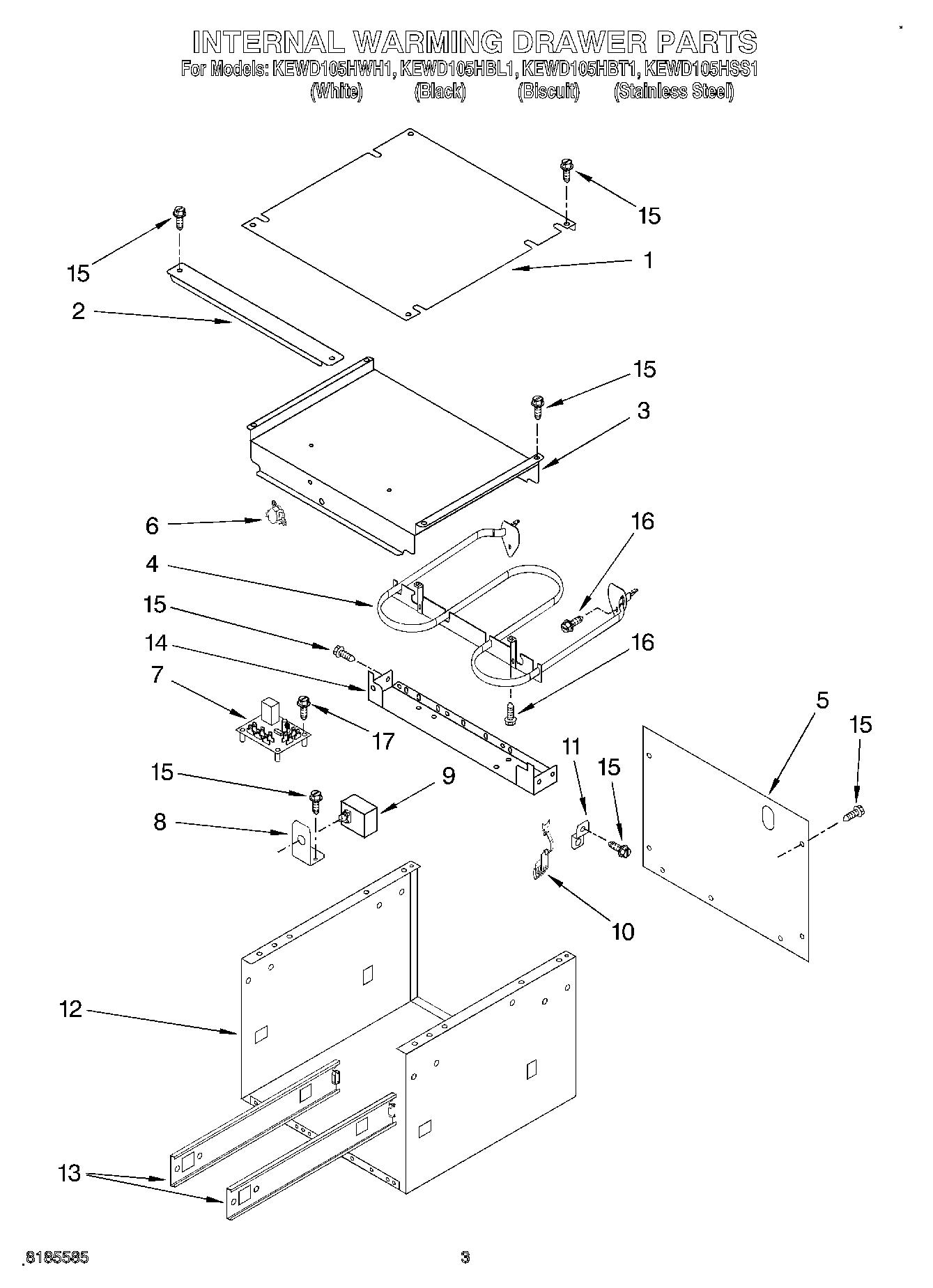

Model Whirlpool KEWD105HBL1 COOKTOP – Common Parts & Diagrams

1
Top, Wrapper
Top, Wrapper WPL 4453065 Contact Us For Availability
View on Model
1
Literature Parts (Use & Care Guide)
Literature Parts (Use & Care Guide) WPL LIT8300560 Contact Us For Availability
View on Model
1
Literature Parts (Installation Instructions)
Literature Parts (Installation Instructions) WPL LIT8300561 Contact Us For Availability
View on Model
1
Literature Parts (Tech Sheet)
Literature Parts (Tech Sheet) WPL LIT8300562 Contact Us For Availability
View on Model
2
Panel, Service
Panel, Service WPL 4453100 Contact Us For Availability
View on Model
2
Panel, Control
Panel, Control WPL 4453042 Contact Us For Availability
View on Model
3
Plate, Element Mounting
Plate, Element Mounting WPL 4453150 Contact Us For Availability
View on Model
3
Escutchen, Control Panel
Escutchen, Control Panel WPL 4453049 Contact Us For Availability
View on Model
4
Light, Indicator
Light, Indicator WPL 4452824 Contact Us For Availability
View on Model
5
Switch, Rocker SPST Illuminated
Switch, Rocker SPST Illuminated WPL 4452841 Contact Us For Availability
View on Model
5
Back, Wrapper
Back, Wrapper WPL 4452595 Contact Us For Availability
View on Model
7
Timer Assembly
Timer Assembly WPL 4452822 Contact Us For Availability
View on Model
8
Bracket, Mounting Thermostat
Bracket, Mounting Thermostat WPL 4452508 Contact Us For Availability
View on Model
8
Gasket, Drawer
Gasket, Drawer WPL 4453039 Contact Us For Availability
View on Model
9
Thermostat, Bi-Metal
Thermostat, Bi-Metal WPL 4452823 Contact Us For Availability
View on Model
9
Drawer Assembly
Drawer Assembly WPL 4452979 Contact Us For Availability
View on Model
10
Clip, Thermostat
Clip, Thermostat WPL 4456049 Contact Us For Availability
View on Model
10
Adapter
Adapter WPL 4453106 Contact Us For Availability
View on Model
11
Bracket, Mounting
Bracket, Mounting WPL 4452596 Contact Us For Availability
View on Model
11
Liner, Door
Liner, Door WPL 4452517 Contact Us For Availability
View on Model
12
Wrapper
Wrapper WPL 4453045 Contact Us For Availability
View on Model
12
Knob, Ball
Knob, Ball WPL 4452820 Contact Us For Availability
View on Model
13
Slide Assembly (Right hand)
Slide Assembly (Right hand) WPL 4452877 Contact Us For Availability
View on Model
13
Slide Assembly (Left Hand)
Slide Assembly (Left Hand) WPL 4452878 Contact Us For Availability
View on Model
13
Label, Moist/Dry
Label, Moist/Dry WPL 4452830 Contact Us For Availability
View on Model
14
Bracket, Control
Bracket, Control WPL 4453048 Contact Us For Availability
View on Model
14
Door, Front Assy (Black)
Door, Front Assy (Black) WPL 4453016 Contact Us For Availability
View on Model
14
Door, Front Assy (White)
Door, Front Assy (White) WPL 4453017 Contact Us For Availability
View on Model
14
Door, Front Assy (Biscuit)
Door, Front Assy (Biscuit) WPL 4453018 Contact Us For Availability
View on Model
14
Door, Front Assy (Stainless Steel)
Door, Front Assy (Stainless Steel) WPL 4453019 Contact Us For Availability
View on Model
15
Vent, Slide
Vent, Slide WPL 4453196 Contact Us For Availability
View on Model
16
Handle, Drawer (Stainless)
Handle, Drawer (Stainless) WPL 4452088 Contact Us For Availability
View on Model
16
Handle, Drawer (Black)
Handle, Drawer (Black) WPL 4452502 Contact Us For Availability
View on Model
16
Handle, Drawer (White)
Handle, Drawer (White) WPL 4452503 Contact Us For Availability
View on Model
16
Handle, Drawer (Biscuit)
Handle, Drawer (Biscuit) WPL 4452871 Contact Us For Availability
View on Model
17
Screw, 6-32 x 3/8
Screw, 6-32 x 3/8 WPL 313806 Contact Us For Availability
View on Model
17
Name Plate (Stainless Model)
Name Plate (Stainless Model) WPL 2005292 Contact Us For Availability
View on Model
18
Rack, Warming
Rack, Warming WPL 4452821 Contact Us For Availability
View on Model
19
Palnut
Palnut WPL 4453107 Contact Us For Availability
View on Model
20
Cover, Pan (Large, (Half))
Cover, Pan (Large, (Half)) WPL 4452853 Contact Us For Availability
View on Model
20
Cover, Pan (Small (1/3))
Cover, Pan (Small (1/3)) WPL 4452854 Contact Us For Availability
View on Model
21
Pan, Warming (Large (Half))
Pan, Warming (Large (Half)) WPL 4452849 Contact Us For Availability
View on Model
21
Pan, Warming (Small (1/3))
Pan, Warming (Small (1/3)) WPL 4452850 Contact Us For Availability
