Model Whirlpool KEWD105HBL05 30`` ELECTRIC BUILT-IN WARMING DRAWER – Common Parts & Diagrams

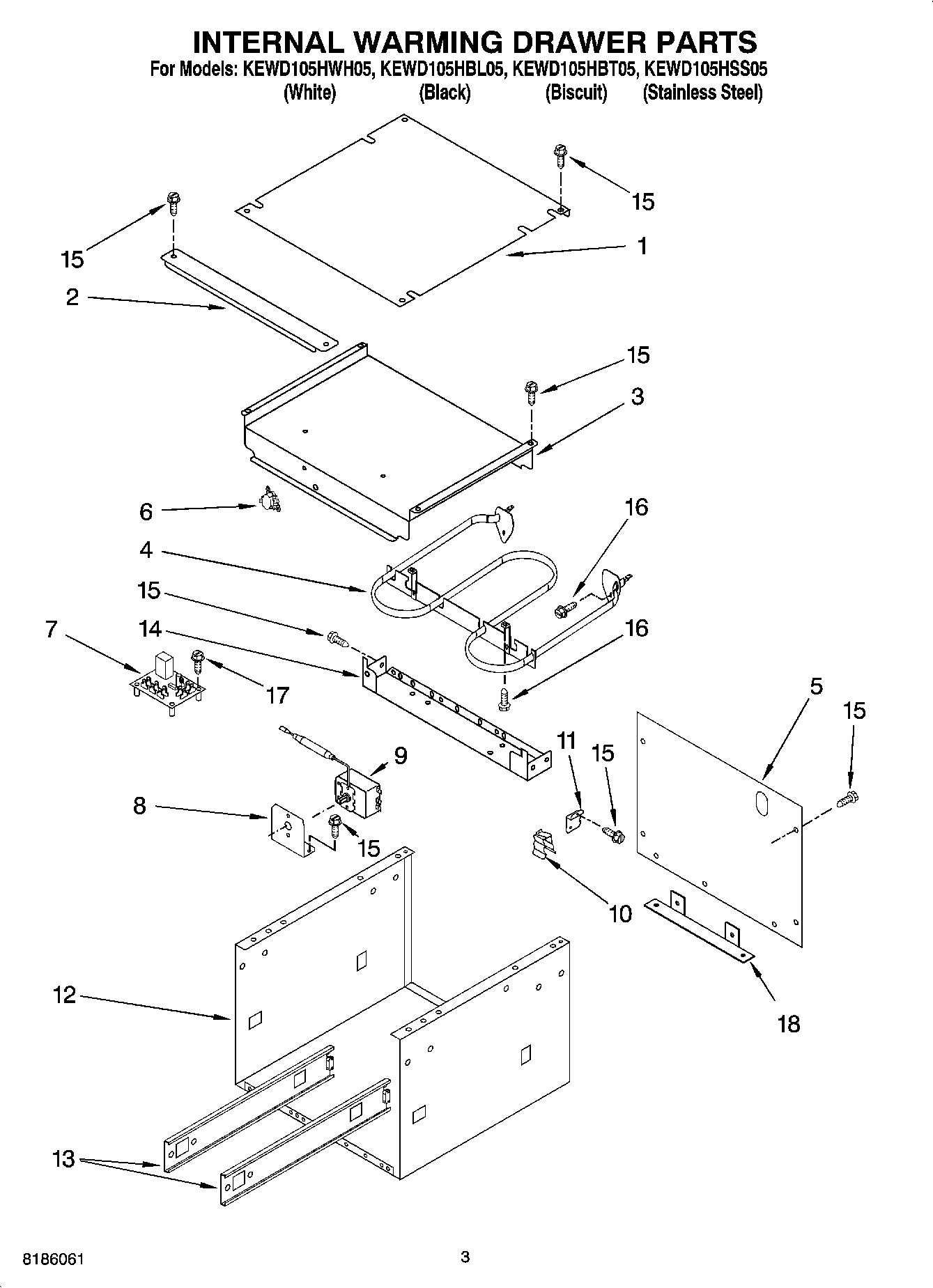

02 - INTERNAL WARMING DRAWER PARTS

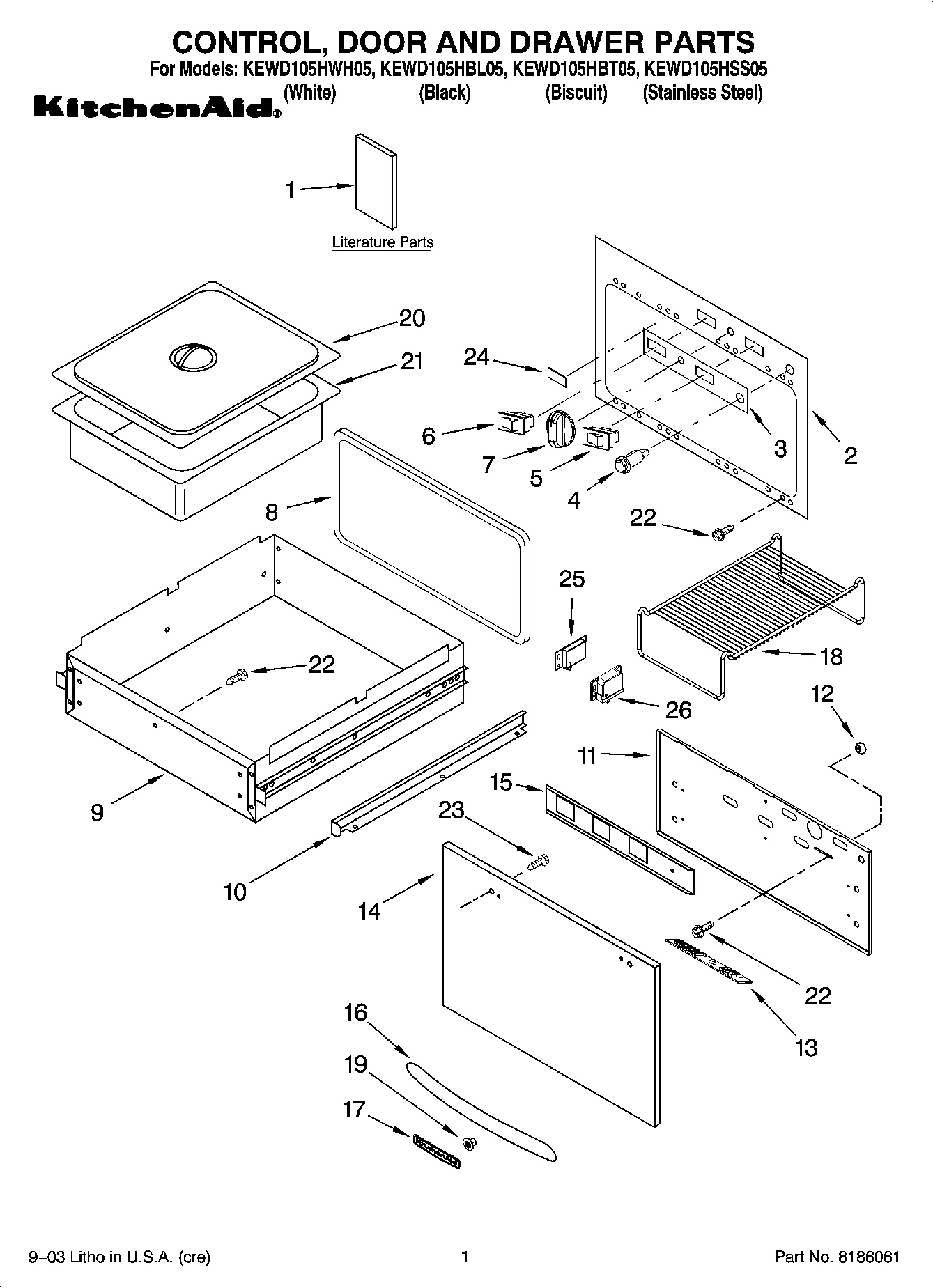

01 - CONTROL, DOOR AND DRAWER PARTS
Common parts from model Whirlpool KEWD105HBL05 30`` ELECTRIC BUILT-IN WARMING DRAWER
1
Literature Parts (Use & Care Guide) WPL LIT8300560 Contact Us For Availability
1
Literature Parts (Tech Sheet) WPL LIT8300562 Contact Us For Availability
1
Literature Parts (Installation Instructions) WPL LIT8302185 Contact Us For Availability
2
Panel, Control WPL 4456459 Contact Us For Availability
3
Escutchen, Control Panel WPL 4456052 Contact Us For Availability
4
Light, Indicator WPL 4452824 Contact Us For Availability
5
Switch, Rocker SPST Illuminated WPL 4452841 Contact Us For Availability
8
Gasket, Drawer WPL 4456464 Contact Us For Availability
9
Thermostat, Bi-Metal WPL 4456533 Contact Us For Availability
9
Drawer Assembly WPL 4456681 Contact Us For Availability
10
Clip, Thermostat WPL 4456049 Contact Us For Availability
10
Adapter WPL 4453106 Contact Us For Availability
11
Bracket, Mounting WPL 4456046 Contact Us For Availability
11
Liner, Drawer WPL 8301372 Contact Us For Availability
12
WRAPPER WPL 4456663 Contact Us For Availability
12
Knob, Ball WPL 4452820 Contact Us For Availability
13
Slide Assembly (Right hand) WPL 4452877 Contact Us For Availability
13
Slide Assembly (Left Hand) WPL 4452878 Contact Us For Availability
13
Label, Moist/Dry WPL 4452830 Contact Us For Availability
14
Bracket, Control WPL 4453048 Contact Us For Availability
14
Door, Front Assy (Stainless Steel) WPL 4456416 Contact Us For Availability
14
Door, Front Assy (Black) WPL 4456451 Contact Us For Availability
14
Door, Front Assy (White) WPL 4456452 Contact Us For Availability
14
Door, Front Assy (Biscuit) WPL 4456453 Contact Us For Availability
15
Vent, Slide WPL 8301005 Contact Us For Availability
16
Handle, Drawer (Stainless Steel) WPL 4452088 Contact Us For Availability
16
Handle, Drawer (Black) WPL 4452502 Contact Us For Availability
16
Handle, Drawer (White) WPL 4452503 Contact Us For Availability
16
Handle, Drawer (Biscuit) WPL 4452871 Contact Us For Availability
17
Name Plate (Stainless Model) WPL 2005292 Contact Us For Availability
18
Harness, Wire (Main) WPL 4452825 Contact Us For Availability
18
Power Cord WPL 4452886 Contact Us For Availability
18
Insulation WPL 4453198 Contact Us For Availability
18
Hook, Bracket WPL 4456661 Contact Us For Availability
18
FOLLOWING PARTS NOT ILLUSTRATED WIRING HARNES WPL ARI86949A3 Contact Us For Availability
18
Insulation WPL ARI86950A3 Contact Us For Availability
18
Miscellaneous WPL ARI86951A4 Contact Us For Availability
18
Rack, Warming WPL 4452821 Contact Us For Availability
19
Palnut WPL 3400633 Contact Us For Availability
20
Cover, Pan (Large, (Half)) WPL 4452853 Contact Us For Availability
20
Cover, Pan (Small (1/3)) WPL 4452854 Contact Us For Availability
21
Pan, Warming (Large (Half)) WPL 4452849 Contact Us For Availability
21
Pan, Warming (Small (1/3)) WPL 4452850 Contact Us For Availability
24
Insulation WPL 4456038 Contact Us For Availability
25
Catch, Door WPL 8301471 Contact Us For Availability
26
Housing, Catch WPL 8301482 Contact Us For Availability
× ![]()
