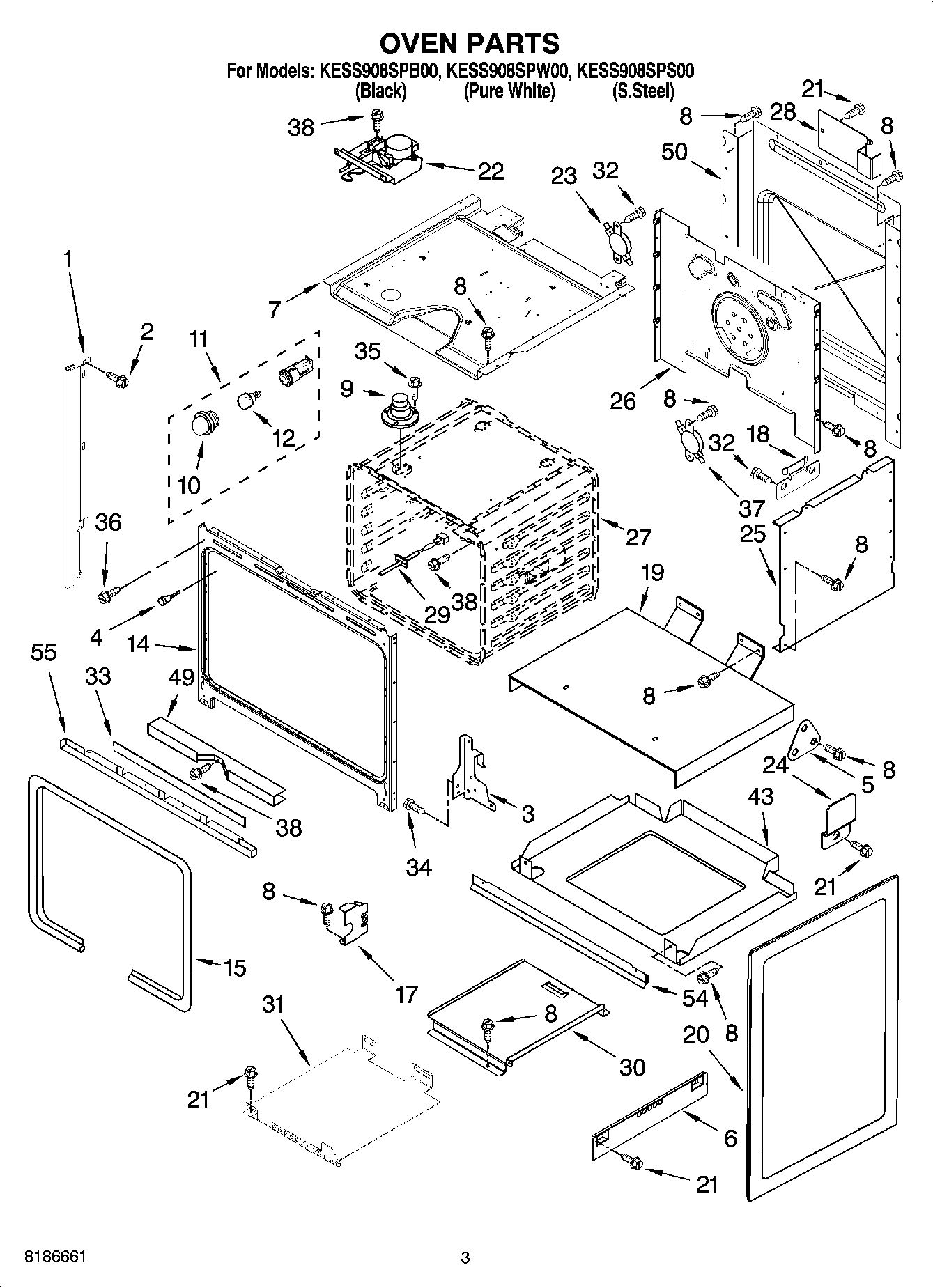

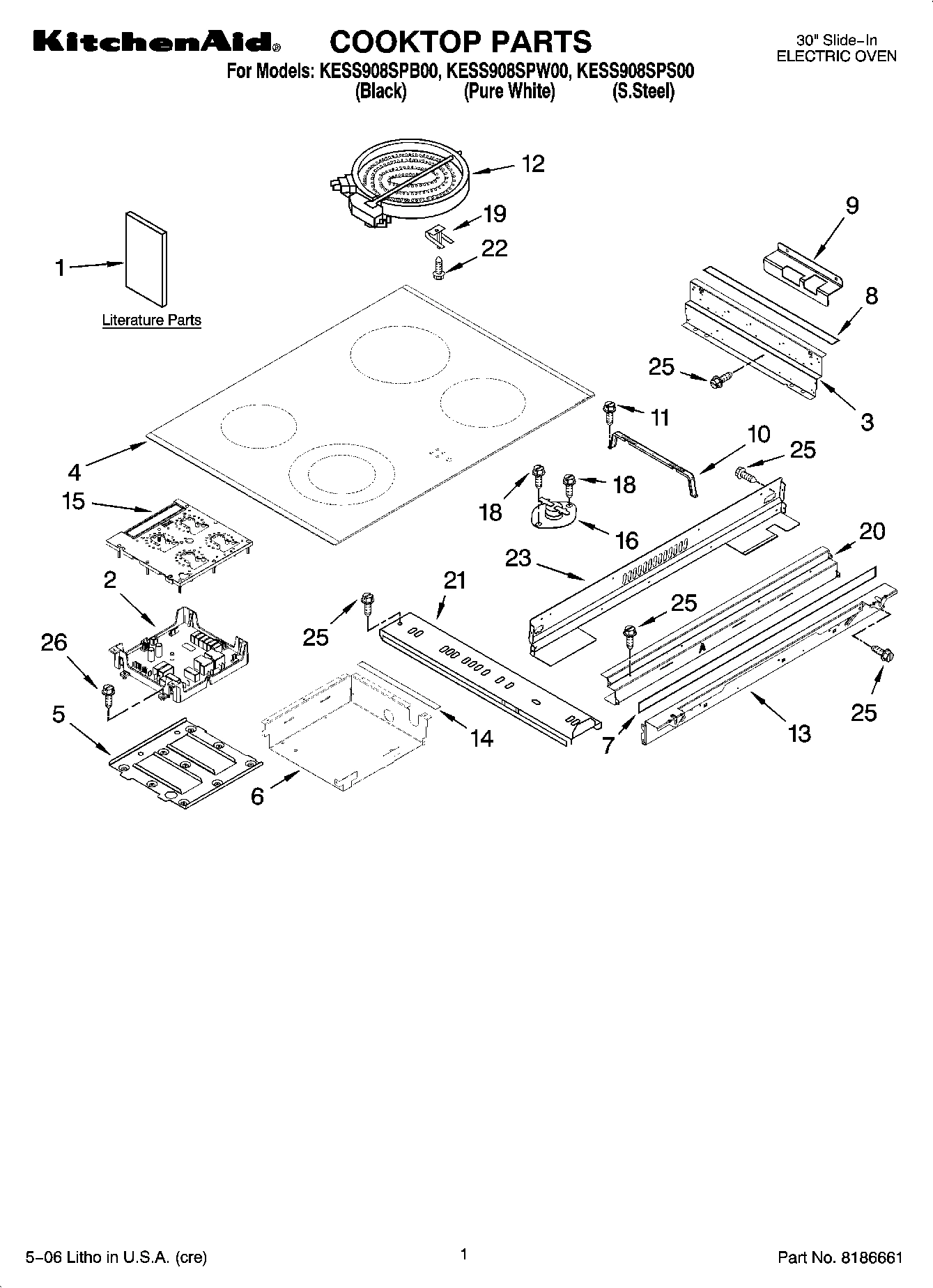

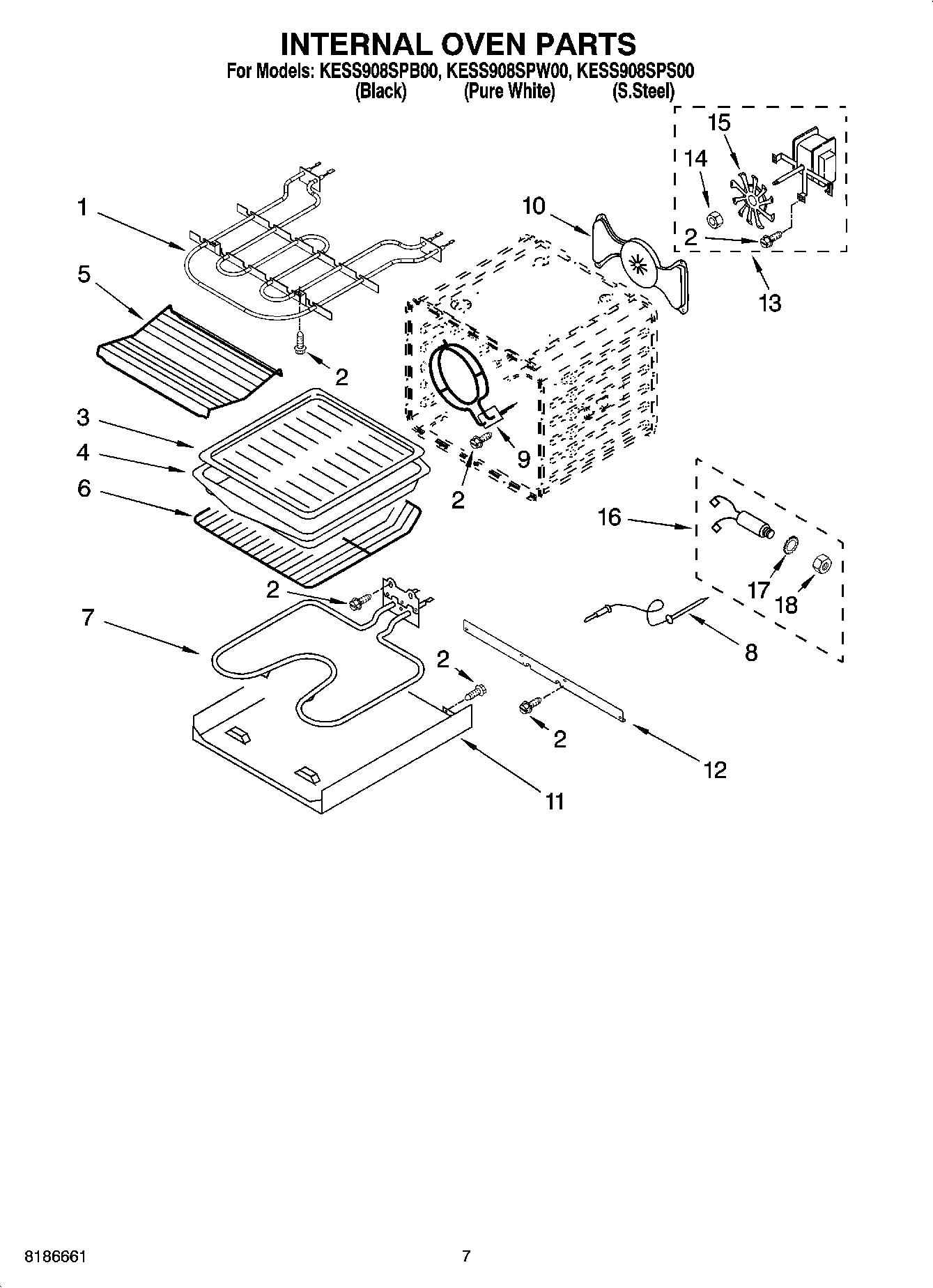

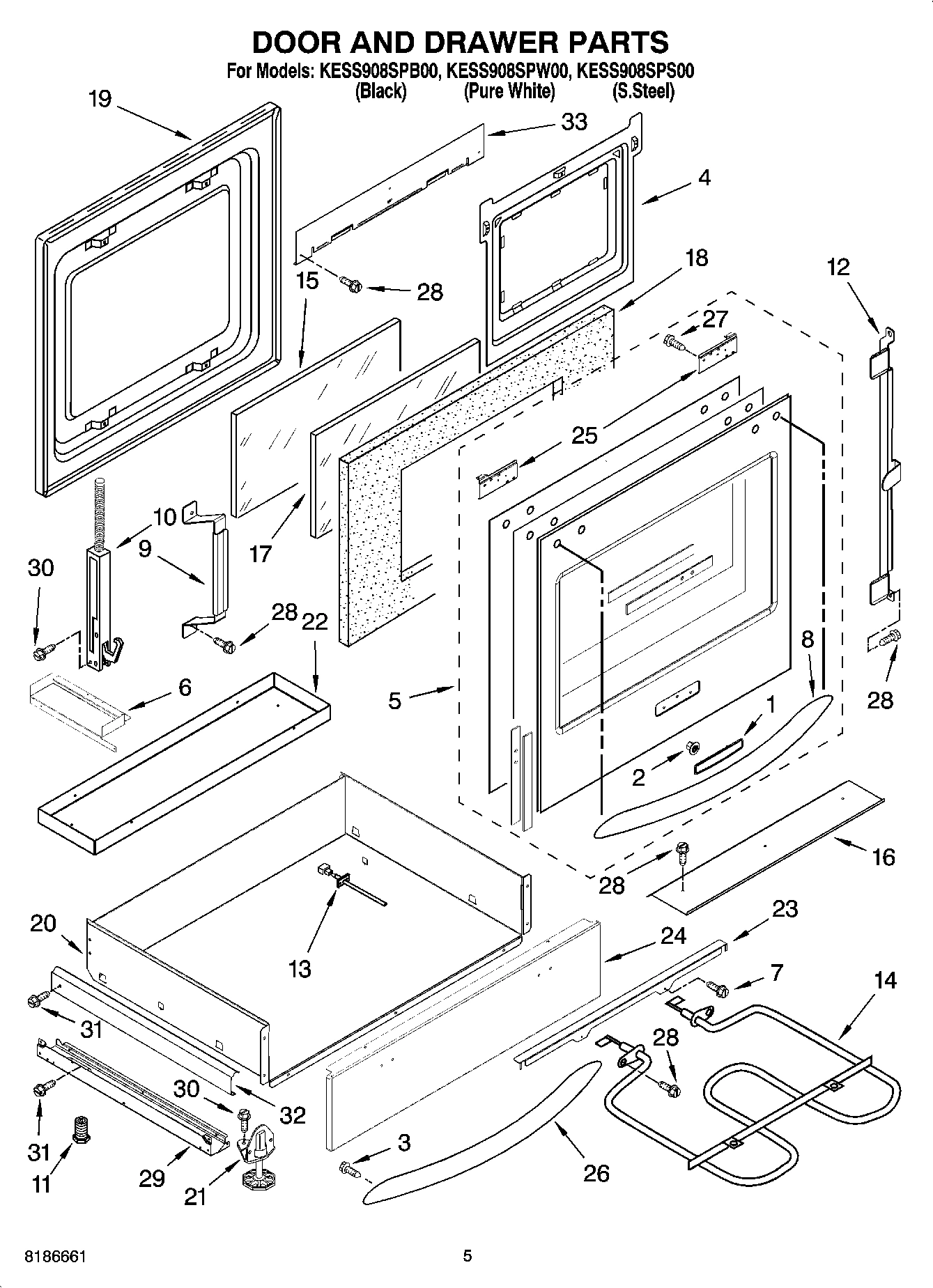

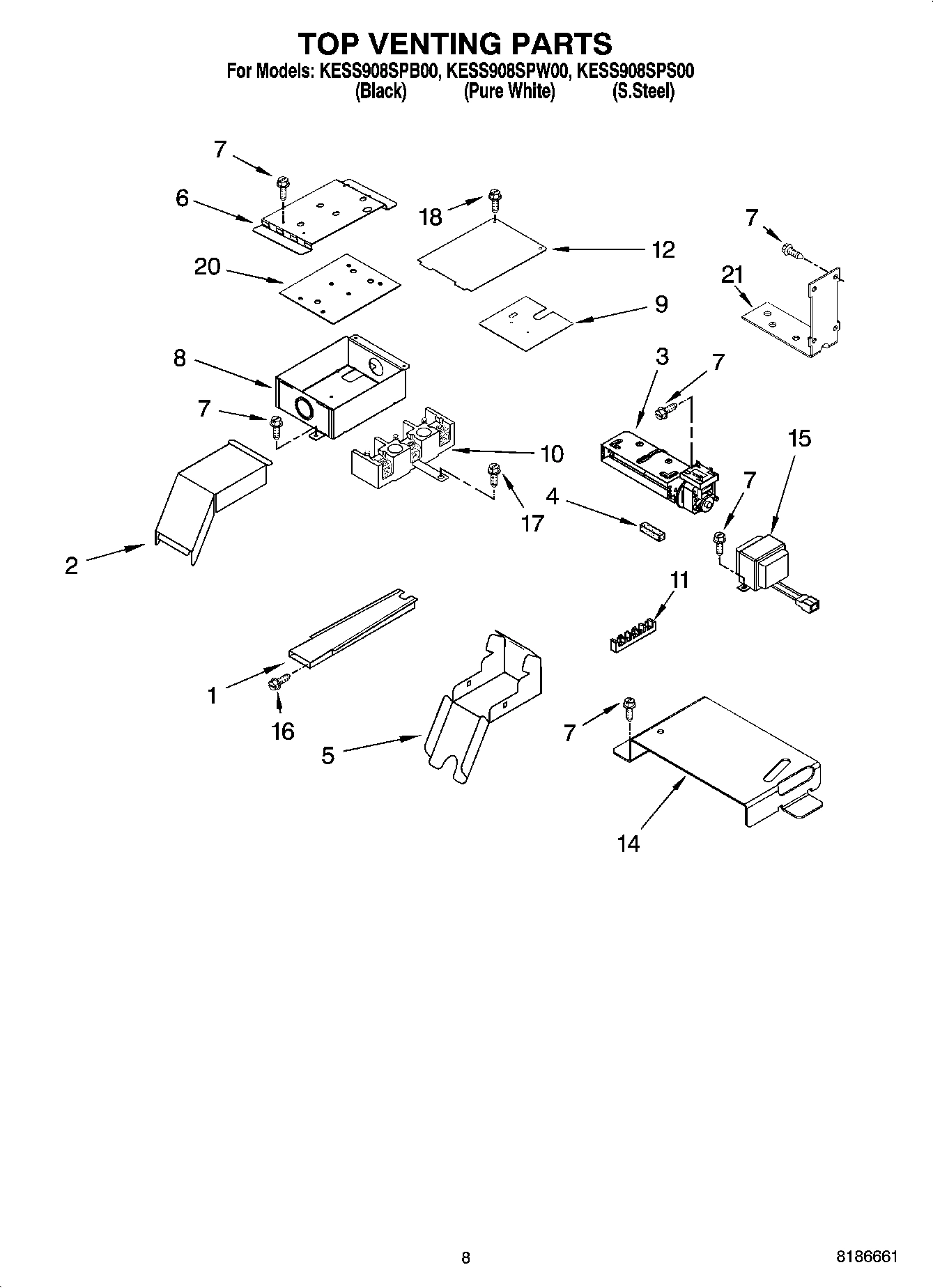

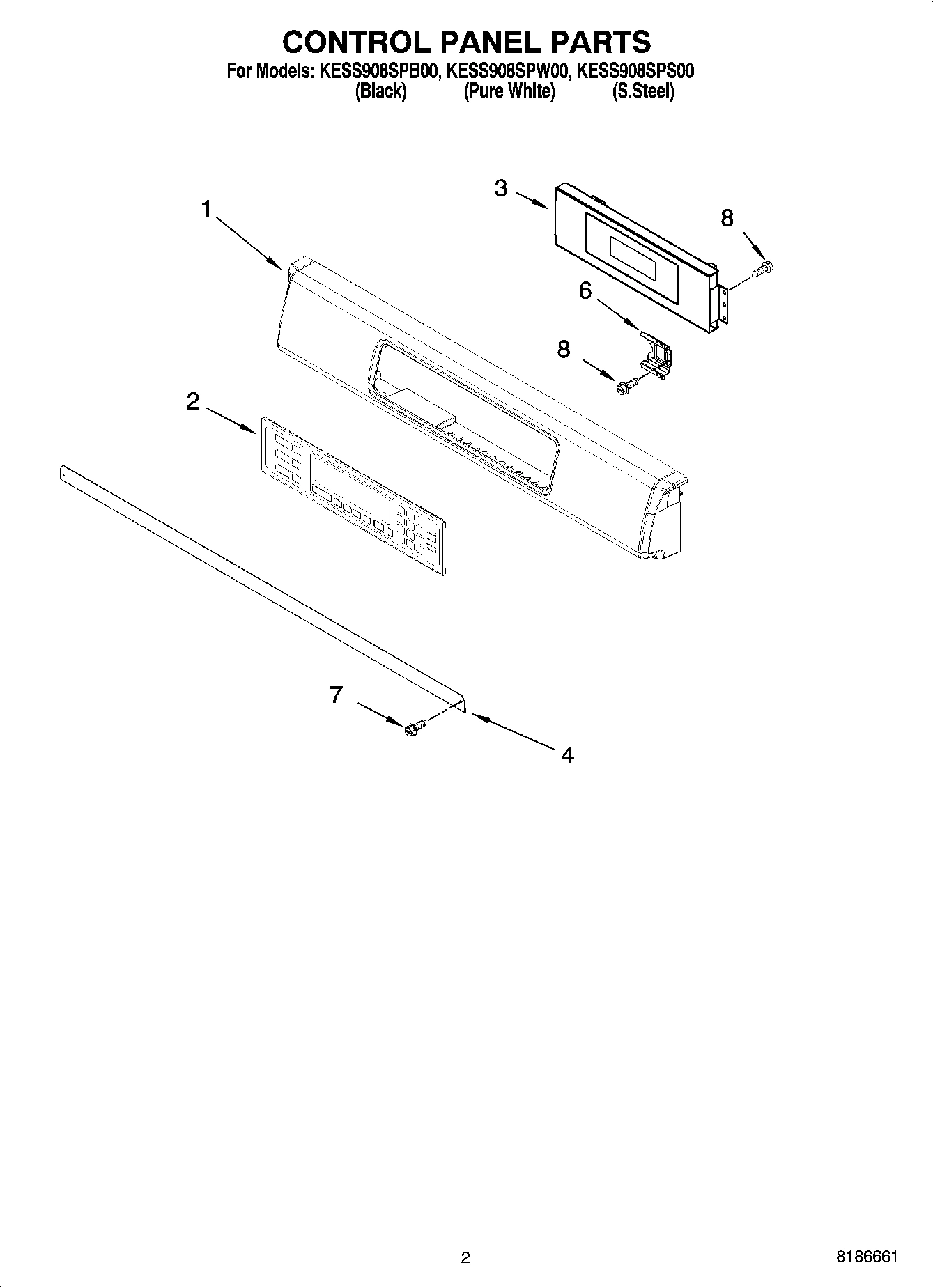

Model Whirlpool KESS908SPS00 30`` Slide-In ELECTRIC OVEN – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

814381 Whirlpool Pin Backorder WPL 814381 $3.70

9763481 Whirlpool Oven Wire Harness Backorder WPL 9763481 $28.80

WP112432 Whirlpool Nut Assembly Backorder WPL WP112432 $2.51

WP261869 Whirlpool Microwave Paint In Stock WPL WP261869 $9.88

WP482338 Whirlpool Refrigerator Adhesive In Stock WPL WP482338 $24.89

WPL 9762921 WPL 9762921 Contact Us For Availability

1

4451759 Whirlpool Oven Exhaust Vent Backorder WPL 4451759 $32.70

1

WP9760774 Whirlpool Oven Broil Element In Stock WPL WP9760774 $108.35

1

Safe Cooking Tips WPL 3191638 Contact Us For Availability

1

Anti-Tip Instruct. WPL 9757680 Contact Us For Availability

1

Safe Cooking Tips (French) WPL 9759133 Contact Us For Availability

1

Tech Sheet WPL 9762787 Contact Us For Availability

1

Installation Instructions WPL 9763461 Contact Us For Availability

1

Guide Easy Set WPL 9763467 Contact Us For Availability

1

Use & Care Guide WPL W10109440 Contact Us For Availability

1

Nameplate (Black) WPL 9763444BL Contact Us For Availability

1

Nameplate (S.Steel) WPL 9763444SS Contact Us For Availability

1

Nameplate (White) WPL 9763444WH Contact Us For Availability

2

4455178 Whirlpool Oven Top Elbow Backorder WPL 4455178 $9.48

2

WP3400832 Whirlpool Screw In Stock WPL WP3400832 $2.51

2

WP9761566 Whirlpool Membrane Switch Backorder WPL WP9761566 $218.38

2

Central, Appliance WPL 8285348 Contact Us For Availability

3

W10810687 Whirlpool Blower Assembly Backorder WPL W10810687 $144.86

3

WP3195996 Whirlpool Pan Grid Backorder WPL WP3195996 $41.94

3

WP3400805 Whirlpool Screw Assembly Backorder WPL WP3400805 $2.51

3

WP4455605 Whirlpool Left Hand Hinge In Stock WPL WP4455605 $54.02

3

WP4455606 Whirlpool Right Hand Hinge In Stock WPL WP4455606 $54.02

3

Bracket, Mounting WPL 9761422 Contact Us For Availability

4

W10737569 Whirlpool Broil Pan Backorder WPL W10737569 $60.42

4

WP4457132 Whirlpool Retainer Backorder WPL WP4457132 $102.32

4

Cooktop (Black) WPL 9762790BL Contact Us For Availability

4

Cooktop (White) WPL 9762790WW Contact Us For Availability

5

4455177 Whirlpool Oven Bottom Elbow Backorder WPL 4455177 $7.05

5

W10155557 Whirlpool Glass Door Backorder WPL W10155557 $290.84

5

Rack, Roasting WPL 3181534 Contact Us For Availability

5

Support, Module WPL 9757815 Contact Us For Availability

5

Glass, Door Front (Black) WPL 9762766BL Contact Us For Availability

5

Glass, Door Front (White) WPL 9762766WH Contact Us For Availability

6

WPW10179152 Whirlpool Rack Oven In Stock WPL WPW10179152 $63.24

6

Box, Touch Control WPL 9761638 Contact Us For Availability

6

Cover, Terminal WPL W10045140 Contact Us For Availability

7

4451175 Whirlpool Bake Element Backorder WPL 4451175 $96.47

7

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

7

Gasket WPL W10076020 Contact Us For Availability

8

WP9755542 Whirlpool Oven Meat Probe In Stock WPL WP9755542 $55.46

8

Gasket WPL W10076030 Contact Us For Availability

8

Handle, Door (Black) WPL 8303774BL Contact Us For Availability

8

Handle, Door (S.Steel) WPL 8303774SS Contact Us For Availability

8

Handle, Door (White) WPL 8303774WH Contact Us For Availability

9

9759721 Whirlpool Oven Insulator Backorder WPL 9759721 $39.35

9

WP9760769 Whirlpool Element Assembly In Stock WPL WP9760769 $133.70

9

Support (L.Hand) WPL 9757686 Contact Us For Availability

9

Support (R.Hand) WPL 9757687 Contact Us For Availability

9

Bracket, Central WPL 9759230 Contact Us For Availability

W10860133 Whirlpool Convection Baffle Backorder WPL W10860133 $104.20

WP9756821 Whirlpool Support Backorder WPL WP9756821 $28.05

WP9760574 Whirlpool Door Hinge (Left Hand) In Stock WPL WP9760574 $38.08

WP9760579 Whirlpool Right Door Hinge Backorder WPL WP9760579 $39.62

WP9761958 Whirlpool Range Terminal Block In Stock WPL WP9761958 $13.67

Lens, Light WPL W10067870 Contact Us For Availability

11

WPW10058460 Whirlpool Appliance Levelling Leg In Stock WPL WPW10058460 $3.70

11

Tray, Hidden Bake WPL 4455037 Contact Us For Availability

4450039 Whirlpool Oven Access Cover Backorder WPL 4450039 $28.80

WP4453907 Whirlpool Surface Element Backorder WPL WP4453907 $123.05

WP8285232 Whirlpool Surface Element Assembly Backorder WPL WP8285232 $163.58

WP9759229 Whirlpool Mounting Bracket Backorder WPL WP9759229 $60.69

Cover, Term Box WPL 9757405 Contact Us For Availability

Element, Surface (LF) WPL 4453908 Contact Us For Availability

Element, Surface (RR) WPL 4453910 Contact Us For Availability

13

WP8274149 Whirlpool Sensor Assembly Backorder WPL WP8274149 $108.51

13

Motor Convection WPL 4451583 Contact Us For Availability

13

Bracket, Front Support WPL 9761423 Contact Us For Availability

14

9760775 Whirlpool Oven Warm Element Backorder WPL 9760775 $69.67

14

Nut WPL 4452227 Contact Us For Availability

14

Seal, Heat WPL 9761663 Contact Us For Availability

W11675844 Whirlpool Oven Gasket In Stock WPL W11675844 $25.44

WP4452226 Whirlpool Convection Fan Backorder WPL WP4452226 $26.94

WP9757063 Whirlpool Electronic Control Board Backorder WPL WP9757063 $234.45

WP9757706 Whirlpool Door Inner Glass Backorder WPL WP9757706 $73.34

4457114 Whirlpool Oven Heat Shield Backorder WPL 4457114 $82.55

8186589 Whirlpool Jack Probe In Stock WPL 8186589 $60.42

WP9759944 Whirlpool Thermostat Backorder WPL WP9759944 $68.85

Screw WPL 4449040 Contact Us For Availability

4452152 Whirlpool Oven Mounting Bracket Backorder WPL 4452152 $13.12

WP9755547 Whirlpool Lockwasher Backorder WPL WP9755547 $3.51

WP9759225 Whirlpool Inner Door Glass In Stock WPL WP9759225 $82.93

Screw WPL 3400080 Contact Us For Availability

18

W10491985 Whirlpool Screw In Stock WPL W10491985 $2.51

18

WP4451722 Whirlpool Door Insulation Assembly Backorder WPL WP4451722 $65.32

18

WP9755546 Whirlpool Locknut Backorder WPL WP9755546 $2.51

19

9759094 Whirlpool Spring Backorder WPL 9759094 $4.85

19

WP9759413 Whirlpool Door Liner Backorder WPL WP9759413 $138.47

20

Bracket, Rear Sprt WPL 9761768 Contact Us For Availability

20

Drawer Assy WPL 9757805 Contact Us For Availability

21

WP3196037 Whirlpool Leveling Foot Backorder WPL WP3196037 $26.50

21

Rail, Element (Side (2)) WPL 9757824 Contact Us For Availability

21

Rail, Element (Center (1)) WPL 9757825 Contact Us For Availability

22

WP486754 Whirlpool Compactor Screw Backorder WPL WP486754 $2.51

22

WP9760889 Whirlpool Door Latch In Stock WPL WP9760889 $218.57

22

Panel, Drawer WPL 9763456 Contact Us For Availability

23

Thermostat SPST (205) WPL 341196 Contact Us For Availability

23

Cover, Cktp Rear WPL 9761723 Contact Us For Availability

23

Support, Element WPL 9758676 Contact Us For Availability

24

Front, Drawer (Black) WPL 9761747BL Contact Us For Availability

24

Front, Drawer (S.Steel) WPL 9761747SS Contact Us For Availability

24

Front, Drawer (White) WPL 9761747WH Contact Us For Availability

25

W10782197 Whirlpool Side Panel Backorder WPL W10782197 $54.63

25

Bracket, Handle (L.Hand) WPL 9763496 Contact Us For Availability

25

Bracket, Handle (R.Hand) WPL 9763497 Contact Us For Availability

WP4449745 Whirlpool Screw Backorder WPL WP4449745 $2.51

Back, Chassis WPL 9759761 Contact Us For Availability

Handle, Drawer (Black) WPL 9761573BL Contact Us For Availability

Handle, Drawer (S.Steel) WPL 9761573SS Contact Us For Availability

Handle, Drawer (White) WPL 9761573WH Contact Us For Availability

27

WP8533988 Whirlpool Screw Fastener In Stock WPL WP8533988 $2.51

27

Liner, Oven (Not serviceable) WPL ARI86897A6 Contact Us For Availability

28

WP4449809 Whirlpool Screw In Stock WPL WP4449809 $2.51

28

Cover, Rear Standoff WPL 9759945 Contact Us For Availability

29

WPW10131825 Whirlpool Oven Temperature Sensor In Stock WPL WPW10131825 $54.84

29

Side, Base (R.Side) WPL 9759953 Contact Us For Availability

29

Side, Base (L.Side) WPL 9759954 Contact Us For Availability

30

Bracket, GOC WPL 9756454 Contact Us For Availability

31

W10083460 Whirlpool Slide Assembly Backorder WPL W10083460 $56.45

31

WP3196557 Whirlpool Screw In Stock WPL WP3196557 $2.51

32

WPW10155632 Whirlpool Slide Drawer Assembly Backorder WPL WPW10155632 $46.92

32

WPW10155633 Whirlpool Drawer Slide Rail Backorder WPL WPW10155633 $44.69

33

Insulation, Bottom Vent WPL 9757717 Contact Us For Availability

33

Shield, Heat Top WPL 4457103 Contact Us For Availability

34

WP4449743 Whirlpool Screw Backorder WPL WP4449743 $2.51

37

WP9759242 Whirlpool Thermostat In Stock WPL WP9759242 $45.37

38

WP4449154 Whirlpool Screw Backorder WPL WP4449154 $2.51

43

Base, Chassis WPL 9759713 Contact Us For Availability

49

WP4448933 Whirlpool Retainer Backorder WPL WP4448933 $2.51

50

Cover, Back WPL 9758583 Contact Us For Availability

54

Vent, Bottom Upper (Black) WPL 9756481BL Contact Us For Availability

54

Vent, Bottom Upper (S. Steel) WPL 9756481SS Contact Us For Availability

54

Vent, Bottom Upper (White) WPL 9756481WH Contact Us For Availability

Insulation, Wrap WPL 9756817 Contact Us For Availability

Insulation, Back WPL 9756470 Contact Us For Availability

FOLLOWING PARTS NOT ILLUSTRATED INSULATION WPL ARI86898A9 Contact Us For Availability

Trim, Btm Vent (S.Steel) WPL W10104870 Contact Us For Availability

Trim, Btm Vent (Black) WPL W10104890 Contact Us For Availability

Tri WPL W10104910 Contact Us For Availability
